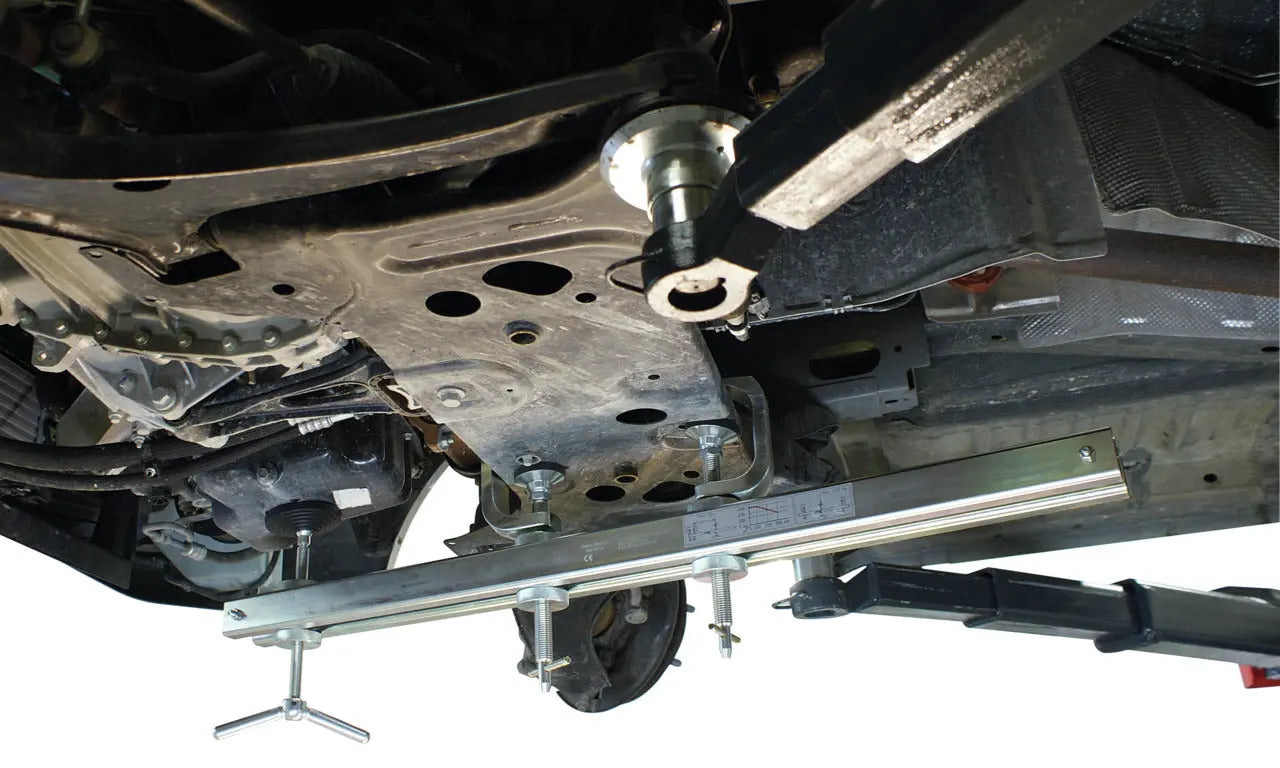

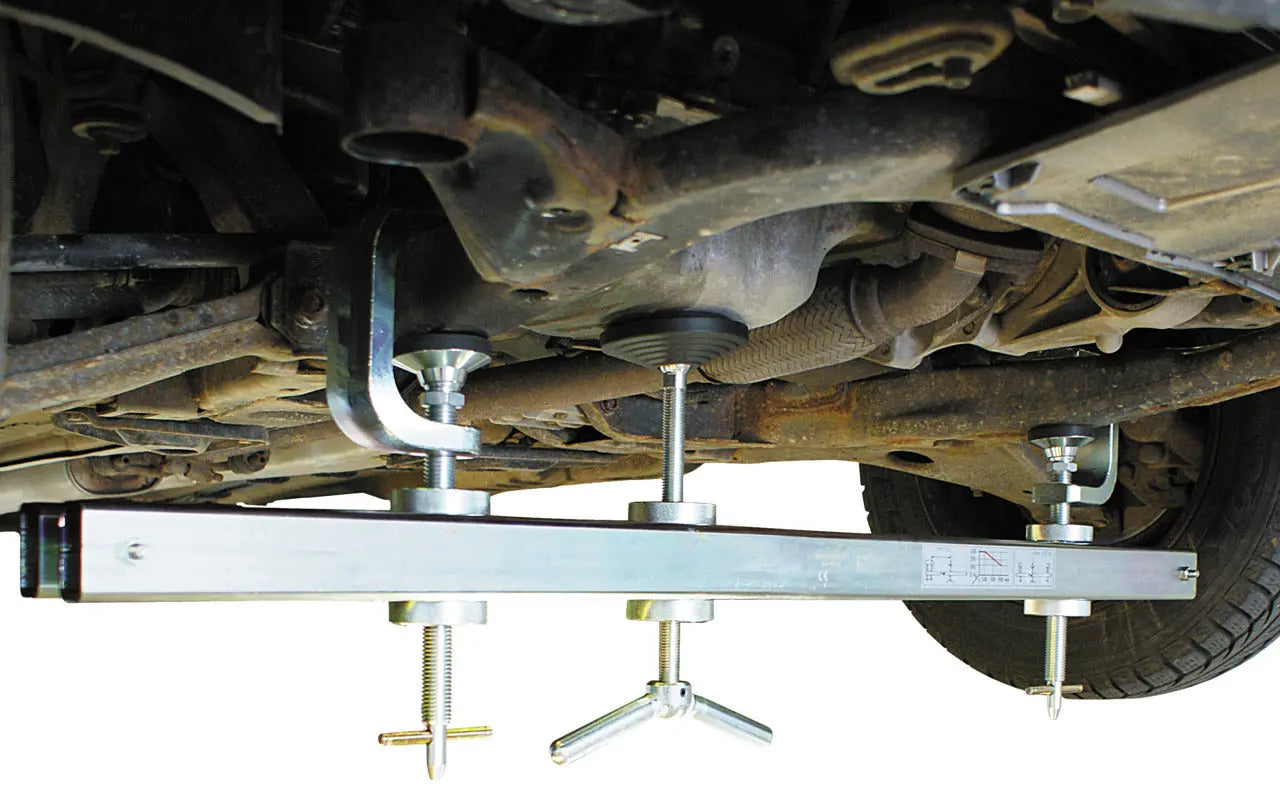

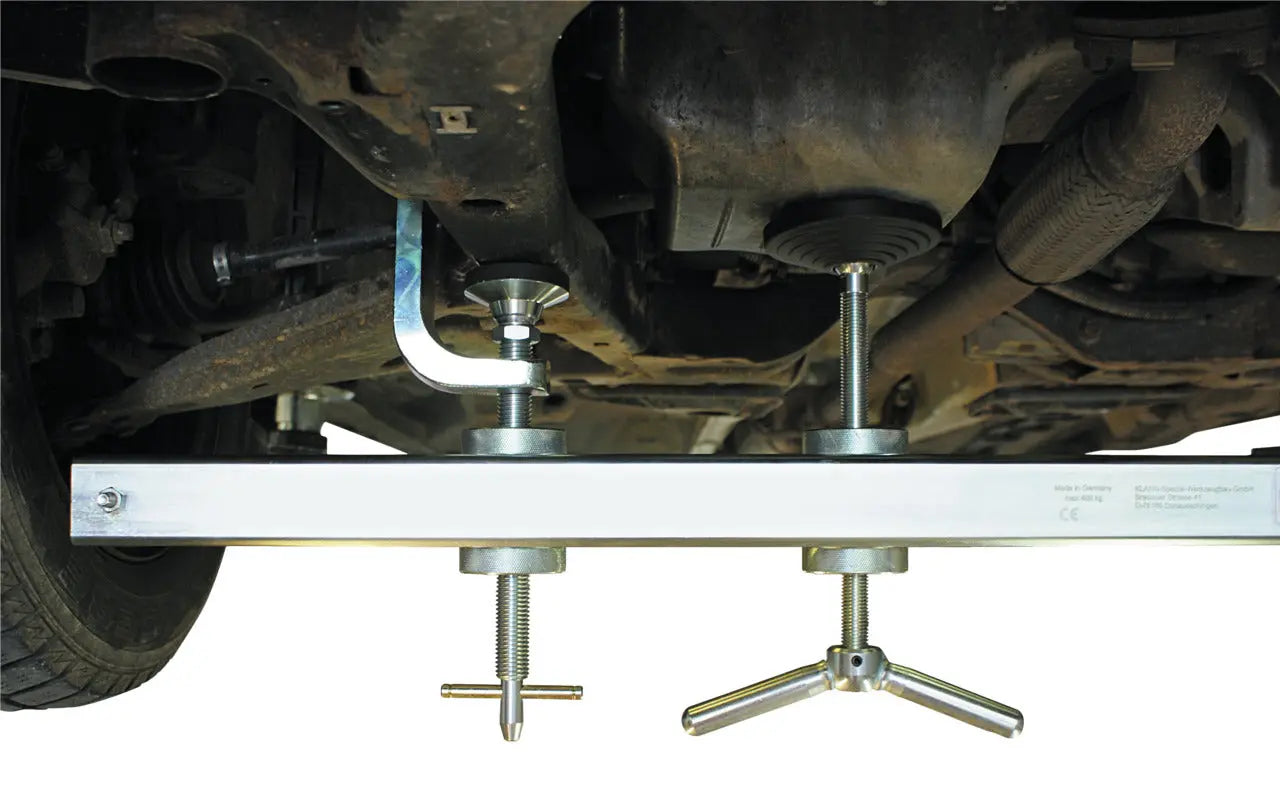

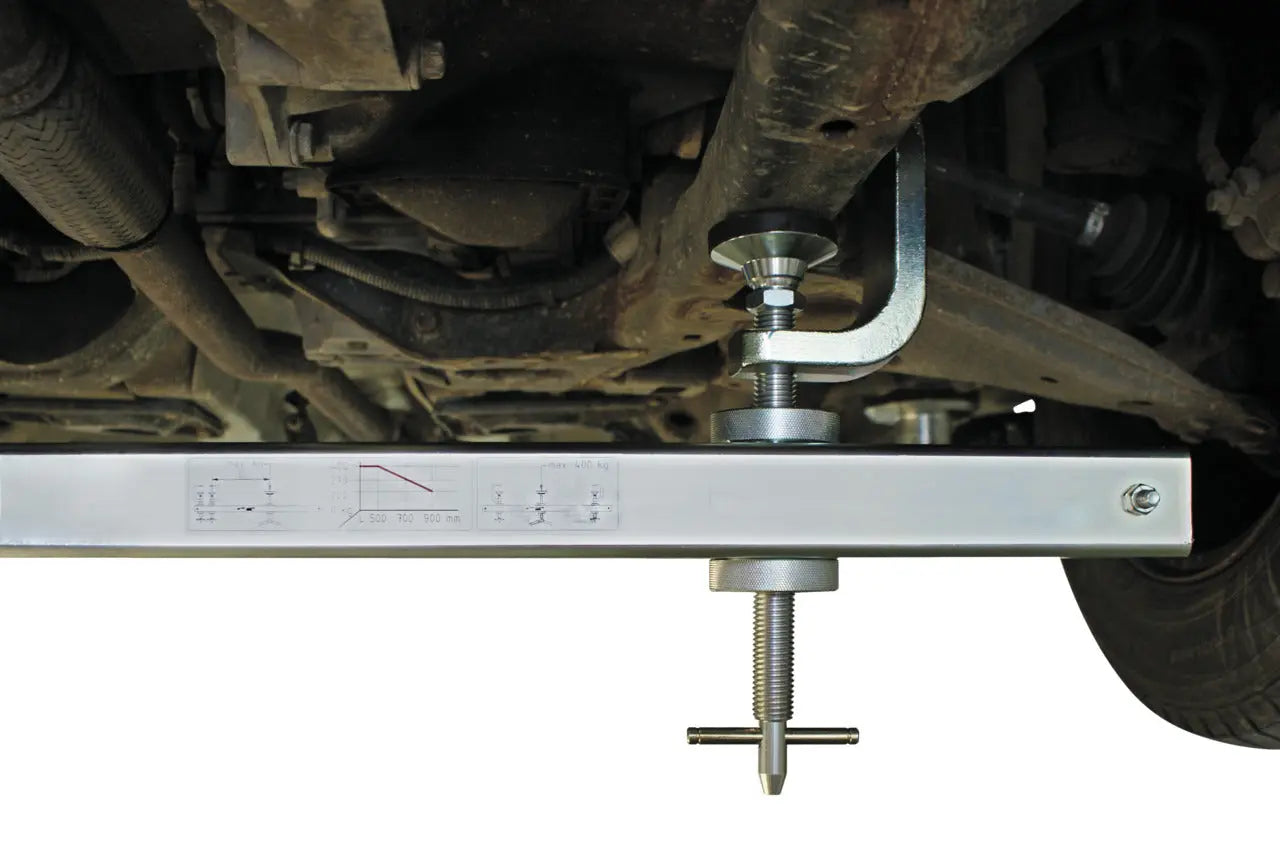

Gedore 2841576 Supporting Device for Engines, 70mm - GD KL-0146-20

Working on the timing belt side engine mount, for example when changing a timing belt, replacing a water pump etc., is day-to-day work in the garage. Almost every mechanic knows firsthand the problems that can occur when it comes to loosening the side engine mount of transverse-mounted engines. Here, the use of a supporting device, engine crane or engine stand is indispensable. Such devices, however, can make work even more difficult since the engine is no longer properly secured and access will be very limited or sometimes even impossible. The innovative KL-0146-20 engine support device from GEDORE Automotive now offers the perfect solution to these problems. The special design of the device with its clamping hook assembly featuring large and individually adjustable clamping hooks with wide supporting surfaces, the unique fastening mechanism enabling the engine support to be fixed to the vehicle frame, and the cleverly designed support plate assembly with its adjustable tilting support pad (100mm) ensure safe and solid support of the engine. This allows the mechanic to conveniently work on the engine from the top as well as from the bottom, with the engine always safely supported and secured against the risk of dropping - even when performing tasks such as turning engine shafts, loosening and tightening fastening screws etc. The clamping hooks are 360 degree rotatable and can be arranged universally to fit almost any vehicle width. Once the device clamping hooks have been correctly positioned on the vehicle frame, these can easily be tightened to securely fix the support assembly to the vehicle. This prevents the engine support device from any slipping or dropping. The ingenious KL-0146-20 engine support device from GEDORE Automotive offers you a maximum of safety and functionality combined with a wide range of application possibilities - without the need for additional accessories such as vehicle-specific adaptors etc. Due to its special design, the individually adjustable and large-area clamping hooks, the correspondingly large support surfaces and the unique fixation of the support device to the vehicle frame, the engine is fixed and supported in its position via the 100 mm support plate. This gives the mechanic free access from above and below and at the same time a securely held engine, even e.g. when turning the engine shafts, loosening and tightening fastening bolts, etc. The tensioning hooks can be rotated 360 degree and can be arranged universally depending on the vehicle characteristics. After the support device or the tensioning hooks have been hooked onto the vehicle, they are tightened on the vehicle and on the support device. Slipping or even slipping off of the support device is therefore not possible. The KL-0146-20 support device offers maximum safety with a universal range of applications without the need for further accessories such as vehicle-specific brackets, etc.

Features:

• Universally suitable for supporting car engines
• For simple and safe support of car engines
• Large support surfaces
• Individually adjustable
• Unique fixing of the support device to the vehicle frame
• Free access to the engine from above and below
• Tensioning hooks 360 degree rotatable
• Universal fit to support passenger car engines

Specifications:

• Suitability: Universal
• Clamping Hook Width: 50mm
• Clamping Range: 70mm
• Length: 1.100mm
• Load (Max.): 100 - 300 kgs
• Mounting Diameter: 100mm
• Pressure Spindle Adjustment: 120mm
• Weight: 36.38 lbs
• Country of Origin: Germany
