Gedore 2842807 Hydraulic Press Set without Drive, Width 445mm - GD KL-0326-161 E

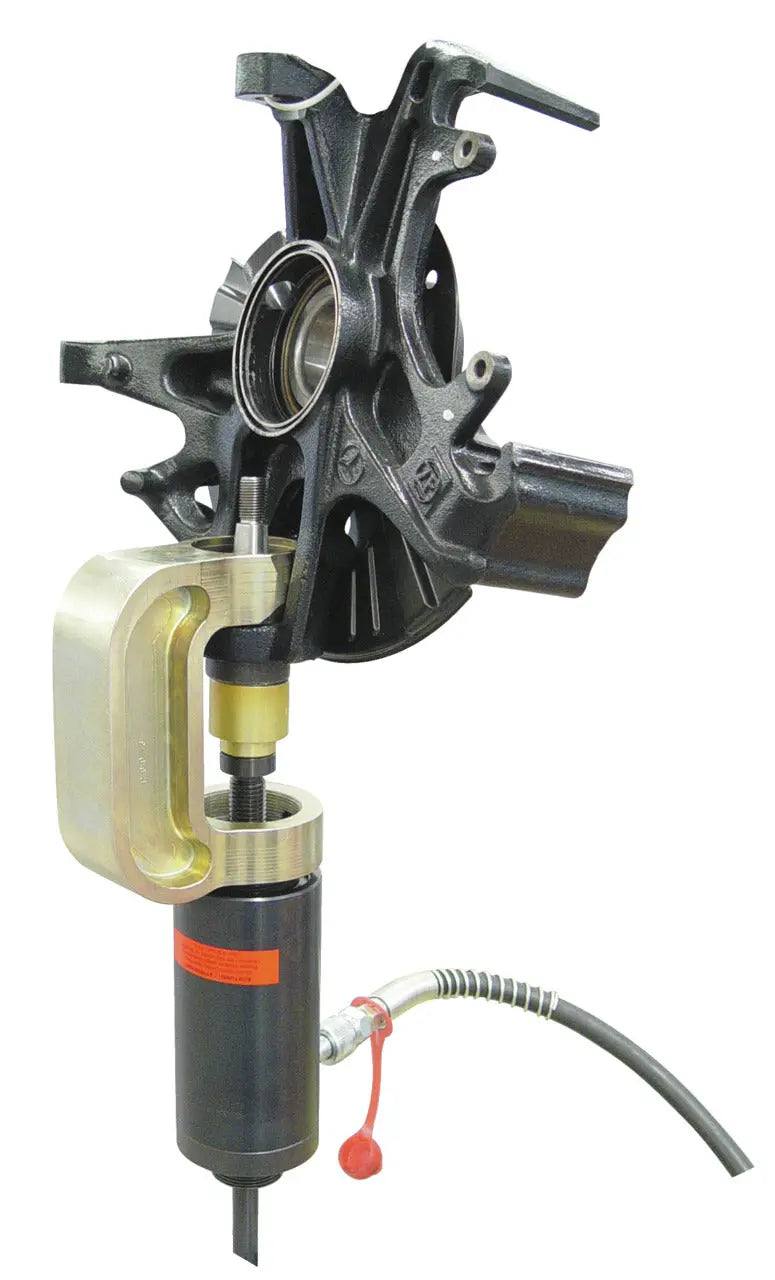

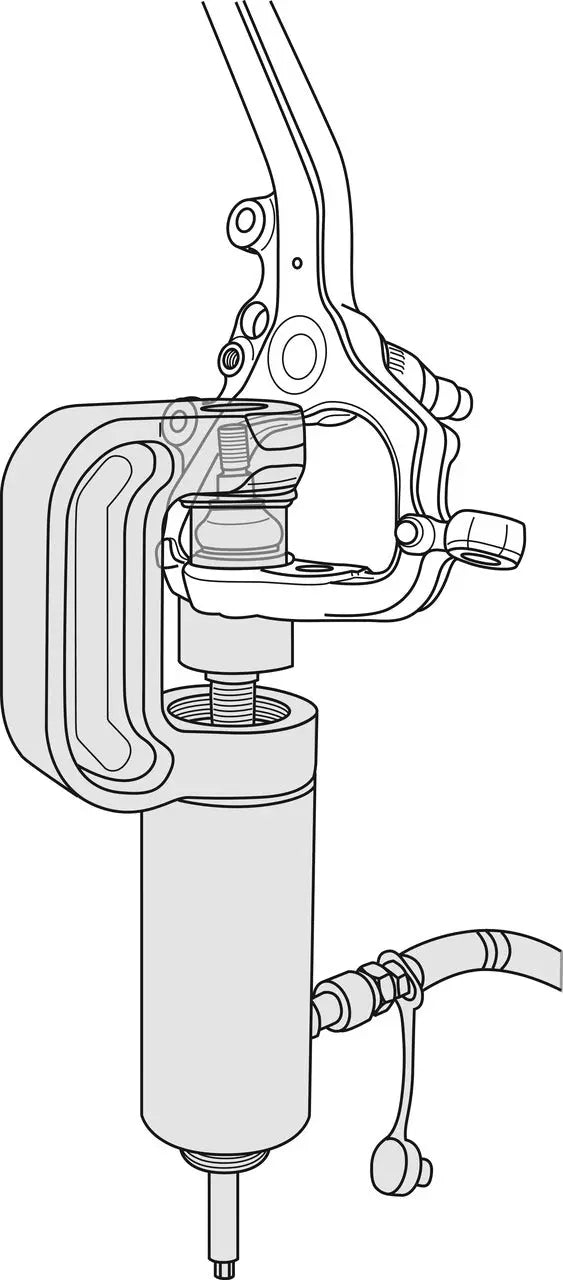

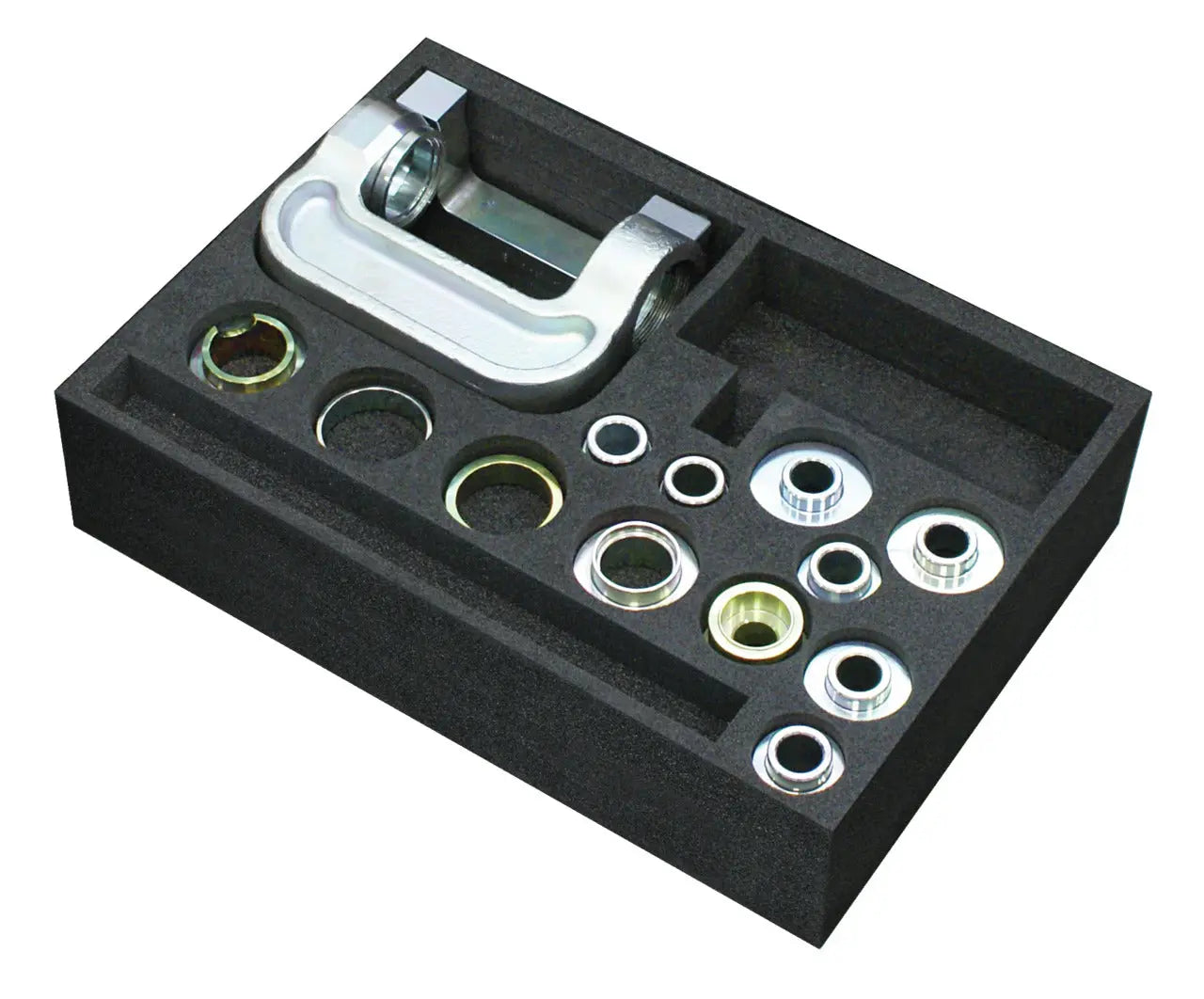

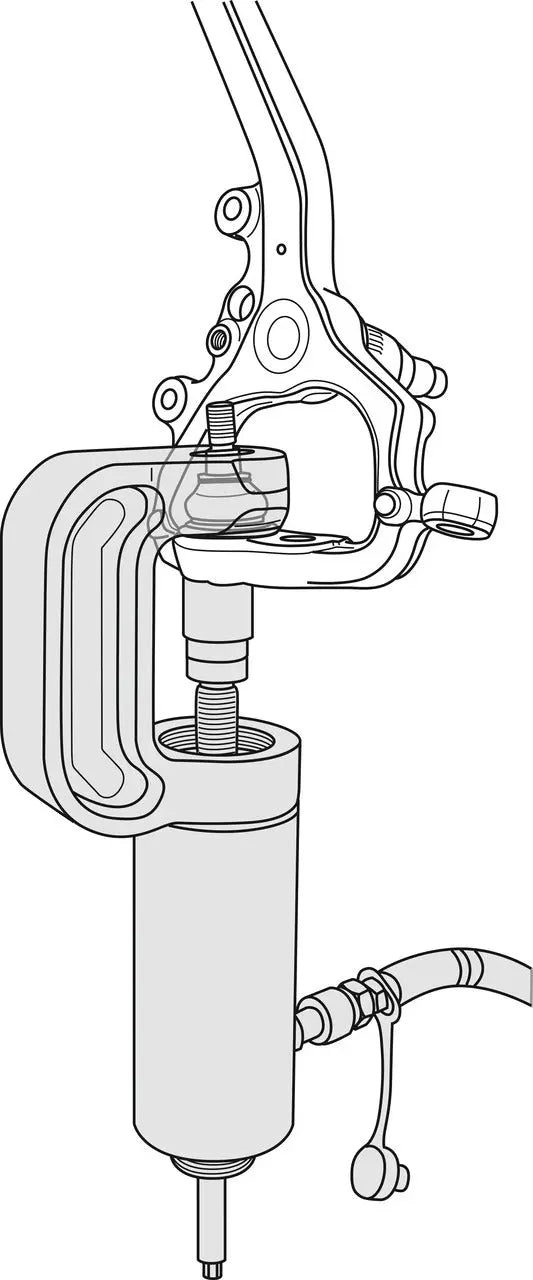

The KL-0326-161 E hydraulic press tool set is designed to be used in conjunction with a hydraulic pump such as the KL-0215-35 M25 and hydraulic cylinder KL-0040-2500, thus enabling lower and upper ball joints to be pressed into and pressed out of the lower wishbone quickly and without any trouble. Removal and installation of the ball joints can sometimes also be carried out in situ on the vehicle within just a few minutes without the need for dismounting the wishbone. The tool control foam insert of the KL-4999-131. Series is designed to keep the tools of the KL-0326. Tool Series always properly organized and well protected. The module can conveniently be stored in a workshop trolley such as the KL-4999-120 but also fits snugly in the robust stackable plastic storage cases of the KL-4999-139. Series. This ingenious tool storage system from GEDORE Automotive allows you to find the tool you need quickly and easily, and to identify missing tools at a glance. As a result, repairs can be carried out more efficiently - saving you time and money. The foam insert is provided with specifically tool-shaped spaces to ensure that tools are safely stored and can be taken out and put back in place with ease. The removal and installation of the suspension joint can be partly performed on the vehicle within several minutes without removing the wishbone.
Features:
- For a quick removal and installation of silent blocks, suspension and guide joints
- Unnecessary to remove the corresponding component
- Additional drive parts required
- Fits universally for suspension and guide joints
- Especially suitable for Mercedes W201 (190), W124 (E-Class), W211 (E-Class), W219 (CLS), W220 (S-Class), W230 (SL) and VW T4 suspension joint front axle and W163 (M-Class) suspension joint front and rear axle as well as Mercedes W211 (E-Class), W219 (CLS), W220 (S-Class), W230 (SL) guide joint front axle
Specifications:
- Suitability: Universal, Mercedes
- Depth: 305mm
- Drive Type: Hydraulic
- Height: 130mm
- Storage: Foam Insert
- Weight: 24.7 lbs
- Width: 445mm
- Country of Origin: Germany
Scope of Delivery:

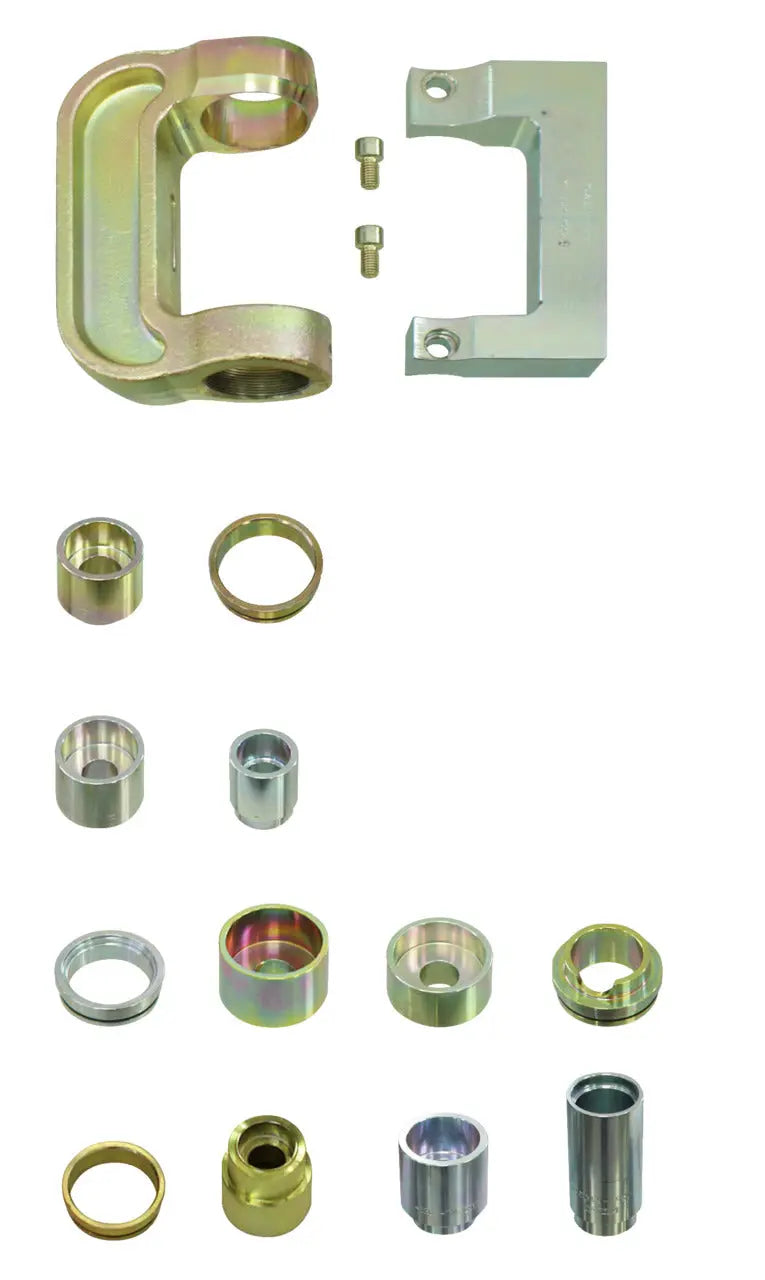

1 x KL-0039-1634 - Pressure / support sleeve short 34 / 26mm dia., 1 x KL-0039-1640 - Pressure / support sleeve short 40 / 32mm dia., 1 x KL-0039-1642 - Pressure / support sleeve short 42 / 34mm dia., 1 x KL-0039-1650 - Pressure / support sleeve short 50 / 42mm dia., 1 x KL-0043-8662 A - Sleeve top VW-T4, 1 x KL-0326-1000 - Press frame, 1 x KL-0326-1111 - Adaptor ring 1 with O-ring, 1 x KL-0326-1311 - Adaptor ring 3 with O-ring 1 x KL-0326-1312 A - Adaptor ring 4, 1 x KL-0326-1313 A - Pressure / support sleeve 60 / 52mm dia.,1 x KL-0326-1314 - Pressure / support sleeve 56 / 48mm dia., 1 x KL-0326-1411 - Adaptor ring 5 with O-ring, 1 x KL-0350-5102 - Pressure sleeve, 1 x KL-4999-1319 - Foam insert
