Gedore 2915685 Pull Spindle Set with Quick-Action Clamping Nut, Mechanical, M16 - GD KL-0039-2216

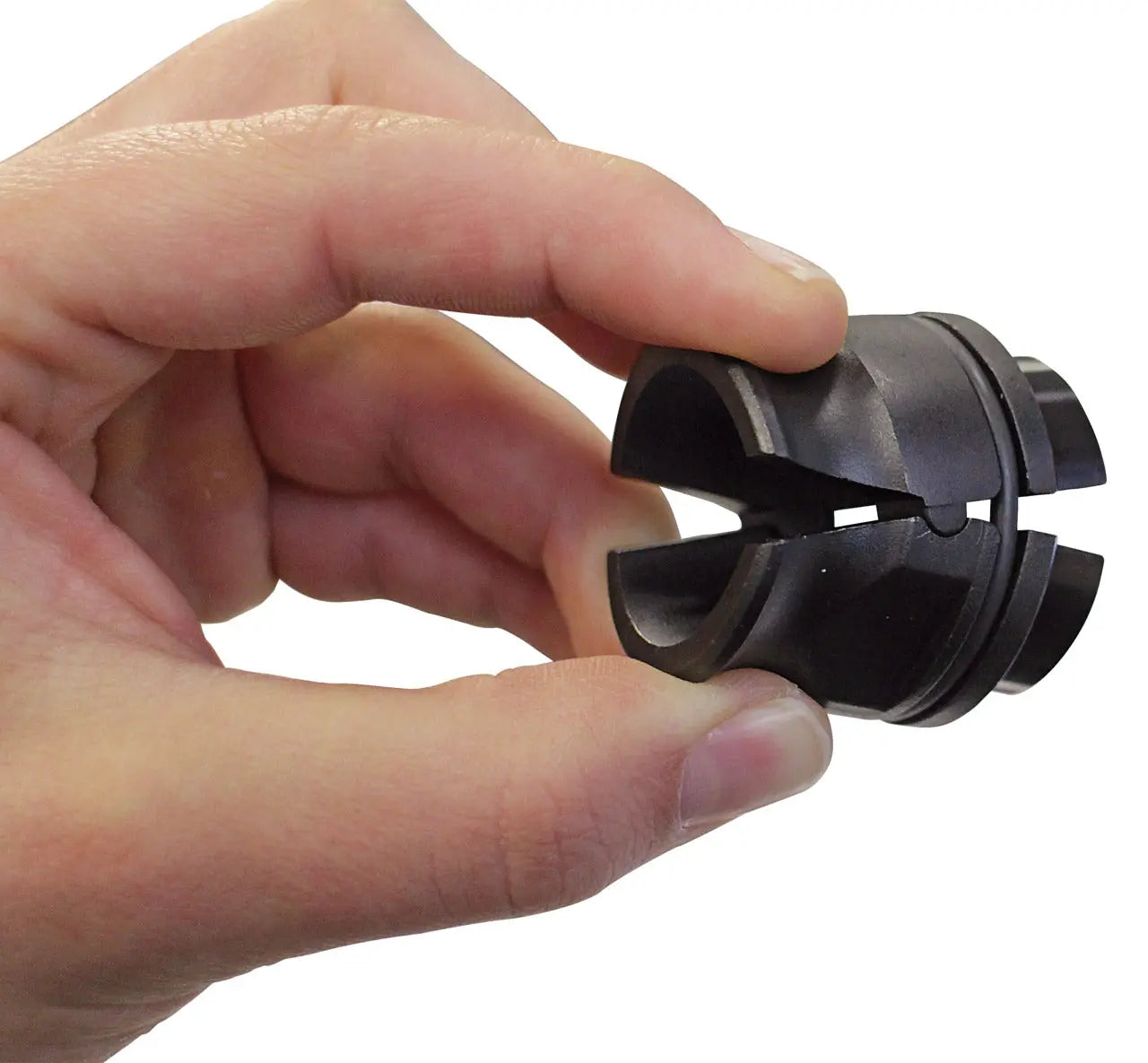

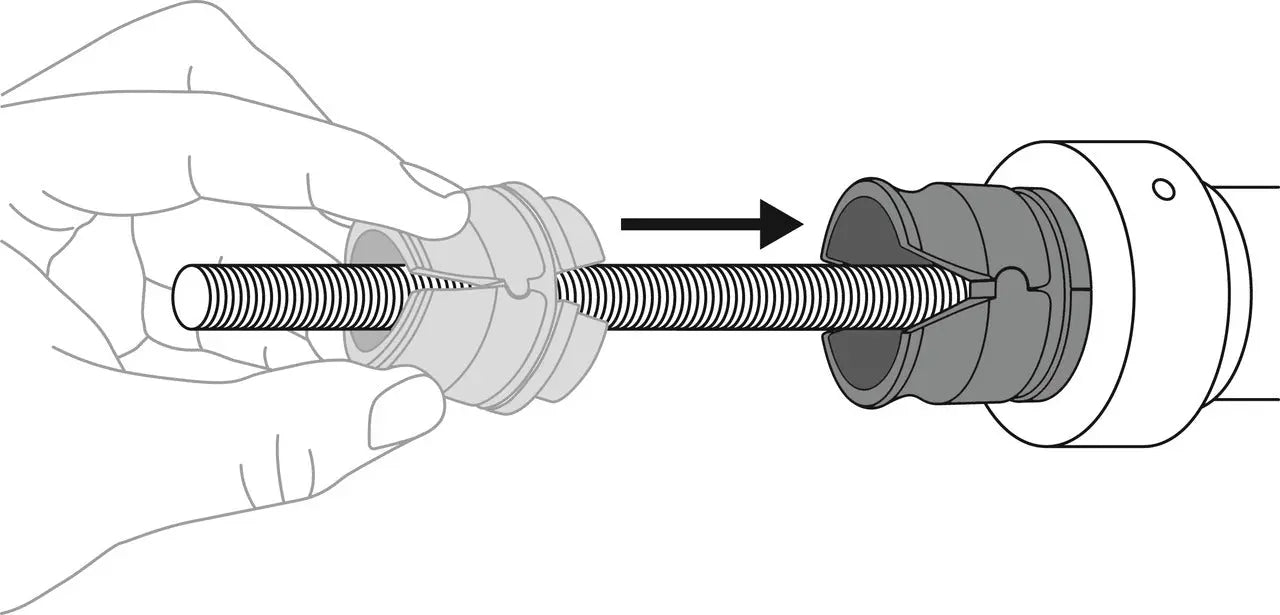

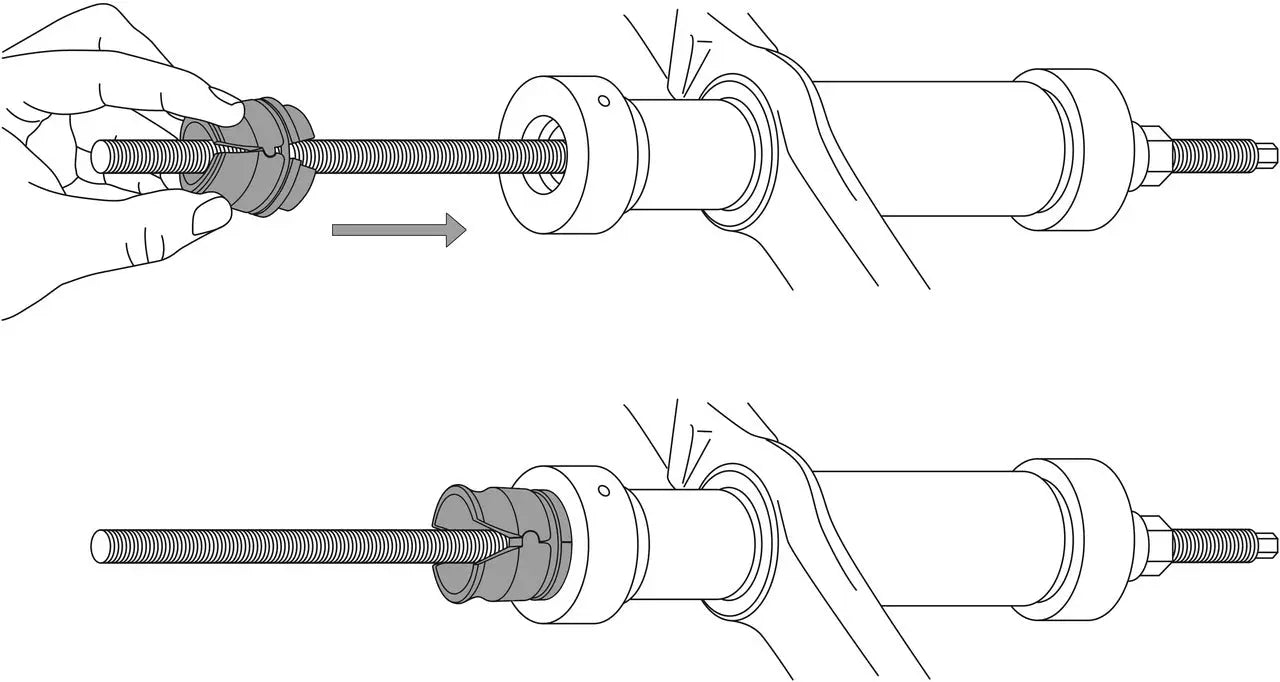

The pull spindle with shoulder nut and quick-action clamping nut is used in conjunction with the tools of the KL-0039. Series to allow bearings, bushings, joints etc. to be removed and installed mechanically. Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement. This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool. Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement. This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool. To prevent the quick-release nut from opening under load, secure it by the collar together with a suitable pressure/support sleeve, an adaptor, or a retaining ring.
Features:
- For the mechanic drive of the KL-0039 series
- High time saving due to quick-clamping function
Specifications:
- Suitability: Universal
- Drive (Hex): 10mm
- Drive (Nut): 27mm
- Drive Type: Mechanical
- Load (Max.): 13T
- Spindle Length: 395mm
- Thread: M16
- Thread Length: 370mm
- Weight: 1.76 lbs
- Country of Origin: Germany
Scope of Delivery:
1 x KL-0039-2016-1 - Pull spindle M16, 1 x KL-0039-1916-2 - Collar nut M16, 1 x KL-0039-2116-2 - Quick-clamping nut M16
