Gedore 2938014 Upgrade Kit for KL-0186-14, M8 - GD KL-0186-132

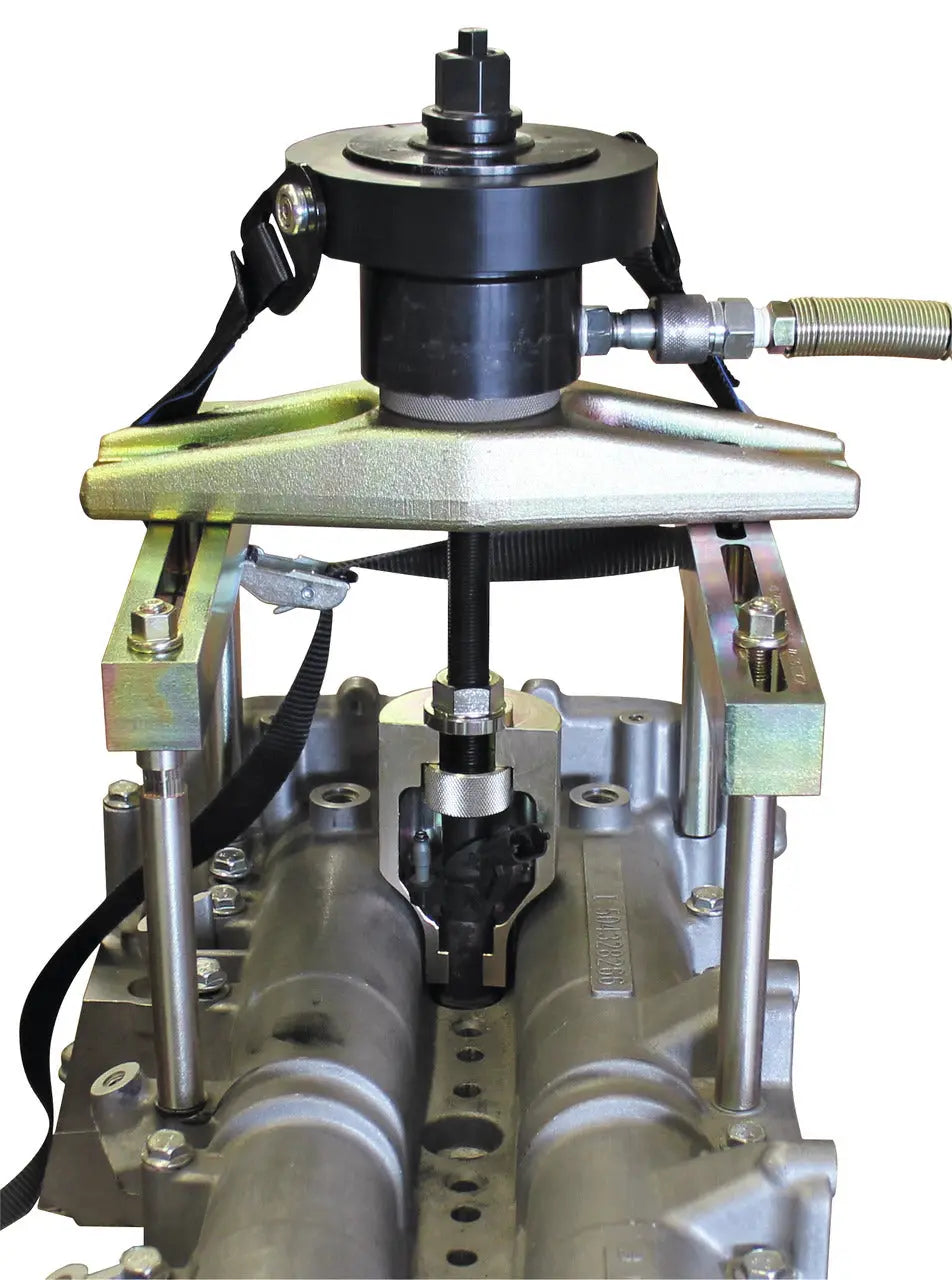

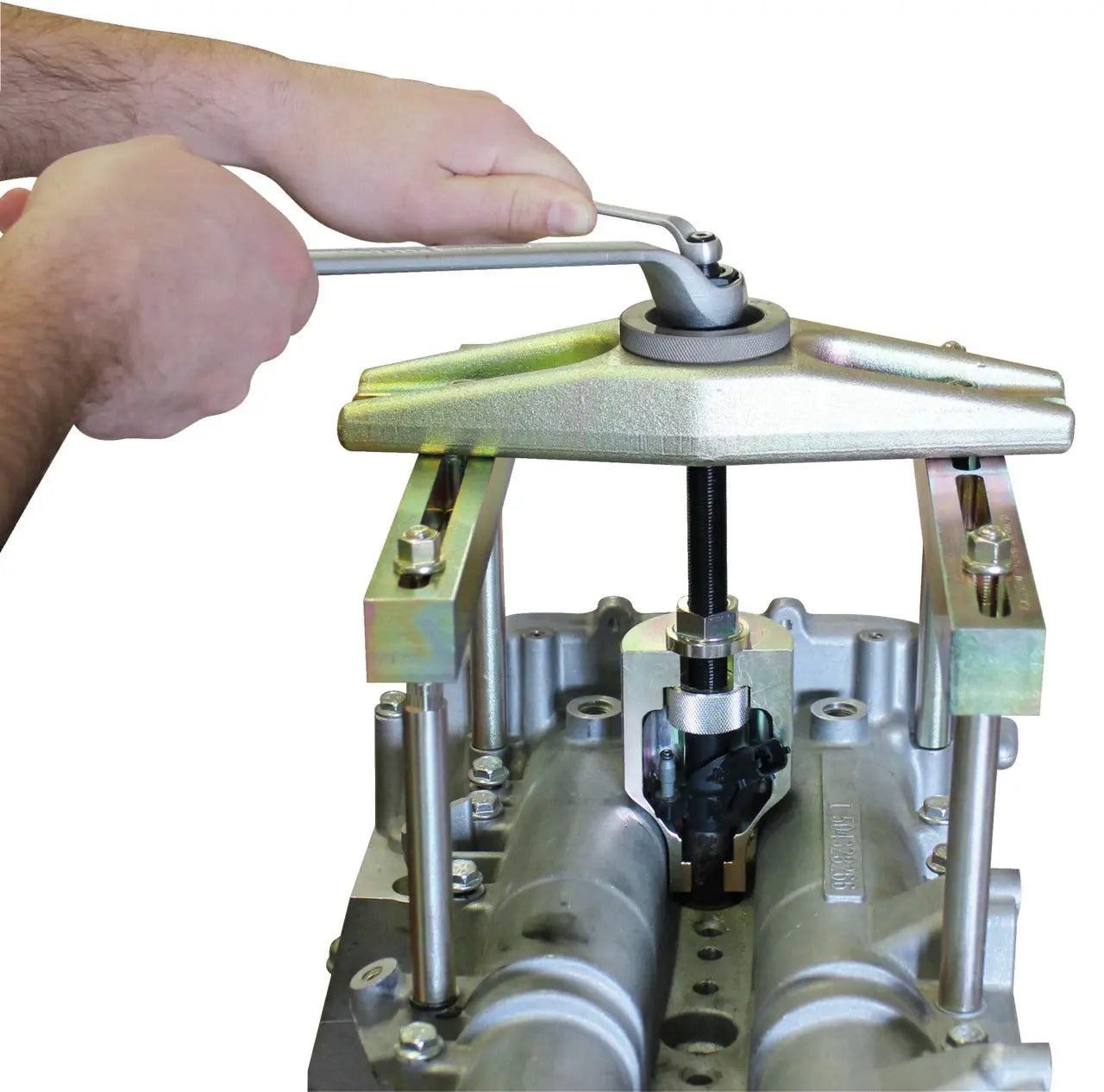

The KL-0186-132 upgrade kit is used in conjunction with the universal injector nozzle puller set KL-0186-14 K and upgrade kit KL-0186-130 to allow the removal of very tight-fitting/seized injector nozzles to be performed in situ on the vehicle without the need for dismounting the cylinder head. The injector can be extracted in one piece quickly and easily using the special puller claw and the KL-0583-1032 pull spindle (supplied with KL-0186-130). The injector needs be opened for this purpose. Procedure: Unscrew injector top part, dismantle nozzle, screw in pull spindle, mount special puller claw, unscrew valve cover screws (4 screws) and replace with special support bolts, mount extraction bridge and screw on shoulder nut. Extract nozzle by turning the shoulder nut. By using the special draw hook in addition to the pulling spindle, force is not only applied to the injector via the draw spindle but also via the draw hook when removing. In this way, the injector is unlikely to break and can be removed in one piece.
Features:
- Suitable for Fiat 3.0 JTD, Citroen and Peugeot 3.0 HDI Common-Rail diesel engines
- For the use of injector puller KL-0186-14 EA with the above mentioned engines
- Ideal force distribution due to the particular draw hook
- Fits strongly for Fiat Ducato 3.0 JTD (Euro 5), Citroen Relay/Jumper III, and Peugeot Boxer III 3.0 HDI (Euro 5) common rail diesel engines
Specifications:
- Suitability: Fiat, Citroen, Peugeot, PSA
- Distance Range: 131mm
- Drive Type: Hydraulic, Mechanical
- Length: 253mm
- Motor Type: Diesel
- Mounting Thread: M8
- Weight: 5.95 lbs
- Country of Origin: Germany
Scope of Delivery:
4 x KL-0186-1251-1 - Support bolt 175mm, 1 x KL-0186-1321 - Draw hook, 1 x KL-0186-1322 - Knurled nut, 1 x KL-0186-1323 - Hexagon nut
