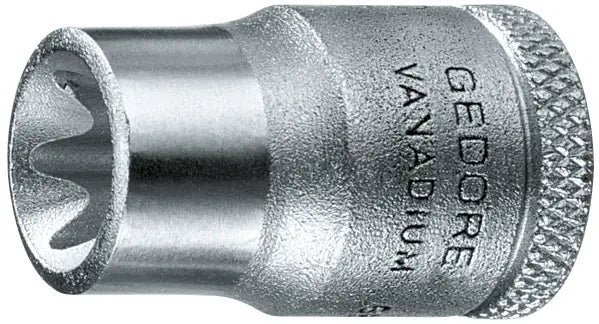

Gedore 3/8 in Socket, TX E10 - GD 6250780
A Torx socket is a specialized socket tool designed to fit Torx fasteners, which feature a 6-point star-shaped pattern. Commonly used in automotive, aerospace, electronics, and machinery industries, Torx sockets provide a secure, high-torque connection that resists cam-out better than traditional hex or Phillips fasteners.
Features:
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
Specifications:
- Square Drive Connector: 3/8 in

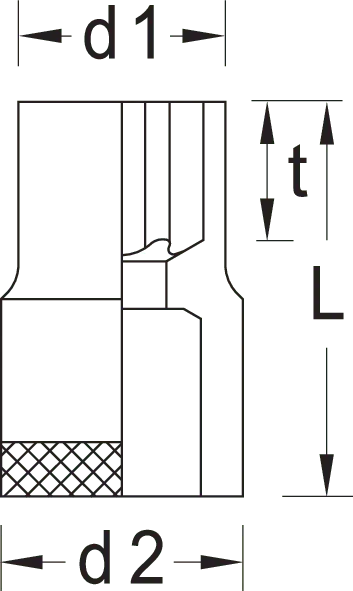

- Insert Diameter 1: 13.2mm
- Insert Diameter 2: 17.5mm
- Material: Chrome-Vanadium Steel 31CrV3
- Overall Weight: 0.06 lbs
- Operating Depth: 9mm
- Screw Size: M8
- Standard: DIN 3120 - C 10 ISO 1174
- Surface: Polished, Chrome-Plated
- Overall Length: 28mm
- Overall Width: 17.5mm
- TX (Outside) Width Across Flats: E10
- Working Length: 28mm
