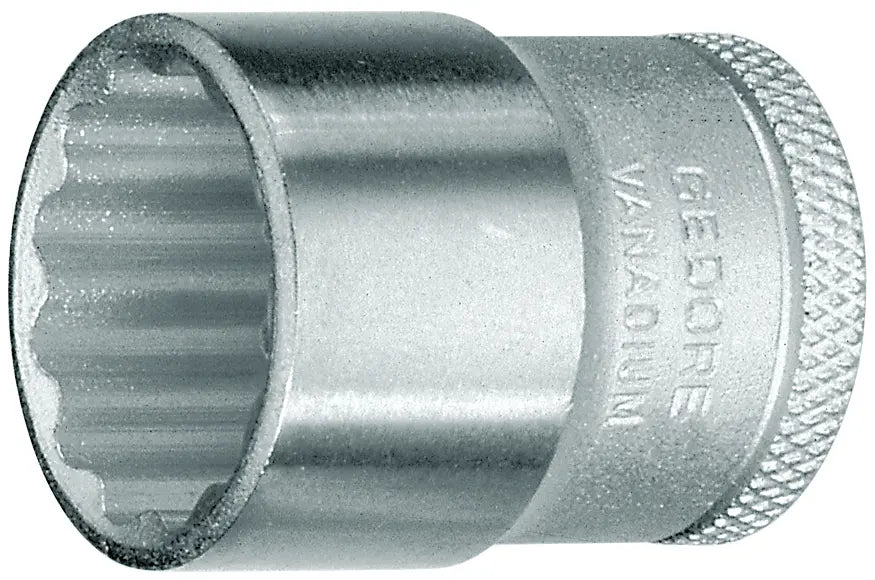

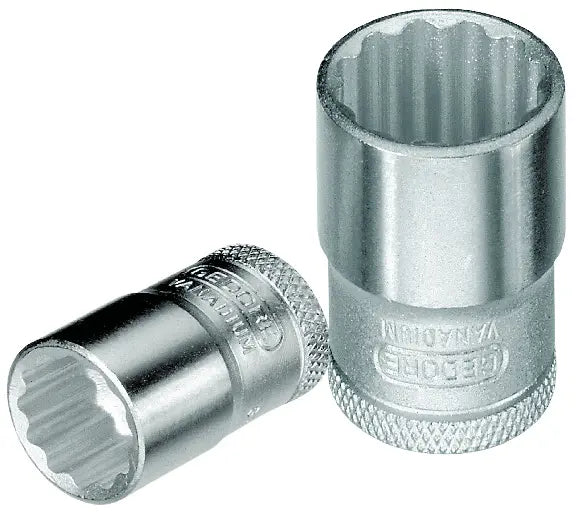

Gedore 3/8 in UD-Profile Socket, 22mm - GD 6231800
A UD-Profile Socket is a high-performance, precision-engineered tool designed to engage multiple fastener head types with a single socket profile. Unlike traditional sockets that match only hex or square fasteners, the UD-profile socket is uniquely contoured to provide secure engagement with a wide variety of shapes making it a versatile and essential addition to any professional or DIY toolkit.
Features:
- Acc. to DIN 3124, ISO 2725-1
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- Not standardized
Specifications:
- Square Drive Connector: 3/8 in
- Insert Diameter 1: 29.7mm
- Insert Diameter 2: 26.3mm
- Material: Chrome-Vanadium Steel 31CrV3
- Overall Weight: 0.19 lbs
- Operating Depth: 14.5mm
- Standard: DIN 3124 ISO 2725-1 DIN 3120 - C 10 ISO 1174
- Surface: Polished, Chrome-Plated
- Overall Height: 30mm
- Overall Length: 32mm
- Overall Width: 30mm
- Width Across Flats: 22mm
- Working Length: 32mm
