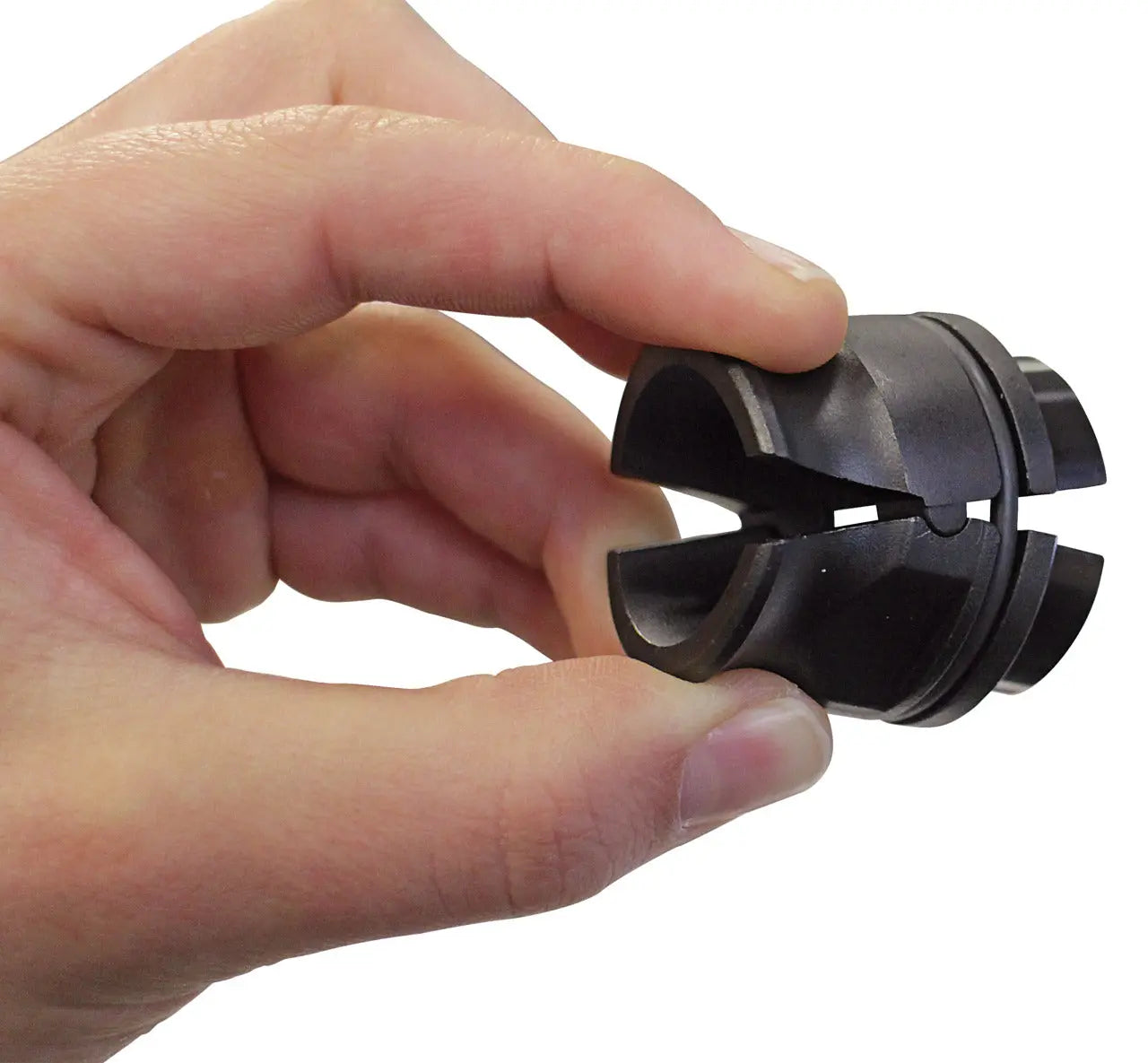

Gedore 3022269 Set of 5 Quick-Action Clamping Nuts - GD KL-0039-23

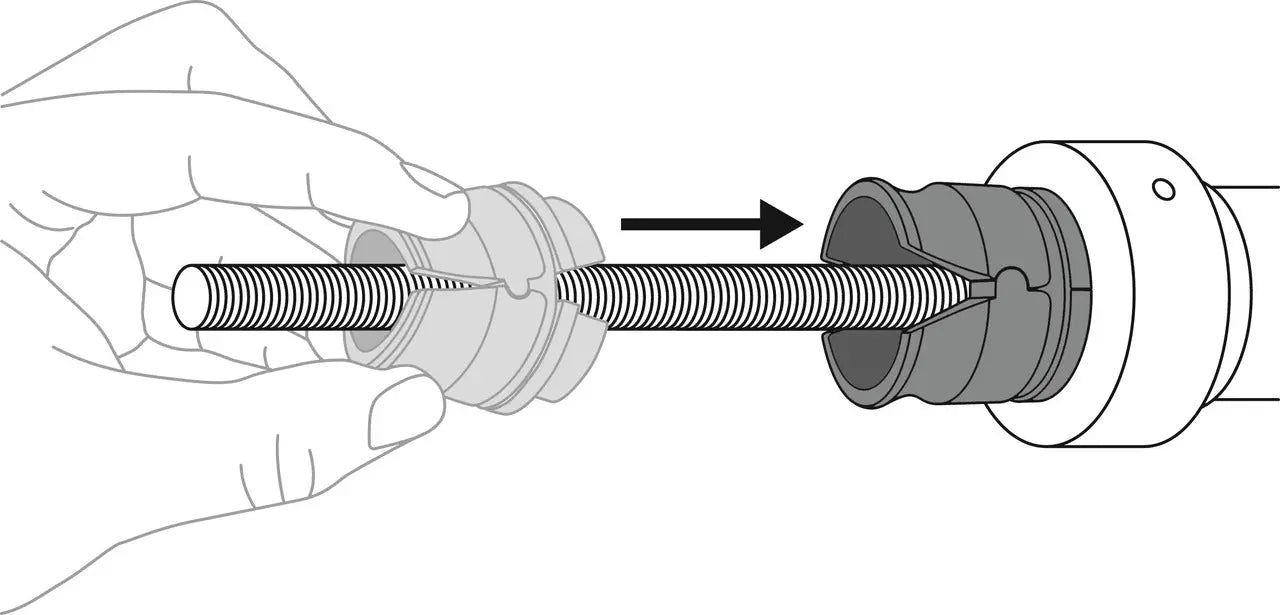

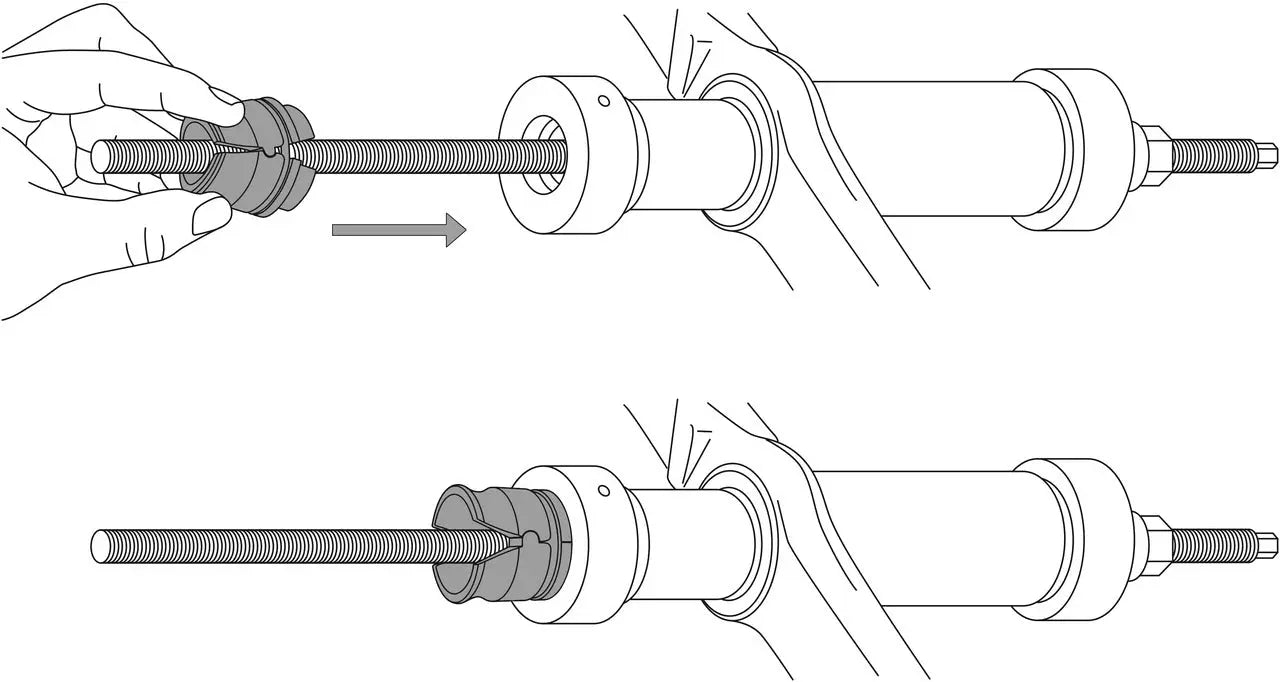

Thanks to their special design, the quick-action clamping nuts can be adjusted simply by sliding them on the pull spindle without any rotational movement. This allows for short assembly/clamping times, as well as quick and easy adjustment and simple operation of the tool. This allows for short assembly/clamping times, as well as quick and easy adjustment and simple operation of the tool. To prevent the quick-release nut from opening under load, secure it by the collar together with a suitable pressure/support sleeve, an adaptor, or a retaining ring.
Features:
- Universally suitable for pull spindles with mounting thread M10x1,25, M12, M14, M16 and M20
- For the mechanic or hydraulic drive of the KL-0039 series
- High time saving due to quick-clamping function
- Fits universally for tools of the KL-0039 Series wheel bearing / silent blocks with M10x1, 25, M12, M14, M16 and M20 pull spindle mounting thread
Specifications:
- Suitability: Universal
- Drive Type: Hydraulic, Mechanical
- Thread: M10 x 1.25
- Thread (2): M12
- Thread (3): M14
- Thread (4): M16
- Thread (5): M20
- Weight: 1.43 lbs
- Country of Origin: Germany
Scope of Delivery:

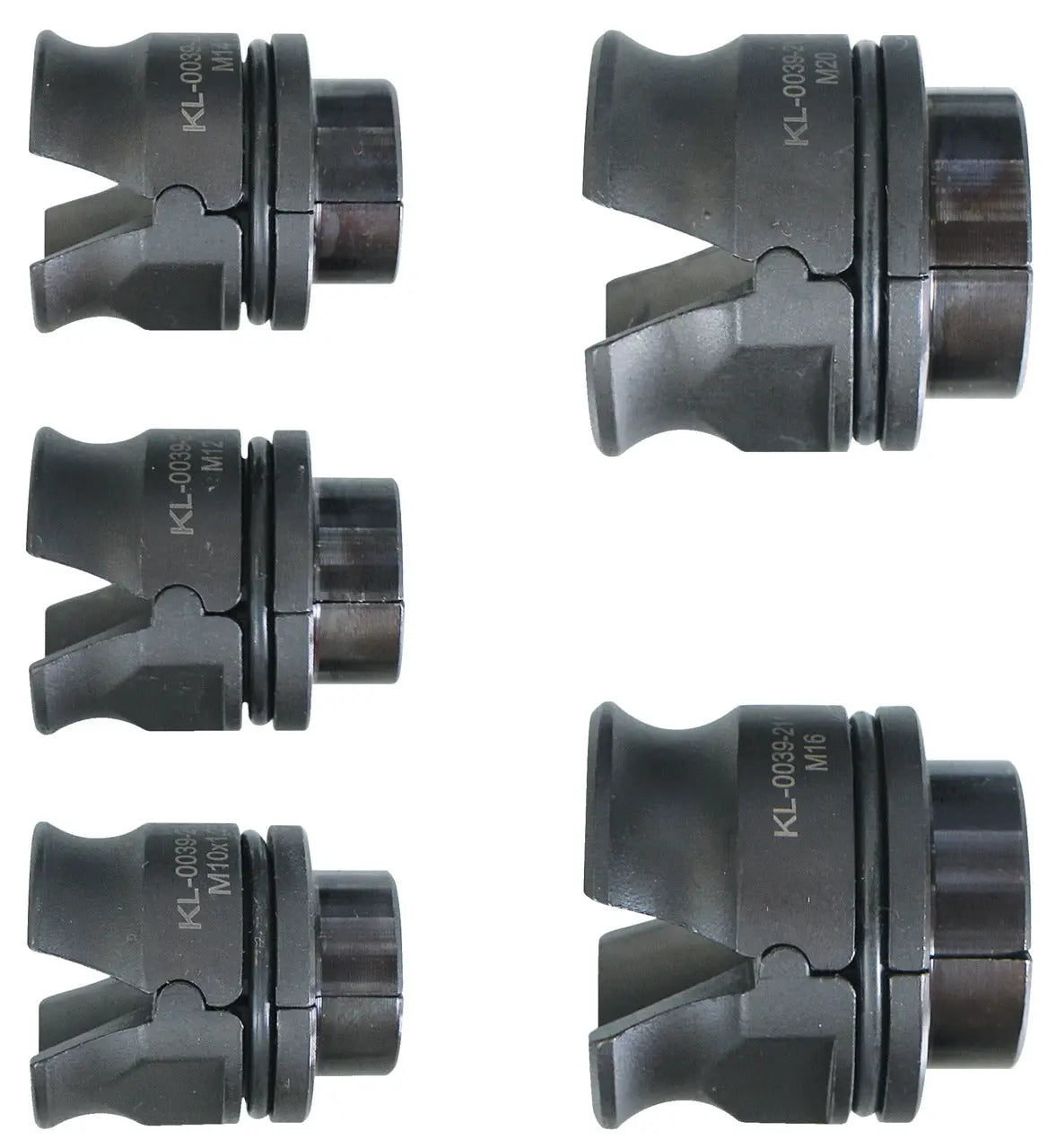

1 x KL-0039-2110-2 - Quick-clamping nut M10 x 1.25, 1 x KL-0039-2112-2 - Quick-clamping nut M12, 1 x KL-0039-2114-2 - Quick-clamping nut M14, 1 x KL-0039-2116-2 - Quick-clamping nut M16, 1 x KL-0039-2120-2 - Quick-clamping nut M20
