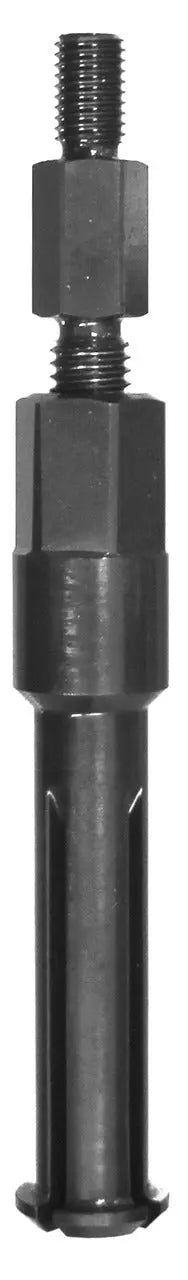

Gedore 3042324 Internal Puller, Diameter 16 - 18mm - GD KL-0043-341

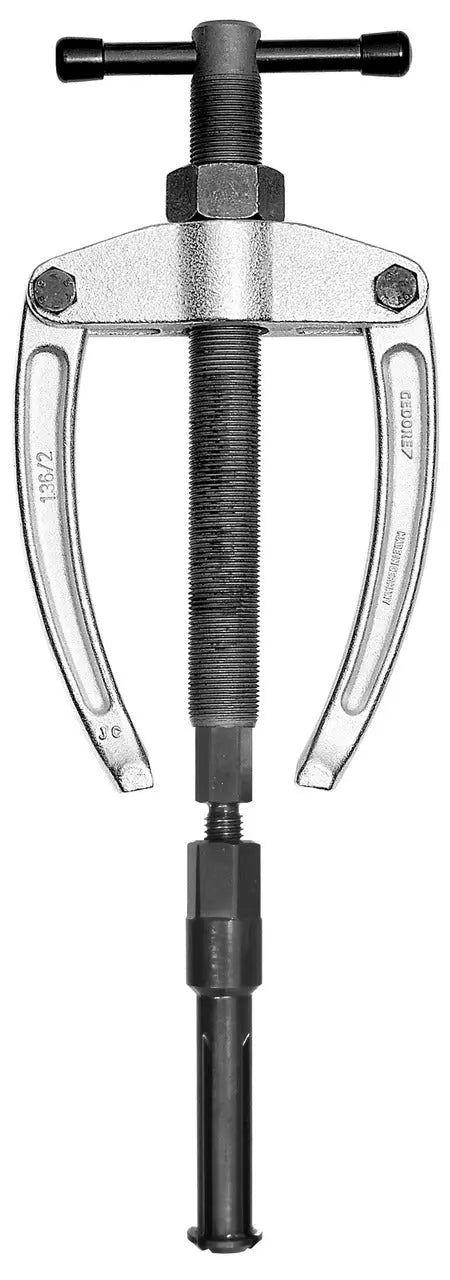

Used in conjunction with the GEDORE counter-support brace 1.36/1 (Code No. 8016580), the internal puller allows for the easy and professional removal of pilot/guide bearings from vehicles equipped with a 7-speed 0AM dual clutch gearbox. The collet made of high-grade special steel allows the internal puller to be securely held in the pilot/guide bearing. Procedure: Insert internal puller into pilot/guide bearing, tighten expanding bolt (to allow the collet jaws to grip behind the bearing inner race), screw GEDORE counter-support brace 1.36/1 onto internal puller, firmly hold toggle on counter-support brace and pull out bearing by tightening the nut. The collect chuck made of high-quality special steel ensures that the internal puller is securely attached to the pilot bearing / guide bearing.

Features:

• Suitable for VW-Audi 1.2, 1.4, 1.6, 1.8 TSI / TFSI and 1.6, 1.9 TDI engines with 7-speed 0AM double clutch gearboxes (dry coupling)
• For an easy and professional removal of the pilot bearing / guide bearing
• Secure hold at the pilot bearing / guide bearing
• Collet chuck made of high-quality special steel
• For example installed on Audi A1 (8X1), A3 (8P1, 8P1, 8PA), Seat Altea (5P1) Altea XL (5P5, 5P8) Ibiza V (6J5, 6J1, 6J8), Leon (1P1) Toledo III (5P2), Skoda Fabia II (54), Octavia (1Z3, 1Z5), Superb (3T4, 3T5), VW Golf Plus (5M1, 521), Golf V (1K1, 1K5), Golf VI (5K1, 517, AJ5), Jetta III (1K2), Passat (362, 365, 3C2, 3C5), Passat CC (357), Polo (6R), Scirocco (137), Touran (1T1, 1T2, 1T3) etc.

Specifications:

• Suitability: VW, Audi, Seat, Skoda
• Connecting Thread: M10
• Diameter (Max.): 18mm
• Diameter (Min.): 16mm
• Length: 115mm
• Weight: 0.18 lbs
• Country of Origin: Germany
