Gedore 3043800 Glow Plug Toolkit, Universal, M9 x 1 - GD KL-0132-61 KA

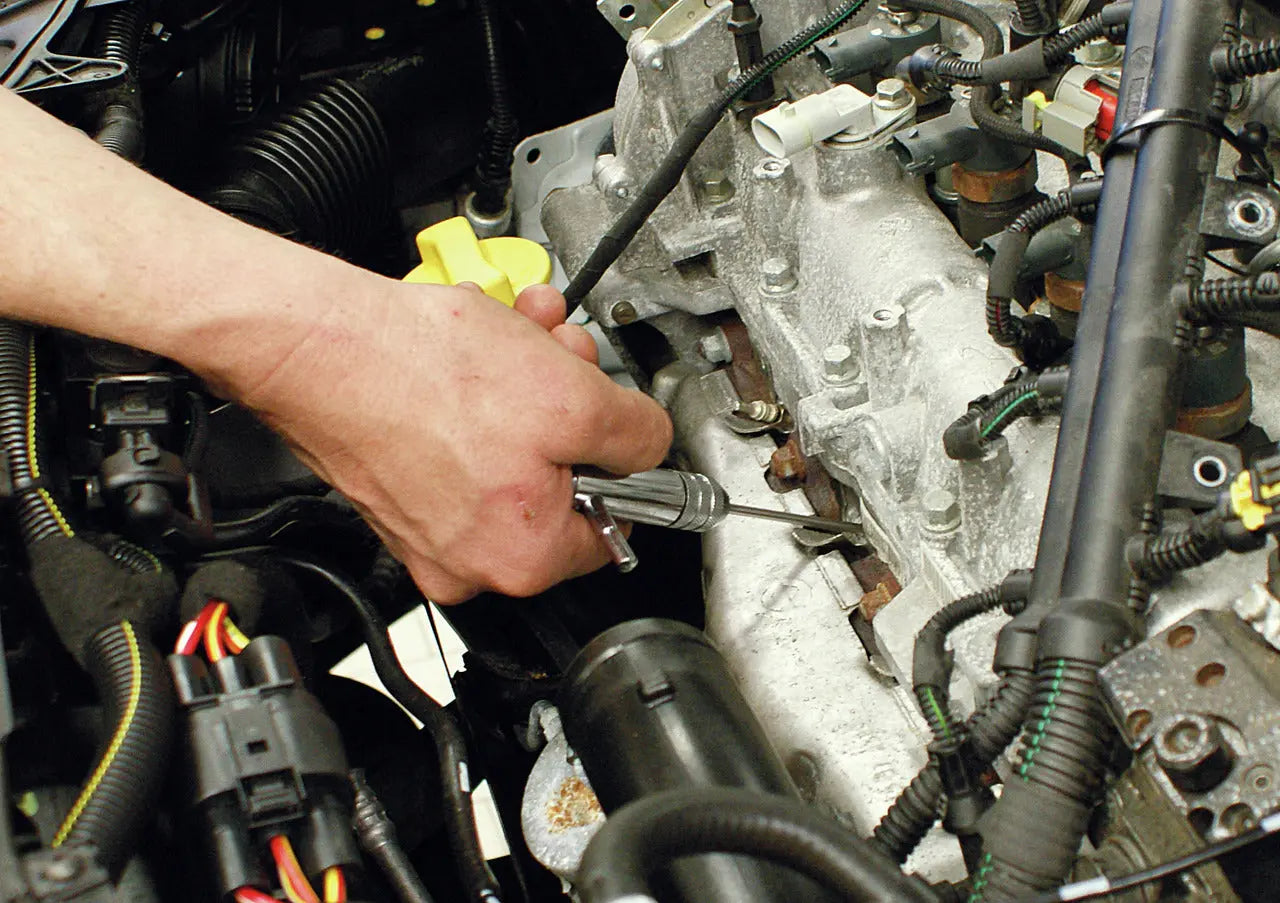

The universal KL-0132-61 KA glow plug tool set enables the quick and easy drilling out of damaged or broken-off glow plugs. The glow plug, respectively the glow plug top connector, is drilled out/drilled up with the aid of the pilot drill. Next, the original thread is re-tapped and cleaned with the special screw tap. Then, the remains of the glow plug can be removed using either the screw tap or the puller bolt in conjunction with a slide hammer puller such as KL 0049-100. The glow plug, respectively the glow plug top connector, is drilled out/drilled up with the aid of the pilot drill. Next, the original thread is re-tapped and cleaned with the special screw tap. Then, the remains of the glow plug can be removed using either the screw tap or the puller bolt in conjunction with a slide hammer puller.
Features:
- Suitable for glow plug thread M9x1, e.g. On Opel, Saab, Fiat, etc.
- For quickly and easily boring out damaged or torn glow plugs
- The original mounting thread is fully retained
- Universal fit for diesel engines with a mounting thread for glow plugs from M9x1
- Especially suitable for, for example, Alfa, Fiat, Lancia, Opel and Saab 1.9 as well as 2.4 D / TiD / JTD / JTDM / CDTI engines (engine code: 192A5.000, 841G.000, 841H.000, 937A5.000, 939A2.000, 939A3.000, 939A8.000, Z19DTH, Z19DTJ). Installed in Alfa 147, 156, 159, 166, GT, Opel Astra H, Astra V, Signum, Vectra C, Zafira, Saab 9-3, Fiat Croma, Stilo, Lancia Thesis etc.
Specifications:
- Suitability: Universal, Fiat, Opel, Saab
- Depth: 185mm
- Height: 48mm
- Motor Type: Diesel
- Storage: Case
- Thread: M9 x 1
- Weight: 1.65 lbs
- Width: 235mm
- Country of Origin: Germany

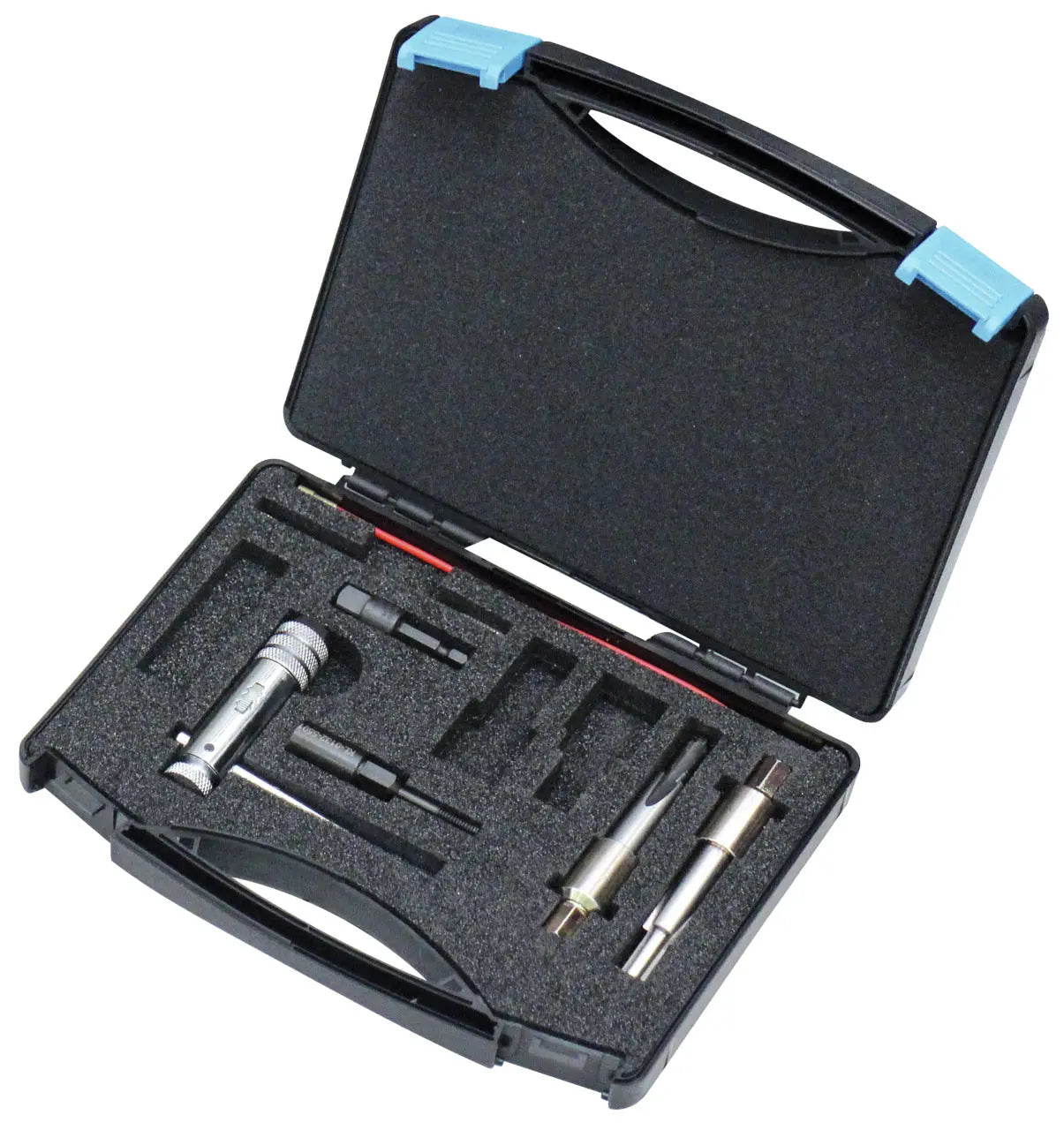

Scope of Delivery:

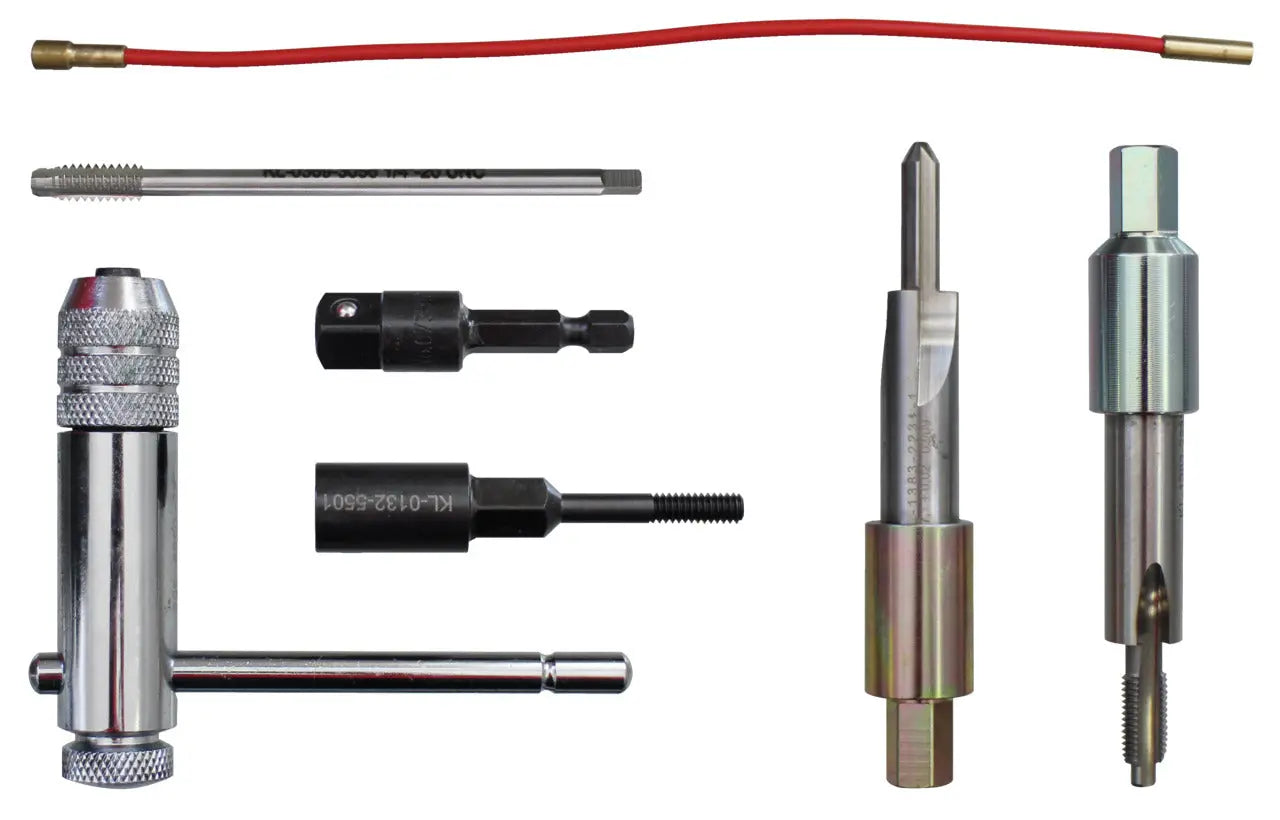

1 x KL-0126-221 - Magnetic lifter, flexible, 1 x KL-0132-5501 - Pull bolt no. 12-24 UNC for impact extractor, 1 x KL-0132-6101 - Core drill diameter 8.1mm for M9 x 1, 1 x KL-0132-6102 - Tap M9 x 1, 1 x KL-0369-306 - Tool holder with square insert 2.4 - 5.5, 1 x KL-1383-2241 - Tap no. 12-24 UNC with drilling head, 1 x KL-4007-2510 - Adaptor for drill 3/8" square, 1 x KL-0132-5590 A - Plastic case
