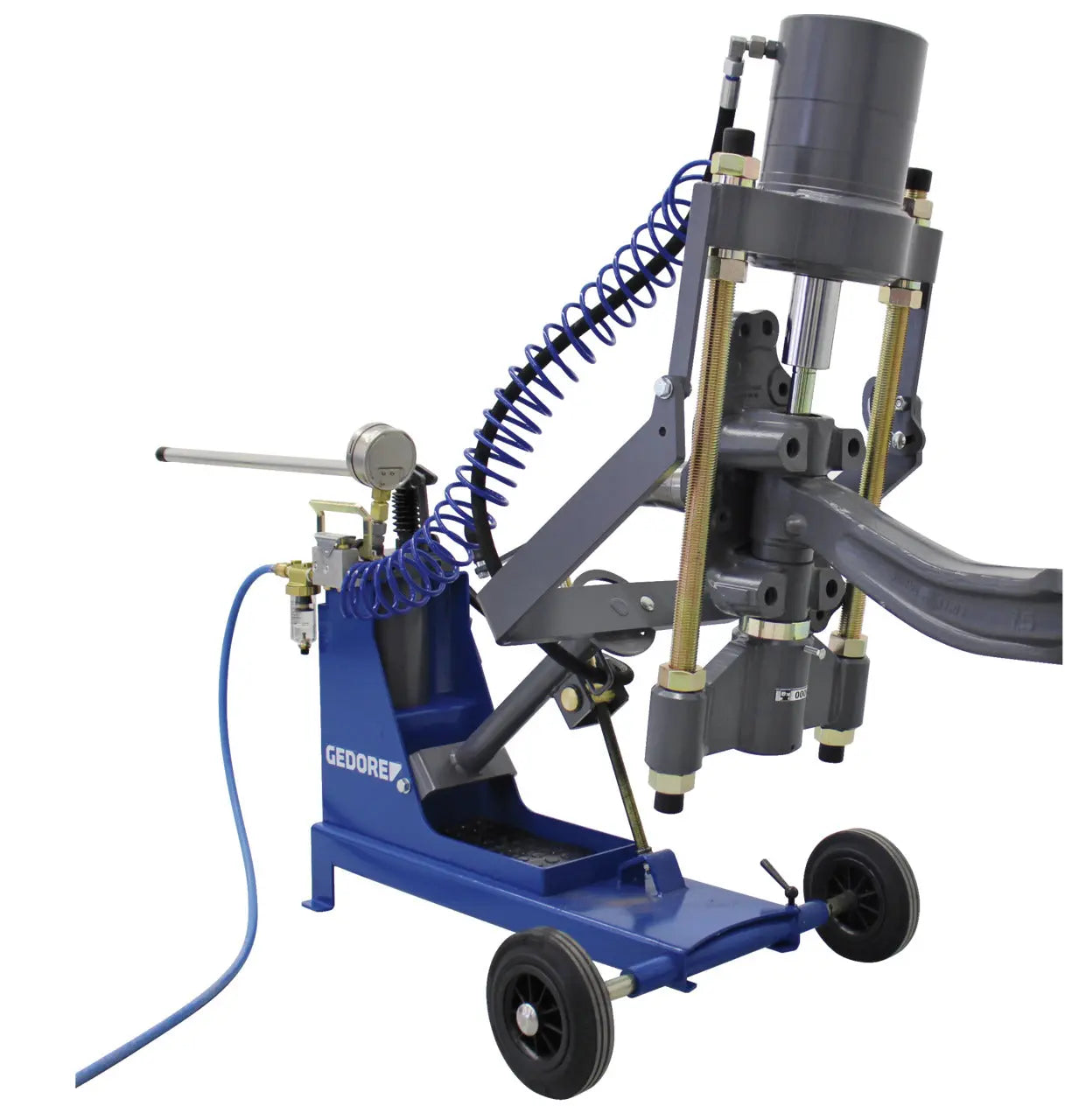

Gedore 3091600 King Pin Press with Sleeve Set, 65T - GD KL-1000-20 A

Designed for the quick and professional pressing out/pressing in of king pins found on HGVs. The king pin press with its adjustable press frame has been developed and adapted to satisfy the latest safety requirements. Thanks to its compact and ingenious design, the king pin press not only saves a lot of time but also allows for easy and, above all, safe operation. The heavy-duty 65t hydraulic cylinder with integrated hand pump and the pneumatic quick-stroke 'extend/retract' valve enable even severely stuck king pins to be extracted with ease. Pros: High time saving.

Features:

• Fits universally for commercial vehicles
• For quick and professional forcing out and pressing in of kingpins on commercial vehicles
• Advantages - Pneumatic high-speed hoist
• One-man operation
• Developed according to the newest safety requirements
• Universal fit, on the vehicle as well as free-standing
• High time saving
• Universally adjustable press frame which can be turned by 180 degree
• Easy and quick positioning on the vehicle due to the quick adjustment across three axes

Specifications:

• Suitability: Universal
• Air Connection (Max.): 13 Bar
• Inside Length (Press Frame): 480mm
• Inside Width (Press Frame): 290mm
• Length: 1.200mm
• Press Force: 65T
• Stroke: 120mm
• Swivel Angle: 180 degree
• Weight: 286.65 lbs
• Width: 650mm
• Country of Origin: Germany
