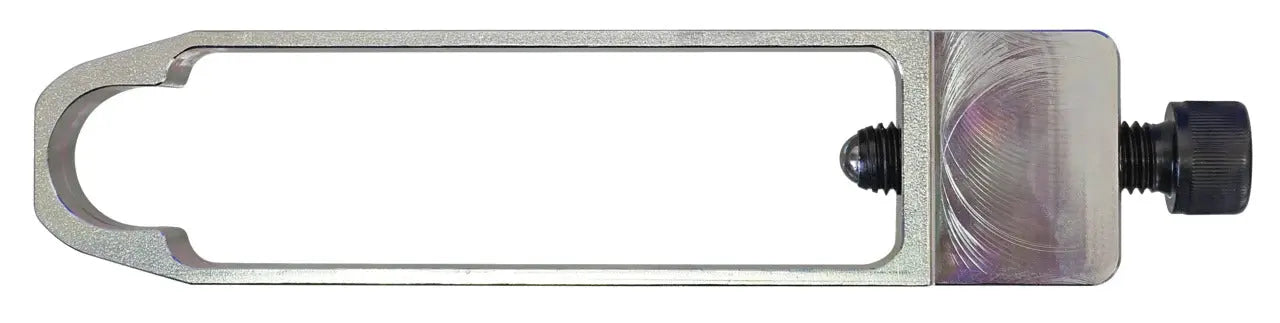

Gedore 3245861 Tensioning Tool for Belt Tensioner, 10mm - GD KL-0366-17

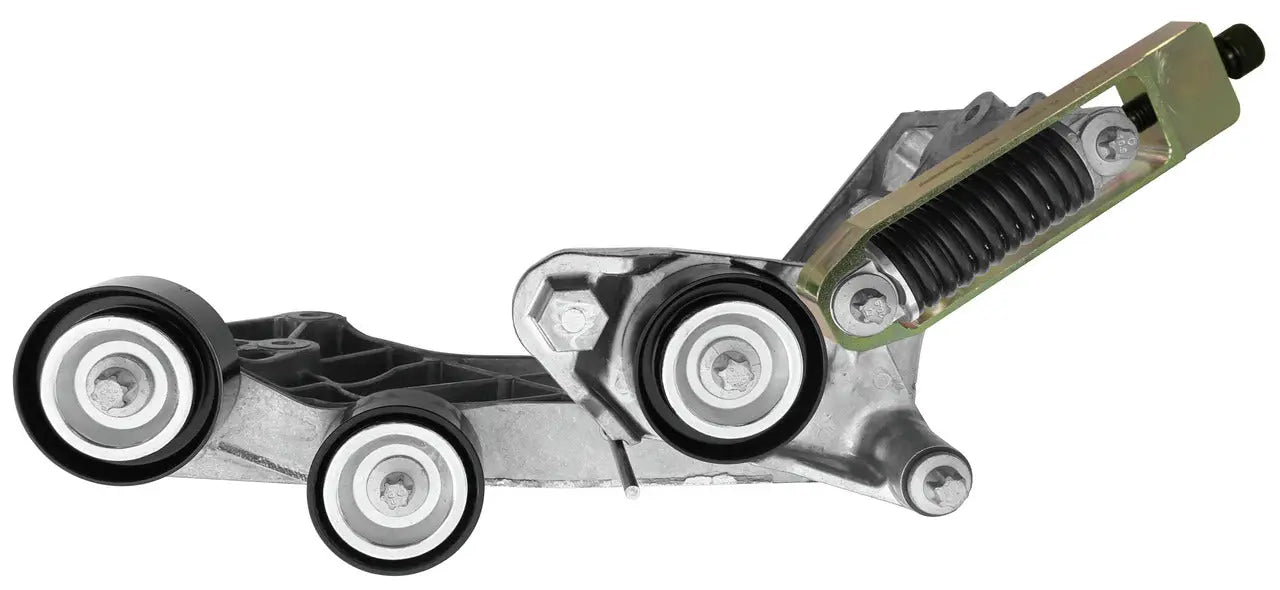

Required when tensioning and releasing the hydraulic V-ribbed belt tensioner, e.g. when removing and installing the clamping device or when replacing the V-ribbed belt. Tensioning without the appropriate tensioning tool can damage the expensive tensioning device, thereby creating a high risk of injury from parts flying around. Important note: The tensioning process must be carried out very slowly up to the stop (at least 20 seconds), otherwise the tensioning device may be damaged.

Features:

• Suitable for Mercedes 1.5, 1.7 and 2.0 petrol engines with start/stop system
• For tensioning and releasing the hydraulic V-ribbed belt tensioner
• Required for a damage-free tensioning of the tensioning device
• Note: The tensioning process must be carried out very slowly
• Suitable for Mercedes 1.5, 1.7 and 2.0 (M 266.920 /.940 /.960 /.980) petrol engines with start/stop system
• Installed in, e.g. Mercedes A-Class (W169) and B-Class (W245), etc.

Specifications:

• Suitability: Mercedes
• Drive (Hex): 10mm
• Height: 20mm
• Length: 185mm
• Motor Type: Petrol
• Weight: 0.84 lbs
• Width: 40mm
• Country of Origin: Germany
