Gedore 3257258 Wheel Hub Puller Set, Hydraulic and Mechanical, 28000 kgs - KL-1005-111

Name: Gedore 3257258 Wheel Hub Puller Set, Hydraulic and Mechanical, 28000 kgs - KL-1005-111
Brand: Gedore Automotive
SKU: KL-1005-111
Price: 964.44 USD
Availability: InStock

SKU KL-1005-111

Factory Stock: Call for Availability

Now:

$964.44

$1,071.60

$964.44

10% OFF

UPC:

Product Description

Gedore 3257258 Wheel Hub Puller Set, Hydraulic and Mechanical, 28000 kgs - GD KL-1005-111

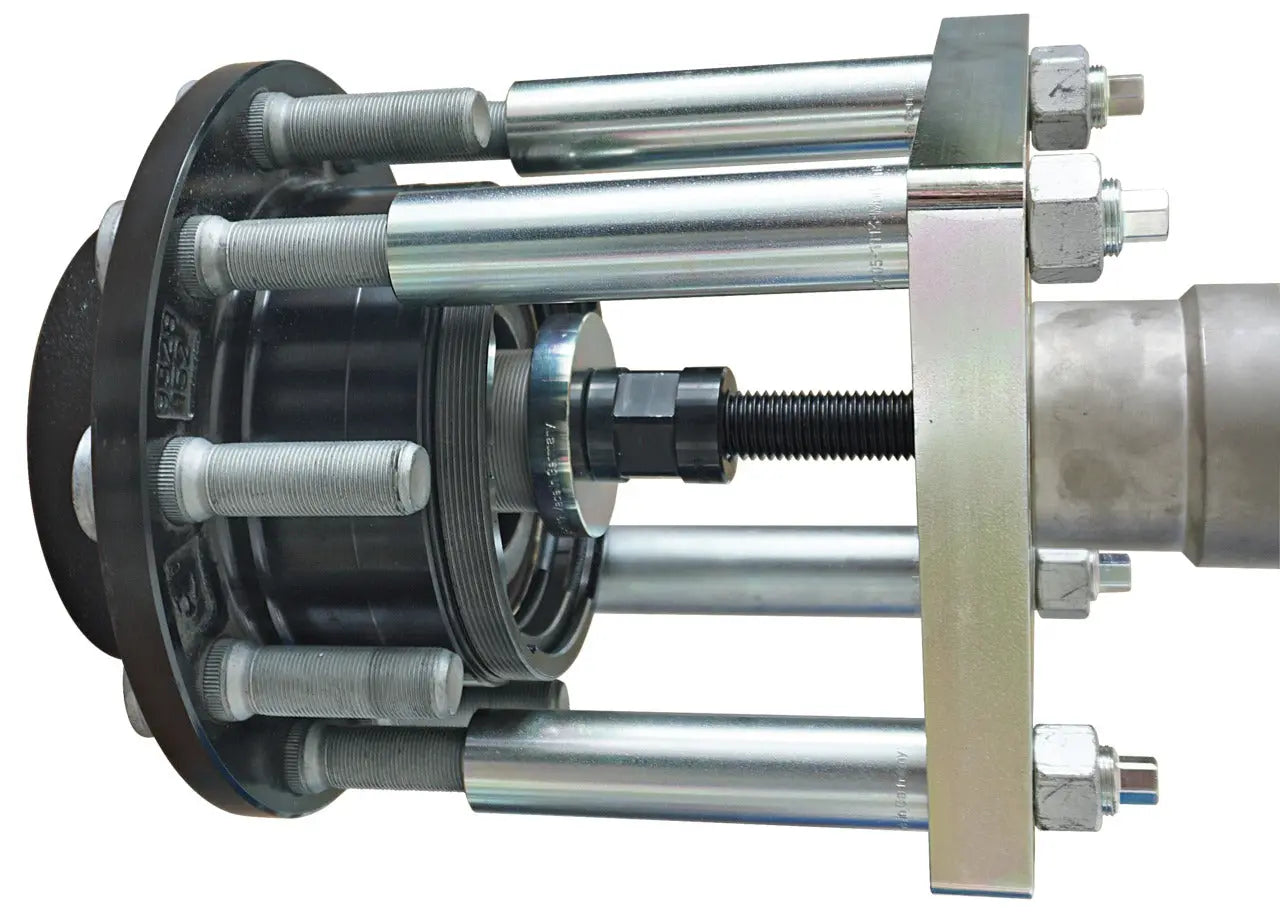

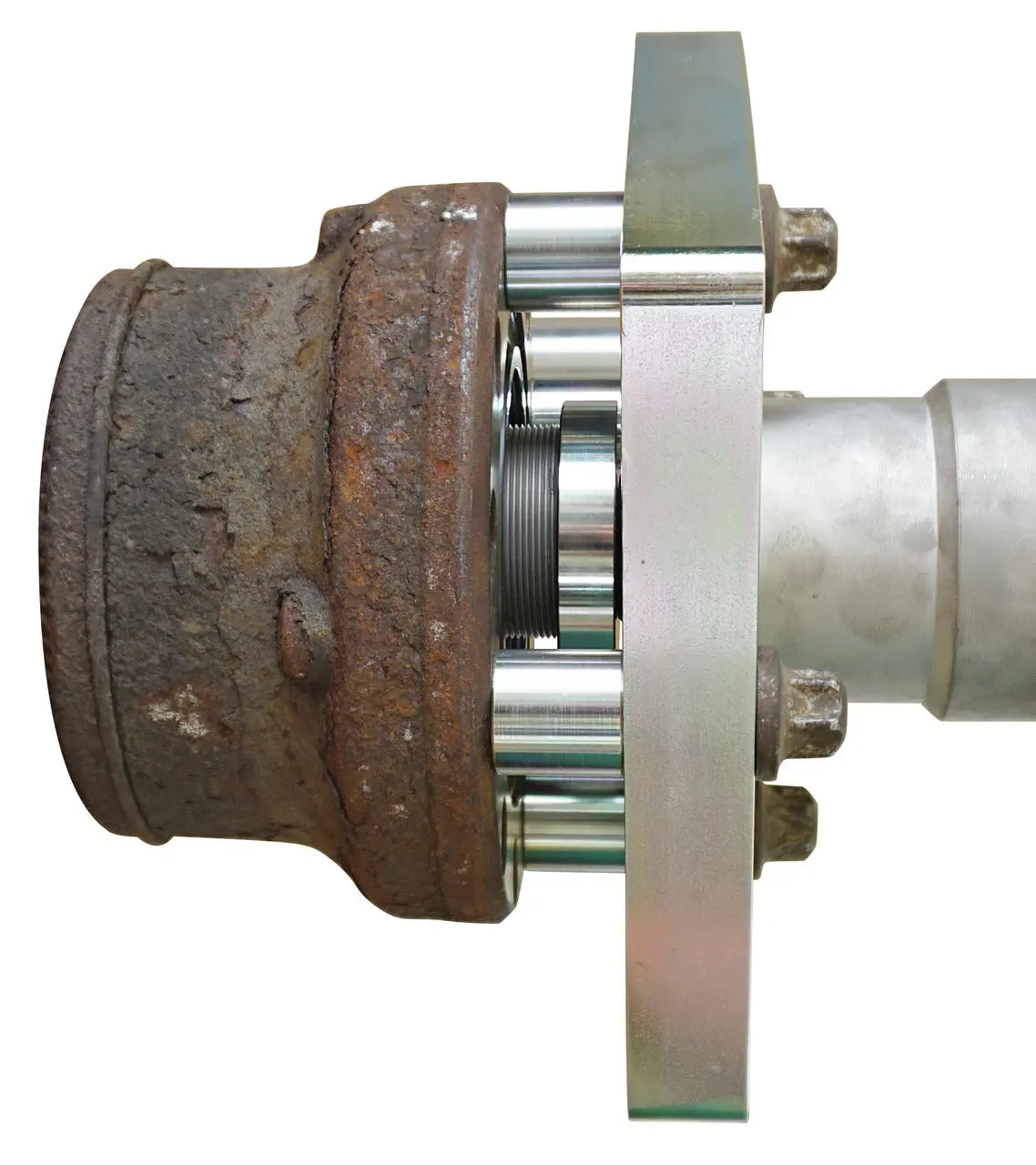

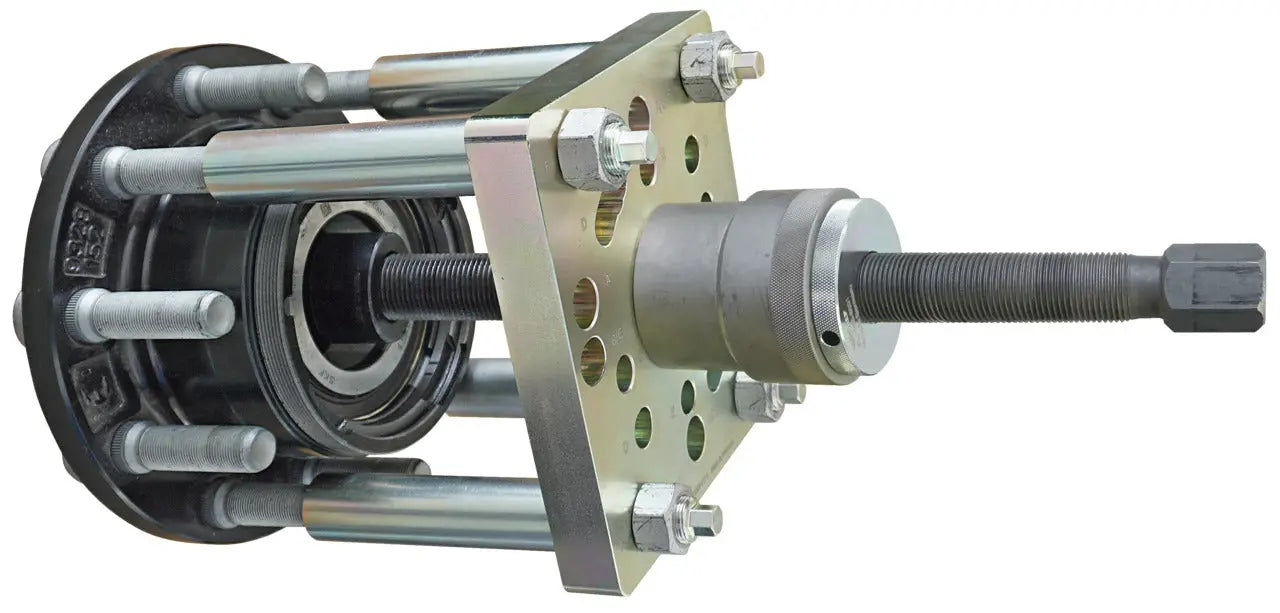

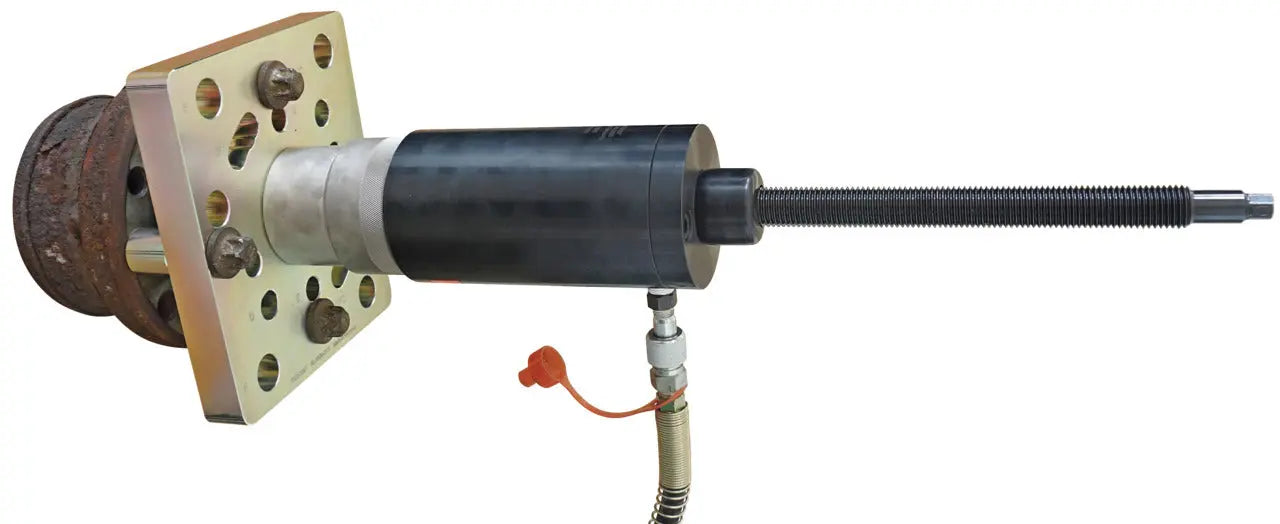

The wheel hub puller permits quick and professional removing of wheel hub/bearing units with removable hub caps. After removing the hub cap, the hub is pulled off via the threaded holes on the hub or, in the case of low-bed trailers, via the wheel studs on the wheel hub. Support is provided centrally via the axle tube with the aid of the various thrust washers. The special adaptor plate offers universal adaptation to a large number of bolt circles available on the market. The 28 t hydraulic cylinder, which is available as an accessory, allows even heavily jammed wheel hubs to be removed quickly and easily.

Features:

Universally suitable for commercial vehicle wheel hub/bearing units with removable hub cap
For a quick and professional pulling of the wheel hub / bearing units directly on the vehicle Especially powerful in combination with the 28 t hydraulic cylinder Additional drive parts required
Universally suitable for commercial vehicle wheel hub/bearing units with removable hub cover, for axle systems with a hole circle diameter on the hub of 10x120, 10x122, 10x143, 10x165, 10x168, 12x144, 12x145, 12x164, 12x168, 14x138, 14x144 and for low-loaders on the wheel hub of 10x225. Installed for example for tractors, semi-trailers and low-loaders, such as Mercedes Actros, Antos, Atego, Axor, Econic, Neoplan, MAN F2000, L2000, M2000L, M2000M, TGA, TGM, TGS, TGL, TGX, Renault Magnum, Midlum, Midlum Premium, Midliner CE, M, ME, MS, S, SE, DAF LF45, LF55, LF (Euro 6), Iveco Eurocargo, Volvo FL, VDL Bova bus, city bus, Gigant Protec DNOKH2, Krone, Kogel KTA, low-loader: BPW, Gigant, SAF, SAF Holland axle series SKRLB 9019 W, SKRB 10022, GFA rigid axles, trailers/semitrailers by Kogel, Schmitz Cargobull, Wielton, ZF etc.

Specifications:

Suitability: Universal, Mercedes, MAN, Renault, DAF, Iveco, Volvo
Drive Type: Hydraulic, Mechanical
Load (Max.): 28000 kgs
Weight: 38.59 lbs
Wheel Stud Circles: 10 x 120mm, 10 x 122mm, 10 x 143mm, 10 x 165mm, 10 x 168mm, 12 x 144mm, 12 x 145mm, 12 x 164mm, 12 x 168mm, 14 x 138mm, 14 x 144mm, 10 x 225mm
Country of Origin: Germany

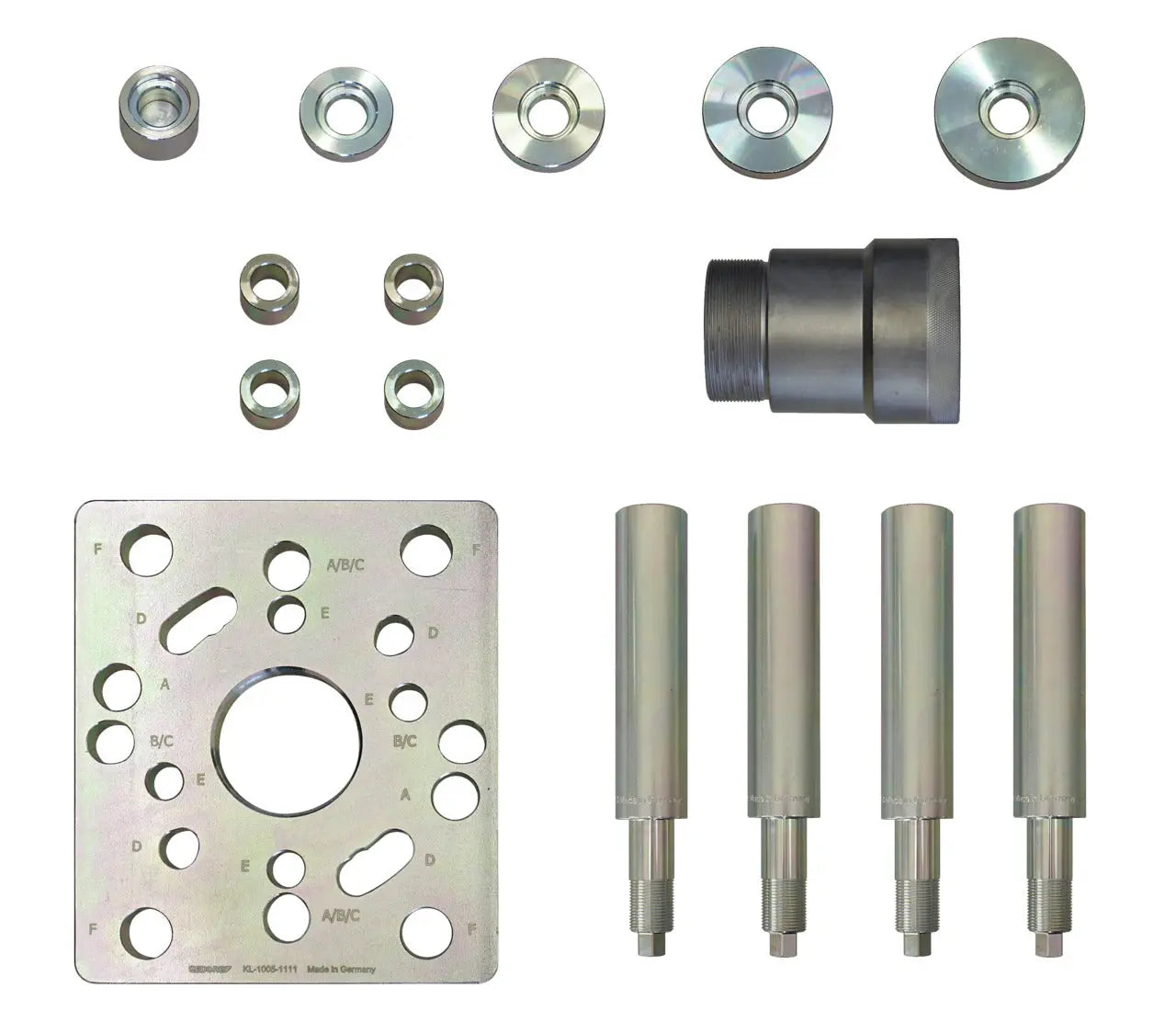

Scope of Delivery:

1 x KL-1005-1111 adaptor plate, 1 x KL-1005-1112 - Extension 2-3/4", 4 x KL-1005-1113 adaptor spindle low loader M22 x 1.5, 4 x KL-1005-1114 intermediate sleeve, 1 x KL-1005-1115 Pressure washer, short, 1 x KL-1005-1116 - Pressure washer diameter 48mm, 1 x KL-1005-1117 - Pressure washer diameter 58mm, 1 x KL-1005-1118 - Pressure washer diameter 68mm, 1 x KL-1005-1119 - Pressure washer diameter 78mm
