Gedore 3267679 Double Silentblock Toolkit, VW-Audi, Maximum Load 7000 kgs - GD KL-0214-240

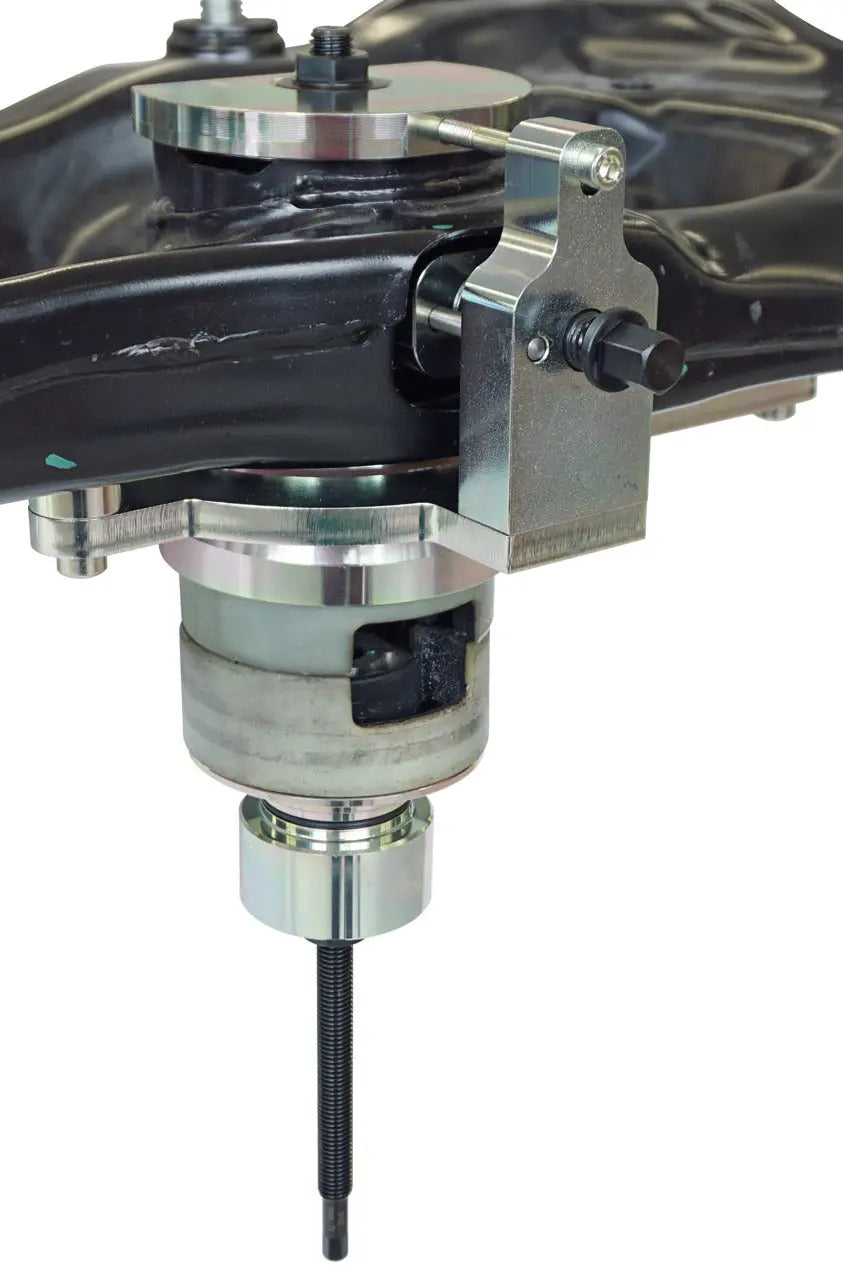

The double silent block tool enables the quick and professional removal and installation of the double silent blocks (silent blocks of the torque arm) directly on the vehicle. It is not necessary to loosen or remove the unit carrier, or to carry out a subsequent wheel alignment. Note: Due to the confined space conditions, the carrier must be lowered and corresponding parts loosened on vehicles with all-wheel drive.
Features:
- Suitable for unit carriers made of bent steel parts with VW, Seat, Skoda
- For professionally removing and installing double silent blocks
- No removal of the unit carrier required
- In case of vehicles with all-wheel drive, the unit carrier must be lowered
- Additional drive parts required
- Suitable for double silent blocks on carriers made of steel bent components. For example, installed on VW Golf 7 (AU), Golf Sportsvan (AM, AN), Caddy (2K), Tiguan (AD), Touran (5T), Seat Ateca (KH), Leon (5F), Skoda Karoq (NU), Octavia (5E), Superb (3T)
Specifications:
- Suitability: VW, Seat, Skoda
- Drive Type: Hydraulic, Mechanical
- Load (Max.): 7000 kgs
- Weight: 12.35 lbs
- Country of Origin: Germany

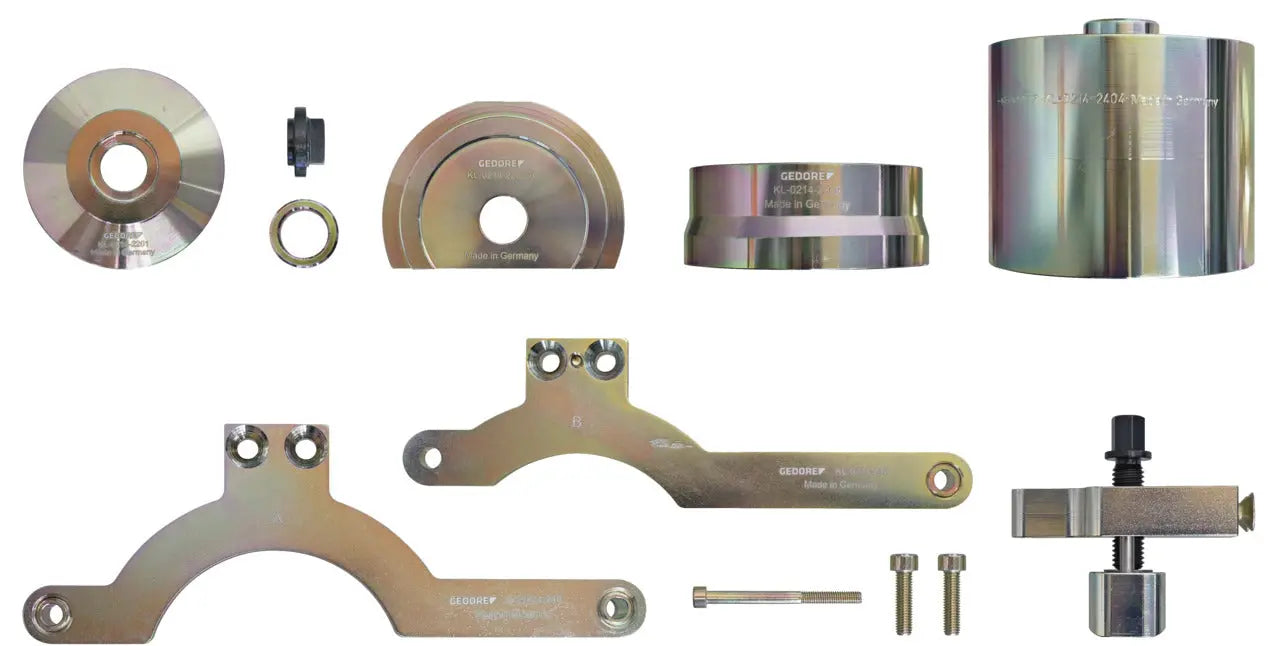

Scope of Delivery:
1 x KL-0039-1912-3 - Collar nut M12 flat, 1 x KL-0041-7306 - Cylinder screw M6 x 70mm, 1 x KL-0214-2201 - Thrust piece 89.5mm dia., 1 x KL-0214-2202 - Spacer ring 30mm dia., 1 x KL-0214-2203 A - Positioning plate, 1 x KL-0214-2204 - Conical sleeve 90mm dia., 1 x KL-0214-2401 - Preloading device, 1 x KL-0214-2402 - Preloading plate A, 1 x KL-0214-2403 - Preloading plate B, 1 x KL-0214-2404 - Support sleeve 98mm dia., 2 x KL-1283-1016 - Cylinder screw M8 x 30mm
