Gedore 3267695 Upgrade Kit for KL-0214-221 Double Silentblock Tool - GD KL-0214-241

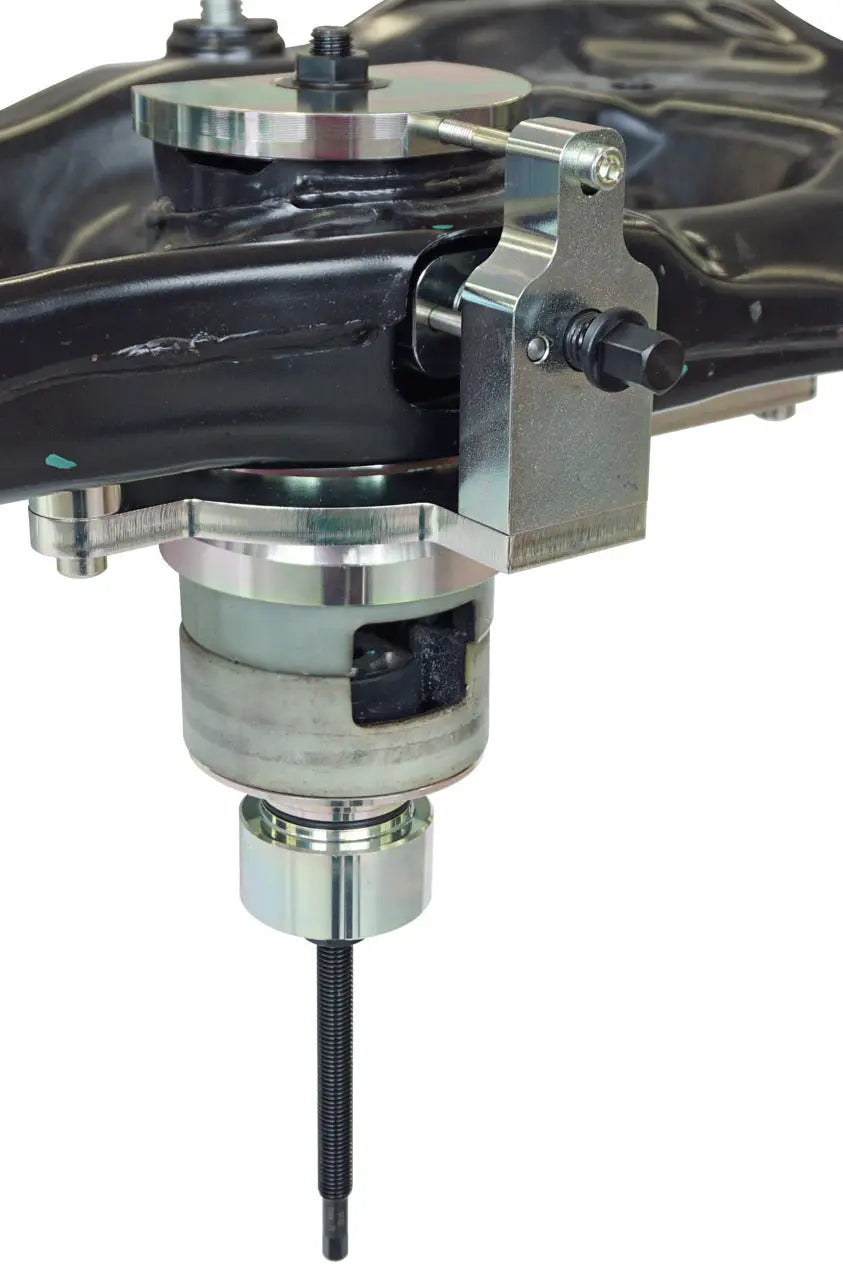

This supplementary kit enables, in conjunction with the drawing device for double silent blocks KL-0214-221, the quick and professional removal and installation of the double silent blocks (silent blocks of the torque arm) directly on the vehicle. It is not necessary to loosen or remove the unit carrier, or to carry out a subsequent wheel alignment. Note: Due to the confined space conditions, the carrier must be lowered and corresponding parts loosened on vehicles with all-wheel drive.
Features:
- Suitable for unit carriers made of bent steel parts with VW, Seat, Skoda
- For professionally removing and installing double silent blocks
- No removal of the unit carrier required
- In case of vehicles with all-wheel drive, the unit carrier must be lowered
- Only in combination with KL-0214-221 and additional drive parts
- Suitable for double silent blocks on carriers made of steel bent components. For example, installed on VW Golf 7 (AU), Golf Sportsvan (AM, AN), Caddy (2K), Tiguan (AD), Touran (5T), Seat Ateca (KH), Leon (5F), Skoda Karoq (NU), Octavia (5E), Superb (3T)
Specifications:
- Suitability: VW, Seat, Skoda
- Drive Type: Hydraulic, Mechanical
- Load (Max.): 7000 kgs
- Weight: 10.58 lbs
- Country of Origin: Germany
Scope of Delivery:

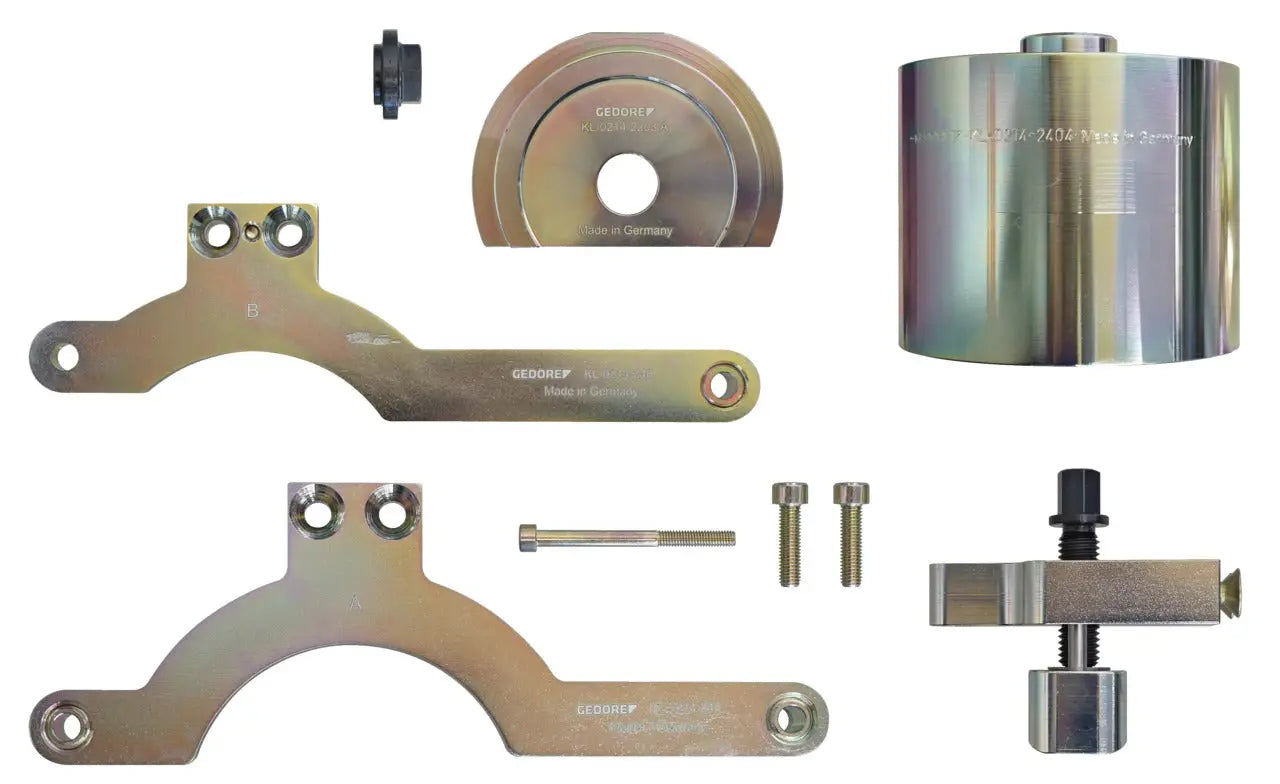

1 x KL-0214-2401 - Preloading device, 1 x KL-0214-2402 - Preloading plate A, 1 x KL-0214-2403 - Preloading plate B, 1 x KL-0214-2404 - Support sleeve 98mm dia., 1 x KL-0214-2203 A - Positioning plate, 1 x KL-0041-7306 - Cylinder screw M6 x 70mm, 1 x KL-0039-1912-3 - Collar nut M12 flat, 2 x KL-1283-1016 - Cylinder screw M8 x 30mm
