Gedore 3275205 Holding-Down Toolkit, 22mm - GD KL-0033-300 E

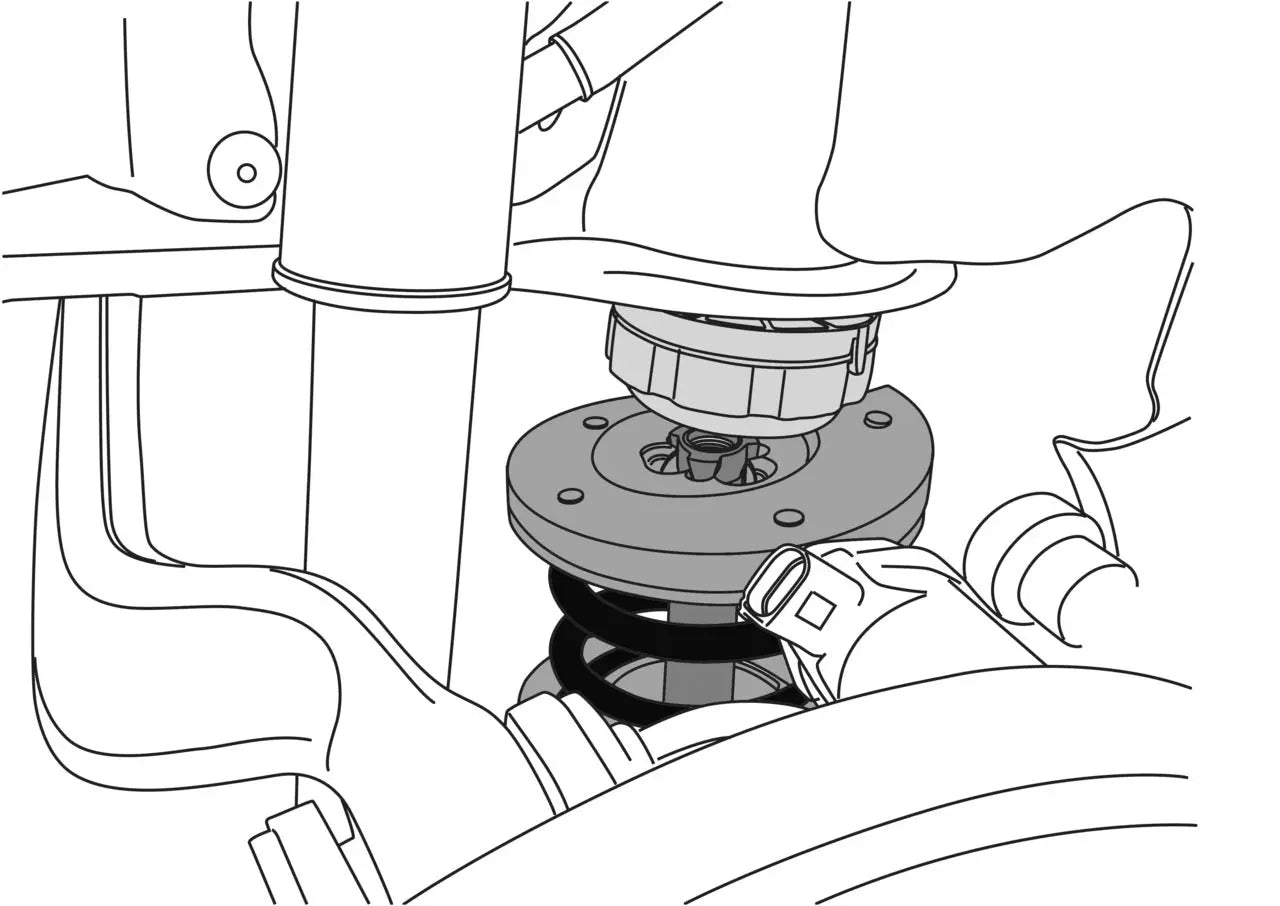

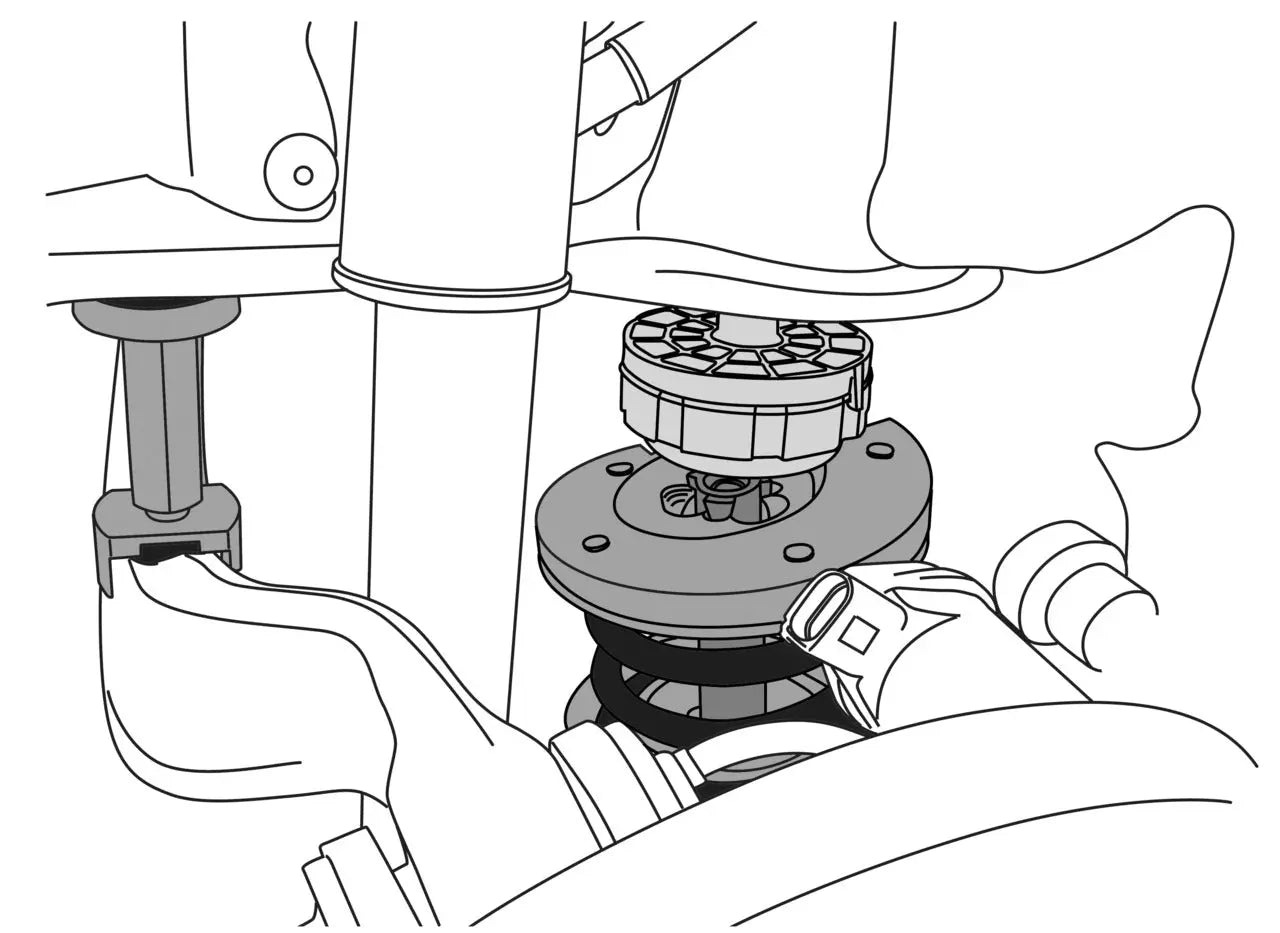

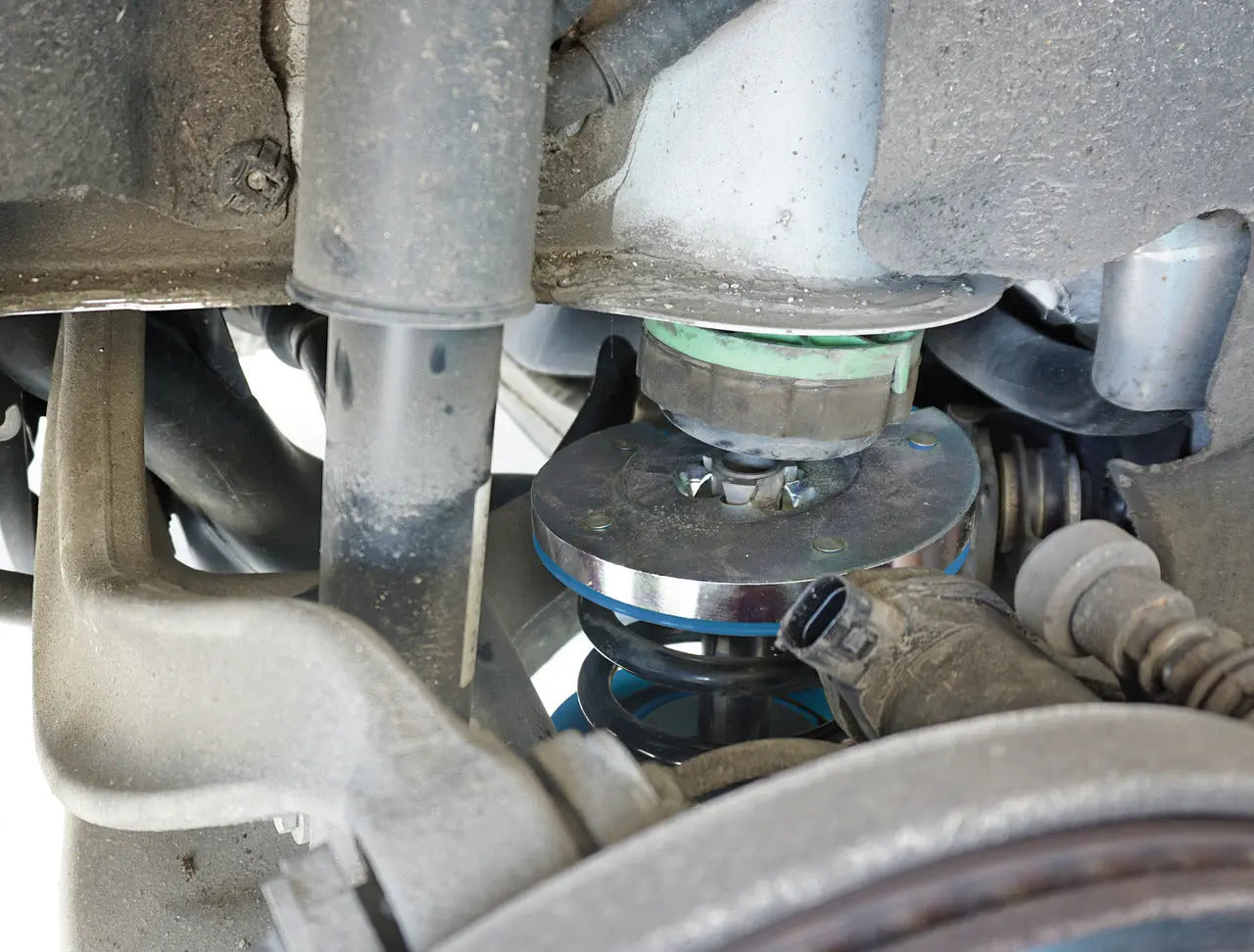

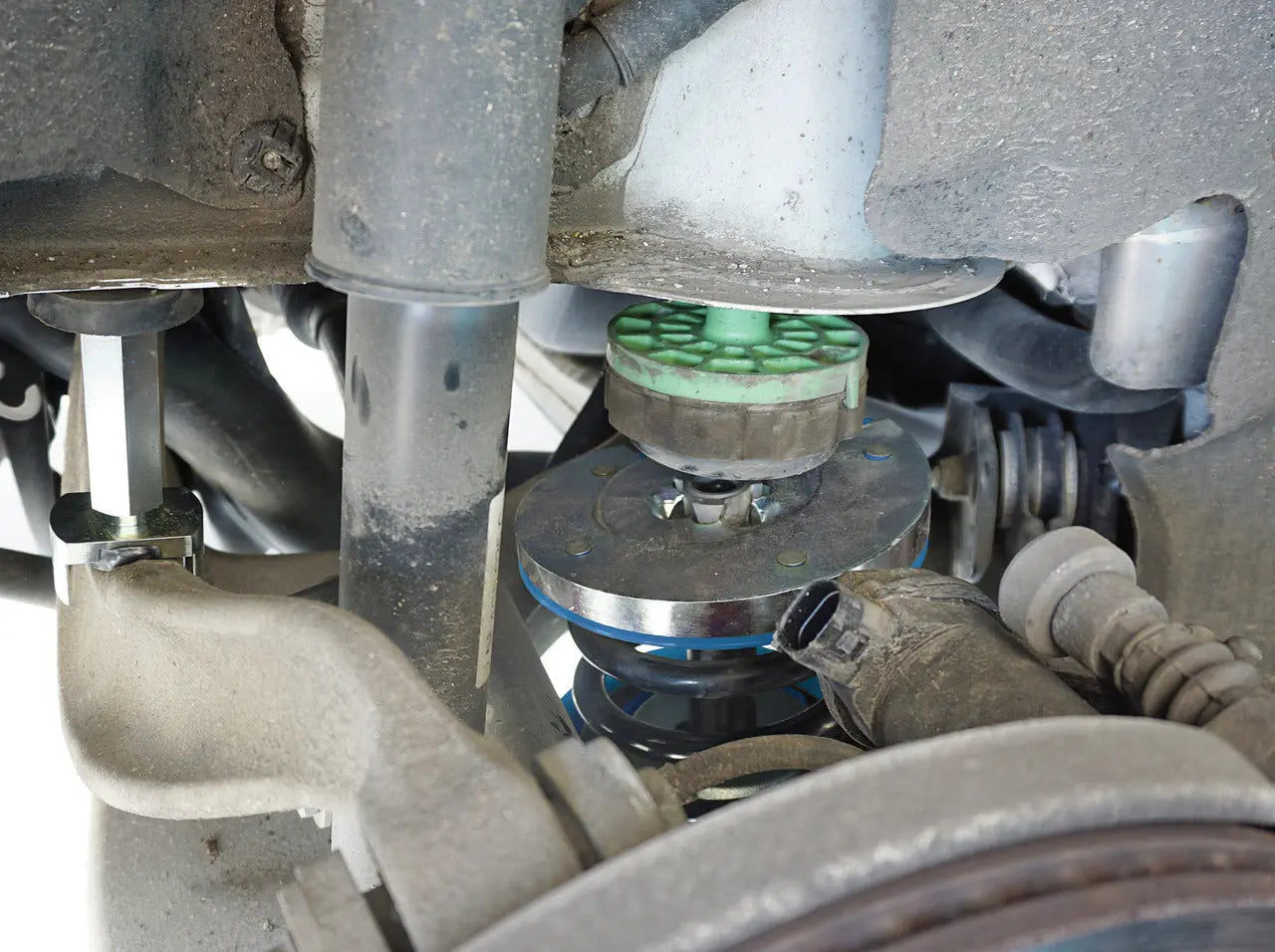

The hold-down kit facilitates the removal and installation of suspension springs on transverse and trailing arm axles. Recommended e.g. for removal and installation with the internal spring tensioner - KL-0033-10 E. The hold-down is inserted between the upper axle guide and the vehicle body and slightly pretensioned. This now holds the wheel suspension in its current position while the suspension spring is being tensioned, which reduces the required tensioning travel and makes the removal of the suspension spring much easier.
Features:
- Universal fit for transverse and wishbone axles. Especially suitable for rear axles on VW-Audi and Porsche
- The hold-down kit facilitates the removal and installation of suspension springs on transverse and trailing arm axles by maintaining the distance between the upper axle control arm and the vehicle body (the suspension remains "sprung"). This creates more space for spring replacement
- Universally suitable for wishbone and multi-link axles for VW-Audi, Seat, Porsche, Mercedes, BMW, Ford, and many more
- Fits particularly for rear axles for VW-Audi, Porsche and Mercedes-Benz
- Installed, for example, in Audi A4 (8K), A5 (8T), A6 (C6), Q5 (8R), Q7 (4M), VW Touareg, Passat (B8/3G), Porsche Cayenne (PO536), Macan, Mercedes-Benz E class (W211, W212), C class (W204), GLA (X156), GLK (X204), etc.
Specifications:
- Suitability: Universal, VW, Audi, Seat, Porsche, Mercedes, BMW, Ford
- Clamping Travel (1): 80 - 113mm
- Clamping Travel (2): 105 - 138mm
- Depth: 140mm
- Diameter (1): 40mm
- Diameter (2): 50mm
- Drive Size: 22mm
- Height: 41mm
- Storage: Foam Insert
- Weight: 1.74 lbs
- Width: 223mm
- Country of Origin: Germany

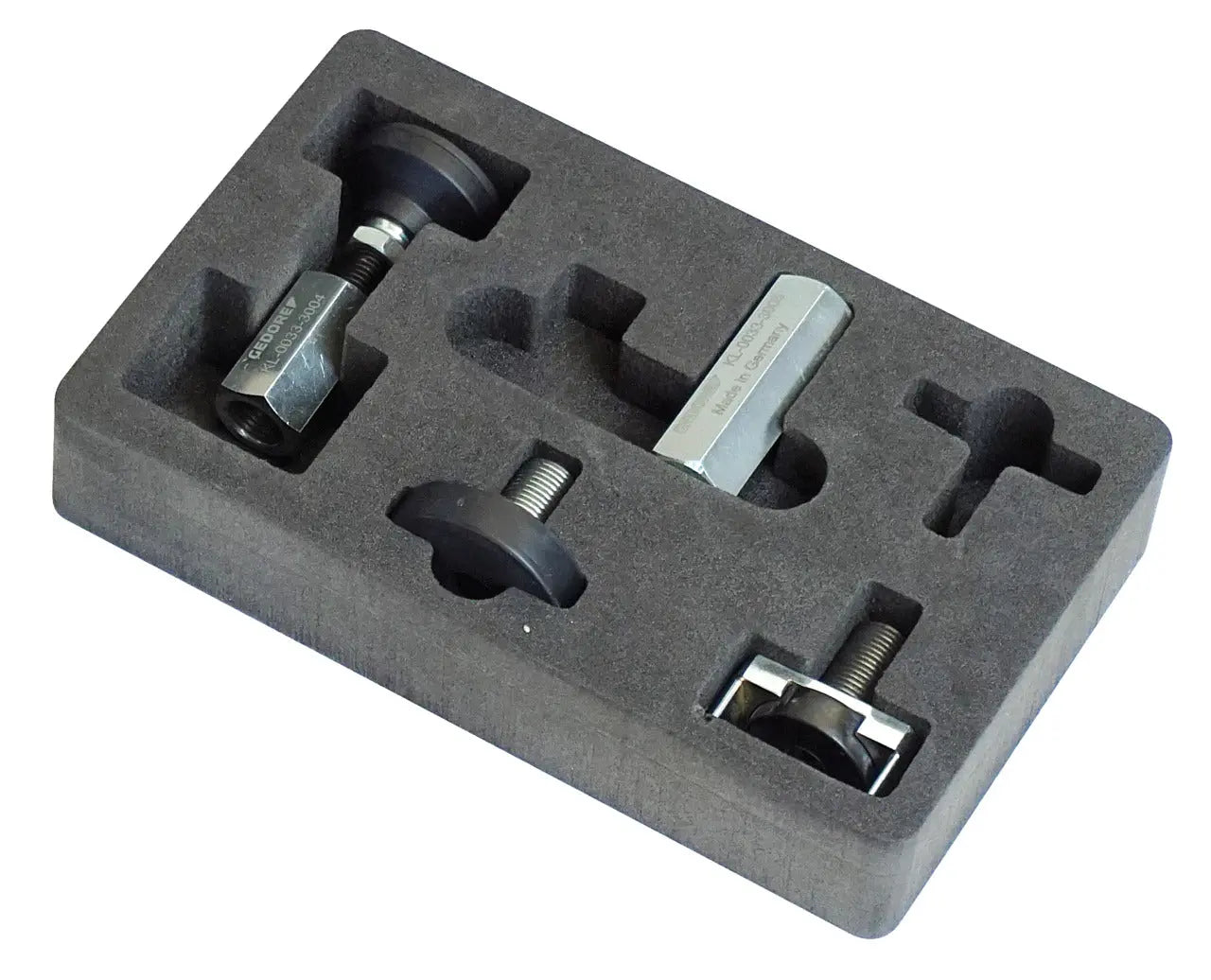

Scope of Delivery:

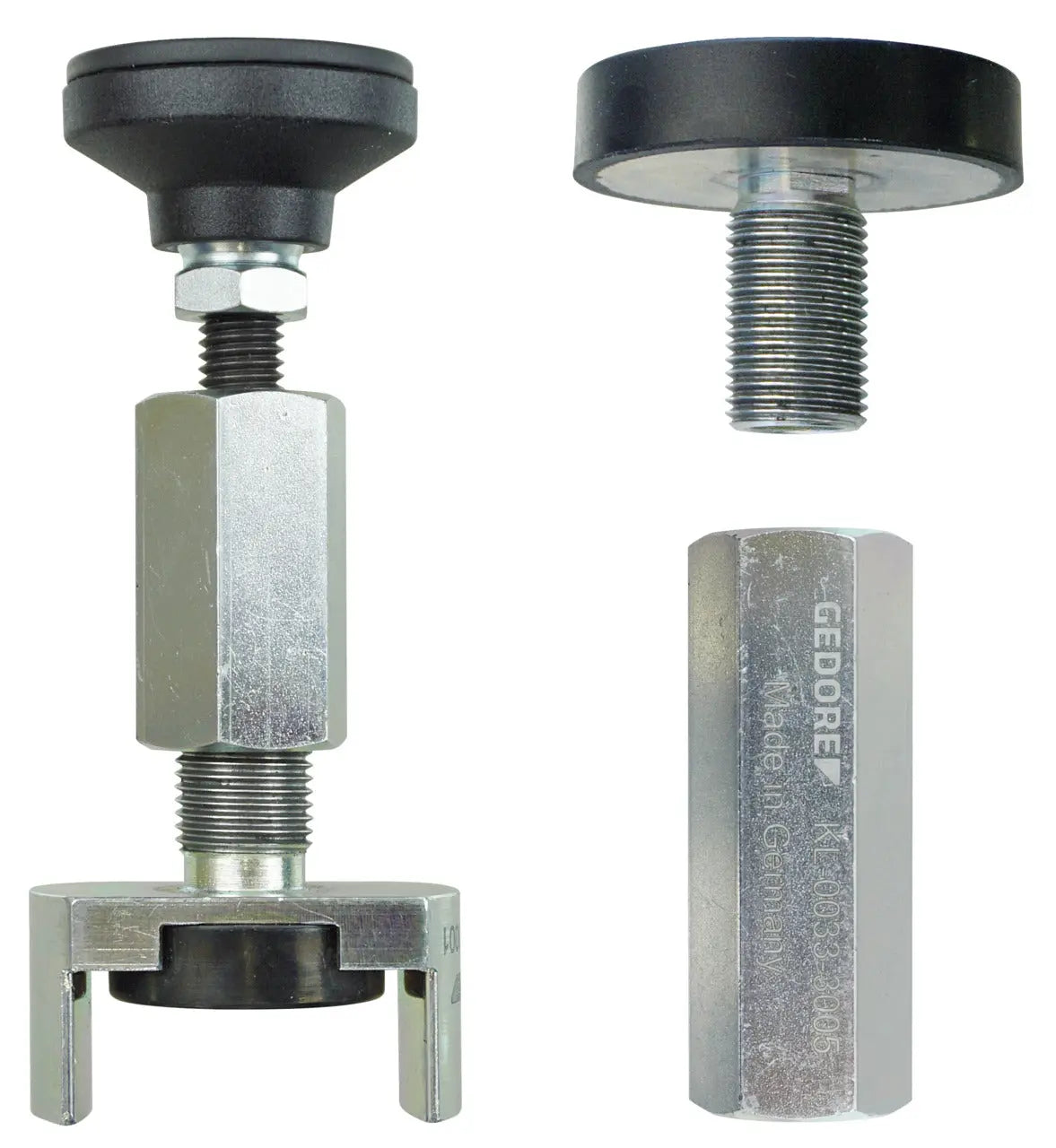

1 x KL-0033-3001 - Support fork, 1 x KL-0033-3002 - Support diameter 50mm, 1 x KL-0033-3003 A - Support diameter 40mm, 1 x KL-0033-3004 - Adjusting nut short, 1 x KL-0033-3005 - Adjusting nut long, 1 x KL-0033-3005 - Foam insert
