Gedore 3275280 Press Frame Kit without Base Plate KL-1005-100 A, HGV, 28T - KL-1039-1111

Name: Gedore 3275280 Press Frame Kit without Base Plate KL-1005-100 A, HGV, 28T - KL-1039-1111
Brand: Gedore Automotive
SKU: KL-1039-1111
Price: 2310.3 USD
Availability: InStock

SKU KL-1039-1111

Factory Stock: (10)

Now:

$2,310.30

$2,718.00

$2,310.30

15% OFF

UPC:

Product Description

Gedore 3275280 Press Frame Kit without Base Plate KL-1005-100 A, HGV, 28T - GD KL-1039-1111

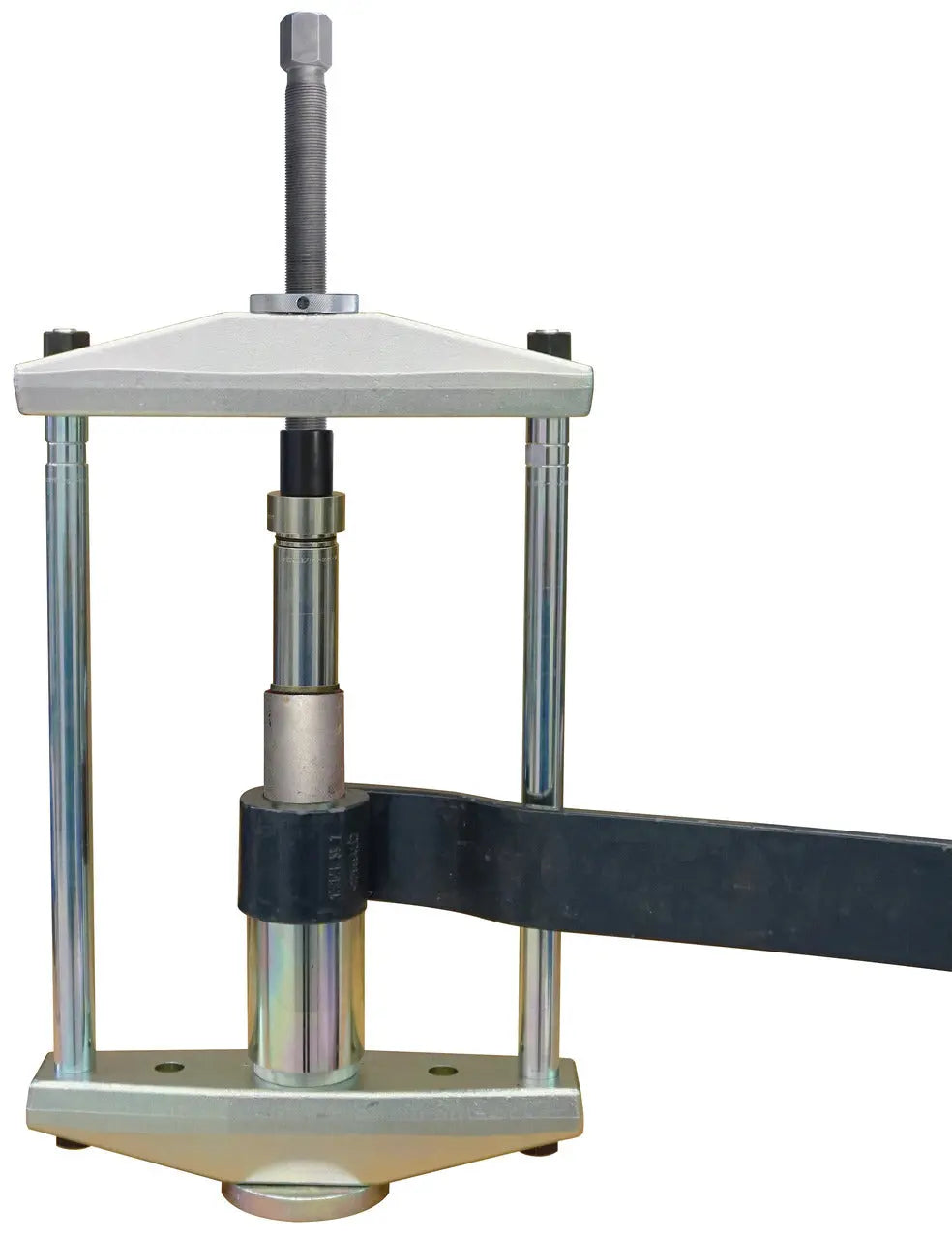

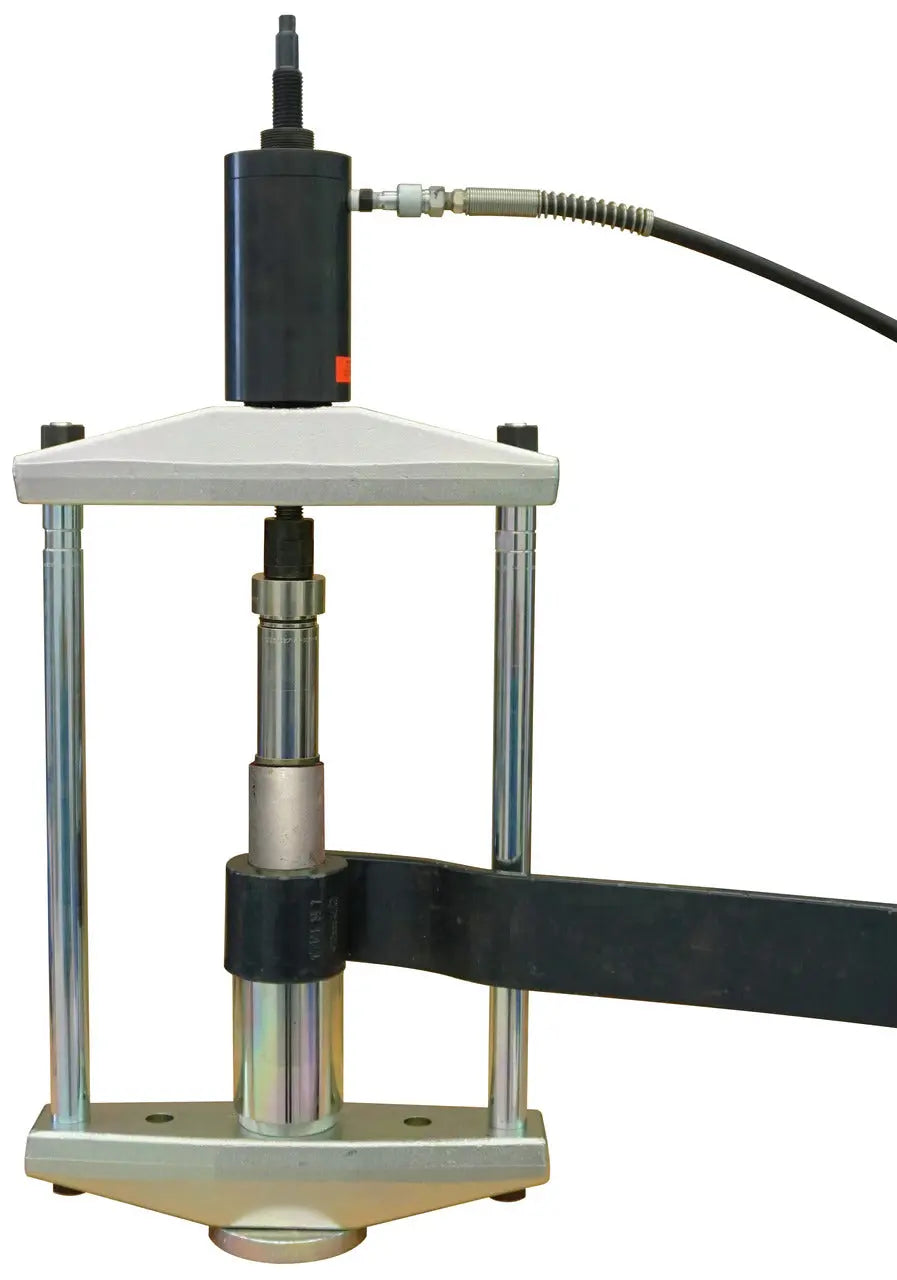

The large and massive NFZ press frame enables the pressing out as well as the pressing in of different bushings, bearings or bolts directly at the vehicle. For example, on boom arms, tippers, skip loaders, lifting arms, hook lift systems, chassis parts and much more. Additional pressure/support sleeves from the KL-0039 series can be used to easily add further diameters. The base included in the scope of delivery also allows the mobile commercial vehicle press frame to be placed on a workbench, for example, as well as for stationary use as a light-weight standing press when on the road, e.g. in commercial vehicle service or repair vehicles. The NFZ press frame can also be quickly adjusted in length and width using the extension rods and the holes in the base plates.

Features:

Universally suitable for commercial vehicles, construction machinery, agricultural machinery, trailers and semi-trailers
For pressing out and pressing in bushings, bearings or bolts directly on the vehicle
Can be supplemented by pressure/support sleeves from the KL-0039 series
Can also be used stationary due to mounting foot
Length and width adjustable
Universal fit for commercial vehicles, construction machines, agricultural machines, trailers and semi-trailers

Specifications:

Suitability: Universal
Cylinder Mounting Thread: 2-3/4 in - 16 UN
Drive Type: Hydraulic, Mechanical
Inside Length (Press Frame): 500mm
Inside Length 2 (Press Frame): 700mm
Inside Width (Press Frame): 180mm
Inside Width 2 (Press Frame): 320mm
Inside Width 3 (Press Frame): 250mm
Load (Max.): 28T
Weight: 74.97 lbs
Country of Origin: Germany

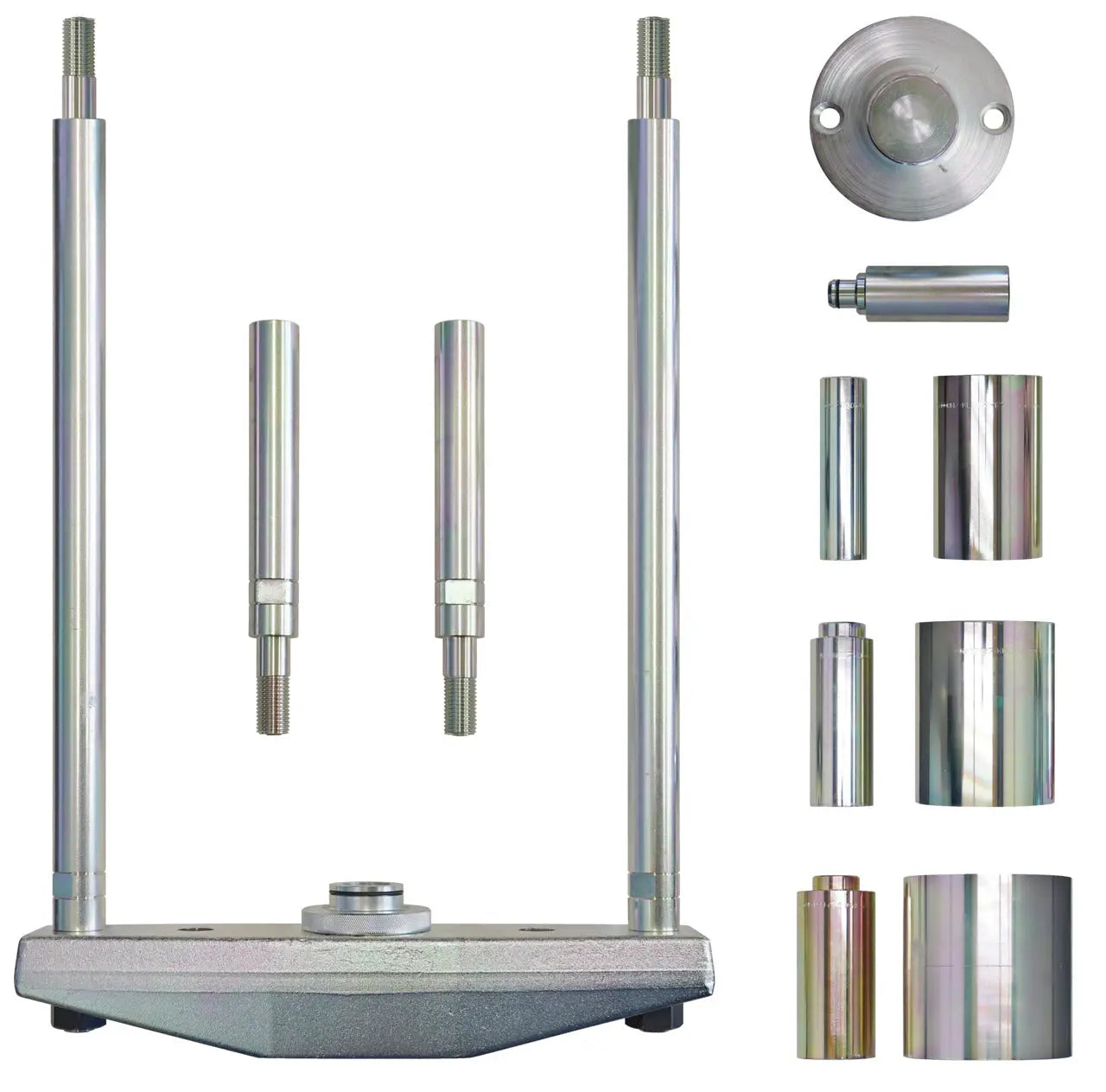

Scope of Delivery:

1 x KL-1039-1101 Base plate 2-3/4"-16 UN, 2 x KL-1039-1102 Tie rod M22, 2 x KL-1005-1014 SK collar nut M22, 1 x KL-1039-1105 Adaptor 2-3/4"-16 UNS to diameter 30mm, 2 x KL-1039-1103 Pull rod M22 extension, 1 x KL-1039-1106 M24 pressure nut extension, 1 x KL-1039-1107 Mounting Foot, 1 x KL-1039-7110 Pressure/Support Sleeve, long, diameter 110/102mm, 1 x KL-0039-1790 Pressure/Support Sleeve, long, diameter 90/82mm, 1 x KL-0039-1770 Pressure/Support Sleeve, long, diameter 70/62mm, 1 x KL-0039-1750 Pressure/Support Sleeve, long, diameter 50/42mm, 1 x KL-0039-1740 Pressure/Support Sleeve, long, diameter 40/32mm, 1 x KL-0039-1730 Pressure/Support Sleeve, long, diameter 30/22mm
