Gedore 3283992 Injector Nozzle Puller Set with Foam Insert, M12 x 1 - GD KL-0186-91 EA

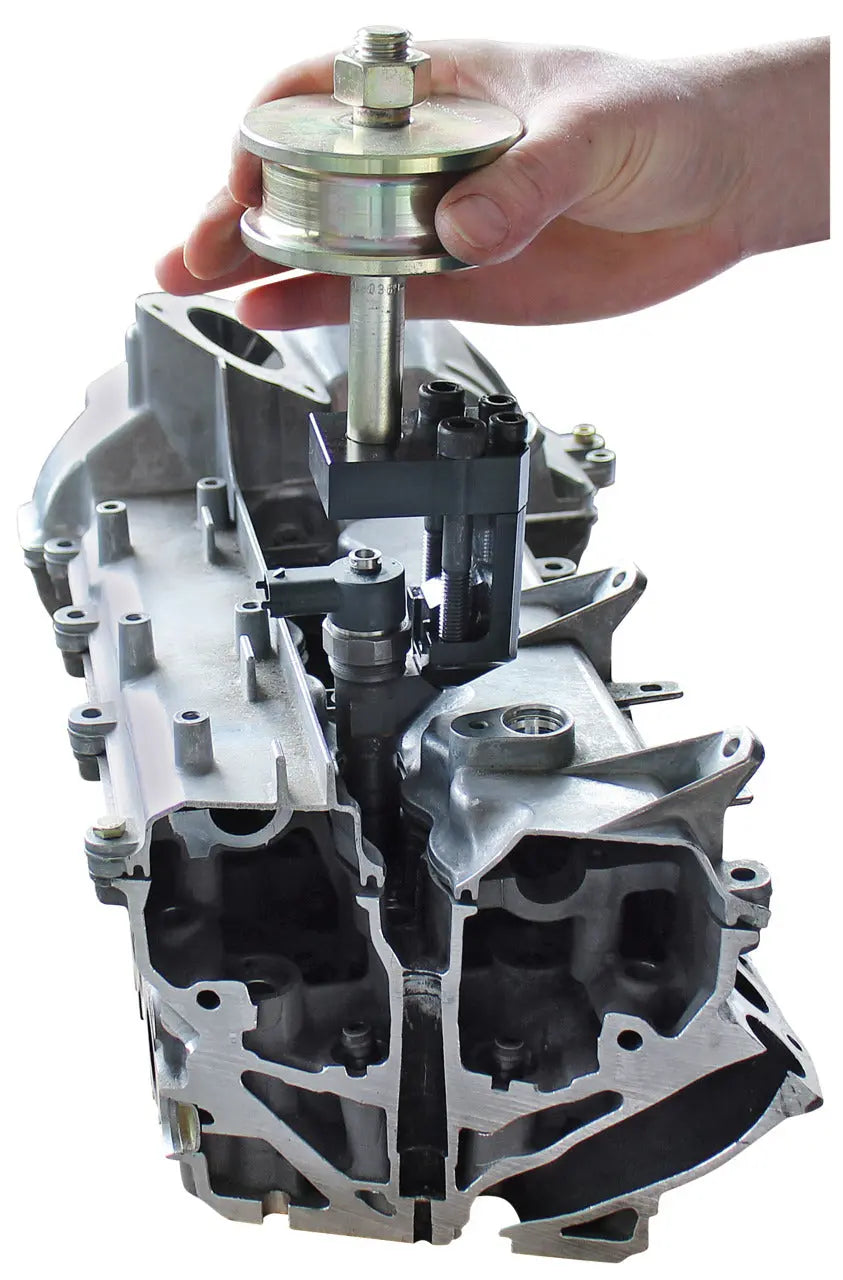

For quick and professional extraction of stuck injectors. Required e.g. when replacing the injectors or removing the valve cover. It is not necessary to open the injector for this purpose, as the injector extractor is fastened over the fuel connection by means of the special screws included in the set. The special design of the adaptors and the joint piece included in the scope of delivery ensure damage-free and straight-line power transmission to the injector.
Features:
- Universally suitable for Denso, Bosch and Siemens/VDO injectors with a fuel connection external thread of M12x1.5 / 30 degree or M12x1 / 45 degree internal thread. Installed in many common car engines
- Quick and professional extraction of stuck injectors
- No need to open the injector
- Due to the joint a straight line power transmission is possible
- Fits universally for Denso injectors with a fuel connection with external thread M12x1.5 / 30 degree as well as for Bosch and Siemens/VDO injectors with a removable fuel connection with an internal thread M12x1 / 45 degree. For example, installed on VW-Audi, Seat, Skoda, BMW, Mercedes, Chrysler, Chevrolet, Citroen, Fiat, Hyundai, Iveco, Lancia, Opel, PSA, Peugeot, Renault, Saab, Suzuki, Toyota
- Especially suitable for VW-Audi, Seat, Skoda, BMW, Mercedes and PSA
Specifications:
- Suitability: Universal, VW, Audi, Seat, Skoda, BMW, Mercedes, PSA
- Angle: 30 degree, 45 degree
- Depth: 159mm
- Drive Type: Manual
- External Thread: M12 x 1.5
- Height: 53mm
- Injectors: Bosch, Denso, Siemens/VDO
- Internal Thread: M12 x 1
- Motor Type: Diesel
- Storage: Foam Insert
- Weight: 5.73 lbs
- Width: 243mm
- Country of Origin: Germany

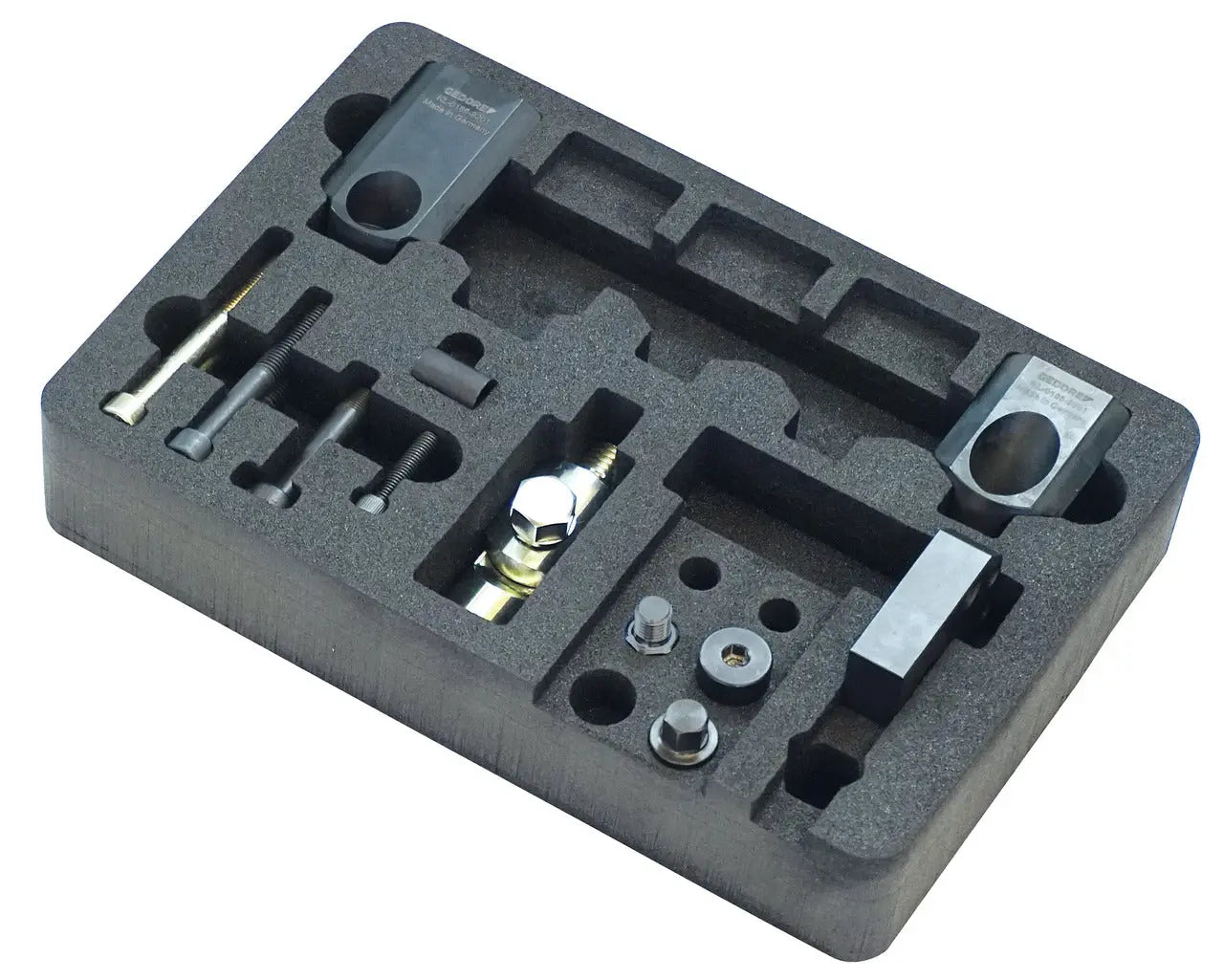

Scope of Delivery:

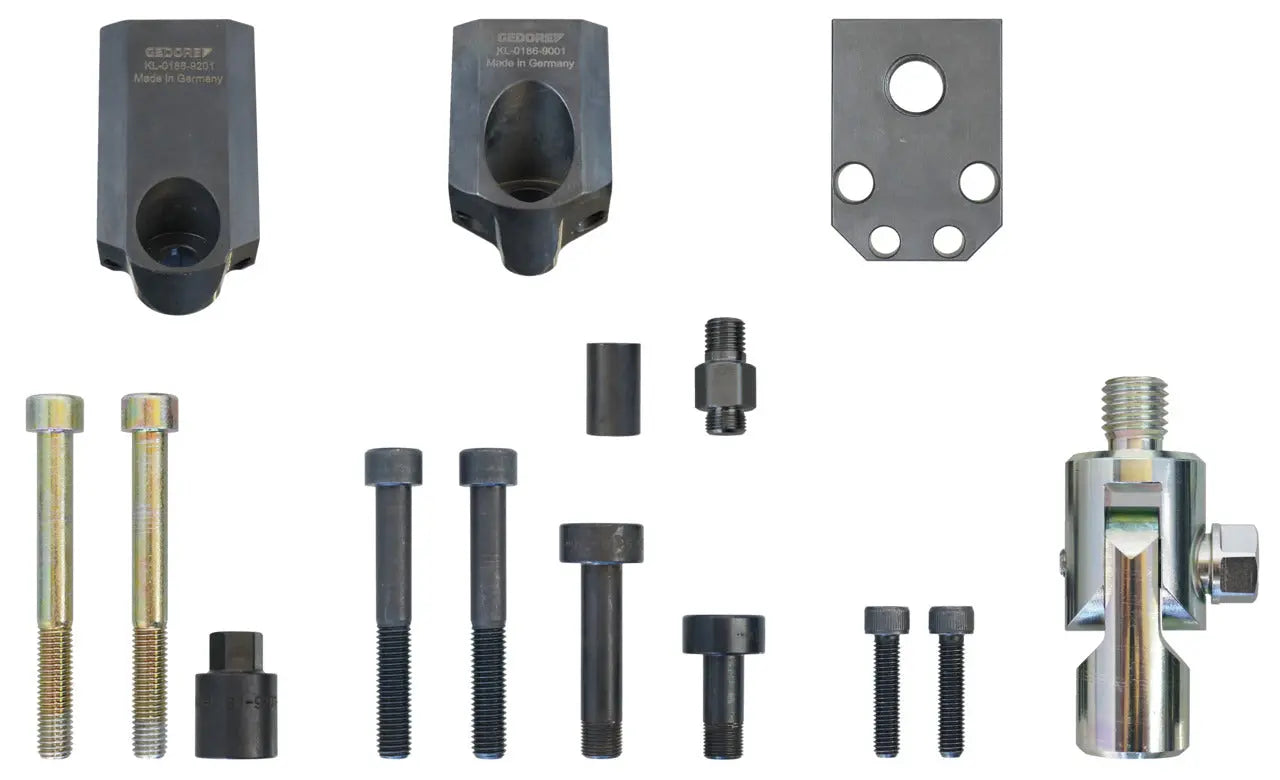

1 x KL-0186-9000 A - Head plate with cylinder screws, 1 x KL-0186-9001 A - Injector extractor M12 x 1 / 45 degree, 1 x KL-0186-9201 A - Injector extractor M12 x 1.5 / 30 degree, 1 x KL-0186-950 - Pull joint M18, 1 x KL-0186-9090-2 A - Foam insert
