Gedore 3290255 Mechanical Drive Kit for Wheel Hubs, 19mm (waf) - GD KL-0039-801 C

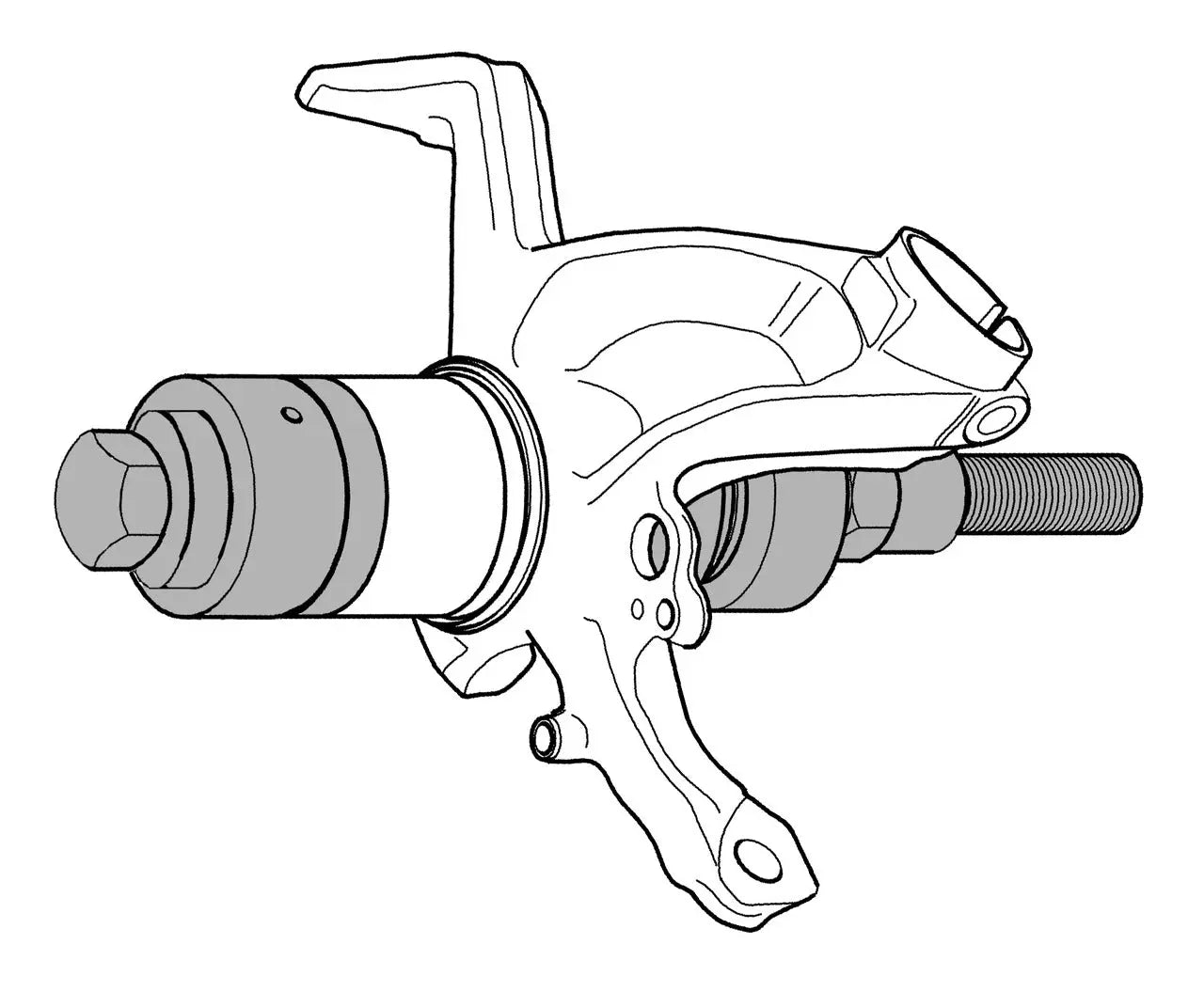

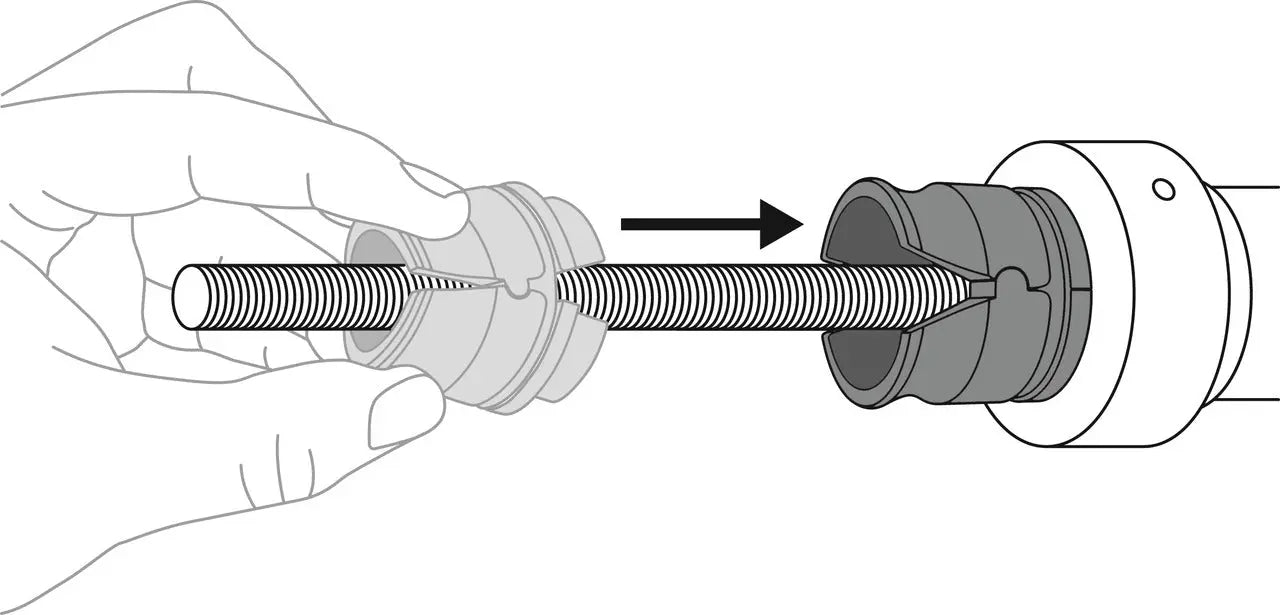

Mechanical drive for the wheel hub and wheel bearing tool kits KL-0039. series, KL-0041-4. series as well as KL-0041-380 A. The mounting adaptor with integrated ball bearing, which is included in the kit, enables simple and force-optimized working. The special quick-release nut allows the adjustment on the draw spindle without a rotary movement but only by sliding. This allows for short assembly/clamping times, as well as quick and easy adjustment and simple operation of the tool. To drive KL-0041-380 A, only the spindle - KL-0039-2030, and the mounting adaptor - KL-0039-1011 are required.
Features:
- Mechanical drive for tool kits of the KL-0039 series, KL-0041-4. series and KL-0041-380A
- Smooth drive due to adaptors with ball bearing

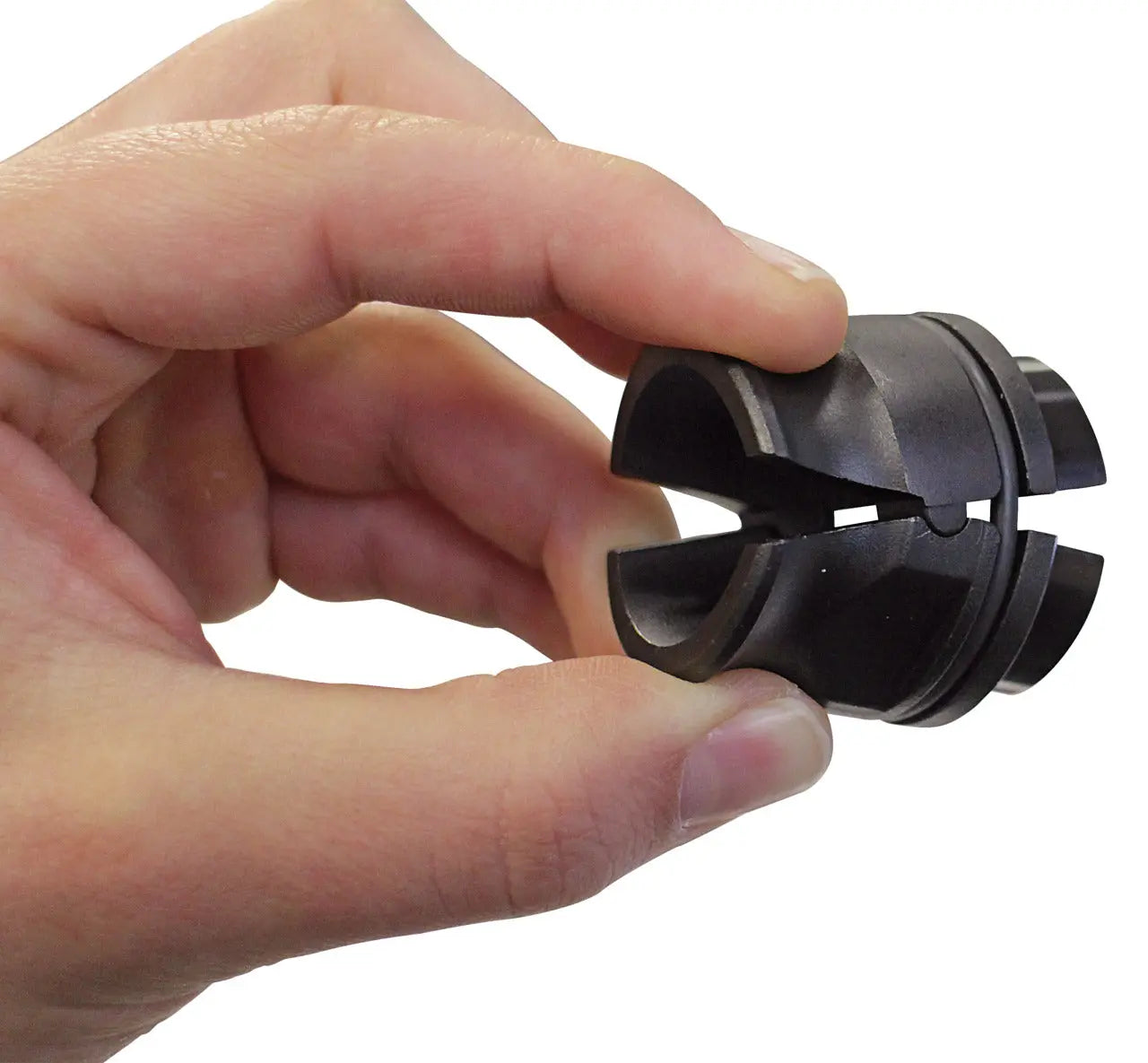

- High time saving due to quick-clamping function of the nut
Specifications:
- Suitability: Universal
- Drive Size: 19mm (waf)
- Drive Type: Mechanical
- Load (Max.): 20T
- Spindle Length: 420mm
- Thread: M20
- Thread Spindle Length: 310mm
- Weight: 5.51 lbs
- Country of Origin: Germany
Scope of Delivery:

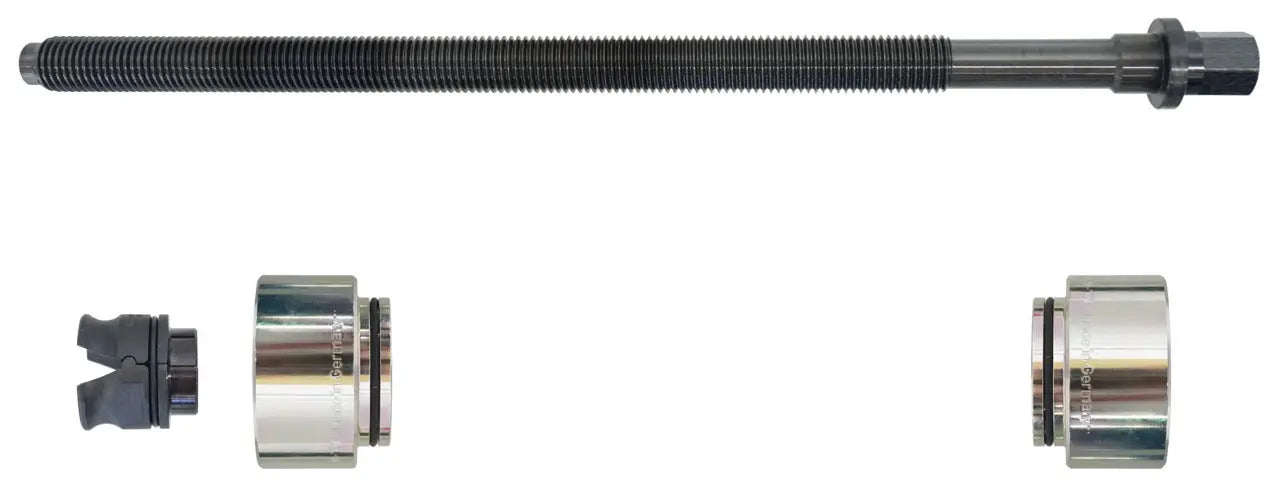

1 x KL-0039-2030 - Pull spindle M20, 1 x KL-0039-2120-2 - Quick-clamping nut M20, 1 x KL-0039-1002 - Mounting adaptor for clamping nut M20 with O-ring, 1 x KL-0039-1011 - Mounting adaptor for mechanical spindle
