Gedore 3292770 Supplementary Set, Closed Wheel Bearing, Ford Transit - GD KL-0040-862
The supplementary kit enables the removal of the bolted wheel bearing unit with wheel hub and brake disc on the front axle, especially in the case of wheel bearings without a center bore in closed design, and subsequently the removal and pressing in of the wheel hub on the wheel bearing unit. Required, for example, when replacing the wheel bearing and brake discs, as these are located behind the wheel hub.
Features:
- Suitable for the front axle of Ford Transit/Tourneo (model year 2006-2014 / from 2014) with rear-wheel drive (bolt circle Diameter at brake disc bolting: 97.5 and 111 mm)
- Enables the removal of the bolted wheel bearing unit with wheel hub and brake disc
- Enables the removal and pressing in of the wheel hub on the wheel bearing unit
- Advantages - Also for closed wheel bearings
- No removal and installation of the wheel bearing housing
- No wheel alignment necessary
- Fits with the front axle on Ford Transit/Tourneo (as of YOM 2014) with rear-wheel drive and a hole circle diameter at the brake disc fixing screws of 97.5 mm and 111 mm
- Particularly suitable for vehicles with wheel bearing units without center bore in closed design on the front axle
Specifications:
- Suitability: Ford
- Drive Type: Hydraulic
- Load (Max.): 28000 kgs
- Weight: 20.51 lbs
- Wheel Stud Circle: 97.5
- Wheel Stud Circle (2): 111mm
- Country of Origin: Germany
Scope of Delivery:

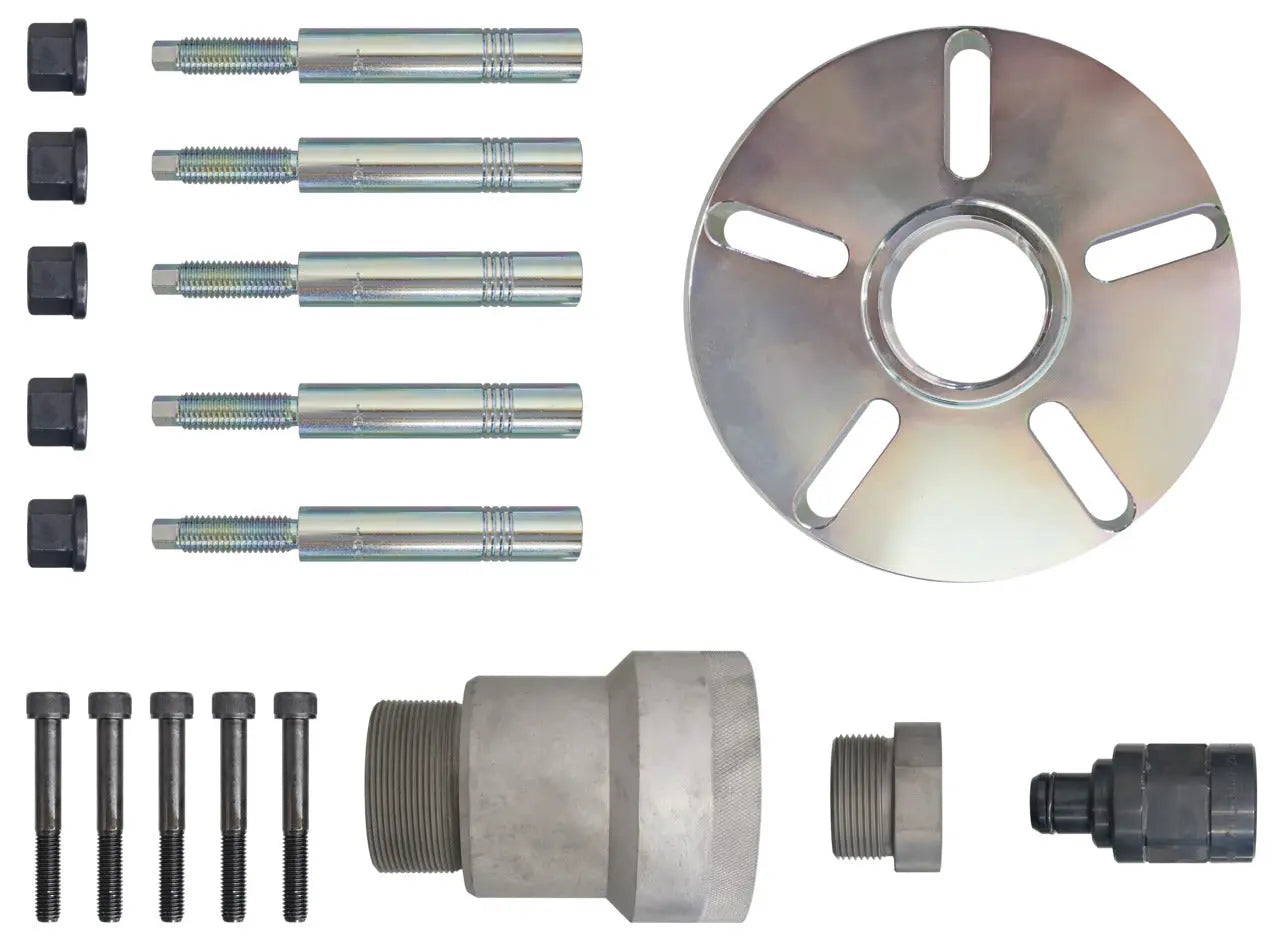

1 x KL-0174-330 - Hole disc size 3 (5-hole), 1 x KL-0040-2812-5 - Thrust nut M24, 1 x KL-0040-8621 - Thrust adaptor, 1 x KL-0174-572 - Adaptor 2 1/4" to 2 3/4", 5 x KL-0174-764 A - Draw bolt type M, M14 x 1.5mm, 5 x KL-0174-701 - Hexagon collar nut M14, 5 x KL-0186-9000-3 - Cap screw M10 x 75mm
