Gedore 3296873 Injector Nozzle Puller Set, VM-Motori, HATZ-Diesel, Iveco, M12 x 1.5 - GD KL-0186-95 K
For quick and professional extraction of stuck injectors. Required e.g. when replacing the injectors or removing the valve cover. It is not necessary to open the injector for this purpose, as the injector extractor is fastened over the fuel connection by means of the special screws included in the set. The special design of the adaptors ensures damage-free and straight-line power transmission to the injector.
Features:
- Universally fits agricultural machines, construction machines, and municipal vehicles with engines from VM-Motori as well as HATZ-diesel and Iveco
- Quick and professional pulling of stuck injectors
- No opening of the injector required
- For example, installed on Aebi, Boki, Boschung, Bulmor, Bucher, Hako, Hansa, Karcher, Ladog, Lindner, Meili, MFH, Reform, Schell, Schmidt, Trilety
- For example, the motor series: VM-Motori R754 (Euro 5 + Euro 6), R756 (Euro 6), HATZ-diesel H-Series 3H50 TIC, 4H50 TIC, Iveco F1CE3 (Euro 5), 8140.43 (Euro 3)
Specifications:
- Suitability: Universal, Iveco
- Angle: 30 degree, 45 degree
- Depth: 210mm
- Drive Type: Manual
- External Thread: M12 x 1.5
- Internal Thread: M14 x 1, M12 x 1
- Motor Type: Diesel
- Storage: Case
- Weight: 4.19 lbs
- Width: 72mm
- Country of Origin: Germany
Scope of Delivery:

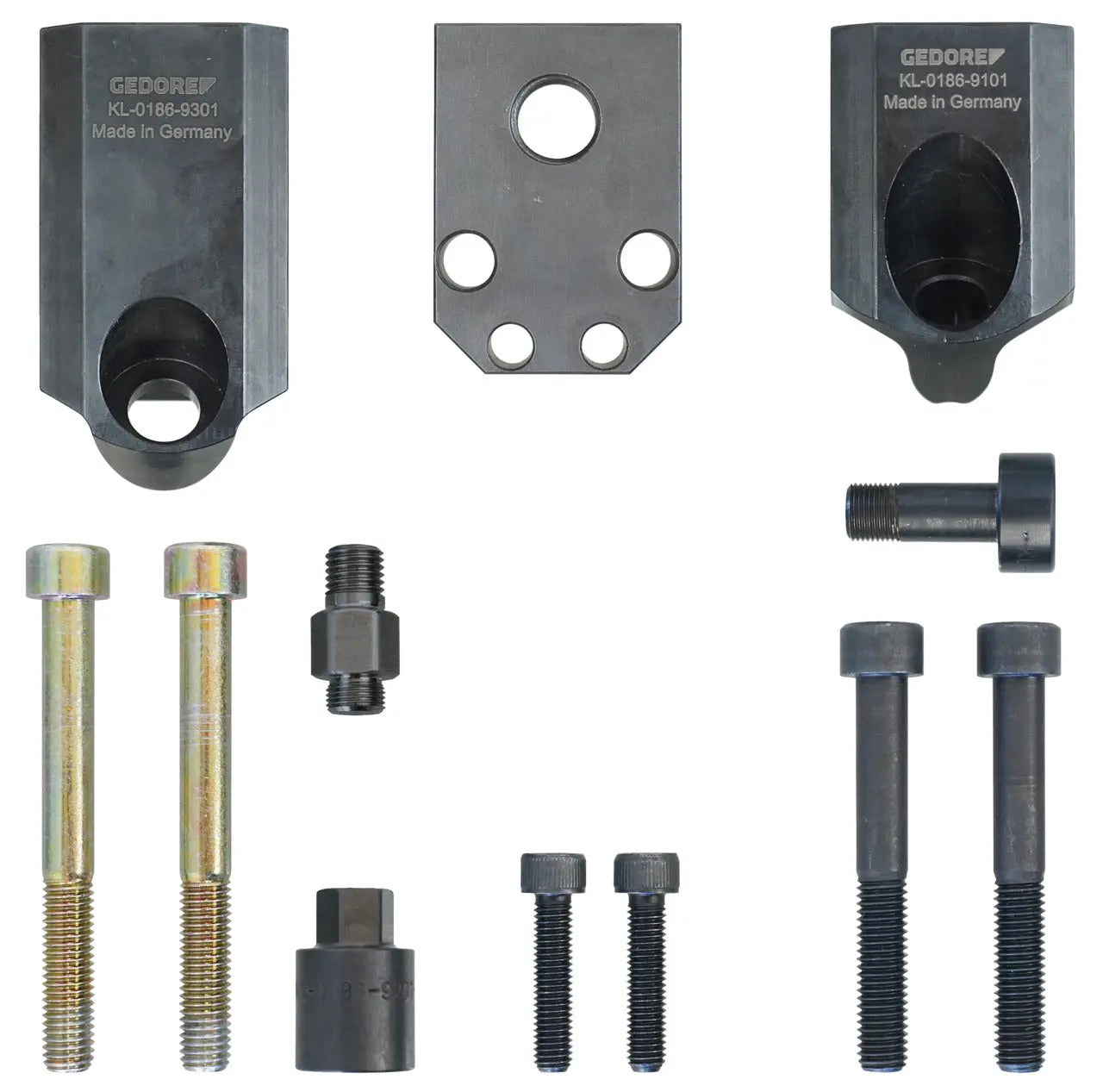

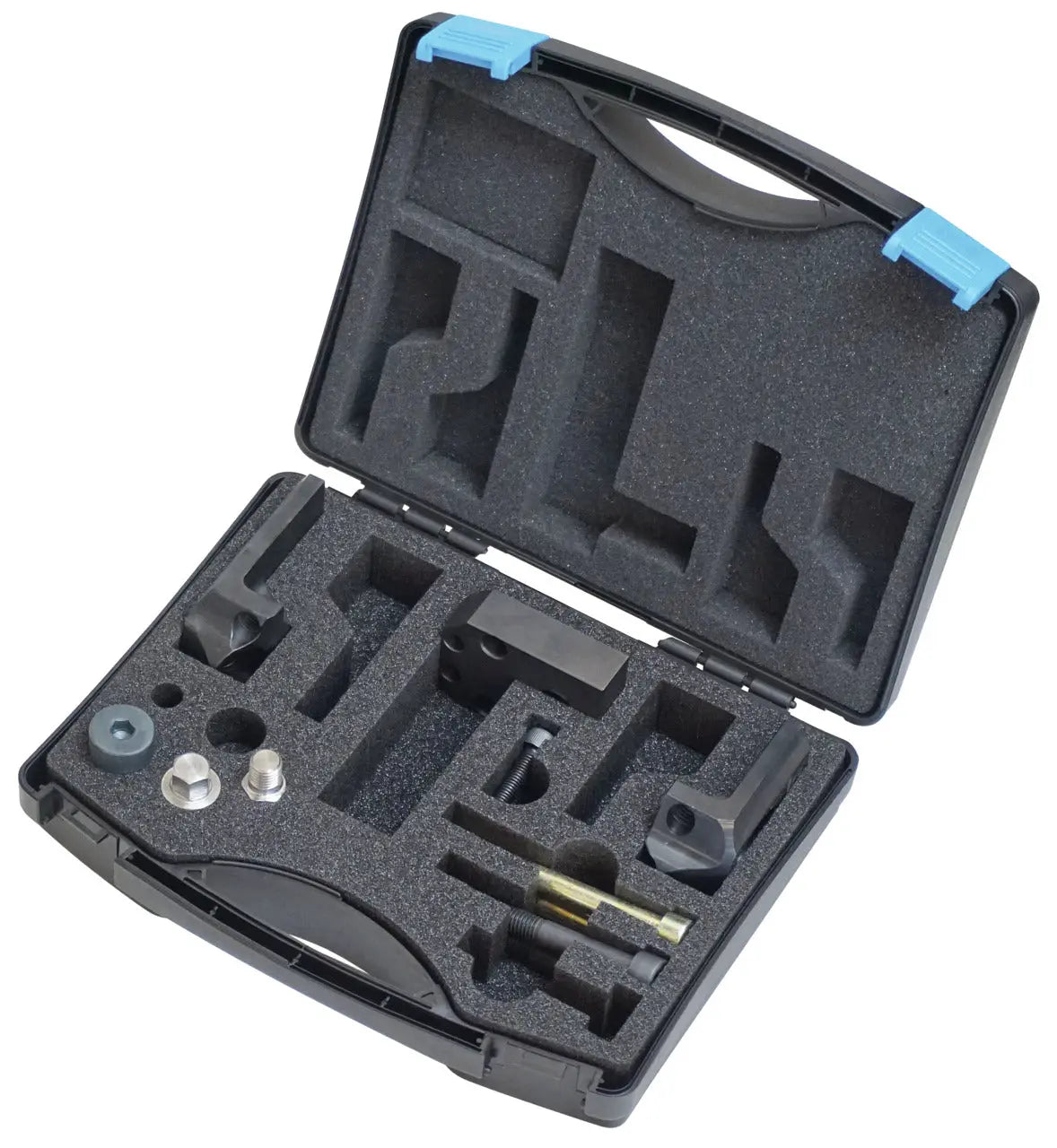

1 x KL-0186-951 LDG Injector Extractor HATZ H-Series, 1 x KL-0186-952 LDG injector puller VM-Motori, 1 x KL-0186-9000-1 Nozzle extractor head plate, 2 x KL-0186-9000-2 cylinder screw M8 x 35mm, 1 x KL-0186-9090 Plastic Case
