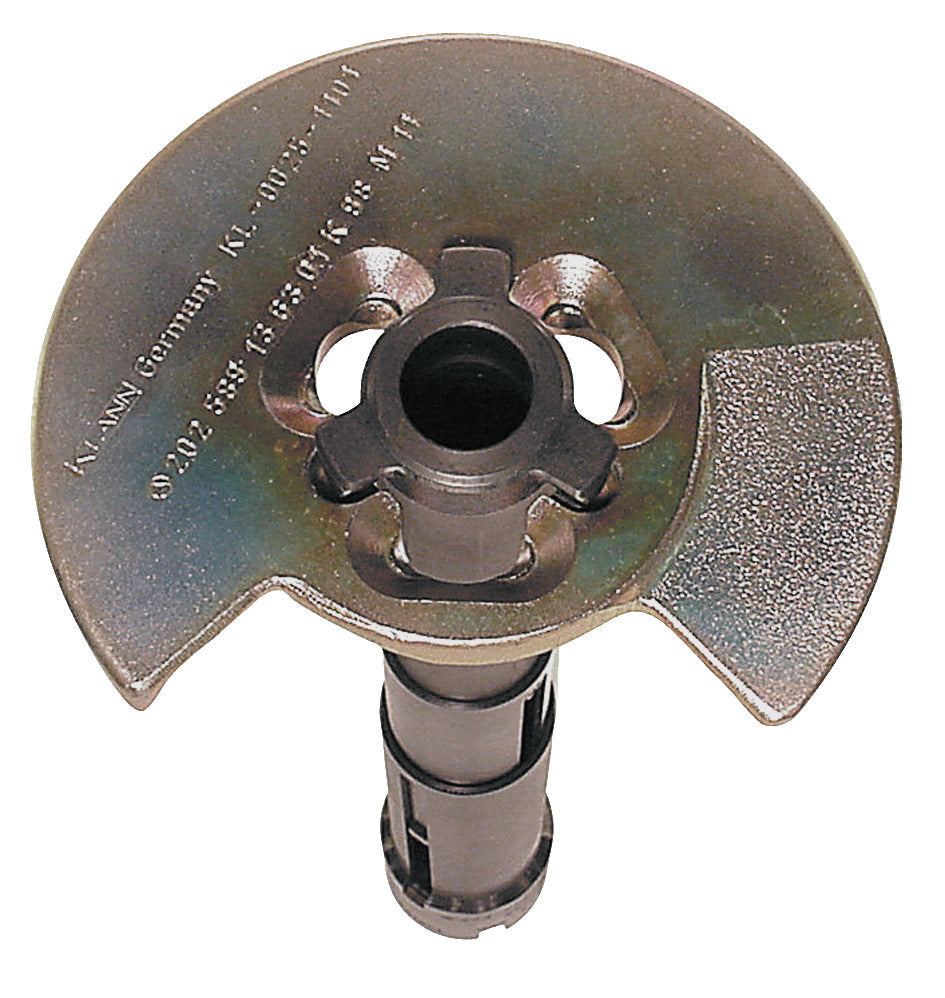

Gedore 3402495 Internal Spring Compressor Set, Short, 75mm - GD KL-0025-20 E

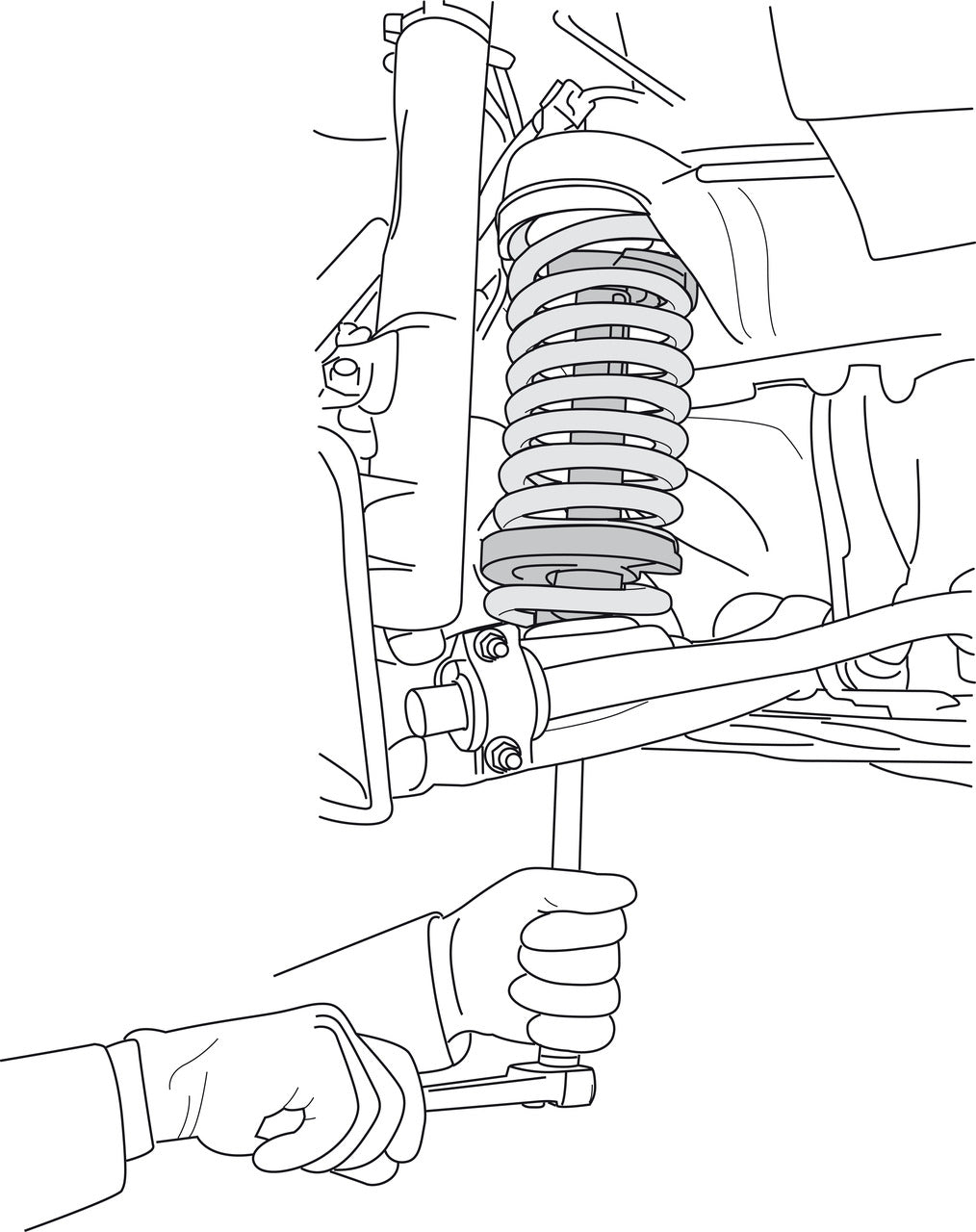

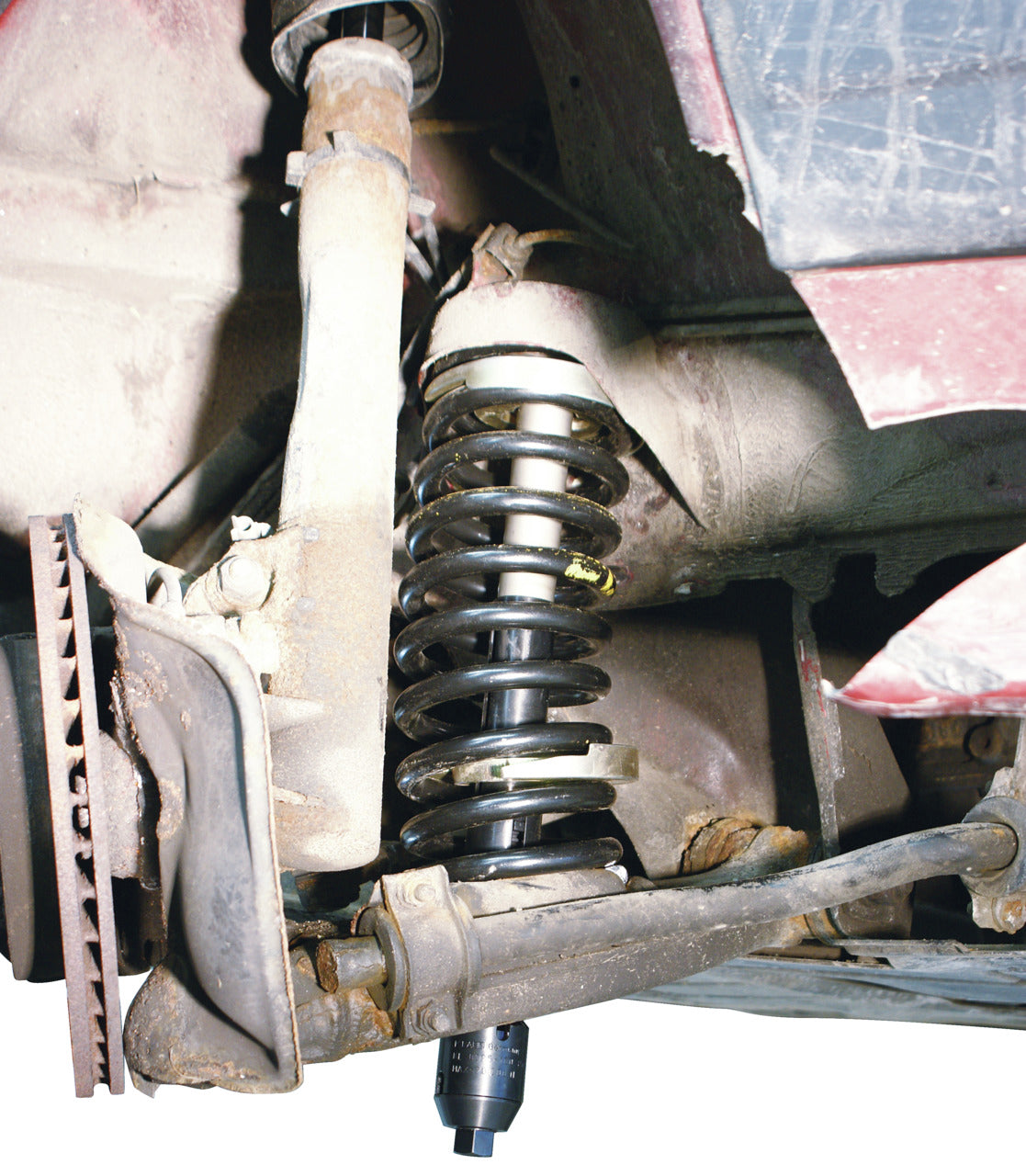

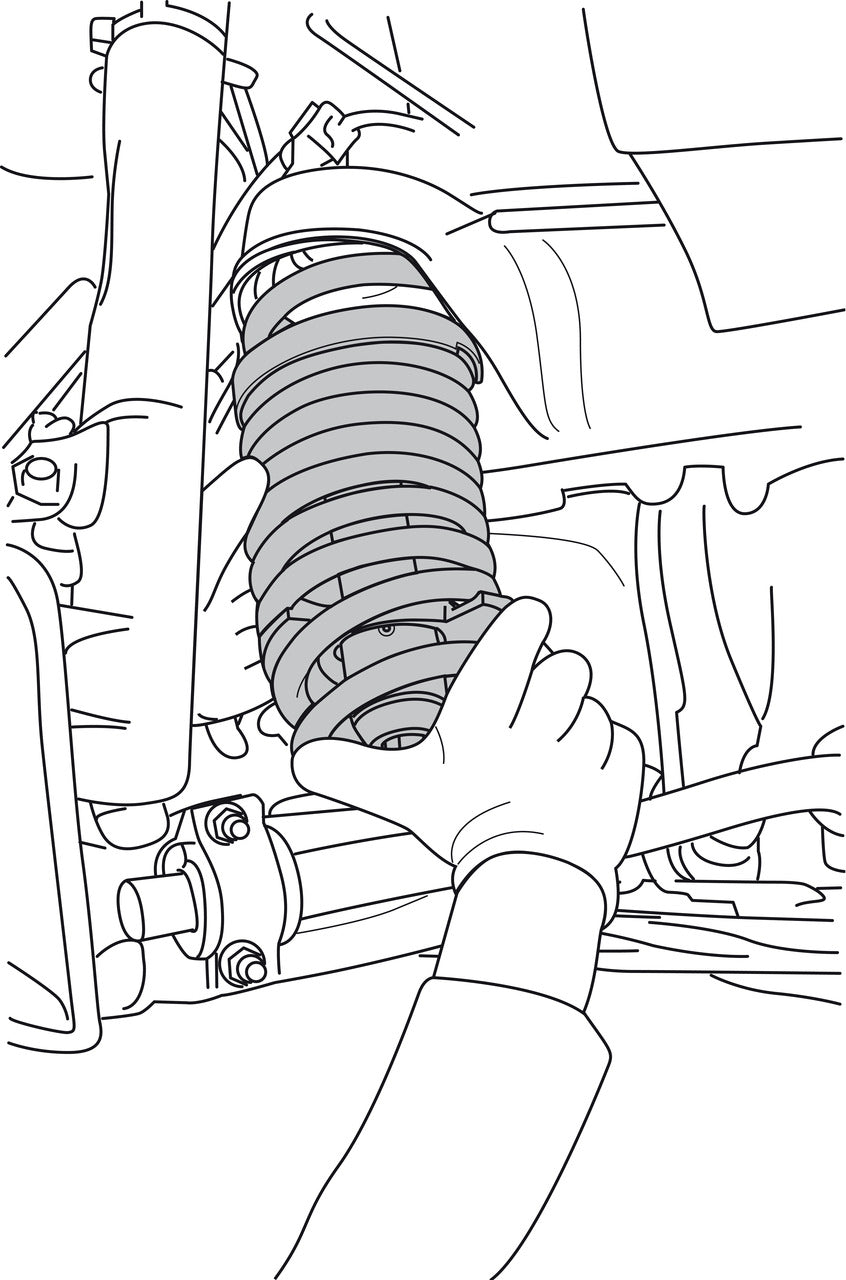

Enables the removal of the rear axle springs in case of confined spaces without lowering the rear axle beam. Pros: 3-Point safety lock Automatic free-wheel Corrugated profile Spindle overload protection.

Features:

• Especially suitable for Chrysler, Mercedes, etc.

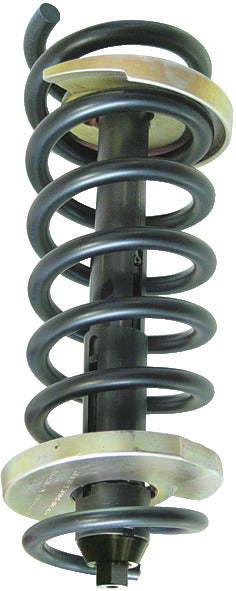

• For a secure installation and removal of chassis springs
• 3-point safety lock
• Automatic free-wheel
• Spindle overload protection
• Especially suitable for Chrysler, Mercedes C-Class (W202), CLK (W208), E-Class (W210, W211), S-Class (W140), SL (R107, R129, R170), W114, W115, W116, W123, W124, W126, and W201 for rear axle springs. Also fits BMW 1 Series (E87) and 3 Series (E90) if used in combination with pressure plates KL-0025-16

Specifications:

• Suitability: Universal, Mercedes, BMW, Chrysler

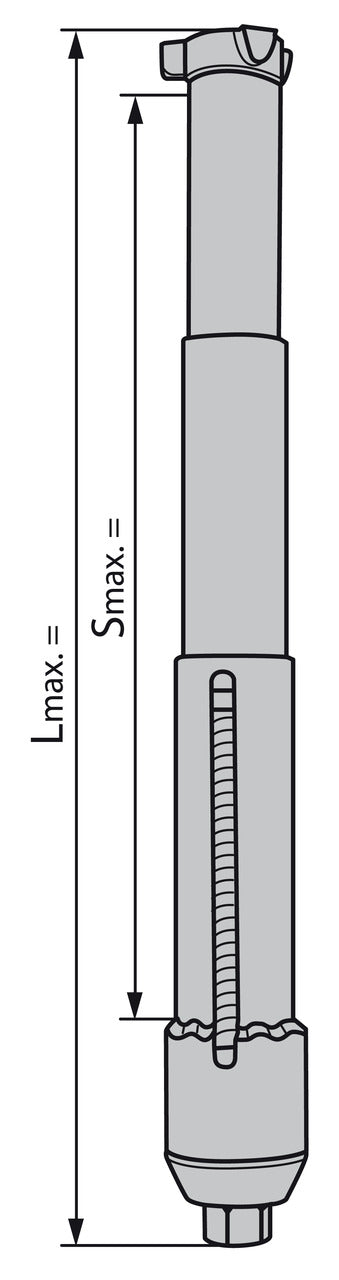

• Clamping Width (Max.): 287mm

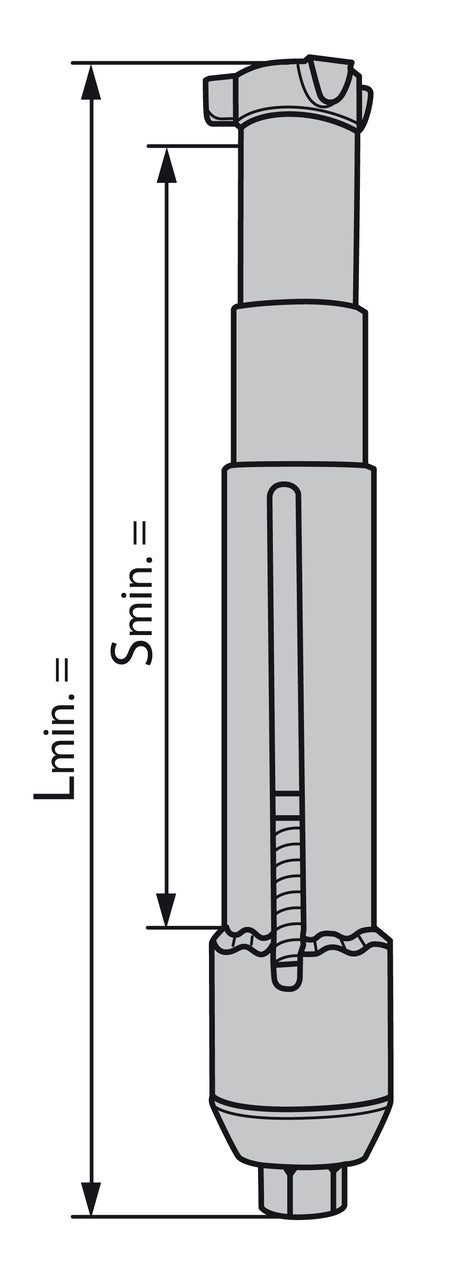

• Clamping Width (Min.): 110mm
• Depth: 231mm
• Drive Size: 19mm (waf)
• Height: 90mm
• Inner Spring Diameter (Min.): 75mm
• Load (Max.): 30.000 N
• Outer Diameter of Cylinder: 44mm
• Outer Spring Diameter (Max.): 140mm
• Storage: Foam Insert
• Weight: 9.92 lbs
• Width: 370mm
• Working Travel: 177mm
• Country of Origin: Germany

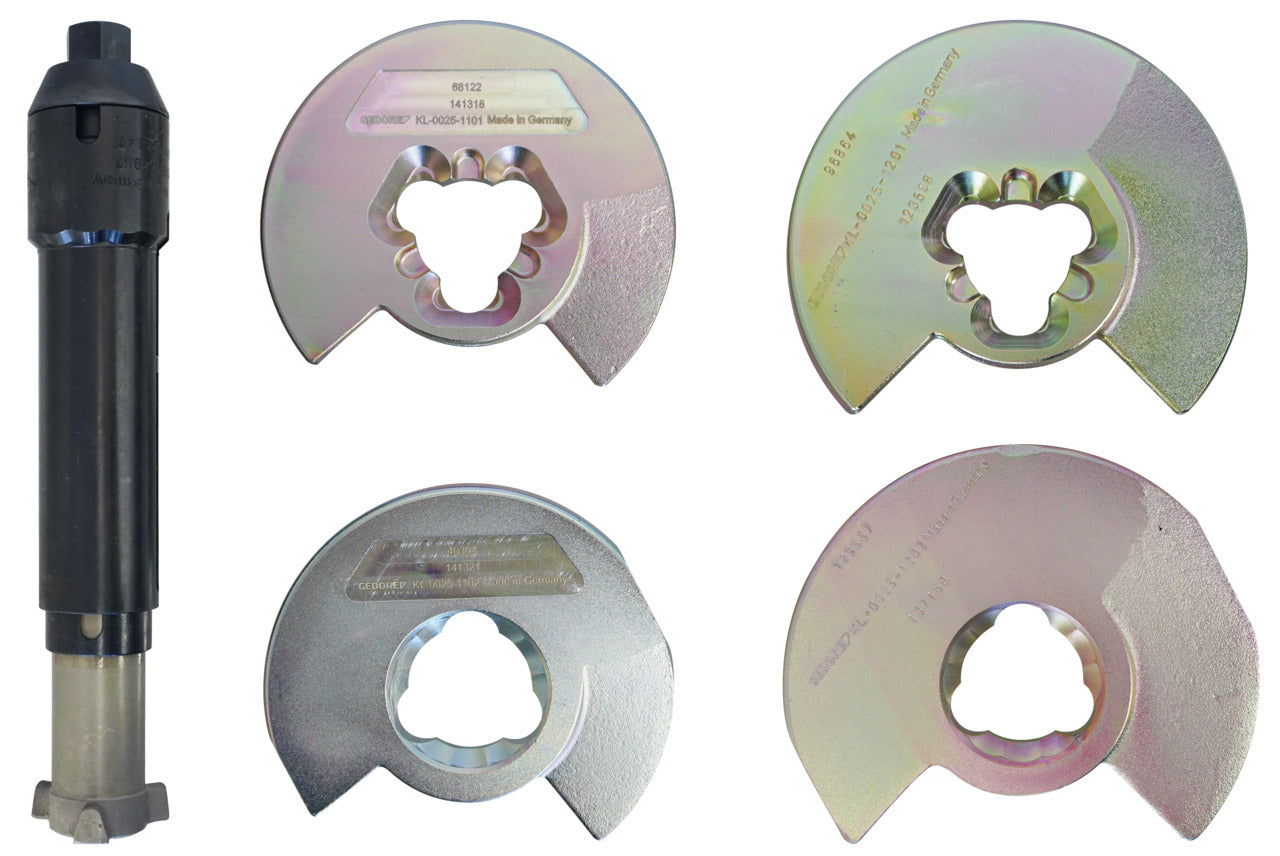

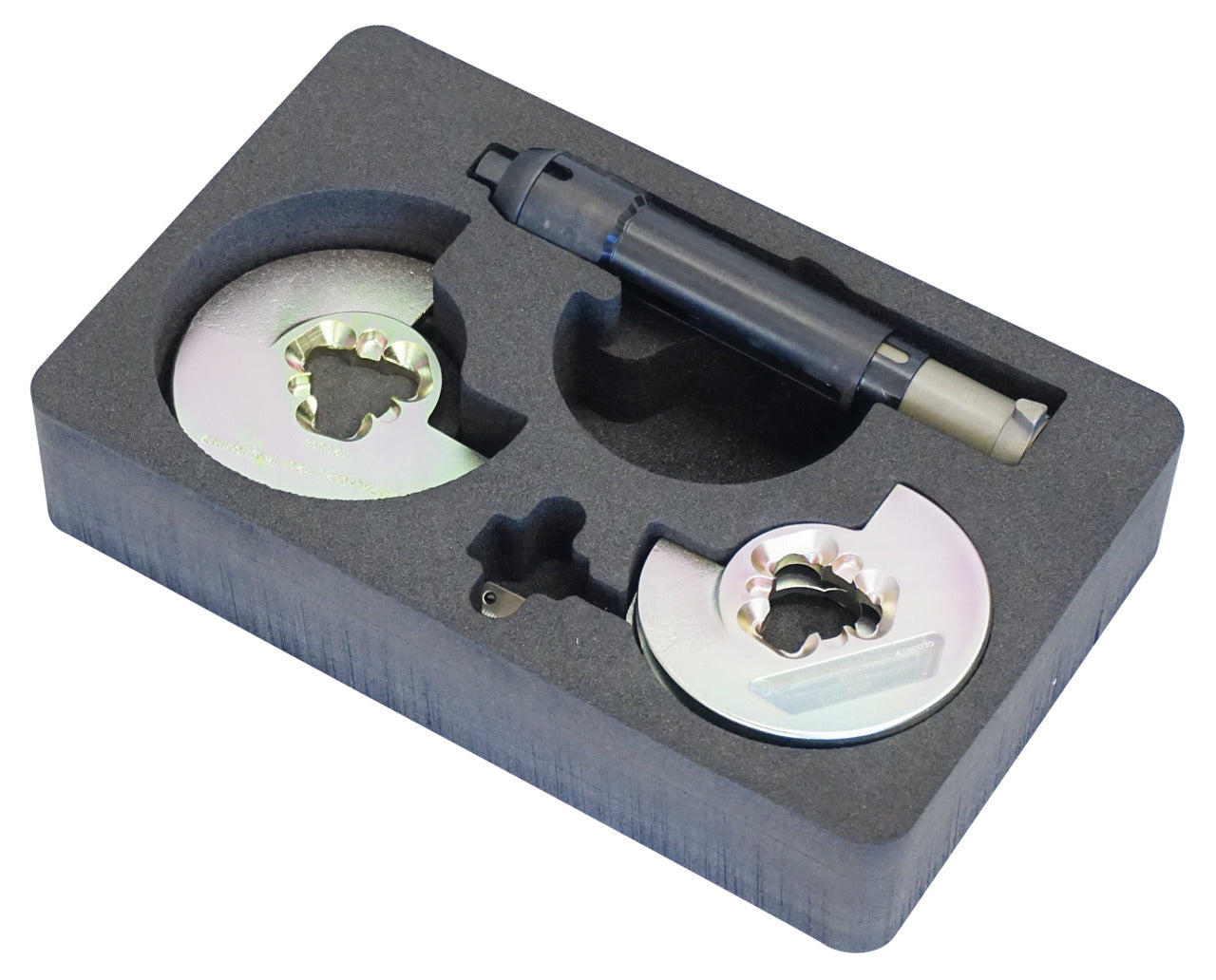

Scope of Delivery:

1 x KL-0025-200 - Compressor cylinder, 1 x KL-0025-11 - Pair of spring retainers size 1, 1 x KL-0025-12 - Pair of spring retainers size 2, 1 x KL-0025-2091-2 - Foam insert
