Gedore 3405117 Coil Spring Pre-Compressor, Base Tool, 459mm - GD KL-0029-200 E

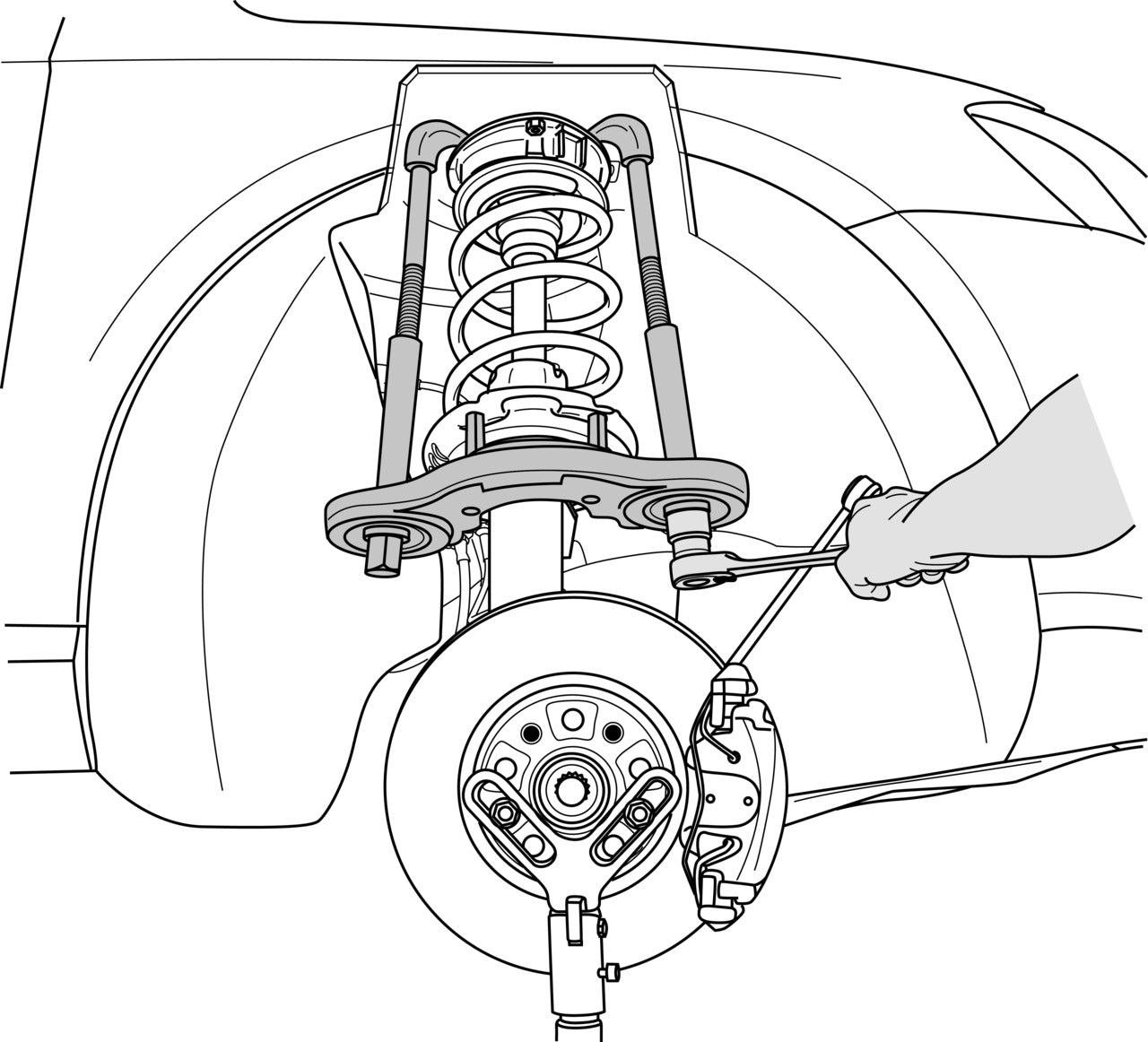

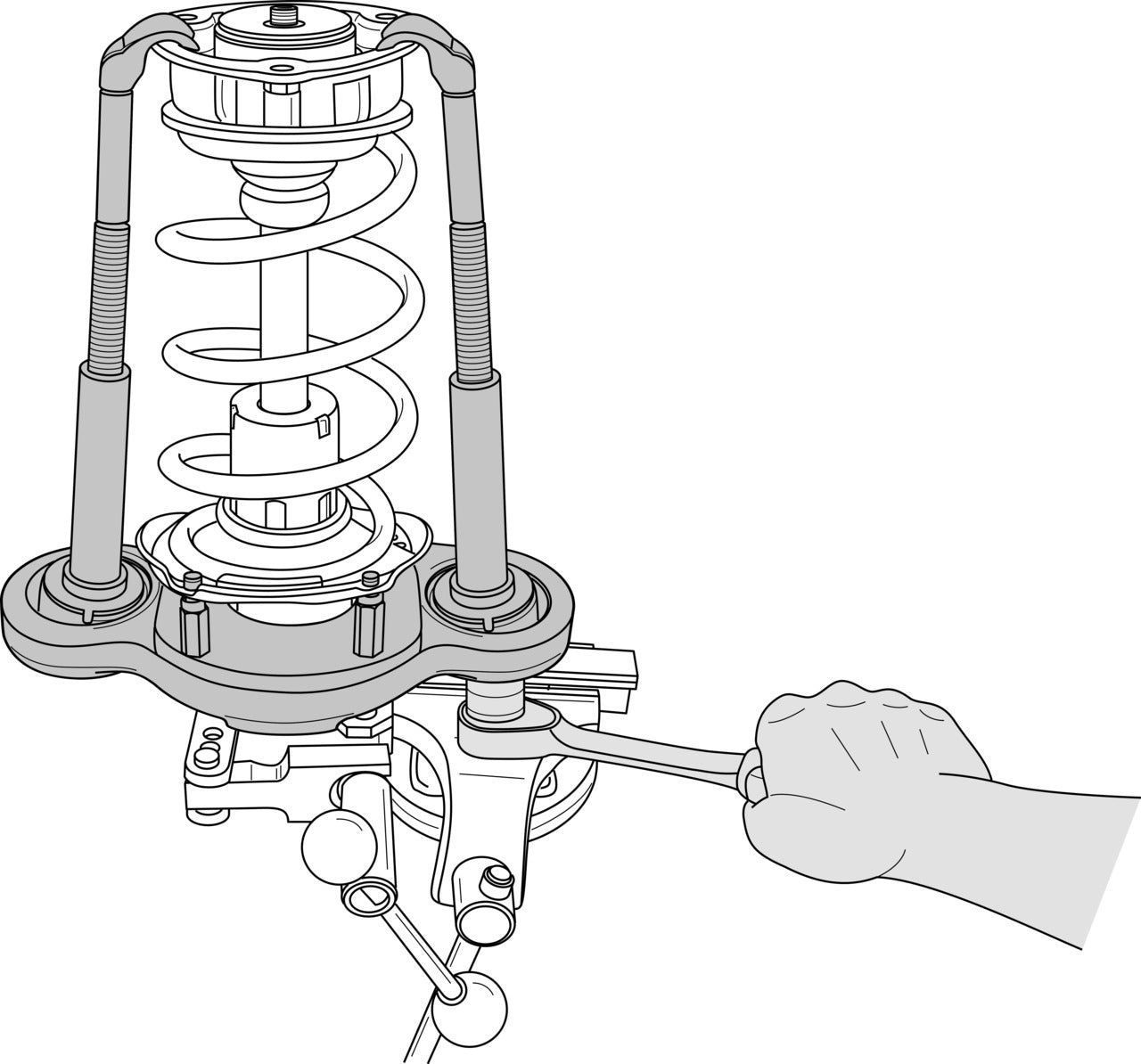

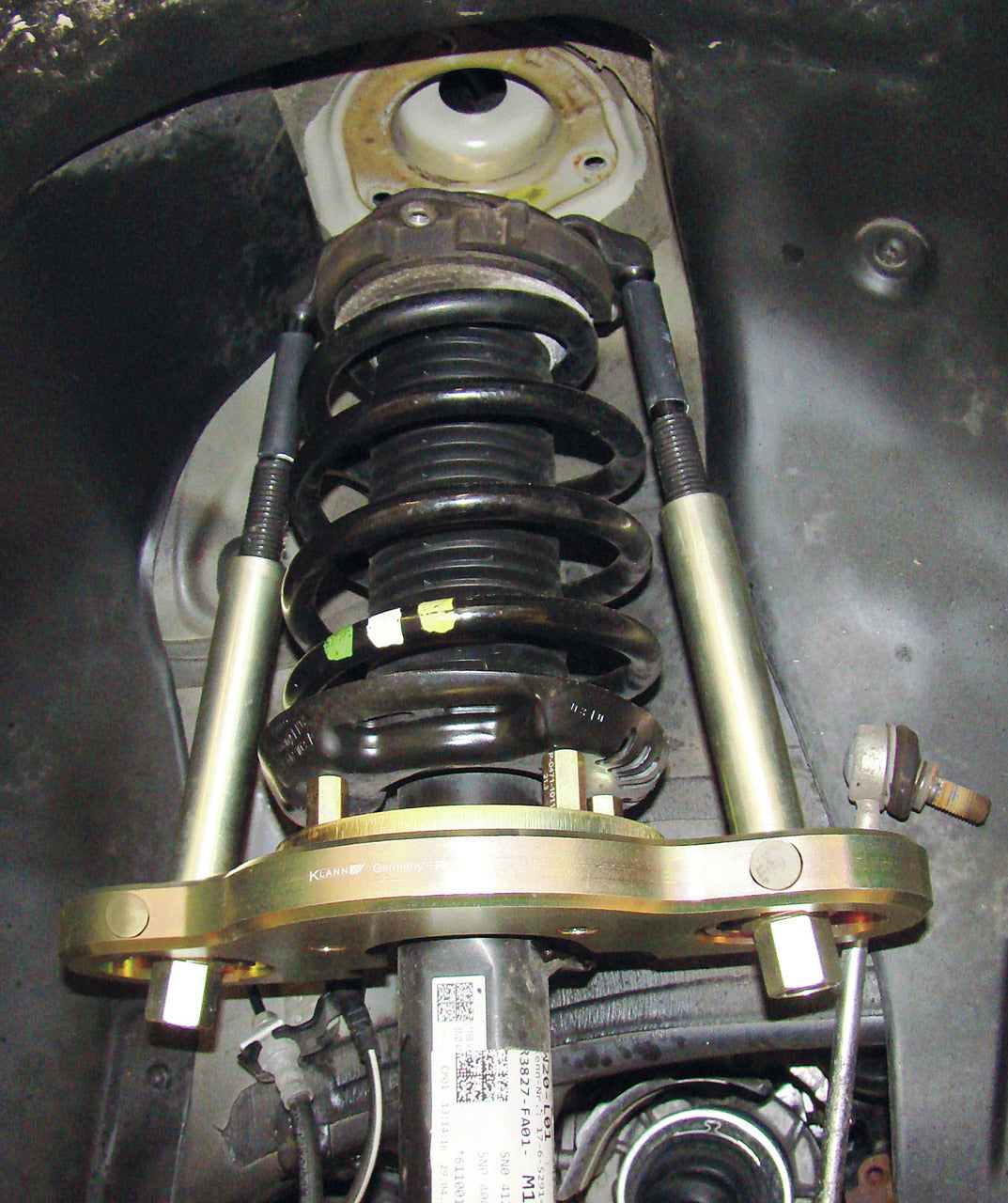

This unique special device allows a simple reduction of the overall suspension strut length by clamping together and thus favors a considerably faster removal and installation of McPherson suspension struts, especially on vehicle axles with strut clamping holes. Time-consuming operations such as loosening the cardan shaft, the axle guide, guide rod and tie rod joints as well as wheel alignment are completely eliminated. Pros: High time and cost savings, No need to loosen the axle guide, No need to loosen the cardan shaft, No need to loosen the tie rod end or the guide joint, No wheel alignment required, Can be used regardless of spring shape or spring pitch, All individual parts available as spare parts.
Features:
- Suitable for McPherson suspension struts
- Enables a simple removal and installation of the McPherson suspension strut
- Particularly for vehicle axles with suspension strut clamping holes
- High time and cost savings
- Maximum security
- No direct intervention into the spring
- No need to loosen axle parts
- No wheel alignment required
- Applicable regardless of spring shape or spring pitch
- Only in combination with the vehicle-specific supplementary kits
- Note - Never use the spring compressor to disassemble a suspension strut
- Suitable for McPherson suspension struts in combination with the vehicle-specific supplementary kits
- The coil spring pre-compressor must never be used for the disassembling of suspension struts
Specifications:
- Suitability: VW, Audi, Seat, Skoda, BMW, Ford
- Clamping Width (Max.): 410mm
- Clamping Width (Min.): 250mm
- Depth: 320mm
- Drive Size: 27mm (waf)
- Height: 160mm
- Load (Max.): 17.500 N

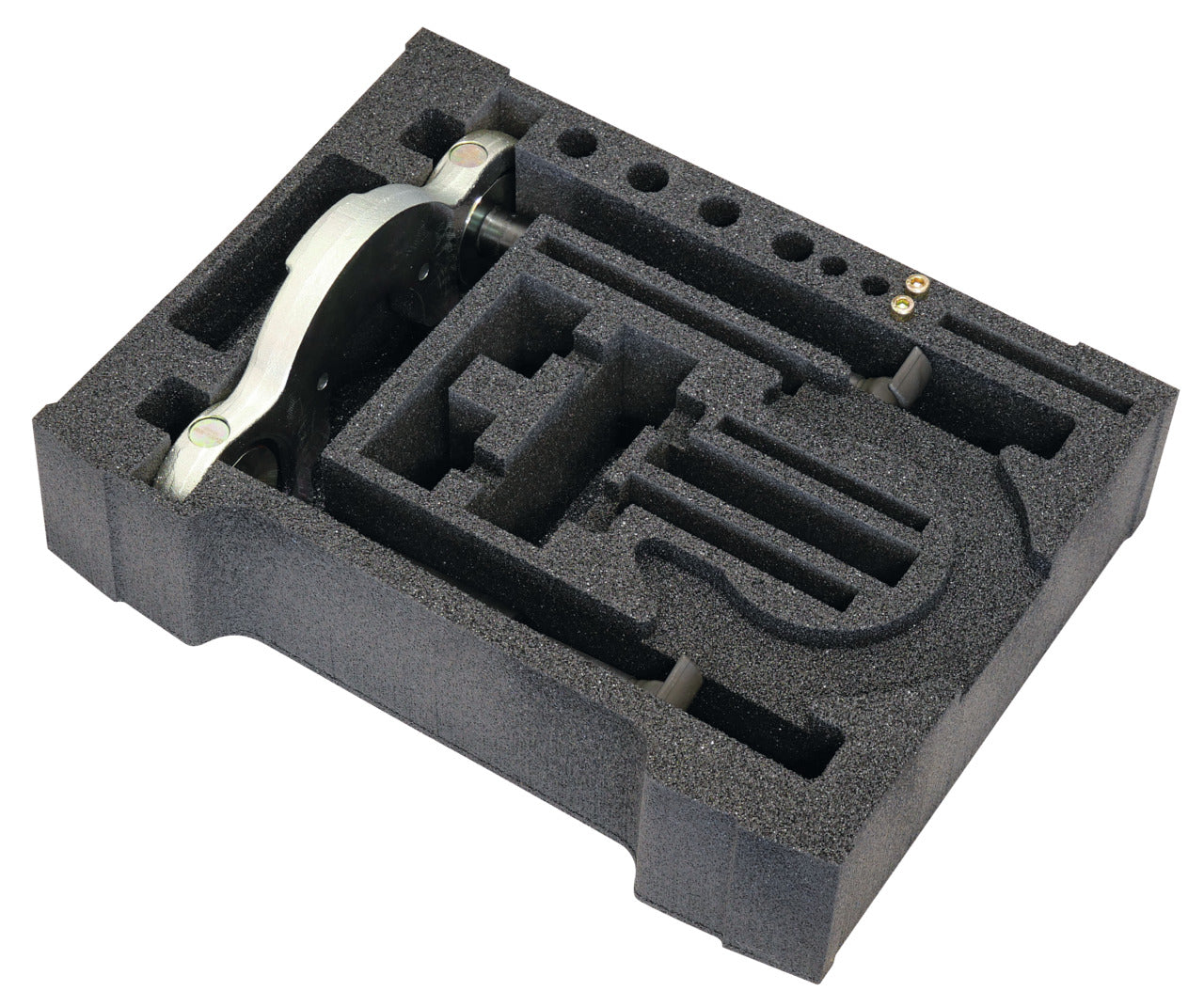

- Storage: Foam Insert
- Weight: 17.64 lbs
- Width: 459mm
- Working Travel: 160mm
- Country of Origin: Germany
Scope of Delivery:

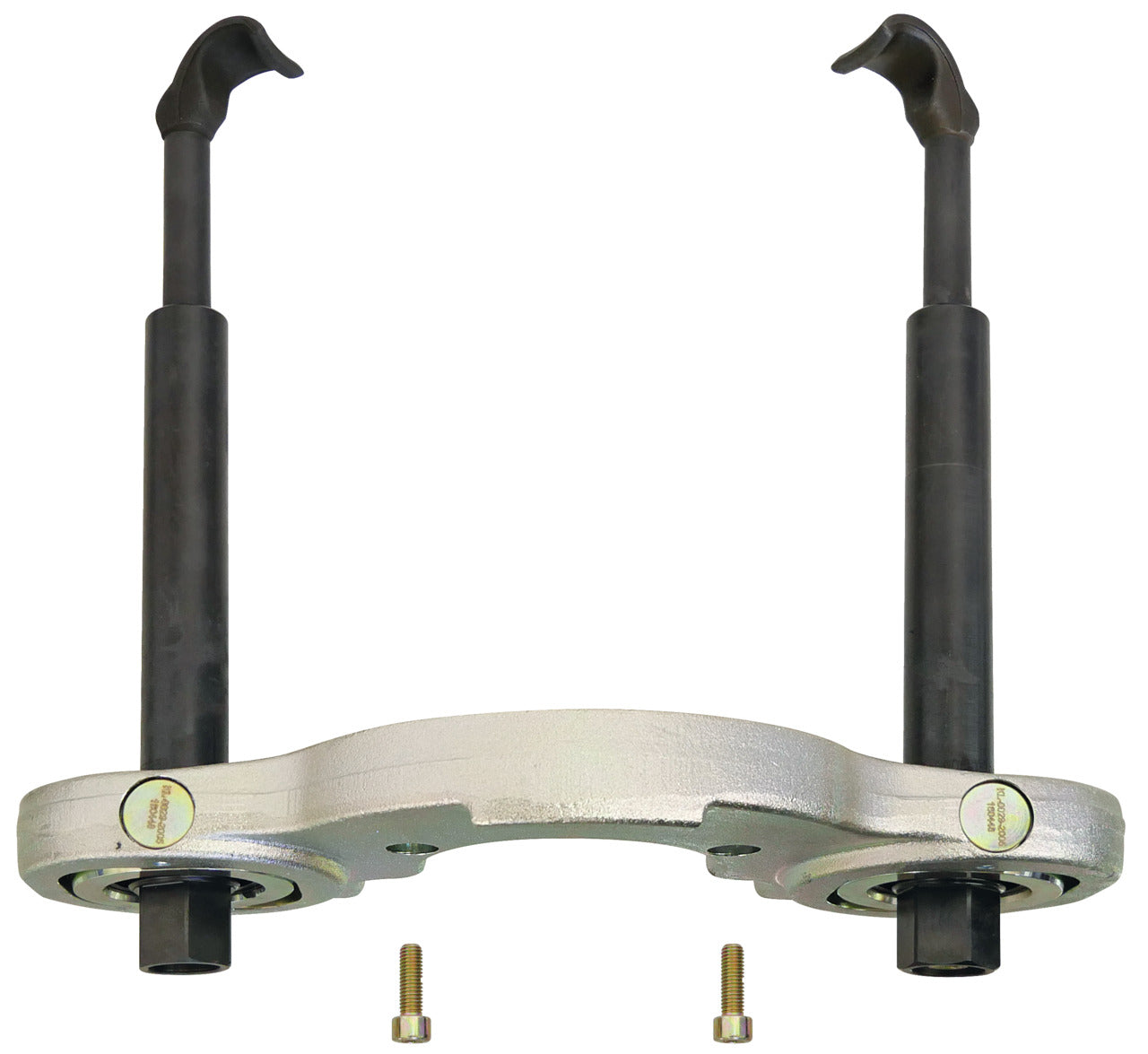

1 x KL-0029-200 - Spring compressor for pre-tensioning (base unit), 1 x KL-0029-1090-1 A - Foam insert
