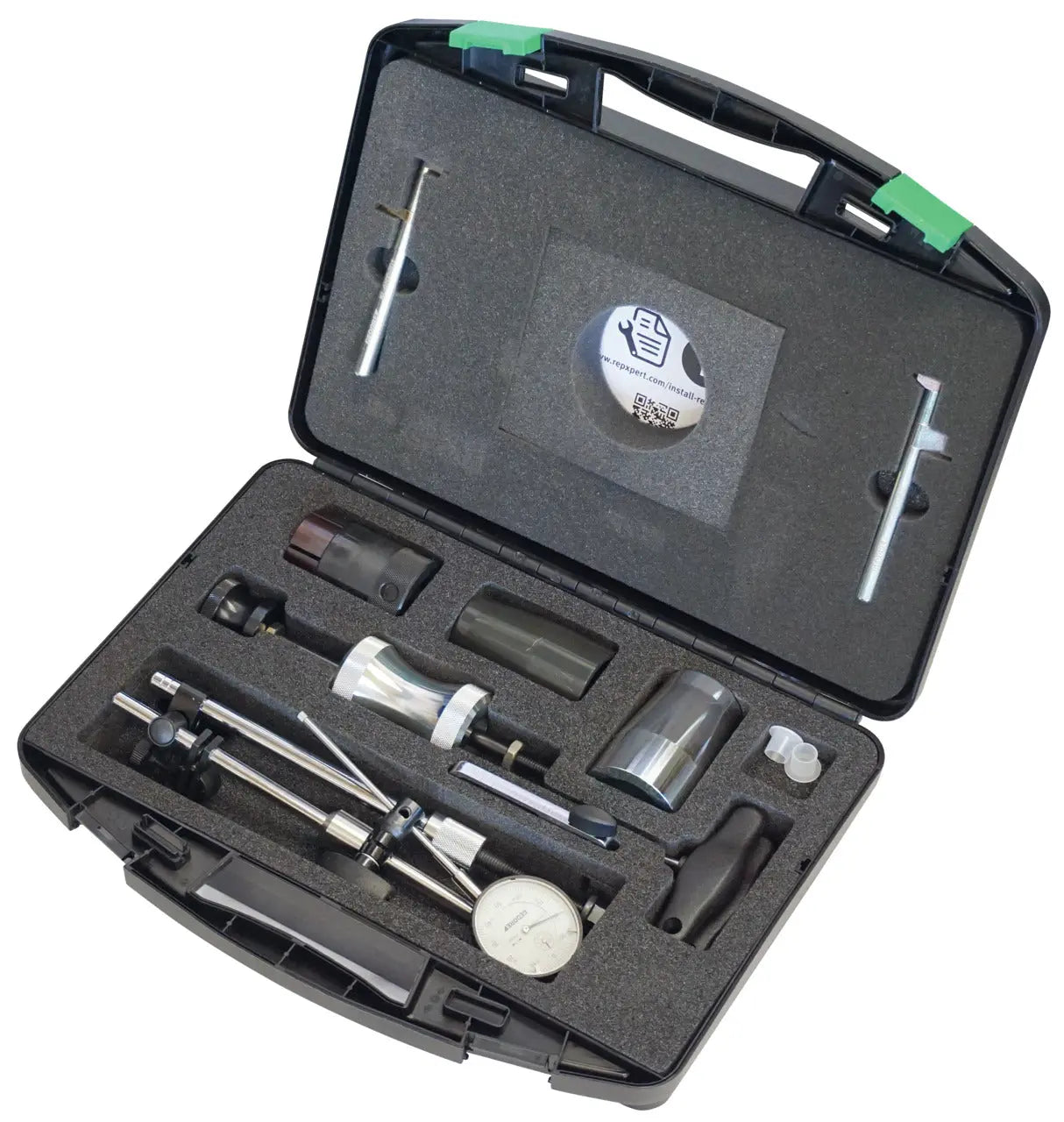

Gedore 3411591 Double Clutch Toolkit, Width 391mm - GD KL-0500-90 K
The tool kit enables a professional disassembly or installation and adjustment of double clutches. Required, for example, when installing the LuK RepSet 2CT (602 0018 00 or 602 0022 00).
Features:
- Fits VW-Audi, Seat, and Skoda 7 geared double clutch gearbox (DQ250, DQ380, DQ381, DQ500) with wet clutch
- For a professional disassembly or installation and adjustment of double clutches
- Required when installing the LuK RepSet 2CT (602 0018 00 or 602 0022 00)
- Installed in e.g. VW Tiguan Allspace (BW, BJ), Tiguan (AD, AX, 5N), Sharan (7N), Passat B8 (3G, CB), Arteon (3H), Transporter / Multivan T5 + T6 (7E, 7H, 7J, SG, SH, SF, SJ), Audi TT (8J, FV), Q3 (8U), A3 (8V, 8P), Seat Tarraco (KN), Alhambra (710, 711), Skoda Kodiaq (NS, NV)
Specifications:
- Suitability: VW, Audi, Seat, Skoda
- Depth: 304mm
- Height: 104mm
- Storage: Case
- Weight: 10.8 lbs
- Width: 391mm
- Country of Origin: Germany
Scope of Delivery:

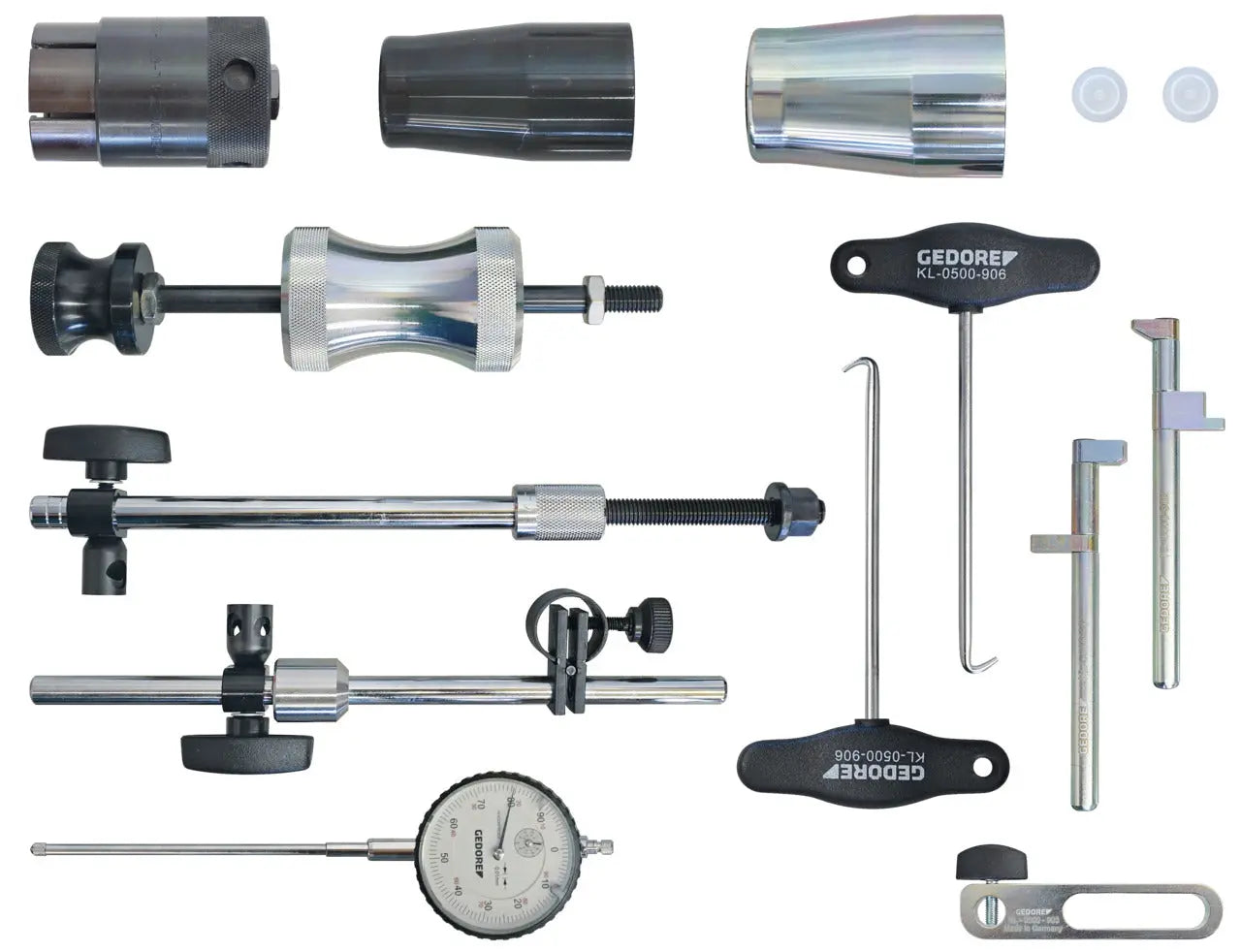

1 x KL-0500-606 - Measuring tripod with dial gauge, 1 x KL-0049-100 - Impact extractor basic device, 1 x KL-0500-903 - Connection of gearbox housing, 1 x KL-0500-900 - Collet chuck with clamping sleeve, 1 x KL-0500-901 - Retaining bolt DQ380/381/500, 1 x KL-0500-902 - Retaining bolt DQ250, 2 x KL-0500-906 - Mounting hook with a diameter of 5mm, 2 x KL-0500-6071 - Closing plug with a diameter of 12mm, 1 x KL-0500-905 - Large cone, 1 x KL-0500-904 - Small cone, 1 x KL-0500-9090 A - Plastic case
