Gedore 3411648 Upgrade Toolkit for Double Clutch, VW, Width 494mm - GD KL-0500-81 KA
The double clutch supplement VW enables, in combination with the double clutch basic tool kit KL-0500-80 K / KA (LuK 400 0418 10), the professional removal or installation as well as adjustment of dry double clutch systems on VW-Audi.
Features:
- Fits VW-Audi, Seat, and Skoda with dry double clutch systems, for example DSG gearboxes of the 1st or 2nd 0AM generation
- Enables a removal or installation as well as adjustment of the clutch system
- Only in combination with KL-0500-80 KA basic tool set
- Fits VW-Audi, Seat, and Skoda with dry double clutch systems, for example DSG gearboxes of the 1st 0AM generation (until 5/2011) and 2nd 0AM generation (from 6/2011)
Specifications:
- Suitability: VW, Audi, Seat, Skoda
- Depth: 402mm
- Height: 156mm

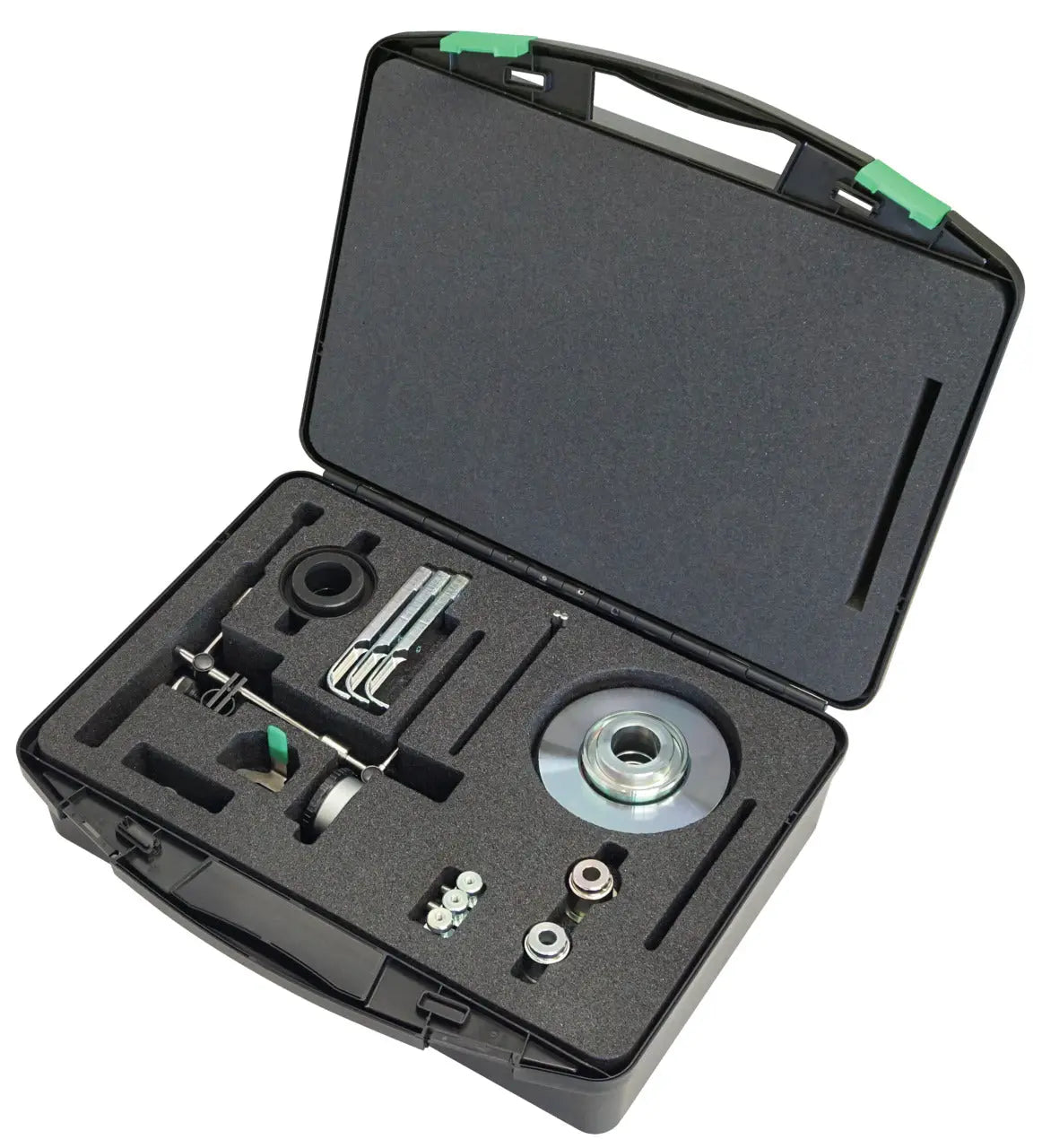

- Storage: Case
- Weight: 22.05 lbs
- Width: 494mm
- Country of Origin: Germany

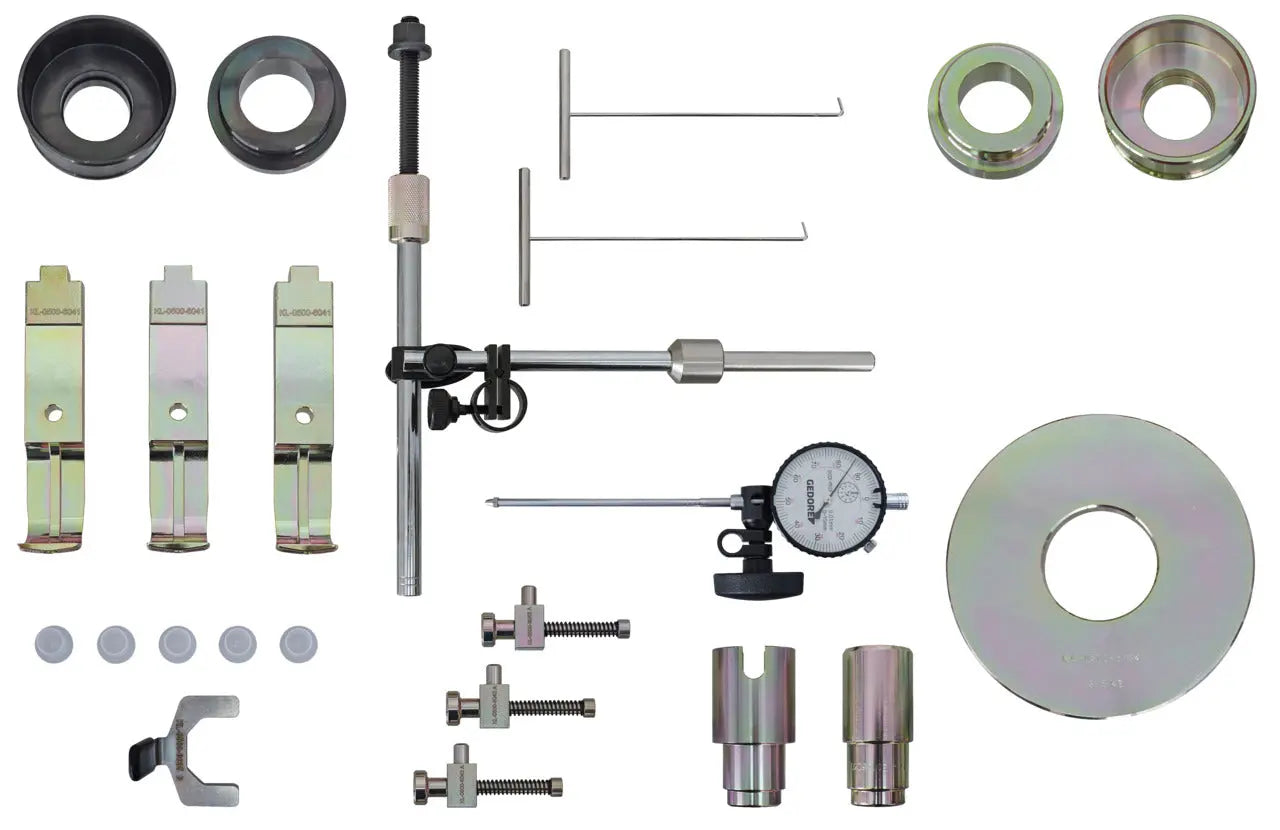

Scope of Delivery:
1 x KL-0500-6030 - Supporting sleeve removal, 1 x KL-0500-6031 - Pressure sleeve installation, 1 x KL-0500-6032 - Spacer sleeve setting dimension 32.92mm, 1 x KL-0500-6033 - Spacer sleeve setting dimension 48.63mm, 1 x KL-0500-6034 - Weight 3.5 kg, 1 x KL-0500-6035 - Feeler gauge for spacer sleeves, 3 x KL-0500-6041 - Hook, 3 x KL-0500-6042 - Spring-loaded clamping piece for VW, 2 x KL-0500-6051 - Draw hook, 1 x KL-0500-606 - Measuring tripod with dial gauge, 5 x KL-0500-6071 - Closing plug with a diameter of 12mm, 1 x KL-0500-6081 - Spacer sleeve setting dimension 48.42mm, 1 x KL-0500-6082 - Spacer sleeve setting dimension 32.12mm, 1 x KL-0500-8190 - Plastic case
