Gedore 3418820 Drill-Out Toolkit for Strut Bolts, VW-Audi, Width 391mm - GD KL-0250-43 KB

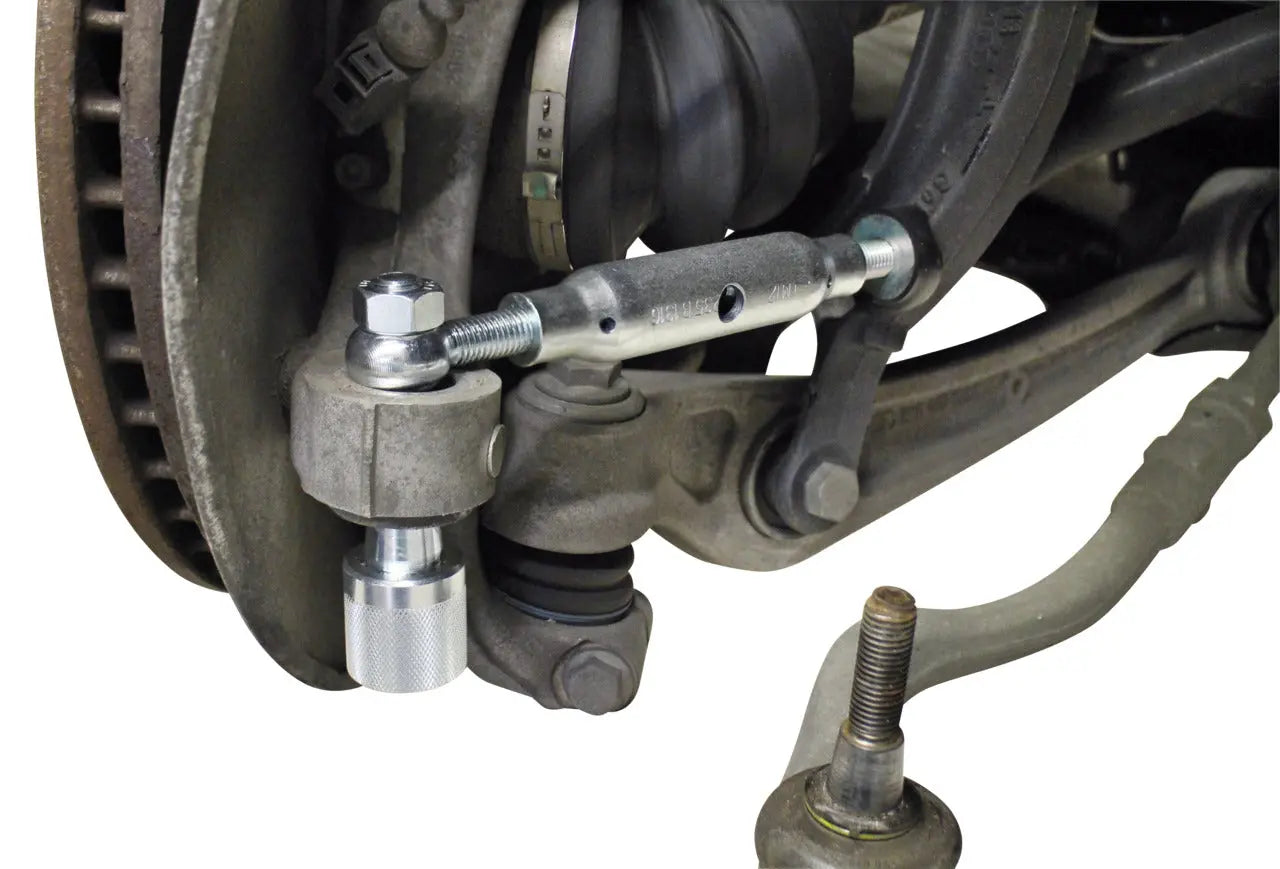

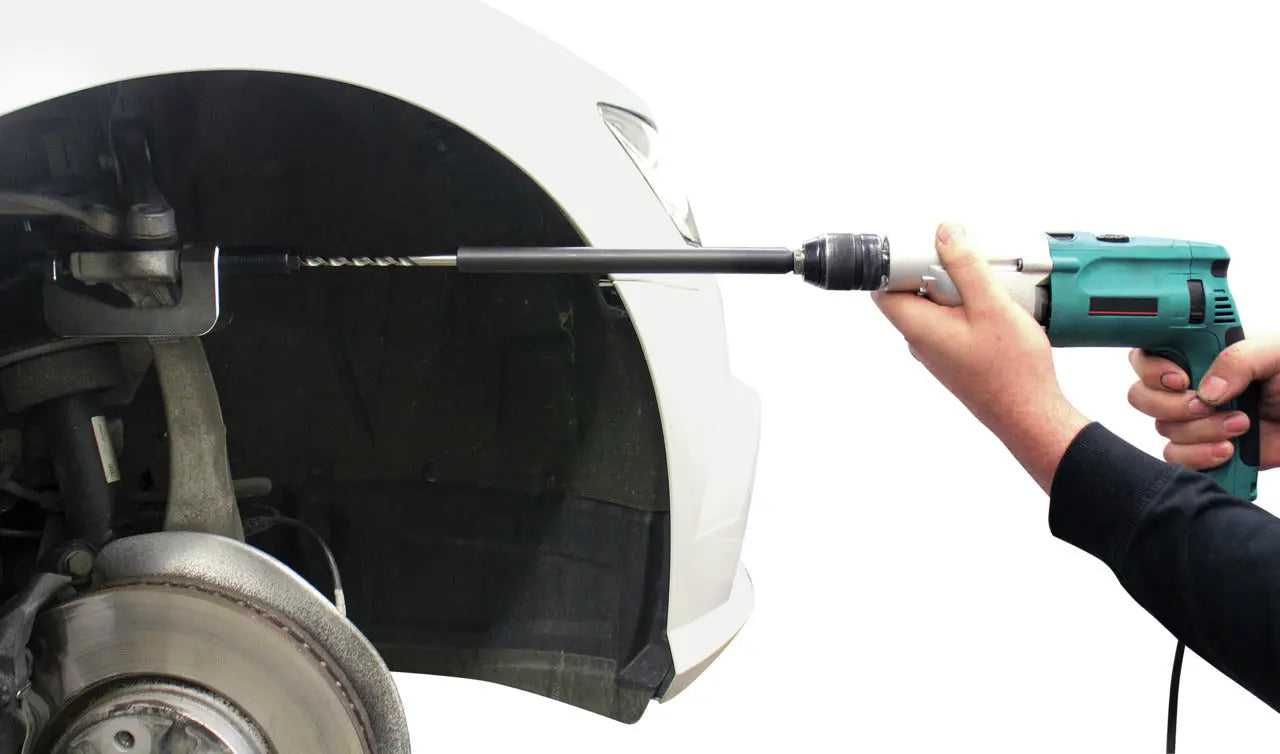

The boring tool set enables the quick and professional removal by boring of extremely tight clamping screws (with spanner size 16 mm) on multi-link axles. Required, for example, when changing the upper or lower suspension arms and the tie bar end. This avoids a costly replacement of the entire steering knuckle with the wheel bearing unit. To avoid damage to the mudguard on vehicles with a bottom-mounted steering gear, the steering knuckle can be pre-tensioned to full lock with the help of the compressing device included in the scope of delivery.
Features:
- Fits VW-Audi, Seat, and Skoda vehicles with multi-link axle
- For a quick and professional boring of extremely stuck clamping screws (with SW16)
- Required when replacing the upper or the upper or lower axle control arm as well as the tie rod end
- No need to replace the steering knuckle
- Installed, for example, on the VW Passat (3B), Phaeton (3D), Audi A4 (8D, 8E, 8H, 8K), A5 (8T, 8F), A6 (4B, 4F, 4G, 4K), Q5 (8R), A7 (4G, 4K), A8 (4D, 4E, 4H, 4N), Seat Exeo (3R2, 3R5) and Skoda Superb (3U)
Specifications:
- Suitability: VW, Audi, Seat, Skoda
- Depth: 304mm
- Drill Diameter 1: 7mm
- Drill Diameter 2: 9.5mm
- Height: 134mm

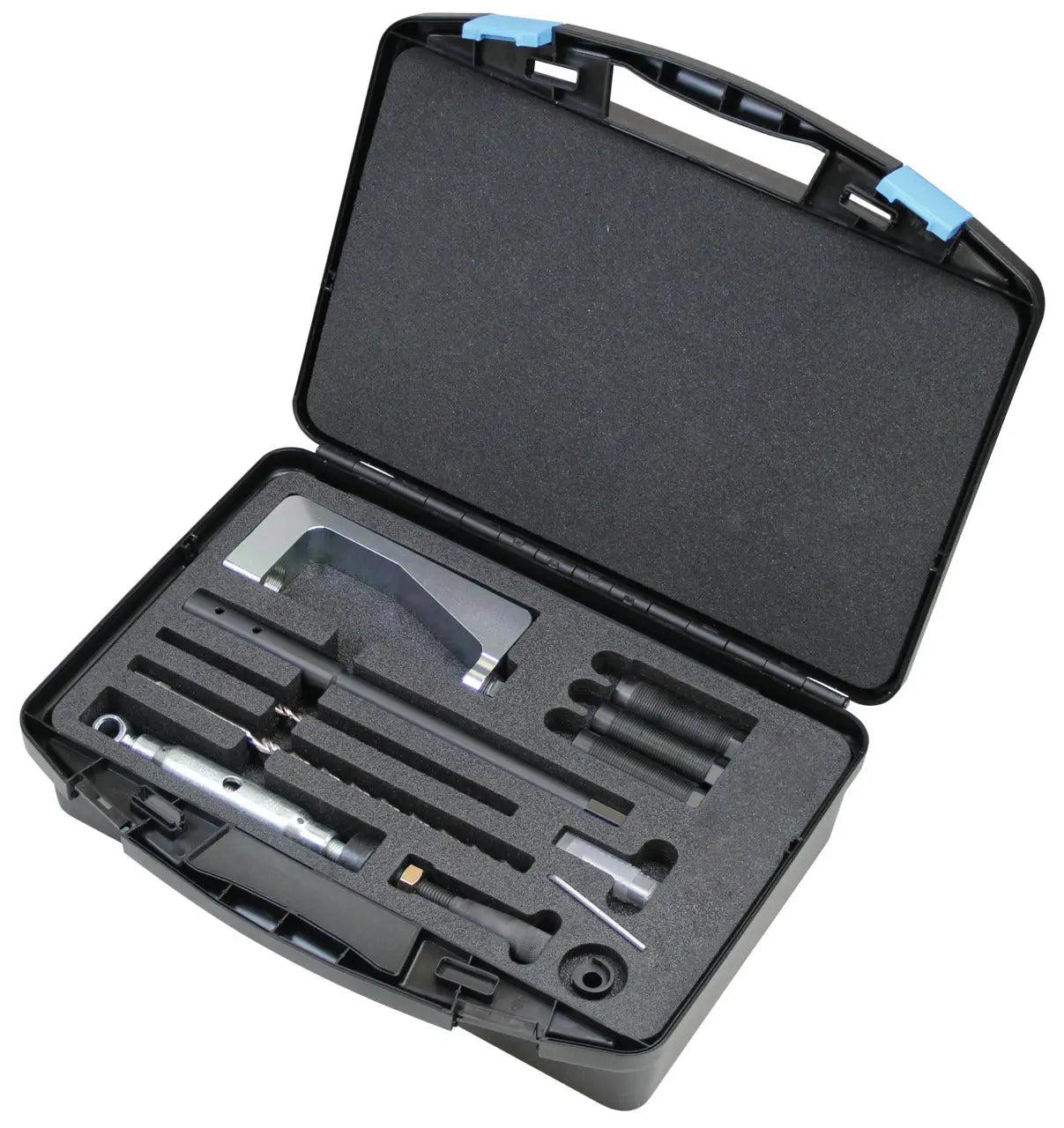

- Storage: Case
- Weight: 8.82 lbs
- Width: 391mm
- Country of Origin: Germany
Scope of Delivery:

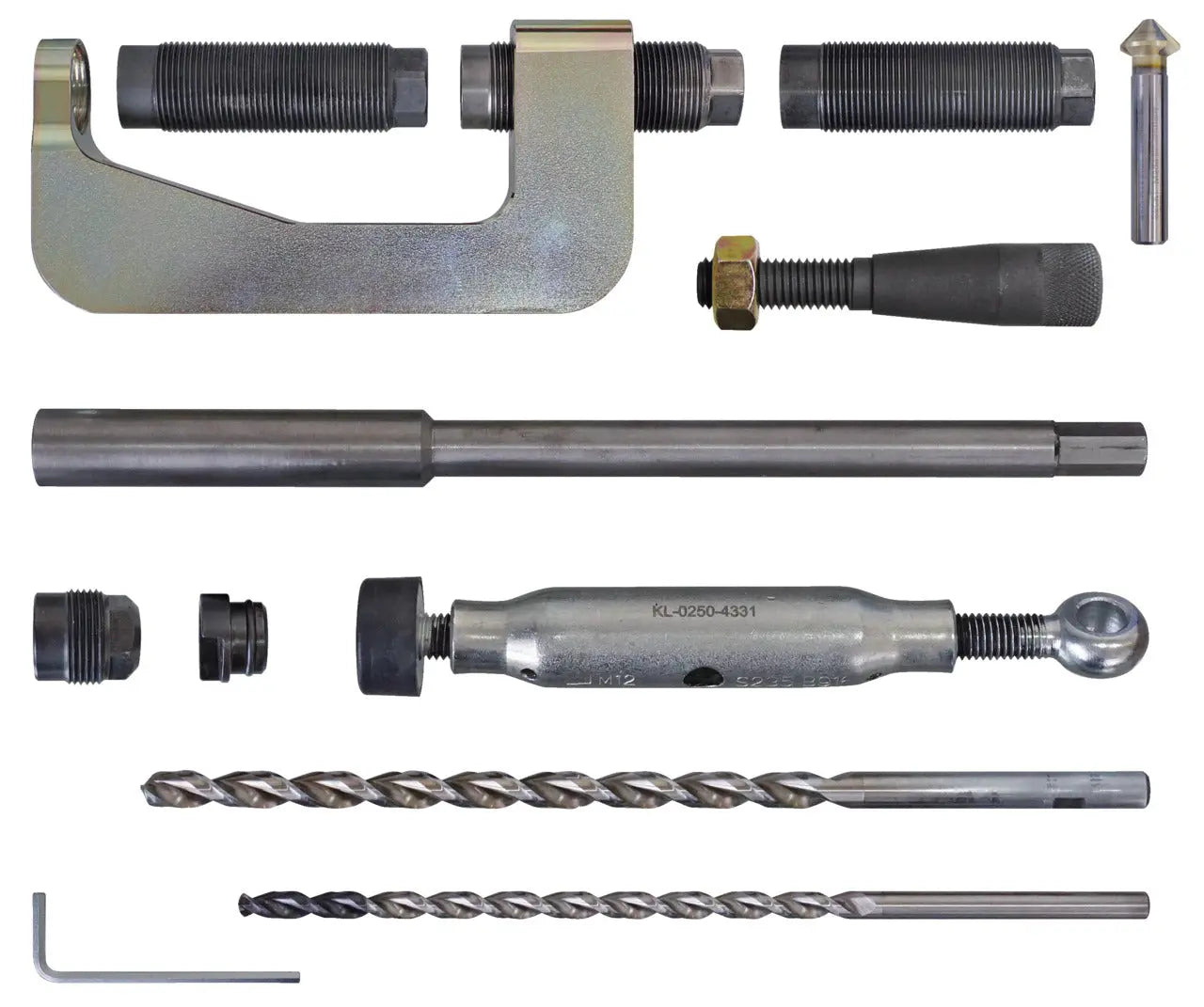

1 x KL-0250-4311 B - Basic tool, 1 x KL-0250-4313 A - Boring sleeve 7mm dia., 1 x KL-0250-4314 A - Boring sleeve 7mm dia. with recess, 1 x KL-0250-4321 A - Extension with grub screws, 1 x KL-0250-4322 - Twist drill 9.5 x 175 x 250mm dia. with clamping surface, 1 x KL-0250-4323 - Twist drill 7 x 155 x 225mm dia. with clamping surface, 1 x KL-0250-4324 - Countersink drill 12.4mm dia., 1 x KL-0250-433 - Clamping device, 1 x KL-0250-4341 - Supplement tie rod end, 1 x 42 3 - Hexagon L key 3mm, 1 x KL-0250-4390-2 B - Foam insert, 1 x KL-4990-9374 - Plastic case
