Gedore 3420124 Injector Nozzle Puller Set, Universal, M17 x 1 - GD KL-0186-14 KB
The injector puller kit enables fast and powerful pulling of severely stuck injectors directly on the vehicle without having to remove the cylinder head. Depending on the injector, the special 2-part pull spindles with pull adaptor can be universally combined in terms of length and connection diameter. Due to additional supplements, the injector extractor can be also used for further diesel injectors, e.g. with PSA 2.7, 3.0 Hdi (DT17, DT20); Fiat Ducato + Iveco 2.3, 2.4, 3.0 JTD; Mercedes CDI (OM651); VW, Audi, Seat, Skoda 1.6 TDI (CAYA, CAYB, CAYC, CAYD, CAYE, CLNA); Renault + Nissan + Opel 2.2, 2.5, 3.0 dci (G9T, G9U, ZD3) and Toyota 2.2 (2AD-FHV, 2AD-FTV) and many more.
Features:
- Fits universally for BOSCH and DELPHI diesel injectors with M1x1 internal thread as well as M14x1.5 external thread, e.g. with PSA, Fiat, Mercedes, VW-Audi, Renault, Nissan, Opel, Toyota, etc.
- For a quick and powerful pulling of extremely stuck injectors

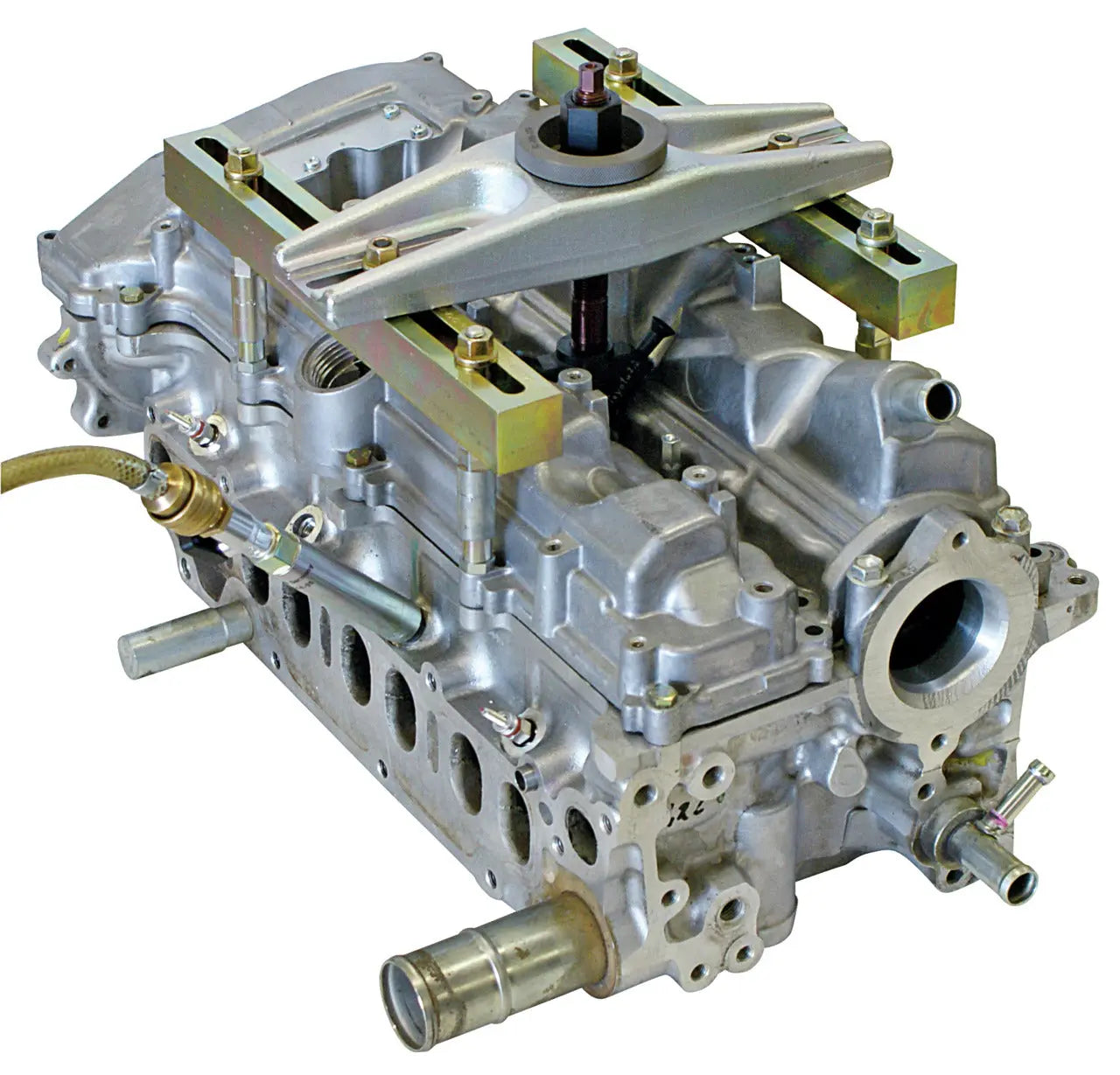

- No removal of the cylinder head required
- Supplementary kit for further engines and injectors available
- Can also be driven hydraulically (accessories required)
- Universally suitable for diesel injectors, for example for BOSCH injectors with M17x1 internal thread, and also for BOSCH and DELPHI injectors with M14x1.5 external thread
- Particularly suitable for Mercedes, for example: OM611, OM612, OM613, OM628, OM629, OM639, OM640, OM642, OM646, OM646 EVO, OM647, OM648 (V engines: for reasons of space, you may have to lower the engine), Peugeot, Citroen, Fiat, Lancia, Suzuki: DV6 16V (not on Euro 5 [8V] engines), Ford: 1.6 TDCi (G8DA, G8DB, HHDA, HHJA, HHJB), VW-Audi: 2.0, 2.5, 2.7, 3.0 Common Rail TDI, Volvo: 1.6 D (D4164T), 2.2 D, Mazda: Y6 DV6 16V (not on Euro 5 [8V] engines)
Specifications:
- Suitability: Universal, Mercedes, PSA, Ford, Audi, VW, Seat, Skoda, Volvo, Mazda
- Depth: 402mm
- Drive Type: Mechanical
- External Thread: M14 x 1.5
- Height: 156mm
- Injectors: Bosch, Delphi
- Internal Thread: M17 x 1
- Motor Type: Diesel

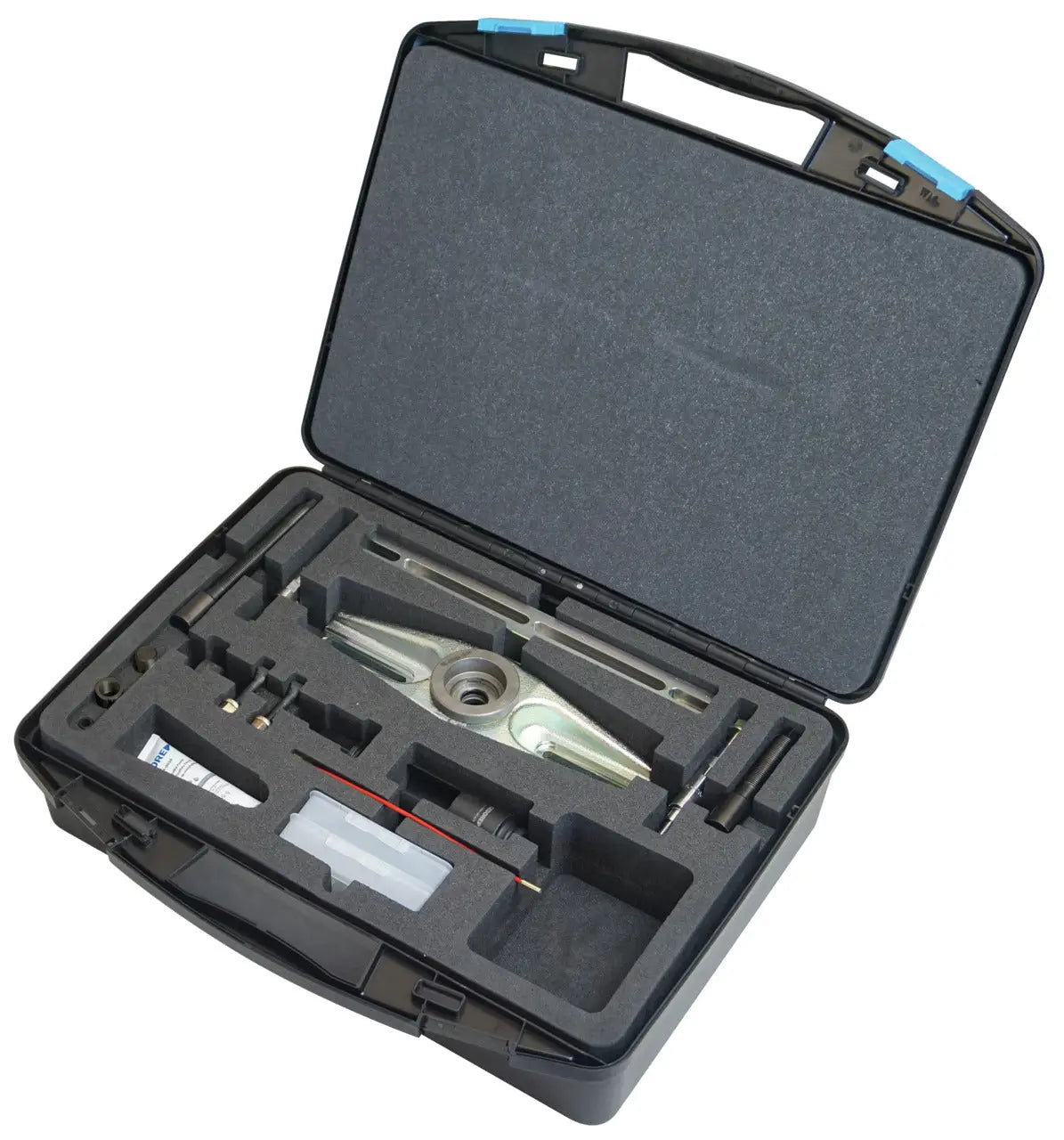

- Storage: Case
- Weight: 22.93 lbs
- Width: 494mm
- Country of Origin: Germany

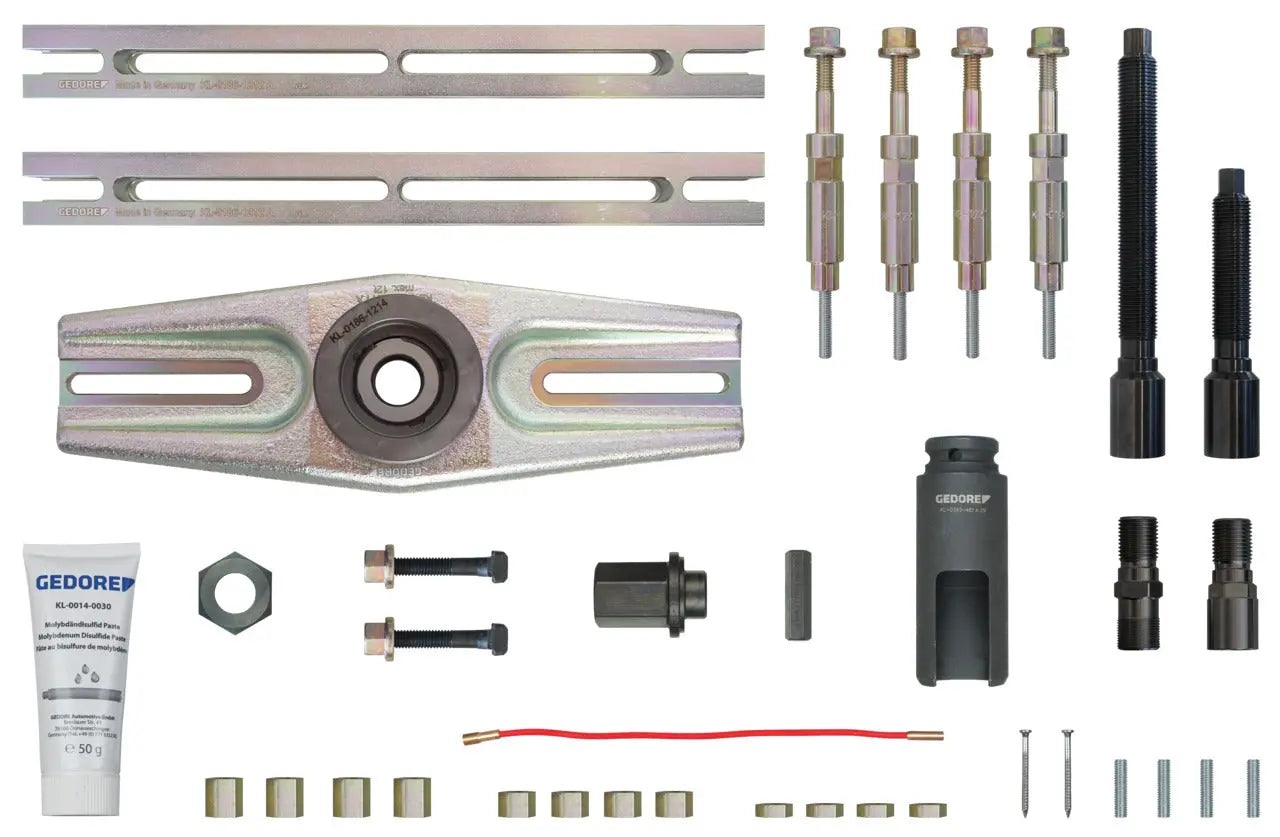

Scope of Delivery:
1 x KL-0186-121 A - Pull-off bridge (basic tool), 4 x KL-0186-1231-11 - Support bolt 110mm, 4 x KL-0186-1235-3 - Grub screw M6 x 45mm, 4 x KL-0186-1235-2 - Grub screw M6 x 25mm, 1 x KL-0583-1005 B - Pull adaptor M17 x 1 with nut, 1 x KL-0583-1032 A - Pull adaptor M14 x 1.5, 1 x KL-0186-1401 - Pull spindle 115mm, 1 x KL-0186-1402 - Pull spindle 170mm, 1 x KL-0186-1215 - Collar nut M16 x 1.5, 1 x KL-0369-4505 A - Special bit insert SW10, 1 x KL-0369-461 A - Special socket spanner, 1 x KL-0186-1251 - Spacer nut kit 5mm, 1 x KL-0186-1252 - Spacer nut kit 10mm, 1 x KL-0186-1253 - Spacer nut kit 15mm, 1 x KL-0126-221 - Magnetic lifter flexible, 2 x KL-4990-2001 - Plastic box, 1 x KL-0186-1492 B - Foam insert, 1 x KL-4990-9474 - Plastic case
