Gedore 3420175 Upgrade Kit, Denso-Injector, M20 x 1 - GD KL-0186-1284 A

By using the supplementary kit, the injector extractor - KL-0186-14 KB also fits the above-mentioned injectors and engines. Alternatively the kit can be also used with an impact extractor.

Features:

• Suitable Denso injectors with internal thread M20x1 and external thread M25x0.5 / M25x0.75 (SW 27)
• Supplement to the injector puller KL-0186-14 KB
• Depending on the motor specific support bolt kit KL-0186-12 if necessary. / -13 Required
• Alternative drive with impact extractor possible
• Suitable for Denso injectors with an M20x1 female thread and, additionally, M25x0.5 or M25x0.75 male threads and a spanner size of 27 mm
• Particularly suitable, for example, for Toyota and Lexus 2.2, 2.5 and 3.0 common rail diesel engines (1KD-FTV, 2AD-FHV, 2AD-FTV, 2KD-FTV H, 2KD-FTV L), etc.

Specifications:

• Suitability: Universal
• Drive Size: 1/2 in
• Drive Type: Hydraulic, Mechanical, Manual
• External Thread: M25 x 0.5, M25 x 0.75
• Injectors: Denso
• Internal Thread: M20 x 1
• Motor Type: Diesel
• Profile: Hexagon
• Size (waf): 27mm
• Weight: 1.32 lbs
• Country of Origin: Germany

Scope of Delivery:

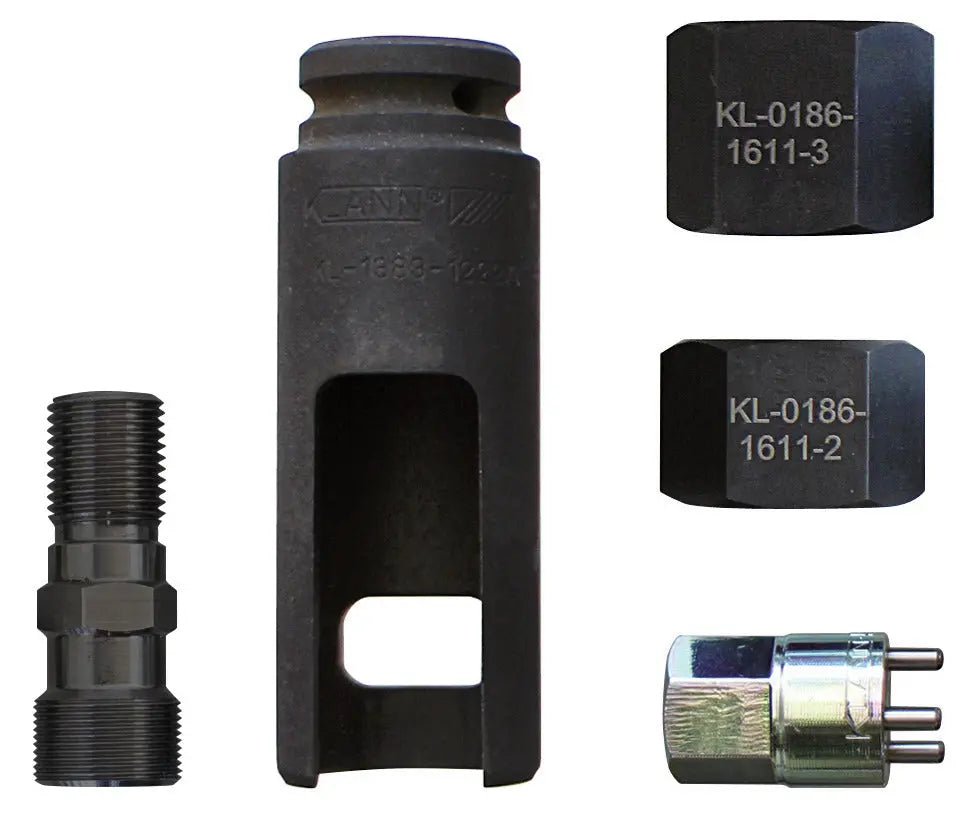

1 x KL-0186-1611 B - Pull spindle M20 x 1 with 2 nuts, 1 x KL-1383-1222 A - Special socket spanner SW 27, 1 x KL-0186-2201 - Special insert
