Gedore 3421619 Glow Plug Toolkit, Fiat, M8 x 1 - GD KL-1683-22 KA
Enables boring out ragged and tightly stuck glow plugs as well as for re-cutting and cleaning the original M8x1 glow plug mounting thread, and for maintenance by extending to M10x1 and consequent insertion of a M10x1 to M8x1 threaded bushing. The new glow plug will then be screwed in the cylinder head together with the threaded bushing. The compressed air adaptor included in the set prevents contamination from getting into the combustion chamber.
Features:
- Suitable for Fiat, Alfa, Lancia 1.3 JTD (Euro 4) as well as 2.3 and 3.0 JTD / HDI Common-Rail Diesel engines with M8x1 mounting thread for glow plugs

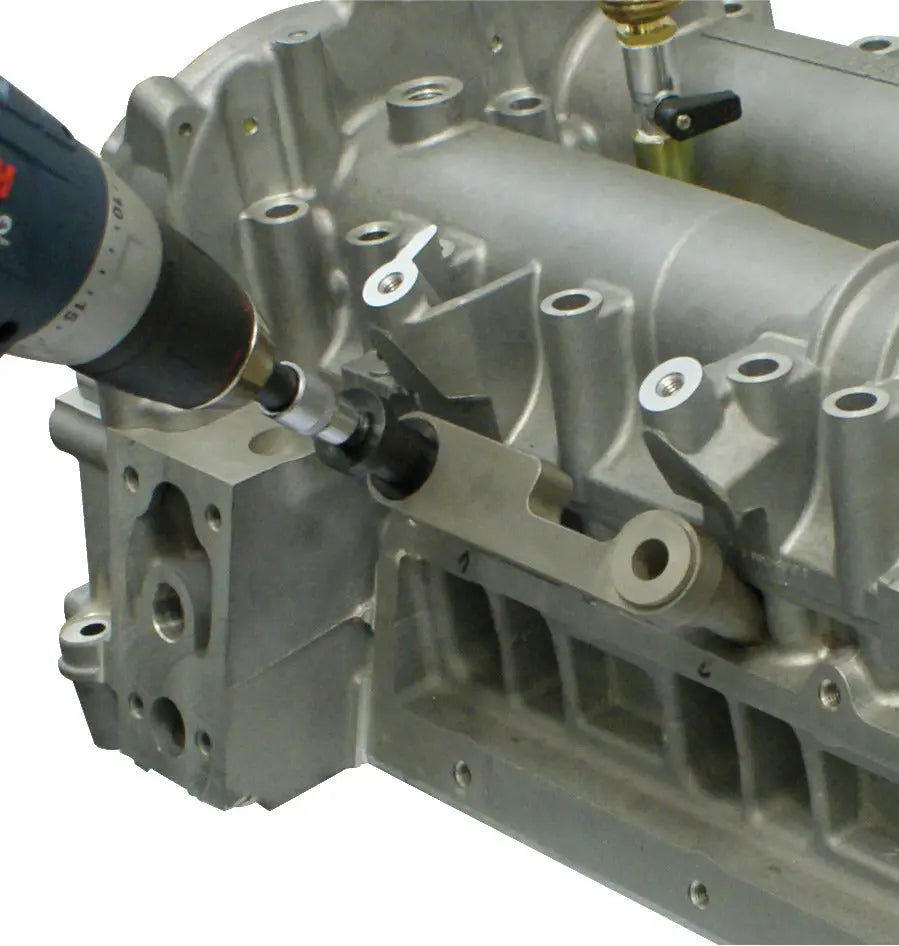

- For precisely boring out torn and stuck glow plugs
- For re-cutting, cleaning or repairing glow plug mounting threads
- The compressed air adaptor prevents impurities from entering the combustion chamber
- For example installed on Fiat 500 / 500C, Ducato, Doblo, Doblo Cargo, Doblo Work Up, Fiorino, Grande Punto, Idea, Linea, Panda, Punto, Punto Evo, Qubo, Strada Pick-up, Alfa MiTo, Lancia Musa, Ypsilon, IVECO Daily, Citroen Jumper, Peugeot Boxer
Specifications:
- Suitability: Fiat, Alfa Romeo, Iveco, Citroen, Peugeot
- Depth: 360mm
- Height: 106mm
- Motor Type: Diesel
- Storage: Plastic Storage Case
- Thread: M8 x 1
- Weight: 9.04 lbs
- Width: 450mm
- Country of Origin: Germany

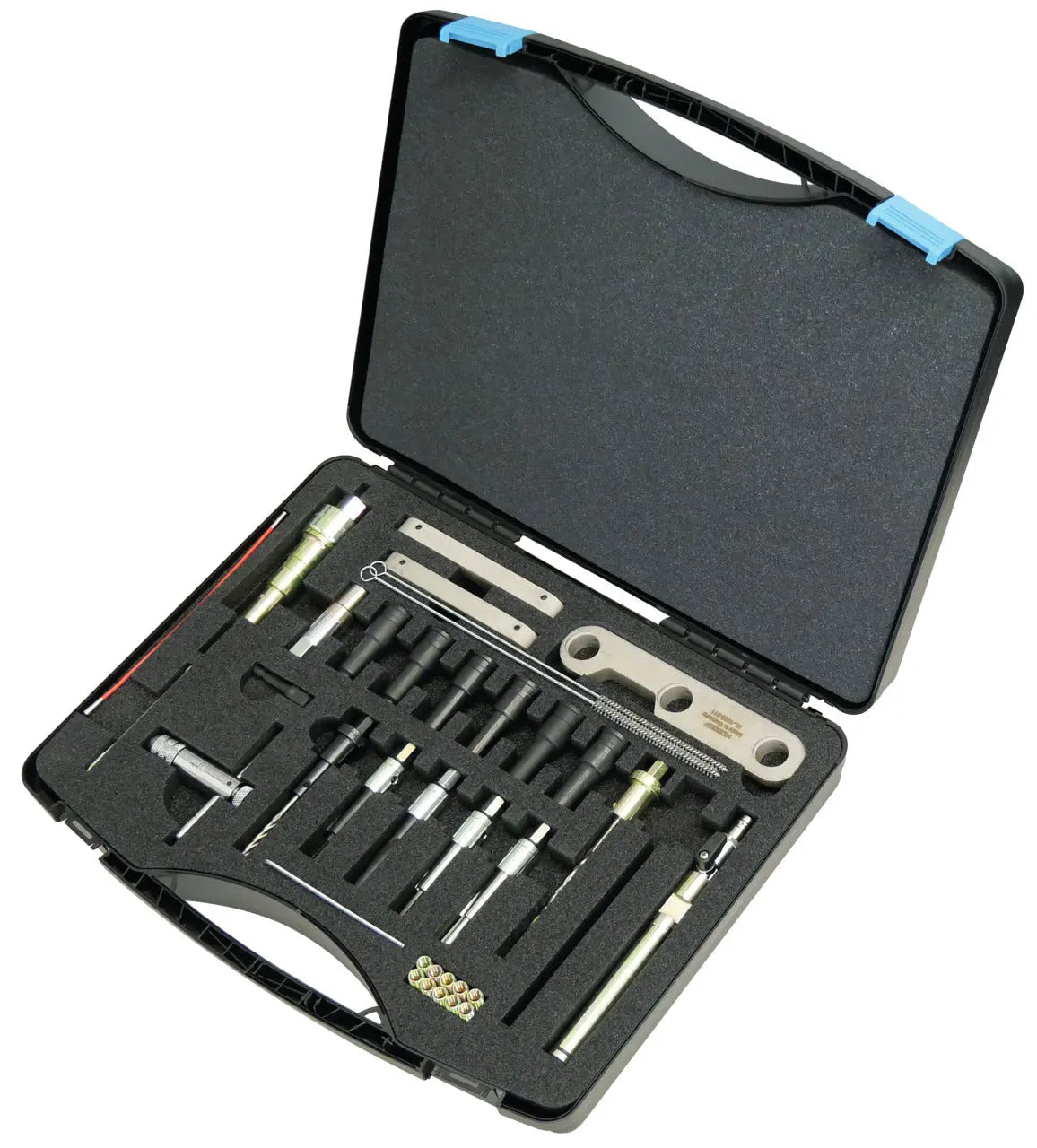

Scope of Delivery:
1 x KL-0369-300 A - Turning lathe, 1 x KL-1683-2012 - Centring sleeve, 1 x KL-1683-201 - Base strip 2.3 JTD, 1 x KL-1683-202 - Base strip 3.0 JTD, 1 x KL-1683-2031 - Guide sleeve for milling tool, 1 x KL-4007-2510 - Adaptor for drill 3/8" square, 1 x KL-1683-2032 - Milling tool for glow plugs, 1 x KL-1683-2041 - Guide sleeves for drill, 1 x KL-1383-2231 - Tapping drill diameter 7.1mm for M8 x 1, 1 x -1383-2232 - Drill M8 x 1, 1 x KL-0283-7021 - Tapping drill diameter 9.1mm for M10, 1 x KL-0283-7022 - Drill M10 x 1, 1 x KL-1683-2063 - Threaded sleeve set M8 x 1, 13mm long, 1 x KL-0369-306 - Tool holder with square insert 2.4 - 5.5mm, 1 x KL-1683-207 - Extraction tool for glow element, 1 x KL-0369-56 B - Compressed air adaptor M10 x 1, 1 x KL-1683-2081 - Guide sleeve for reamer, 1 x 42 KEL 2.5 - Hexagon L key 2.5mm, 1 x KL-0369-2448 - Glow plug brush diameter 4.8 x 1, 1 x KL-0369-2468 - Glow plug brush 6.8 x 1, 1 x KL-0126-221 - Valve collet magnetic lifter flexible, 1 x KL-1383-2031 - Milling tool for glow plug electrode (compensatory milling tool), 1 x KL-1683-211 - Base strip 1.3 JTD, 2 x KL-1683-2112 - Guide sleeve for centring, 1 x KL-1683-212 - Reamer diameter 6.9, diameter 4.9mm, 1 x KL-1683-2090 A - Plastic case
