Gedore 3431762 Glow Plug Toolkit, Universal, M8 x 1 - GD KL-0132-55 KA
For a quick and professional boring out of torn glow plugs, for re-cutting and cleaning the original thread on the cylinder head as well as for pulling the glow plug. The vehicle-specific guide sleeves for Mercedes and Fiat engines ensure a precise centring, straight-line guidance and exact drilling depth. For other engines with M8x1 glow plug thread, these tasks can be alternatively performed without guide sleeve. High time and cost savings, as there is no need to remove or replace the cylinder head.
Features:
- Universally suitable for diesel engines with M8x1 glow plug thread, e.g. on Fiat, Mercedes, etc.
- For a simple boring out of torn glow plugs
- For re-cutting and cleaning the original thread on the cylinder head
- For pulling off the glow plugs
- Including special guide sleeves for Mercedes and Fiat engines
- No need to remove or replace the cylinder head
- Fits universally for diesel engines with M8x1 glow plug thread, e.g. on Fiat, Mercedes, and many more
- Especially suitable for Mercedes (OM639, OM640, OM642, OM651) and Fiat (1.3 JTD, 2.3 JTD, 3.0 JTD)
Specifications:
- Suitability: Universal, Mercedes, Fiat
- Depth: 185mm
- Height: 48mm
- Motor Type: Diesel
- Storage: Case
- Thread: M8 x 1
- Width: 235mm
- Country of Origin: Germany
Scope of Delivery:

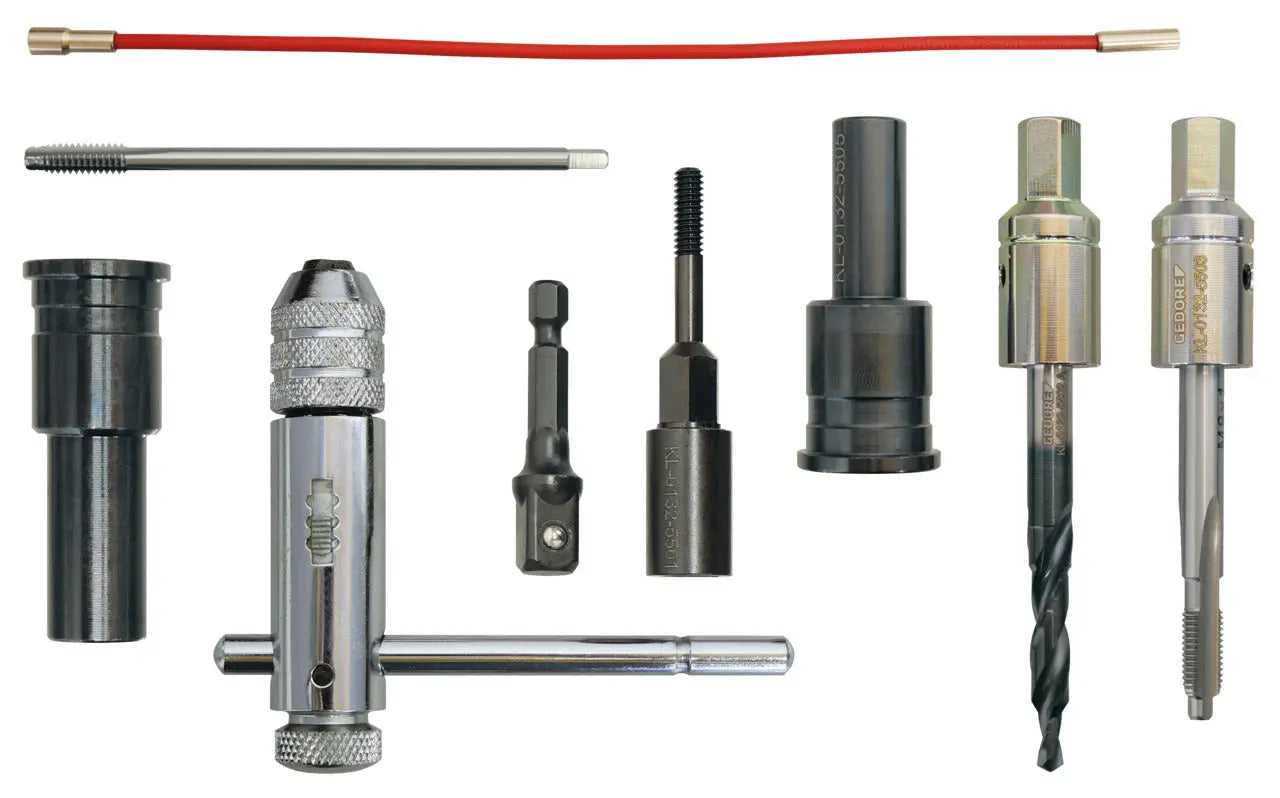

1 x KL-0132-5501 - Pull bolt no. 12-24 UNC for impact extractor, 1 x KL-0132-5502 A - Tapping drill diameter 4 / diameter 7 for M8 x 1, 1 x KL-0132-5503 - Tap M8 x 1, 1 x KL-0132-5504 - Guide sleeve for Fiat JTD (3.0l and 2.3l), 1 x KL-0132-5505 - Guide sleeve for Mercedes (OM 639, 640, 642), 1 x KL-0369-306 - Tool holder with square insert 2.4 - 5.5, 1 x KL-1383-2241 - Tap no. 12-24 UNC with drilling head, 1 x KL-4007-2510 - Adaptor for drill 3/8" square, 1 x KL-0126-221 - Magnetic lifter flexible, 1 x KL-0132-5590 A - Plastic case
