Gedore 3431770 Glow Plug Toolkit, Universal, M10 x 1.25 - GD KL-0132-62 KB
For a quick and professional boring out of torn glow plugs, for re-cutting and cleaning the original thread on the cylinder head as well as for pulling the glow plug. High time and cost savings, as there is no need to remove or replace the cylinder head.
Features:
- Suitable for glow plug thread M10x1.25, e.g. On Opel, Mazda, Ford, Hyundai, Honda, Kia, Mini, Nissan, Toyota, etc.
- For a simple boring out of torn glow plugs
- For re-cutting and cleaning the original thread on the cylinder head
- For pulling the glow plug
- No removal or replacing of the cylinder head necessary
- Universally suitable for diesel engines with M10x1.25 glow plug thread, e.g. on Opel, Mazda. Ford, Hyundai, Honda, Kia, Mini, Nissan, Toyota, and many more
- Especially for 1.4 - 3.0 D / DI / DTI / TD / CRDi / CDTi engines (engine code: 1ND, 1ND-TV, 4EE-2, CD23, D4FA, LD23, MD25TI, R2, RF OHC, RF46, RF-CX, RF-N, TD27T, WL, WL-T, Y17DT, Y17DTL, Y30DT, Z17DTL, Z30DT), installed on, e.g. Opel Astra G, Astra H, Combo, Corsa C, Meriva, Signum, Vectra C, Mazda 626 II, 626 III, 626 IV, MPV I, B-Serie, Ford Ranger, Hyundai Accent, Getz, Matrix, Honda Civic VI, Kia Besta, Pregio, K2700, Mini One D, Nissan Serena, Terrano II, Vanette, Toyota Yaris, Corolla etc.
Specifications:
- Suitability: Universal, Opel, Mazda, Ford, Kia, Mini
- Depth: 185mm
- Height: 48mm
- Motor Type: Diesel
- Storage: Case
- Thread: M10 x 1.25
- Width: 235mm
- Country of Origin: Germany
Scope of Delivery:

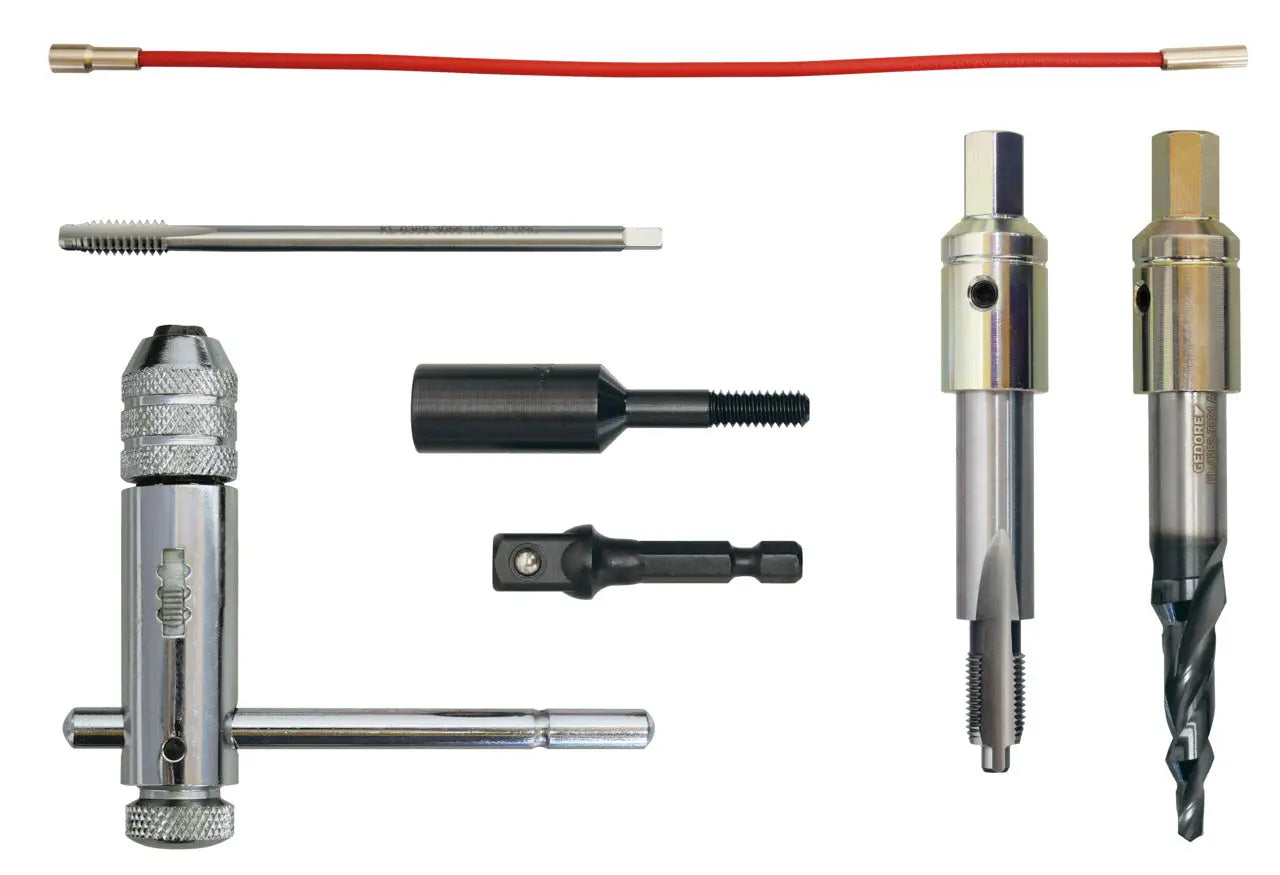

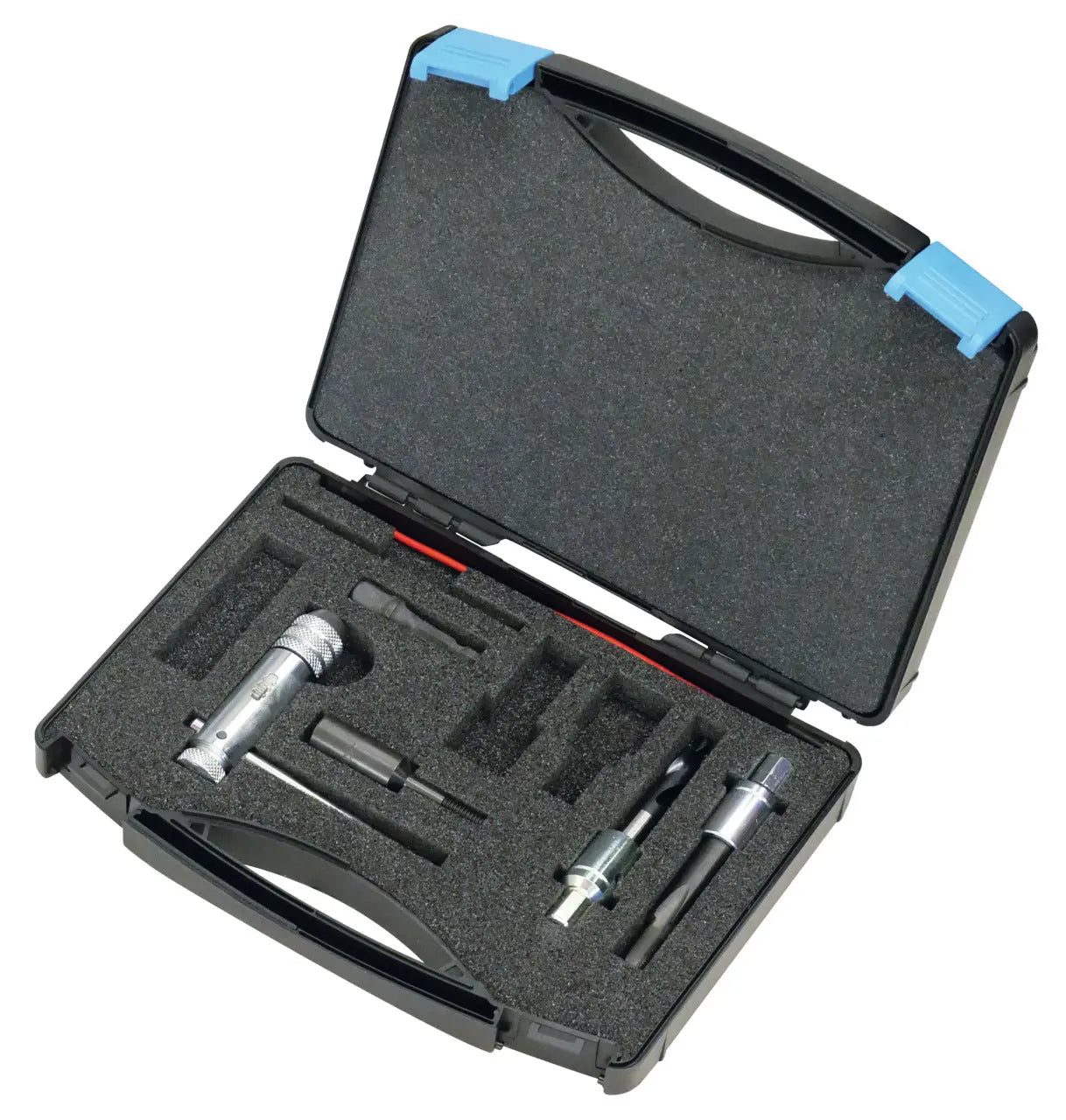

1 x KL-0132-5202 - Pull bolt 1/4"-20 UNC for impact extractor, 1 x KL-0283-7021 A - Tapping drill diameter 4.8 / diameter 9 for M10 x 1, 1 x KL-0132-6201 - Drill M10 x 1.25, 1 x KL-0369-306 - Tool holder with square insert 2.4 - 5.5, 1 x KL-0369-3056 - Drill 1/4"-20 UNC with drilling head, 1 x KL-4007-2510 - Adaptor for drill 3/8" square, 1 x KL-0126-221 - Magnetic lifter flexible, 1 x KL-0132-5590 A - Plastic case
