Gedore 3441350 Wheel Bearing Toolkit, Mercedes Vito / Viano, Front Axle, 17000 kgs - GD KL-0041-521 K
For quick and professional removal and installation of wheel bearing unit directly on the vehicle. The particular construction of the tool particularly enables the removal and installation of wheel bearing units without center bore. Thereby the wheel bearing unit is directly pulled out via the wheel hub and pressed in again damage-free via the outer ring of the wheel bearing. Currently, only complete steering knuckles with pre-assembled wheel bearing units are offered by the vehicle manufacturer for repairs. A wheel alignment required as a result entails further consequential costs. The wheel bearing tool together with a wheel bearing unit from FAG (Schaeffler Automotive Aftermarket) offers a significantly more cost-effective repair solution.
Features:
- Suitable for the front axle of Mercedes Vito / Viano, V-Class (W639, W447) with rear drive
- For removal and installation of the wheel bearing unit directly on the vehicle required for wheel hubs without center bore no damage to the bearing, as pressure during installation is only applied via the outer bearing ring no need to replace the entire steering knuckle no wheel alignment required additional drive parts necessary
- Suitable for wheel bearing units without center bore on the front axle, for example with Mercedes Vito/V-Class (W447) and Vito/Viano (W639) with rear drive
Specifications:
- Suitability: Mercedes
- Depth: 357mm
- Drive Type: Hydraulic
- Height: 151mm
- Load (Max.): 17000 kgs
- Storage: Case
- Width: 442mm
- Country of Origin: Germany
Scope of Delivery:

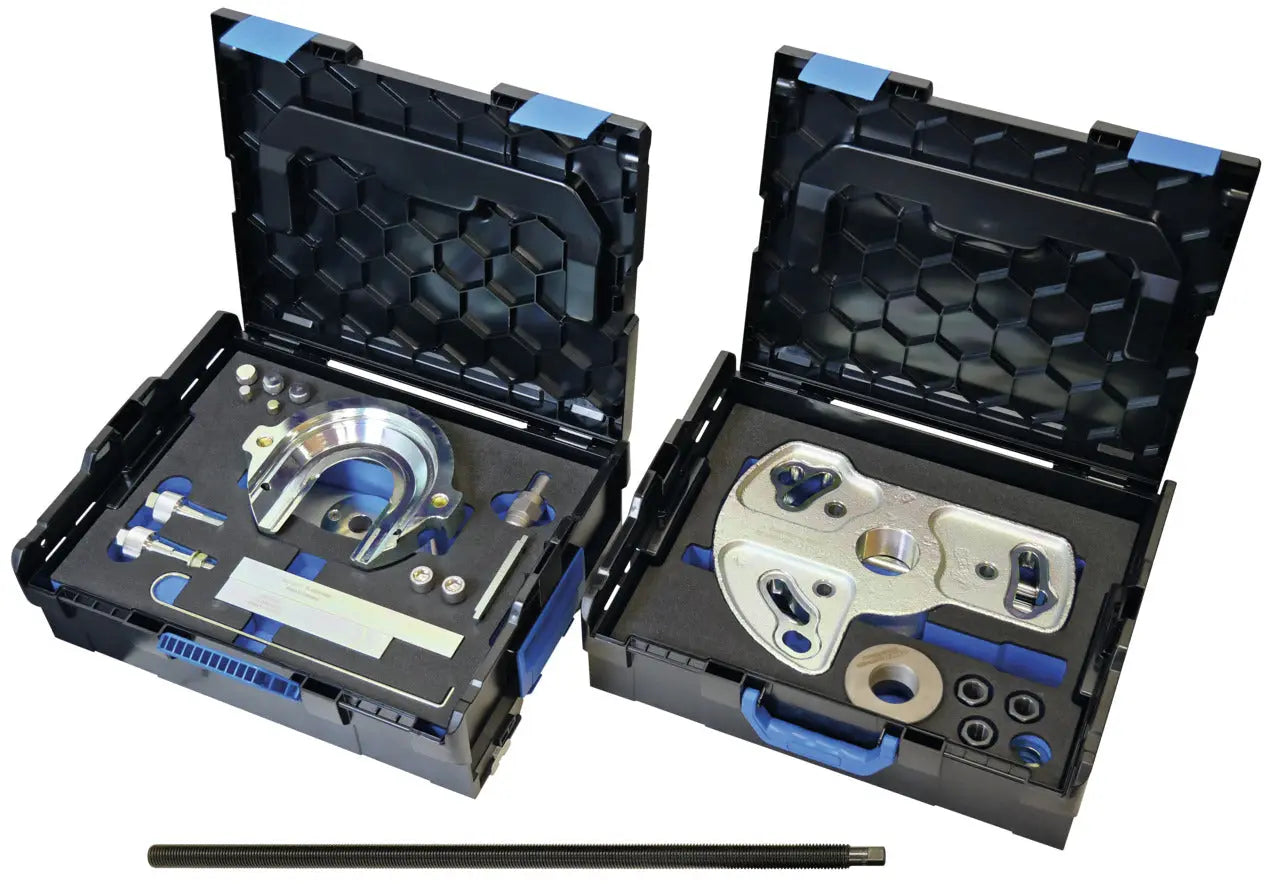

1 x KL-0041-5001 - Base plate, 1 x KL-0041-5002 - Support rod, cross hole, 2 x KL-0041-5009 - Support rod, 275mm, 3 x KL-0041-5006 - Collar nut M18, 1 x KL-0041-5010 - Adaptor, 4 x KL-0041-5004 - Washer, diameter 19mm, 1 x KL-0041-5012 - Steering knuckle retaining bracket, 2 x KL-0041-5005 - Cylinder screw, M14 x 70, 1 x KL-0041-5003 - Screw with cone, M16, 1 x KL-0041-5014 - Screw with cone, M12, 1 x KL-0035-0023 - Nut, M12, 1 x KL-0066-0004 - Washer, diameter 12mm, 1 x KL-0041-5007 - Reinforcement slat, 140mm, 1 x KL-0041-5008 - Reinforcement slat, 196mm, 1 x KL-0041-5013 - Clamping nut, 1 x KL-0041-5030-2 - Closing plate, 3 x KL-0041-5024 - Knurled screw, M14, 2 x KL-0041-5025 - Retaining pin, 1 x KL-0041-503 - Pull / pressure plate, diameter 92mm, 1 x KL-0039-1920-1 A Pull spindle, M20, 1 x KL-0041-5211-9 - Foam insert, 1 x KL-0041-5212-9 - Foam insert, 2 x KL-4600-1094 - Plastic case, empty
