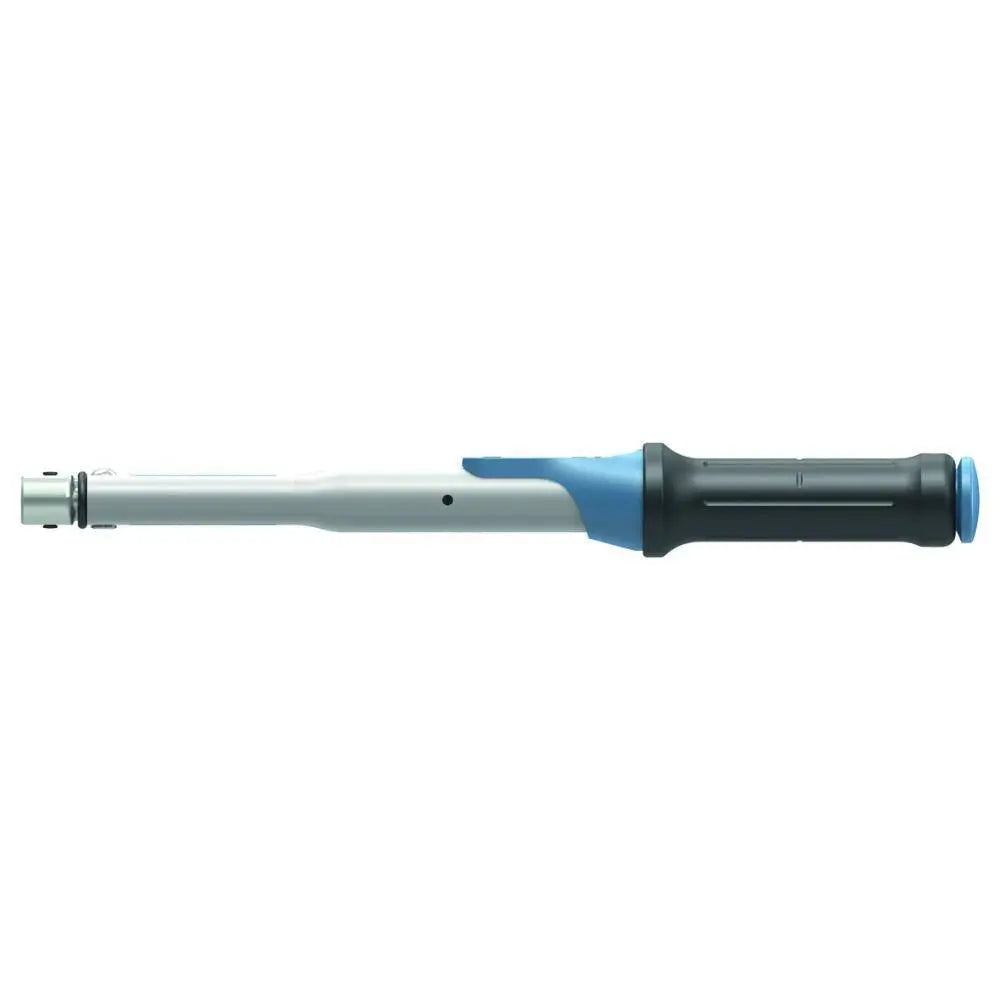

Gedore 4100-01 Torque wrench TORCOFIX SE 9×12, 20-100 Nm - GD 3278522

Gedore 4100-01 Torque wrench TORCOFIX SE 9×12, 20-100 Nm - GD 3278522

• Use:
  • Controlled screw tightening in the range of 20 - 100 Nm / 15 - 75 lbf·ft
  • Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades
• Features:
  • Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
  • incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled right- and left-hand tightening (insert tool for change of direction)
  • Square Drive 9x12 mm with ejector aid
  • Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
  • New ergonomic handle, shaped according to the natural grip position of the hand
  • clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
  • Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
  • Scale line positioned directly above the scale prevents reading errors (parallax errors)
  • Unit labeling integrated in the scale frame and also protected by viewing windows,
  • The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
  • incl. roll away protection, prevents rolling away when the tool is put down

Technical Characteristics

• Drive connector rectangular: 9 x 12
• Drive type/drive: Rectangular cavity
• Tightening direction: Left and right
• Trigger mechanism: Short path triggering
• Torque (max.) [lbf·ft]: 75 lbf·ft
• Torque (max.) [Nm]: 100 Nm
• Torque (min.) [lbf·ft]: 15 lbf·ft
• Torque (min.) [Nm]: 20 Nm
• Range of application: Assembly Series assembly Production Maintenance and repair
• Calibration length: 310,3 mm
• Material: Steel tube construction with high-quality plastic parts
• vernier Nm: 0,5 Nm
• Precision +/-: +/- 3 %
• Test certificate: DIN EN ISO 6789-2:2017
• Compliance: compliant
• Safety: Catch lock
• Graduation [lbf·ft]: 5 lbf·ft
• Scale division [Nm]: 5 Nm
• Depth gauge [metric]: 17,5 mm
