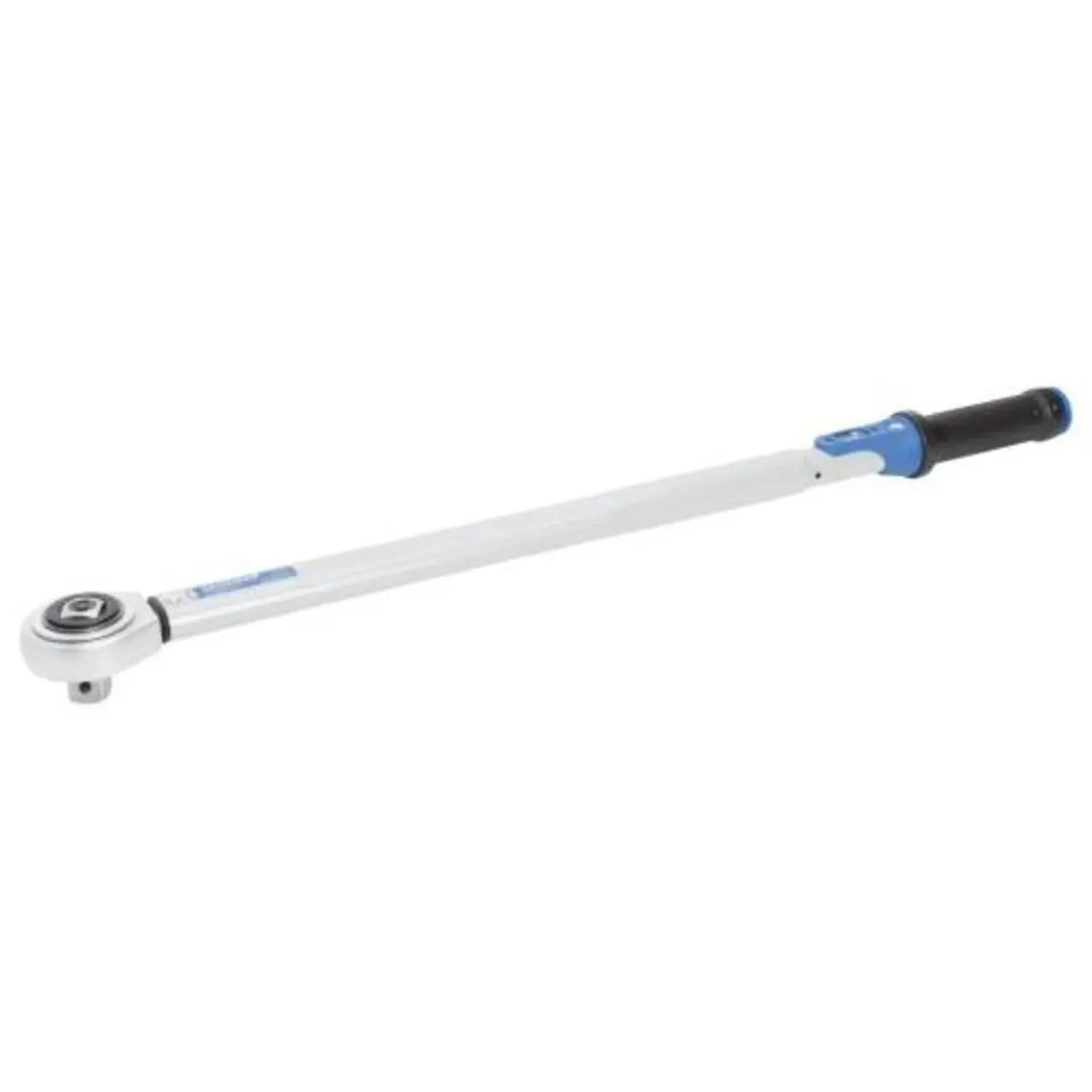

Gedore 4550-55 Torque wrench TORCOFIX K 3/4" 110-550 Nm 7674760

Gedore 7674760, Torque wrench TORCOFIX K 3/4" 110-550 Nm

The Gedore 7674760, Torque wrench TORCOFIX K 3/4" 110-550 Nm is available to order online. Contact us if you find the Gedore 7674760, Torque wrench TORCOFIX K 3/4" 110-550 Nm at a better price.

Torque wrench TORCOFIX K 3/4" 110-550 Nm

Use:

• Controlled screw tightening in the most widely used range of 1 - 850 Nm / 0.75 - 630 lbf.ft (guide for screws M3-6.9 to M24-8.8, M30-5.6)
• Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades

Features:

• Classified as per DIN EN ISO 6789-2:2017 Type II Class A Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 % (4549-00 +/- 6 %)
• Incl. traceable test certificate
• For controlled bi-directional tightening
• 1/4", 3/8", 1/2" mushroom head square socket with ball lock. From 3/4" with square socket and pin retention
• Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts
• Ergonomically shaped, convenient black plastic handgrip with calibration aid
• Dual scale Nm and lbf.ft below a window with a magnifying-glass effect
• With micrometre scale for main Nm scale for setting interim values
• Release system triggers a tactile and audible signal
• Ergonomic system for torque adjustment

Dimensions/Weight:

• Total width [mm]: 68 mm
• Total height [mm]: 51 mm
• Total length [mm]: 960 mm
• Nominal width [mm]: 69 mm
• Nominal height [mm]: 51,2 mm
• Nominal length [mm]: 957,5 mm
• Net weight [kg]: 4,224 kg

Technical Specifications:

• Distance housing - square drive: 34,5 mm
• Drive type/drive: Push-through square
• Drive connector square [metric]: 20 mm
• Drive square inch: 3/4"
• Number of teeth: 36
• Tightening direction: Links und Rechts
• Trigger mechanism: Short path triggering
• Torque (max.) [lbf.ft]: 405 lbf.ft
• Torque (min.) [lbf.ft]: 80 lbf.ft
• Torque (max.) [Nm]: 550 Nm
• Torque (min.) [Nm]: 110 Nm
• Range of application: Assembly Maintenance and repair
• Calibration length: 853,7 mm
• Width of head 1 [mm]: 69,0 mm
• Head height 1 [mm]: 31 mm
• vernier Nm: 1 Nm
• Precision +/-: +/- 3 %
• Test certificate: DIN EN ISO 6789-2:2017
• Compliance: konform
• Return angle: 10 degree
• Graduation [lbf.ft]: 10 lbf.ft
• Scale division [Nm]: 10 Nm
