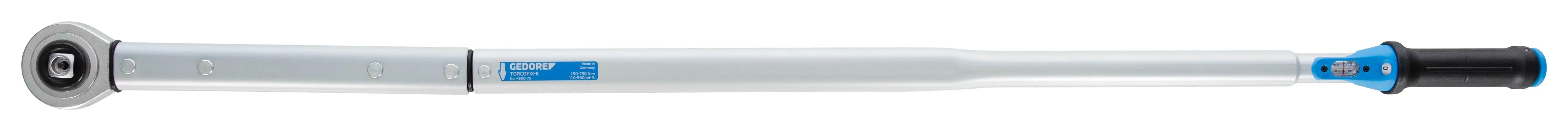

Gedore 4551-85 Torque wrench TORCOFIX K 3/4" 250-850 Nm 1950525

Gedore 1950525, Torque wrench TORCOFIX K 3/4" 250-850 Nm

The Gedore 1950525, Torque wrench TORCOFIX K 3/4" 250-850 Nm is available to order online. Contact us if you find the Gedore 1950525, Torque wrench TORCOFIX K 3/4" 250-850 Nm at a better price.

Torque wrench TORCOFIX K 3/4" 250-850 Nm

Use:

• Controlled screw tightening in the range of 250 - 850 Nm / 185 - 630 lbf.ft
• Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades

Features:

• Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
• Incl. traceable test certificate
• For controlled bi-directional tightening
• 3/4" square socket and pin retention
• Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts
• Ergonomically shaped, convenient black plastic handgrip with calibration aid
• Dual scale Nm and lbf.ft below a window with a magnifying-glass effect
• With micrometre scale for main Nm scale for setting interim values
• Release system triggers a tactile and audible signal
• Ergonomic system for torque adjustment

Dimensions/Weight:

• Total width [mm]: 70 mm
• Total height [mm]: 51 mm
• Total length [mm]: 1.380 mm
• Nominal width [mm]: 69 mm
• Nominal height [mm]: 51,2 mm
• Nominal length [mm]: 1379,5 mm
• Net weight [kg]: 5,4 kg

Technical Specifications:

• Distance housing - square drive: 34,5 mm
• Drive type/drive: Push-through square
• Drive connector square [metric]: 20 mm
• Drive square inch: 3/4"
• Number of teeth: 36
• Tightening direction: Left and right
• Trigger mechanism: Short path triggering
• Torque (max.) [lbf.ft]: 630 lbf.ft
• Torque (min.) [lbf.ft]: 185 lbf.ft
• Torque (max.) [Nm]: 850 Nm
• Torque (min.) [Nm]: 250 Nm
• Range of application: Assembly Maintenance and repair
• Fixed setting: No
• Calibration length: 1275,7 mm
• Width of head 1 [mm]: 69,0 mm
• Head height 1 [mm]: 38 mm
• vernier Nm: 1 Nm
• Precision +/-: +/- 3 %
• Test certificate: DIN EN ISO 6789-2:2017
• Compliance: konform
• Return angle: 10 degree
• Graduation [lbf.ft]: 10 lbf.ft
• Scale division [Nm]: 10 Nm
