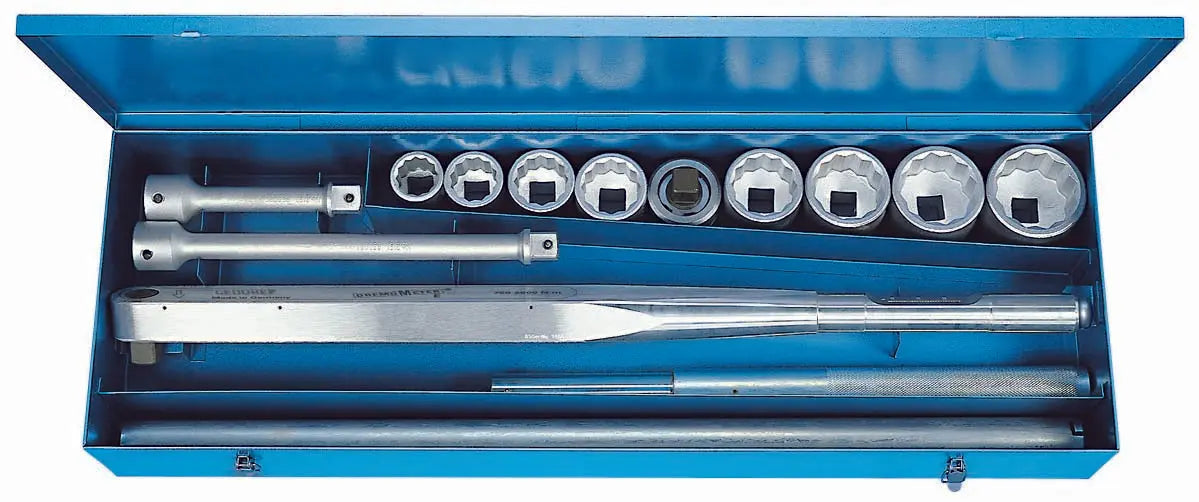

Gedore 8564-03 Torque wrench DREMOMETER E set MM 7696060

Gedore 7696060, Torque wrench DREMOMETER E set MM

The Gedore 7696060, Torque wrench DREMOMETER E set MM is available to order online. Contact us if you find the Gedore 7696060, Torque wrench DREMOMETER E set MM at a better price.

Torque wrench DREMOMETER E set MM

Use:

• Controlled screw tightening in the range of 750 - 2000 Nm
• For use in almost all industrial manufacturing areas

Features:

• Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
• 1" square drive with pin-locking mechanism DIN 3120 - B 25, ISO 1174
• Automatic short-path actuation with tactile impulse and audible signal
• Single scale with a scale graduation of 50 Nm
• Technical advantage/Function:
• Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
• Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Extremely low wear attributable to reduced forces in a lever mechanism
• Forged lever chain from our group own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• Single- and double-square drive for controlled bi-directional tightening

Dimensions and Weight:

• Total width [mm]: 60 mm
• Total height [mm]: 71 mm
• Total length [mm]: 932 mm
• Net weight [kg]: 30 kg
