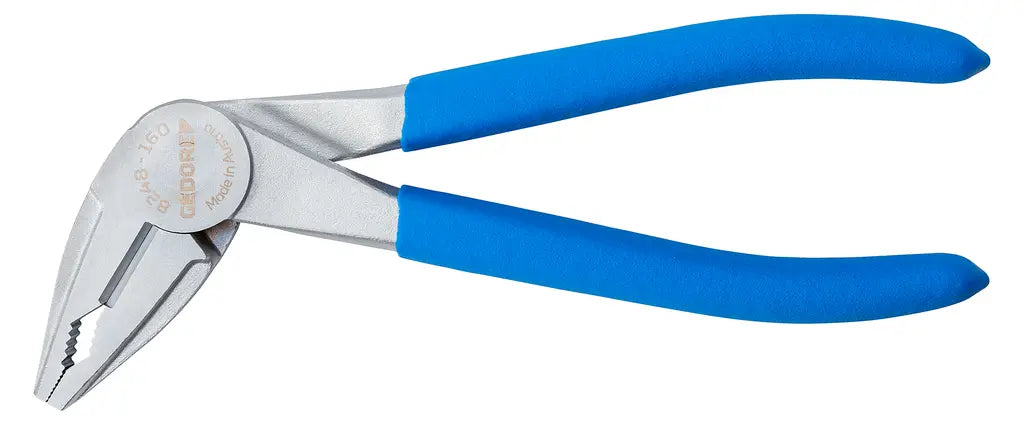

Gedore Angled Dip-Insulated Combination Plier, 160mm - GD 3463206
The dip-insulated combination plier is a multifunctional hand tool designed for gripping, cutting, and bending wires in electrical and industrial applications. Featuring ergonomically designed insulated handles, it provides protection against electric shock up to standard rated voltages, making it ideal for electricians, technicians, and maintenance professionals. Crafted from hardened alloy steel, the plier delivers durability, precision, and reliable performance for both heavy-duty and delicate tasks.
Features:
- A 60 deg angled pliers head is gentle on your joints and tendons. In addition, you retain a clear view of the workpiece
- Specially offset teeth in the grip surfaces for best-possible gripping on pipes and screws
- For heavy continuous use
- No forced positioning of the hand
- Fatigue-free working over a long period made possible
- Higher cutting performance and longer tool life thanks to high-quality GEDORE special hardened and tempered steel
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- For all wires, also hard wire/piano wire, 1.6 mm
- Hot-drop forged
- JC = Chrome-Plated, with 2-component handle covers
- TL = Steel-Gray, with blue dipped non-slip handles
- TC= Chrome-Plated, with blue dipped plastic coating
Specifications:
- Bevel: With
- Blade Shape: With Facet
- Cutting Values: Hard Wire - 2mm / 12 AWG, Medium Hard Wire - 3.1mm / 8 AWG, Soft Wire - 4mm / 6 AWG, Cu Cable. Multi Wire Cross Section - 16mm Sq, Multi-Wire Cable Diameter - 10mm
- Design Non-Sparking: No
- Handle Color: Blue
- Hardening Process: Induction Hardened
- Hardness of Cutting Edge: 63 - 65 HRC
- Head Thickness T1: 10mm
- Jaw Length L3: 46mm
- Material: Heat-Treated Steel
- Overall Weight: 0.51 lbs
- Surface: Chrome-Plated
- Thickness of Point: 10mm
- Total Height: 14mm
- Total Length: 167mm
- Total Width: 48mm
- Width of Centers W4: 6mm
- Width of Head: 24mm
