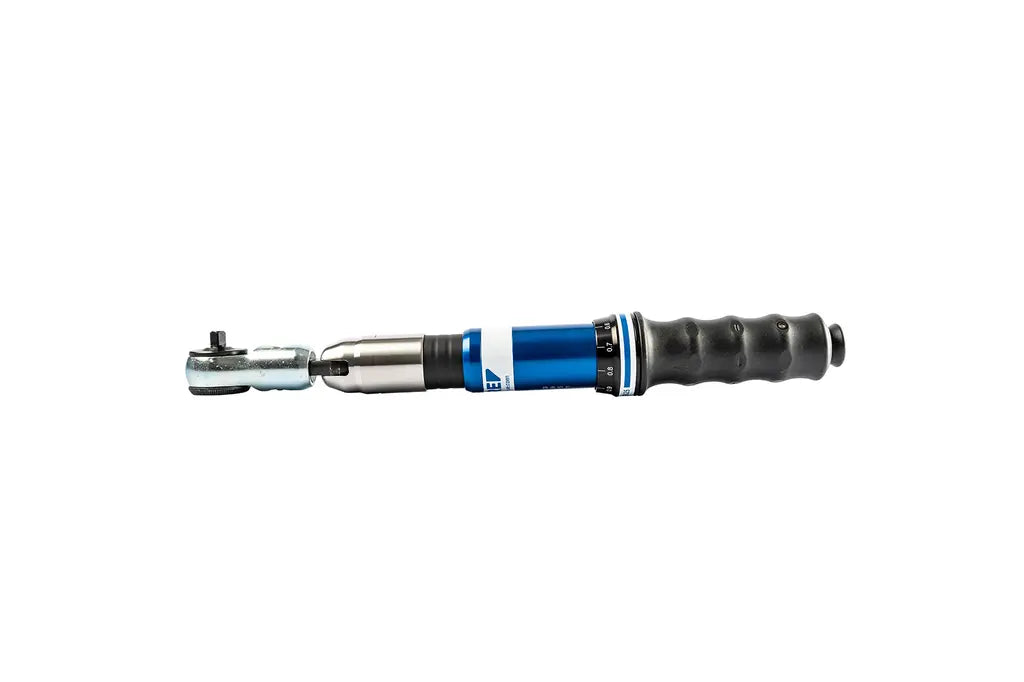

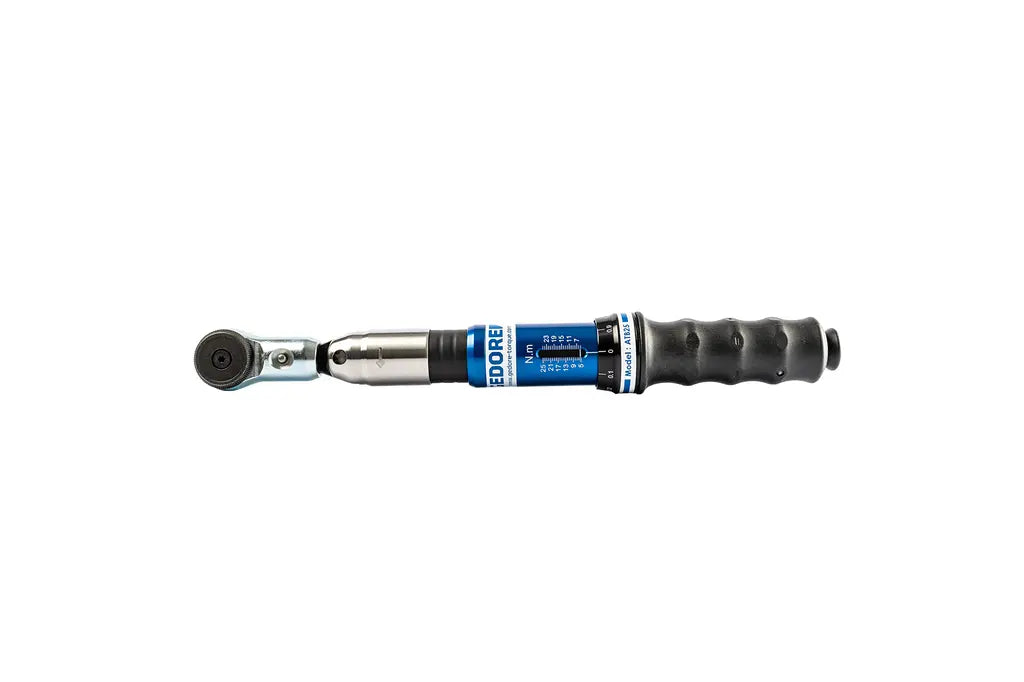

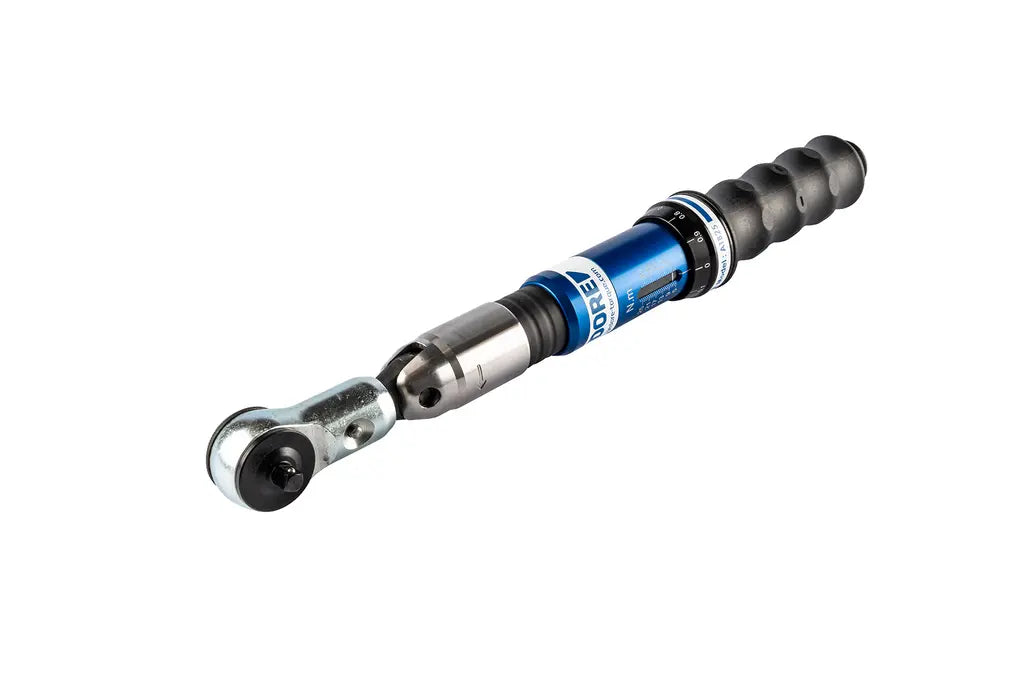

Gedore Bending Torque Wrench, 5 - 25 Nm, 1/4 in - GD 2839652
The bending torque wrench is a specialized hand tool designed for precise measurement and application of torque during fastening operations. Using a mechanical bending beam principle, it provides accurate torque readings without the need for complex electronics, making it a reliable and easy-to-use tool in workshops, maintenance, and industrial environments. Its simple yet effective design ensures durability, repeatability, and dependable performance in demanding applications.
Features:
- Type ATB 2.5 to ATB 10 with 8 mm pin
- Type ATB 25 to ATB 100 with 16 mm pin incl. Insert ratchet
- With micrometer scale, which allows quick and precise adjustment of the desired value
- With adjuster lock that prevents accidental adjustment during use
- Release accuracy: +/- 4% tolerance of the set value (ATB 2.5; ATB 5; ATB 10 +/- 6% tolerance)
- Breaking of the handgrip by 20 deg when the pre-set torque value is achieved makes over-tightening unlikely
- Classified according to DIN EN ISO 6789 Type II Class A
Specifications:
- Pin Drive Connector: 16mm
- Square Drive: 1/4 in
- Drive Type: Drive Pin
- Material: Tubular Steel Construction
- Overall Weight: 2.45 lbs
- Precision: +/- 4 %
- Range of Application: Assembly, Series Assembly, Production, Quality Control, Repair and Maintenance, Testing and Trial Departments
- Test Certificate: DIN EN ISO 6789-02:2017
- Tightening Direction: Left and Right
- Maximum Torque: 25 Nm
- Minimum Torque: 5 Nm
- Total Length: 345mm
- Trigger Mechanism: Long Travel Triggering
- Vernier: 0.1 Nm
