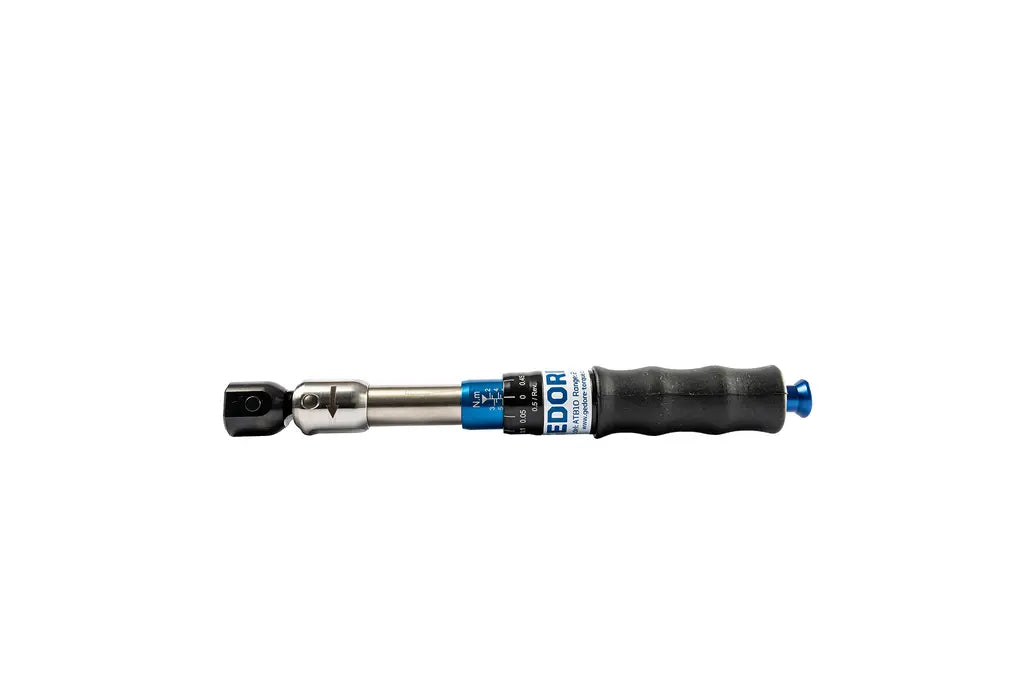

Gedore Bending Torque Wrench, ATB 50 - 250 cNm, 9 x 12mm - GD 2839628
The bending torque wrench is a specialized hand tool designed for precise measurement and application of torque during fastening operations. Using a mechanical bending beam principle, it provides accurate torque readings without the need for complex electronics, making it a reliable and easy-to-use tool in workshops, maintenance, and industrial environments. Its simple yet effective design ensures durability, repeatability, and dependable performance in demanding applications.
Features:
- With 9 x 12 mm Internal Square Drive
- With micrometer scale, which allows quick and precise adjustment of the desired value
- With adjuster lock that prevents accidental adjustment during use
- Release accuracy +/- 6%
- Breaking of the handgrip by 20 deg when the pre-set torque value is achieved makes over-tightening unlikely
- Classified according to DIN EN ISO 6789 Type II Class A
Specifications:
- Rectangular Drive Connector: 9 x 12mm
- Drive Type: Rectangular Cavity
- Insertion Depth 1: 16mm
- Material: Tubular Steel Construction
- Overall Weight: 0.6 lbs
- Precision: +/- 6 %
- Range of Application: Assembly, Series Assembly, Production, Quality Control, Testing and Trial Departments
- Test Certificate: DIN EN ISO 6789-2:2017
- Tightening Direction: Left and Right
- Maximum Torque: 250 cNm
- Minimum Torque: 50 cNm
- Total Length: 192mm
- Trigger Mechanism: Long Travel Triggering
- Vernier: 1.25 cNm
