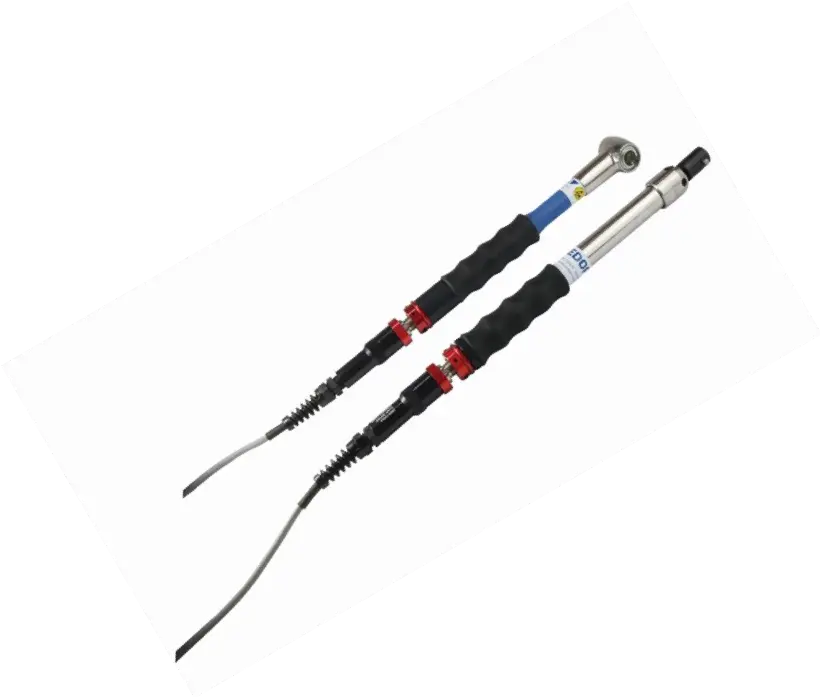

Gedore Cable Torque Wrench, Z16, 5 - 25 Nm - GD 2282453
A cable torque wrench is a specialized tool designed to apply precise torque when tightening cable lugs, connectors, and fasteners. It ensures secure, consistent connections without over-tightening, which can damage cables, or under-tightening, which can cause loose and unsafe joints. This makes it an essential instrument for electrical installations, power distribution, telecommunications, and industrial wiring.
Set Contains:
- Includes switching sleeve and connection cable 5 m
Features:
- Especially for remote switching, counting, monitoring and control on production lines and series production
- Controlled screw tightening in the range of 5-200 Nm
- With 16 mm spigot-end
- Fixed, pre-settable torque wrench - without scale
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)
- Including setting tool to change the fixed value
Specifications:
- Pin Drive Connector: 16mm
- Drive Type: Drive Pin
- Material: Tubular Steel Construction
- Overall Weight: 1.65 lbs
- Precision: +/- 4 %
- Range of Application: Assembly, Series Assembly, Production, Quality Control
- Test Certificate: DIN EN ISO 6789-2:2017
- Tightening Direction: Left and Right
- Maximum Torque: 25 Nm
- Minimum Torque: 5 Nm
- Total Length: 415mm
- Trigger Mechanism: Long Travel Triggering
- Version: Includes switching sleeve and connection cable 5 m
