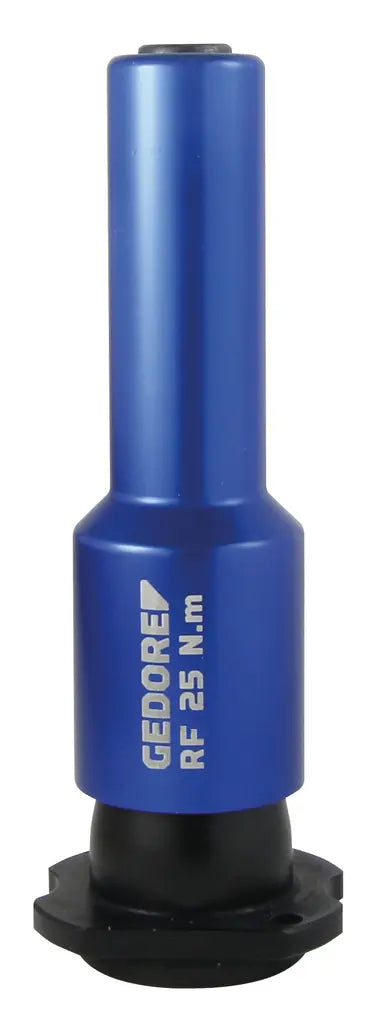

Gedore Capture Joint Simulator, 0.2 - 2 Nm - GD 3119289
A capture joint simulator is a specialized testing tool designed to replicate the behavior of bolted joints during torque application. It allows technicians to test, calibrate, and verify the performance of torque tools such as torque wrenches, screwdrivers, and nutrunners without the need for actual assemblies. By accurately simulating joint conditions, it provides consistent and repeatable results, ensuring tool reliability and fastening quality in production, maintenance, and calibration environments.
Features:
- Capture screw joint simulator for testing screwdrivers
- 3 Models ranging from 0.02 Nm to 25 Nm

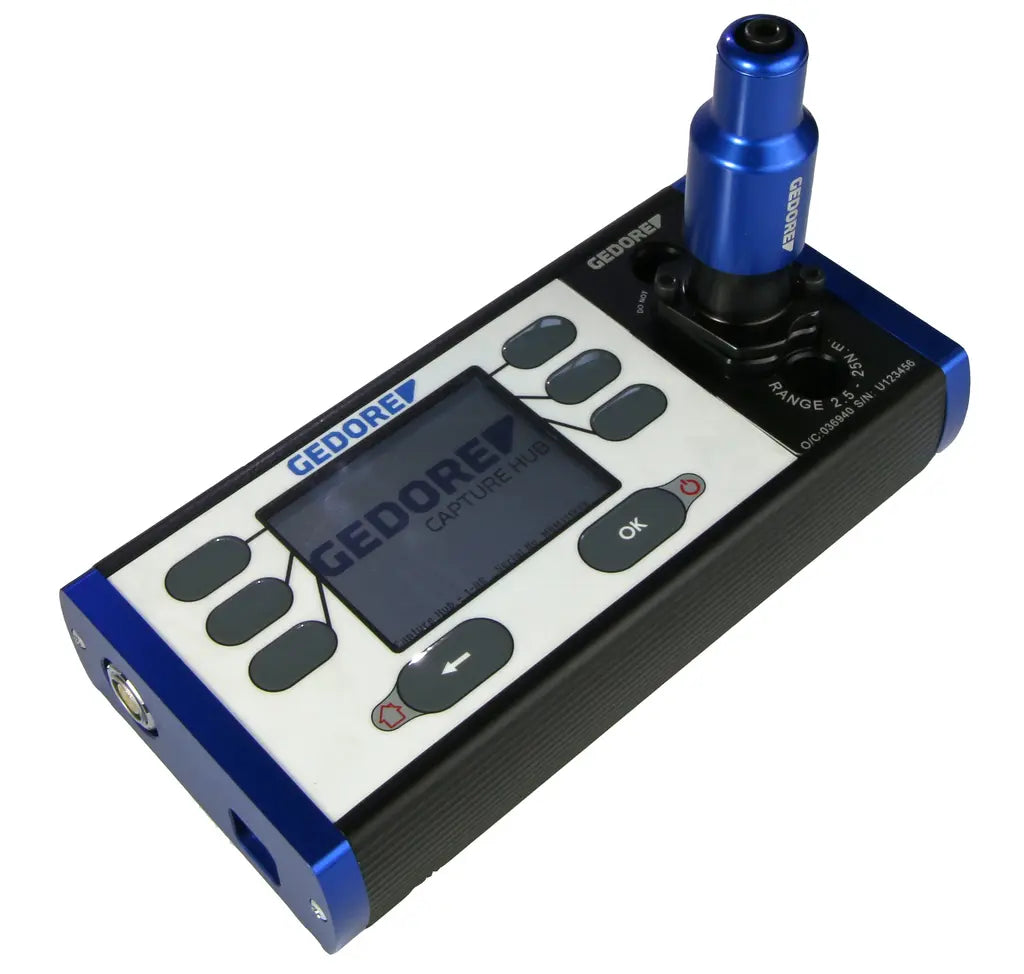

- Adaptable to the Capture Hub and Capture Sensor systems

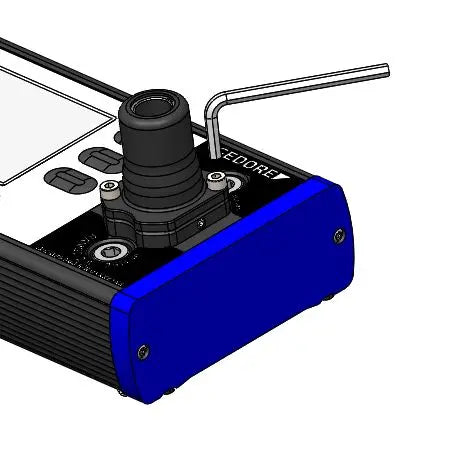

- Easy mounting on the test device
- Different screw case hardnesses can be simulated (spring washer packs)
Specifications:
- Hexagon Drive Connector: 5mm
- Overall Weight: 1.1 lbs
- Output Square: 6.3mm
- Maximum Torque: 2 Nm
- Total Length: 100mm
- Total Width: 32mm
