Gedore Capture Screw Joint Simulator, 0.5 - 5 Nm - GD 3119297
A capture screw joint simulator is a precision testing instrument designed to replicate the behavior of threaded fasteners under torque. It provides a safe, consistent, and repeatable method for testing and calibrating torque tools such as screwdrivers, nutrunners, and torque wrenches, without the need for real assemblies. By simulating screw joint conditions, it enables accurate evaluation of tool performance, ensuring fastening reliability in manufacturing, quality control, and calibration environments.
Features:
- Capture screw joint simulator for testing screwdrivers
- 3 Models ranging from 0.02 Nm to 25 Nm

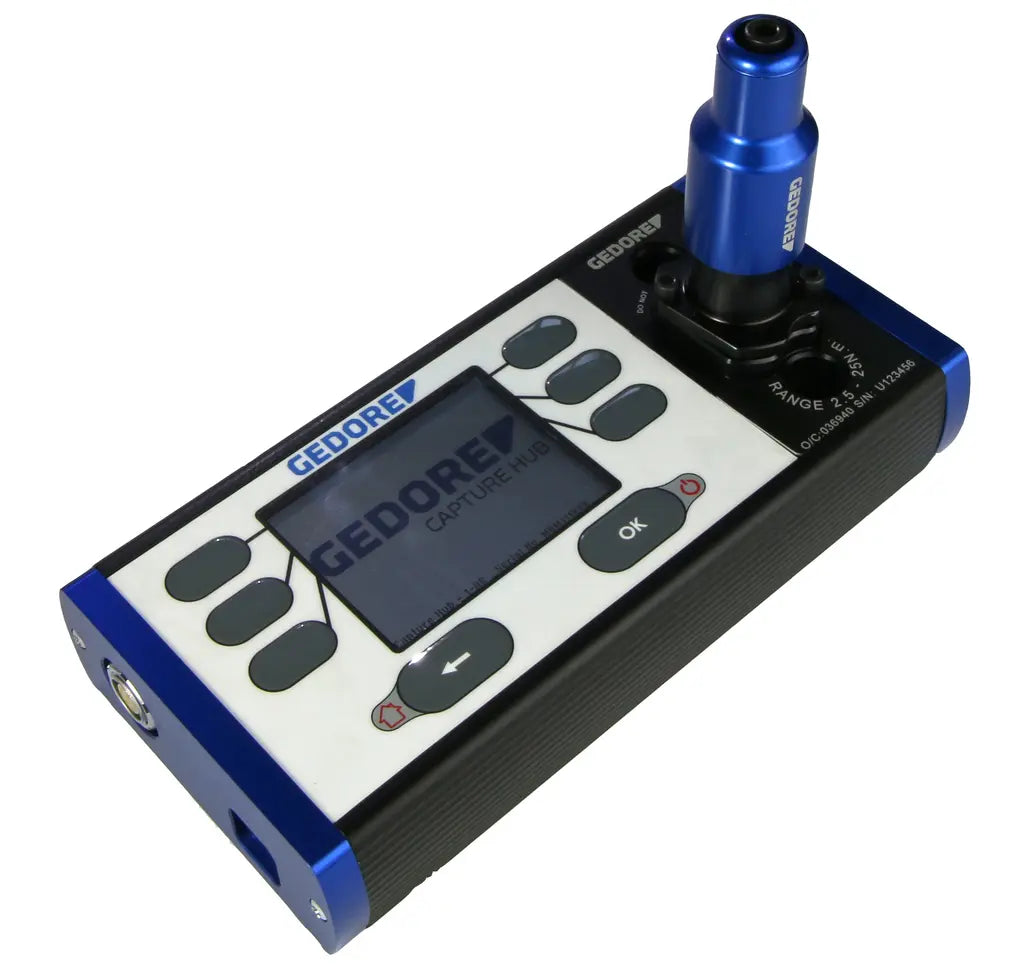

- Adaptable to the Capture Hub and Capture Sensor systems

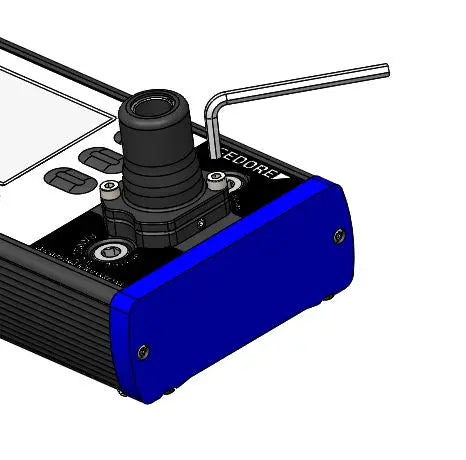

- Easy mounting on the test device
- Different screw case hardnesses can be simulated (spring washer packs)
Specifications:
- Hexagon Drive Connector: 5mm
- Overall Weight: 1.1 lbs
- Output Square: 6.3mm
- Maximum Torque: 5 Nm
- Total Length: 82mm
- Total Width: 32mm
