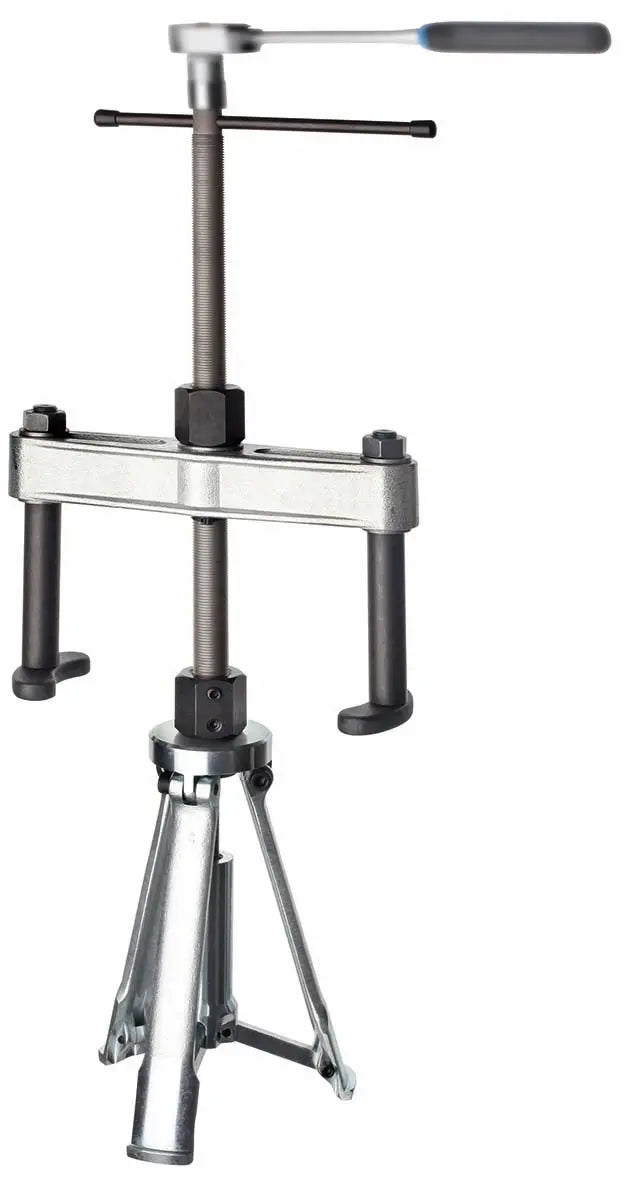

Gedore Cylinder Liner Puller - GD 8017200

A Cylinder Liner Puller is a specialized tool designed for the efficient removal of cylinder liners from engine blocks, ensuring minimal damage and effort. Essential for automotive mechanics and engine rebuilders, this tool simplifies the process of extracting liners, which can otherwise be challenging and time-consuming.

Features:

• Wet heavy-vehicle (e.g. Mercedes Benz, MAN) cylinder liners, automobile and stationary-engine liners, and other parts may be extracted using this puller
• Operation:
  • The spindle of the counter-support brace is screwed into the clamping nut of the puller, and the puller inserted into the liner. The counter-support brace is placed on to the cylinder block
  • By turning the spindle, all three jaws quickly and easily spread tightly under the edge of the bushing due to the novel spreading system. Then tighten the nut of the counter support

Specifications:

• Connecting Thread: G 1/2 in
• Weight: 14.99 lbs
• Spread Range: 60 - 160mm
• Width Across Flats: 36mm
