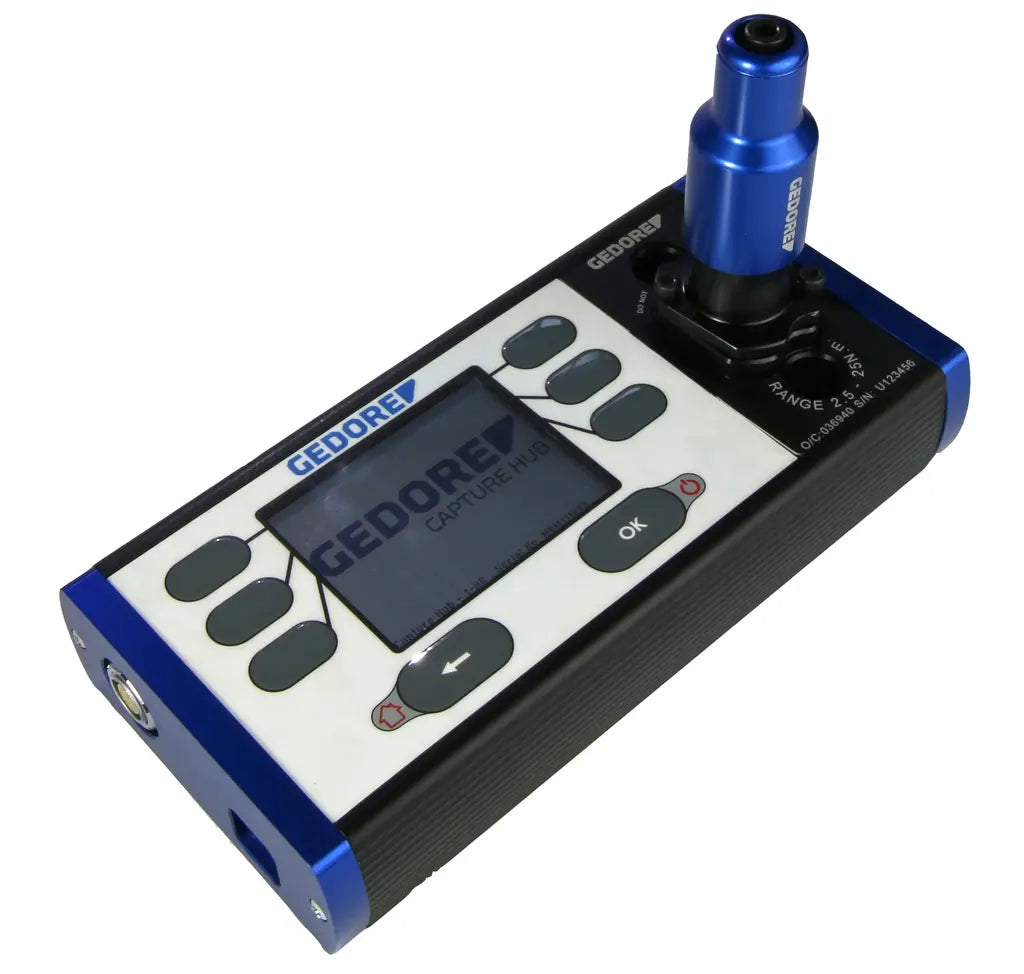

Gedore Electronic Test Device Capture Hub, 0.2-2 Nm - GD 3124045

Introducing the Electronic Test Device Capture Hub, a cutting-edge tool engineered for professionals who demand accuracy and reliability in their testing processes. This device operates within a torque range of 0.2 to 2 Nm, making it ideal for a variety of applications, from automotive diagnostics to industrial machinery assessments. Its user-friendly interface allows for seamless integration into your existing workflow, while the robust construction ensures durability even in the most demanding environments. Equipped with advanced features such as real-time data capture and analysis, this capture hub not only enhances your testing efficiency but also provides you with precise measurements that you can trust. Whether you are a technician, engineer, or quality assurance specialist, the Electronic Test Device Capture Hub is your essential partner in achieving optimal performance and quality control in your projects. Experience the future of electronic testing today and elevate your standards of accuracy and reliability.

Features:

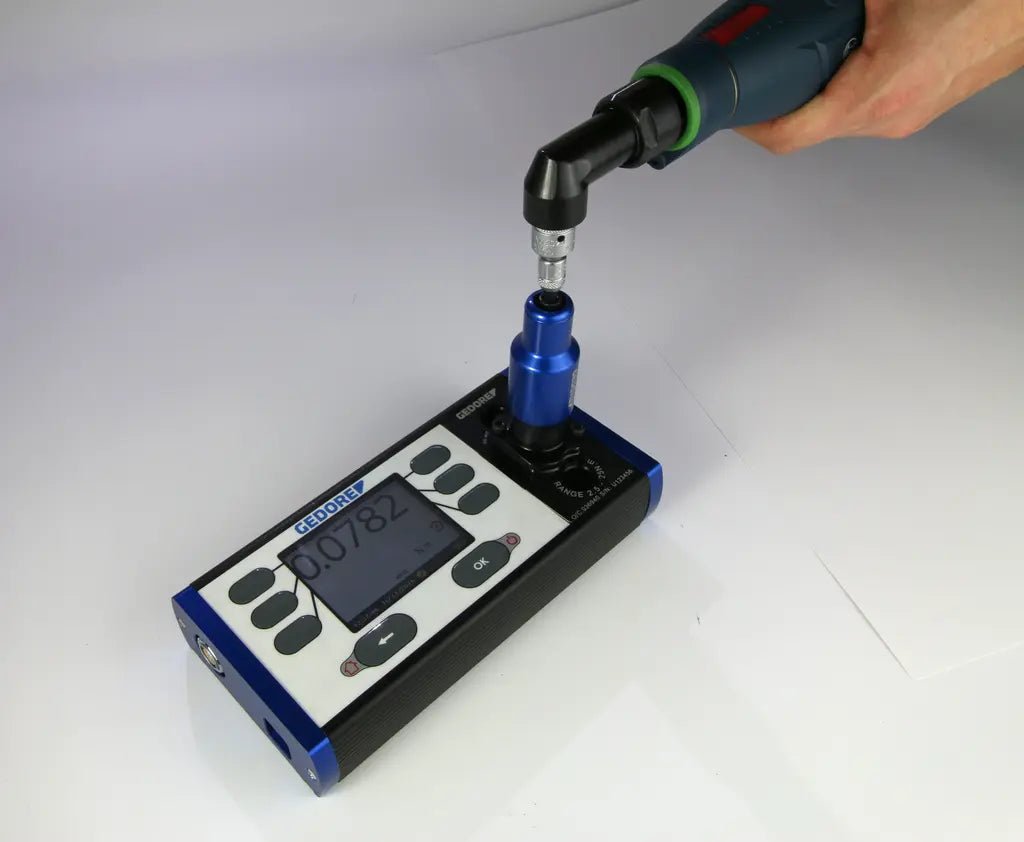

• Digital torque tester for testing torque wrenches and torque screwdrivers

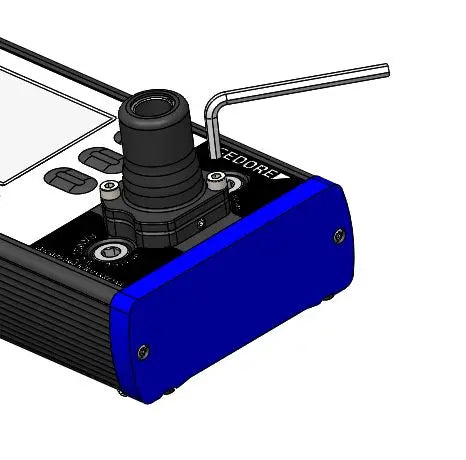

• Light and robust thanks to the aluminum basic housing, horizontal and vertical mounting possible
• 4 models in the range of 0.1-25 Nm
• With 1/4 "square socket (CH25 with 3/8")
• Measuring tolerance +/- 1 % for all readings
• 4 Measurement modes - sliding value display (track), breakpoint detection (first peak), peak value measurement (peak), screwdriver test

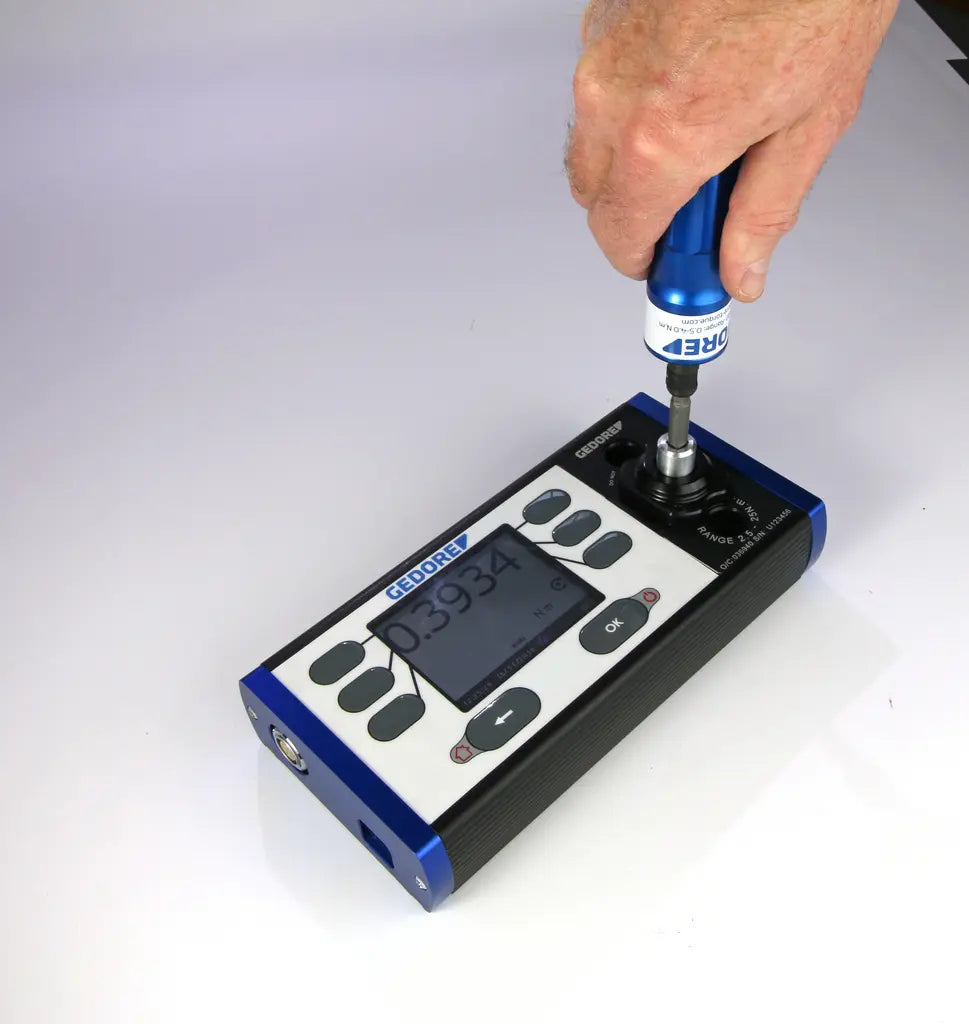

• Including screw joint simulator attachment for testing screwdrivers
• Switchable units Nm, cNm, lbf.ft, lbf.in, ozf.in
• 50 Test sequences can be programmed
• 2000 Measured values can be saved

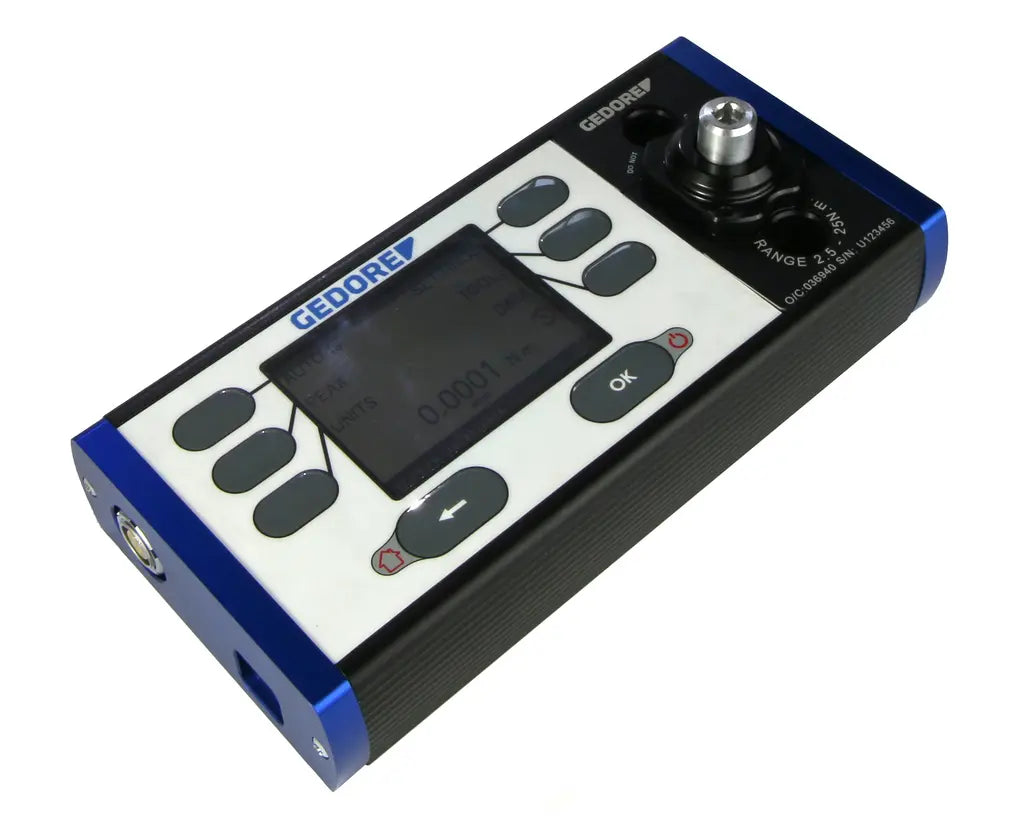

• Clear and high-contrast TFT display
• Expandable by an additional capture sensor (connection socket available)
• Powerful lithium-ion battery for Line Side mains-independent work
• Data output and mains operation via USB connection
• Optional: PC evaluation software "Capture Manager" (2908778)
• Scope of Delivery:
  • Free evaluation PC software included
  • Screw joint simulator
  • USB cable
  • Power supply unit with Euro plug
  • Operating instructions
  • Test certificate
  • Stable plastic case with inlay

Specifications:

• Square Drive Mount: 6.3mm
• Interface: USB
• Material: Aluminum Housing
• Net Weight: 1.1 lbs
• Resolution: 0.0001
• Maximum Torque: 2 Nm
• Minimum Torque: 0.2 Nm
• Total Height: 50mm
• Total Length: 200mm
• Total Width: 110mm
