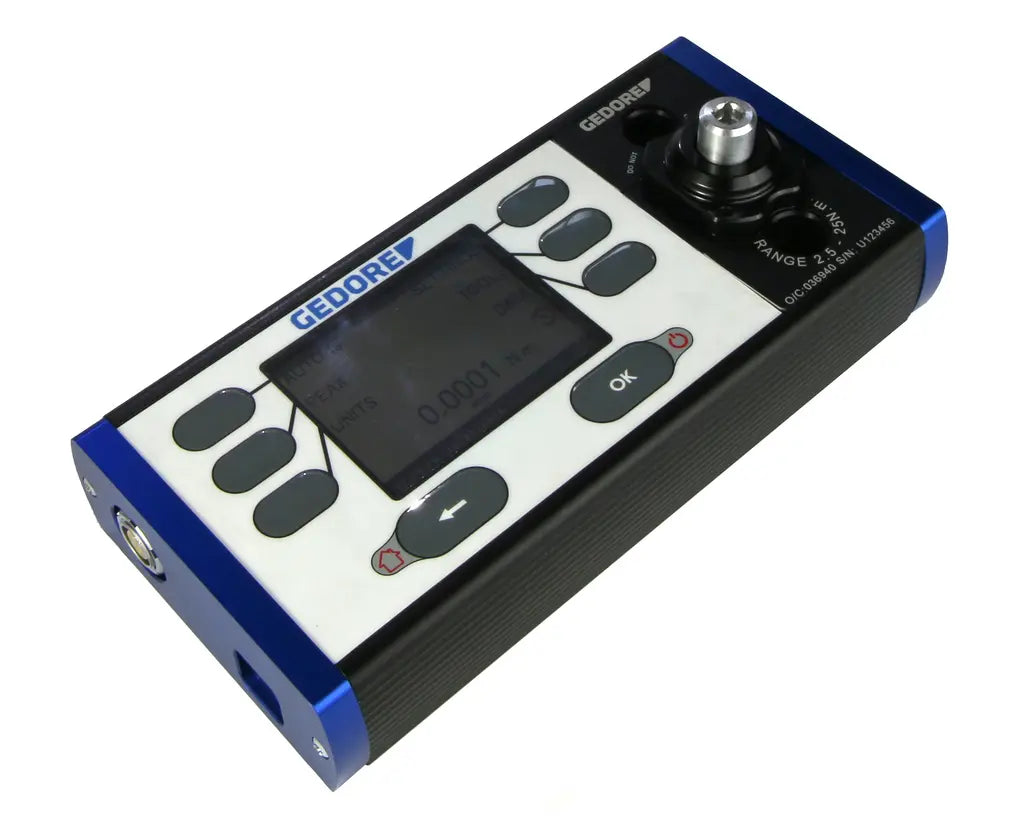

Gedore Electronic Test Device Capture Hub, 2.5-25 Nm - GD 3124061

Introducing the Electronic Test Device Capture Hub, designed to provide exceptional performance in measuring torque within the range of 2.5-25 Nm. This advanced device is perfect for professionals and enthusiasts alike, ensuring that you achieve precise and reliable results every time. With its user-friendly interface, the Capture Hub allows for seamless integration with various electronic test devices, making it an essential tool in any testing environment. The compact design ensures portability without compromising on functionality, while the robust construction guarantees durability even in the most demanding conditions. Whether you're conducting routine maintenance, quality control, or experimental testing, this hub offers the versatility and accuracy you need. Enhance your testing capabilities and streamline your workflow with the Electronic Test Device Capture Hub, where precision meets innovation.

Features:

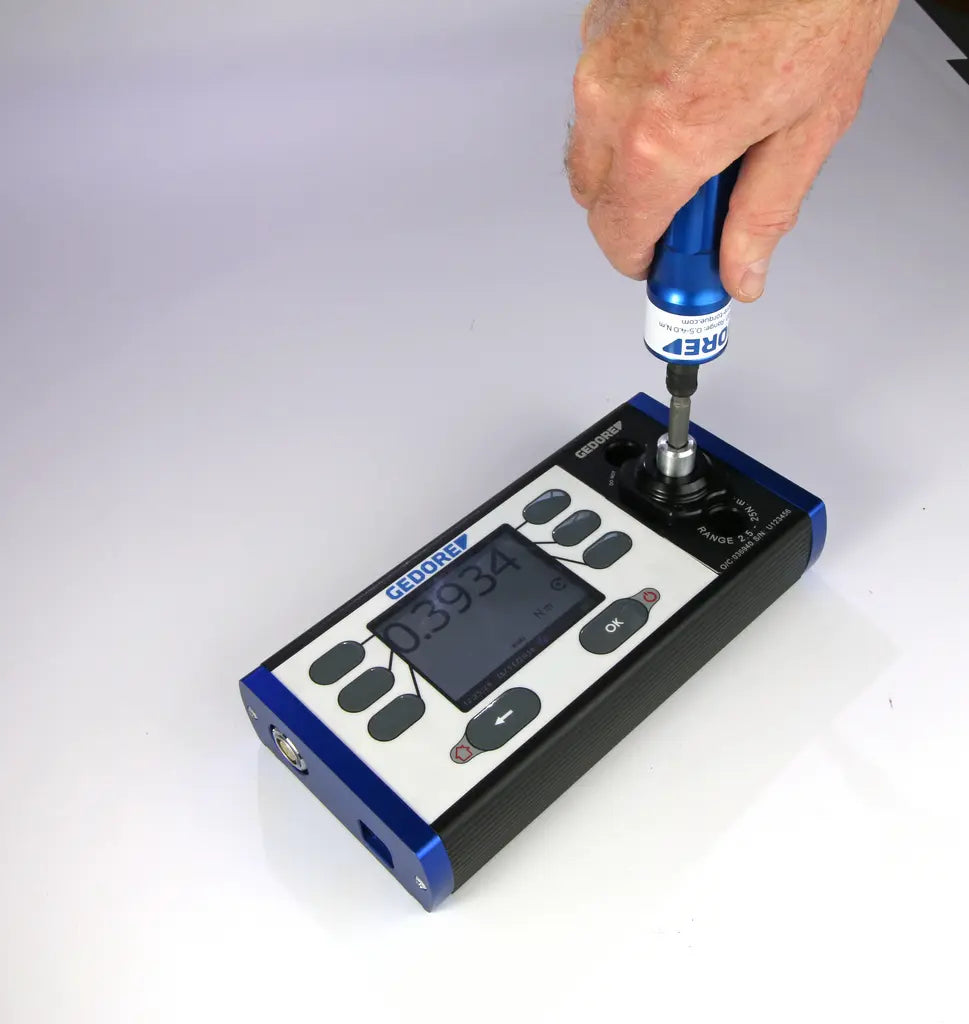

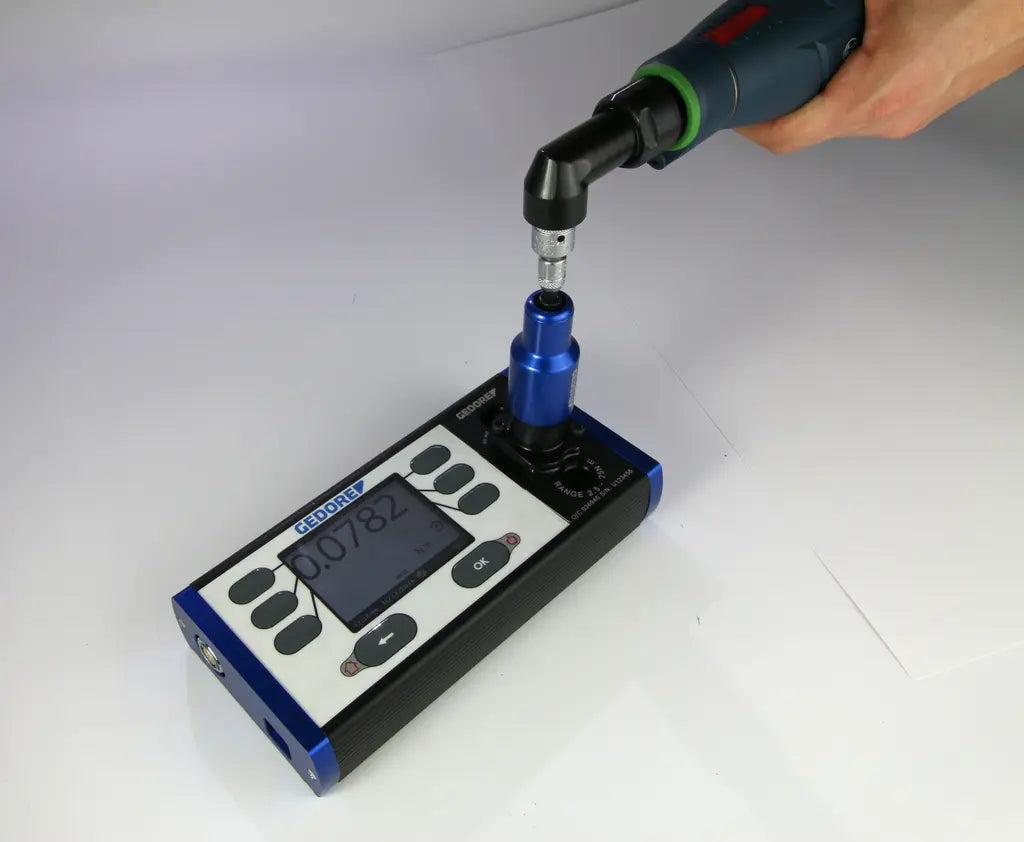

• Digital torque tester for testing torque wrenches and torque screwdrivers
• Light and robust thanks to the aluminum basic housing, horizontal and vertical mounting possible
• 4 models in the range of 0.1-25 Nm
• With 1/4 "square socket (CH25 with 3/8")
• Measuring tolerance +/- 1 % for all readings
• 4 Measurement modes - sliding value display (track), breakpoint detection (first peak), peak value measurement (peak), screwdriver test

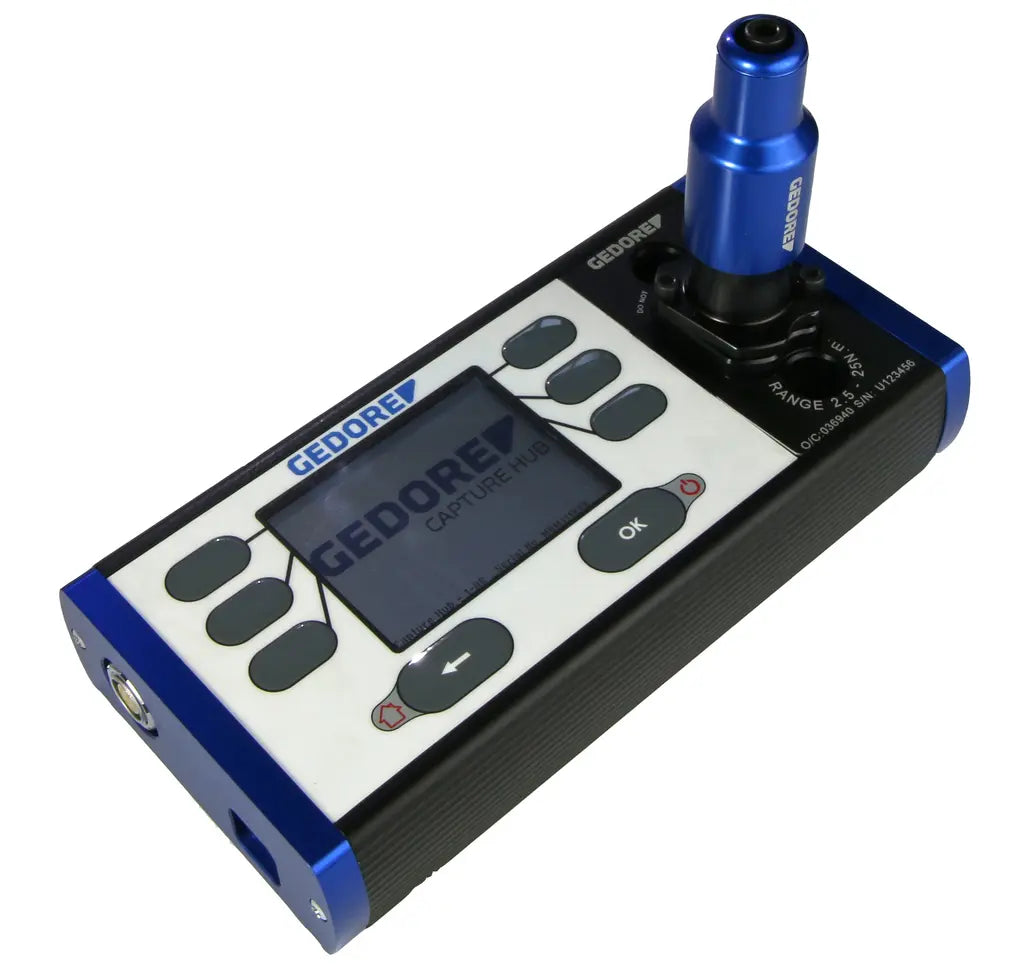

• Including screw joint simulator attachment for testing screwdrivers
• Switchable units Nm, cNm, lbf.ft, lbf.in, ozf.in
• 50 Test sequences can be programmed
• 2000 Measured values can be saved
• Clear and high-contrast TFT display
• Expandable by an additional capture sensor (connection socket available)
• Powerful lithium-ion battery for Line Side mains-independent work
• Data output and mains operation via USB connection
• Optional: PC evaluation software "Capture Manager" (2908778)
• Scope of Delivery:
  • Free evaluation PC software included
  • Screw joint simulator
  • USB cable
  • Power supply unit with Euro plug
  • Operating instructions
  • Test certificate
  • Stable plastic case with inlay

Specifications:

• Square Drive Mount: 10mm
• Interface: USB
• Material: Aluminum Housing
• Net Weight: 1.1 lbs
• Resolution: 0.001
• Maximum Torque: 25 Nm
• Minimum Torque: 2.5 Nm
• Total Height: 50mm
• Total Length: 200mm
• Total Width: 110mm
