Gedore Electronic Tester Capture Lite, 0.02-1 Nm - GD 3297888

The Electronic Tester Capture Lite is a cutting-edge tool designed for professionals and enthusiasts alike who demand accuracy and reliability in their measurements. With a torque range of 0.02-1 Nm, this electronic tester is perfect for a variety of applications, including assembly, maintenance, and quality control. Its compact design allows for easy handling and storage, while the intuitive interface ensures that you can operate it with minimal training. The high-resolution display provides clear readings, making it easy to monitor your measurements in real-time. Whether you're working on delicate components or heavy machinery, the Electronic Tester Capture Lite is your go-to solution for precise torque testing. Invest in quality and enhance your workflow with this essential tool.

Features:

• Electronic testing device for intermediate inspection and adjustment of right-handed torque wrenches/screwdrivers
• Ideally suited for checking preset torque wrenches
• Plug and Work - Simple and fast inspection of torque wrenches/screwdrivers within the production line
• 7 Models in the range from 0,02 to 3.000 N.m
• With utmost precision - measurement accuracy of +/- 1% at all readings (+/-1 digit) - even the highest industrial requirements are met
• Switching measurement modes and units via simple one-button operation
• Features three measurement modes - Track (sliding value display), First-Peak (breakpoint detection), and Peak (peak value measurement)
• Switchable between Nm, lbf.ft and lbf.in
• The display value is automatically reset (auto reset)
• Data transfer and power supply via USB interface
• Delivered with a factory certificate
• 2xM12 Tightening torque 47 N.m (size 8 mm hex key)
• Free evaluation PC software for plausibility checks included in the delivery scope

Set Contains:

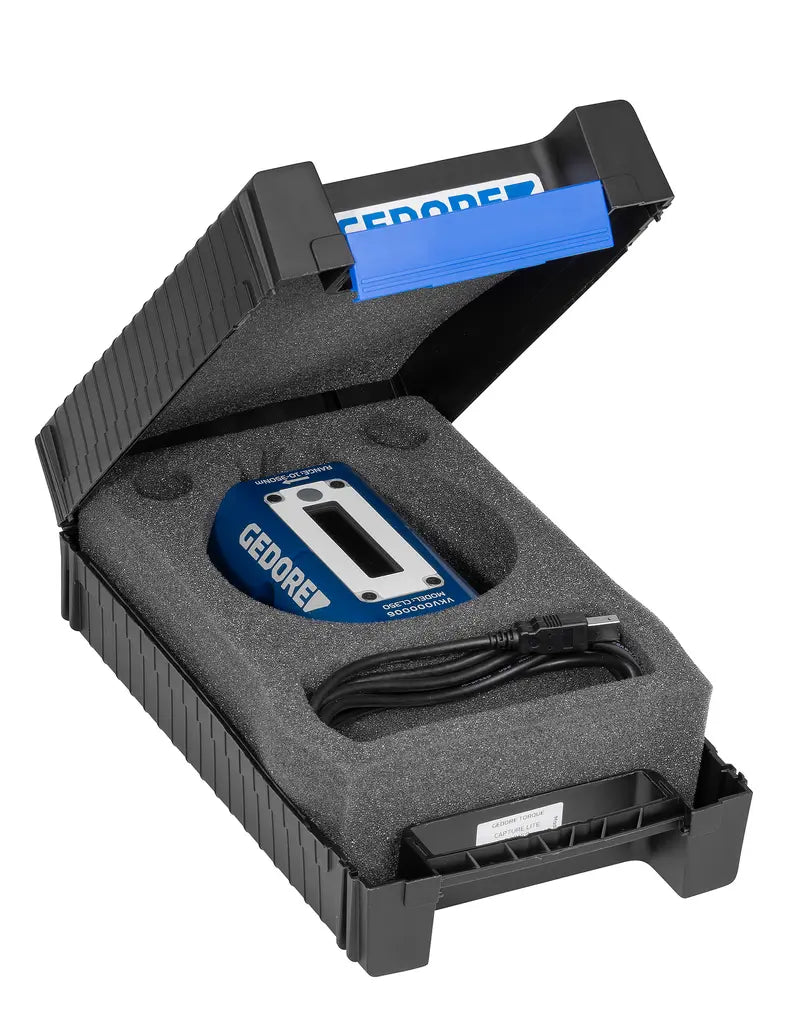

• Plastic case, USB connection cable, Evaluation software, Mounting screws, User manual, Test certificate

Specifications:

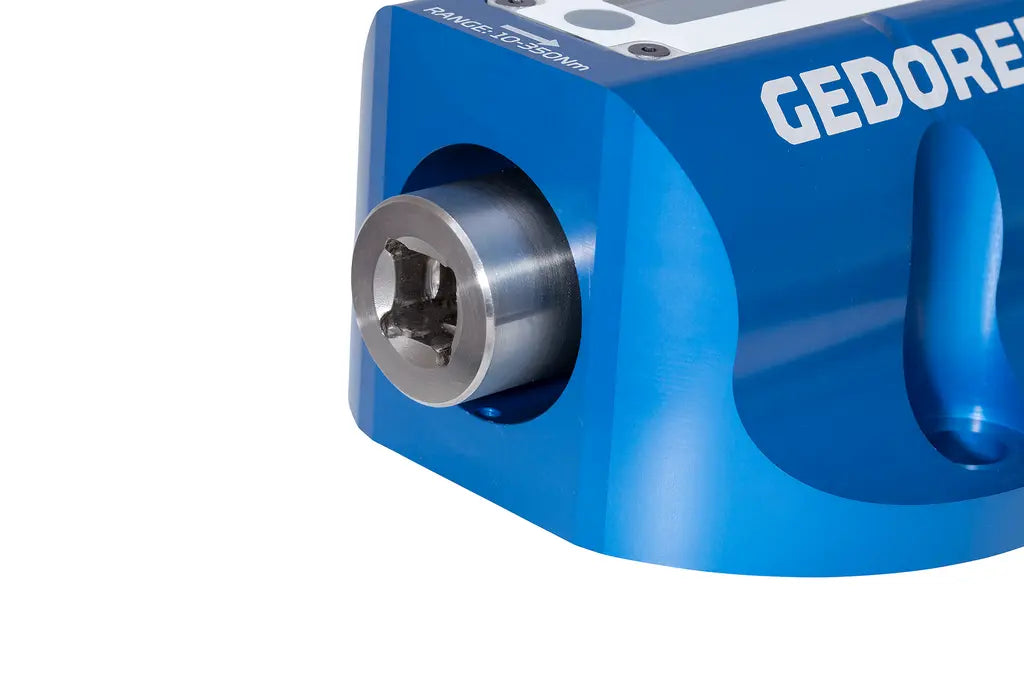

• Hexagon Drive Connector: 6.3mm
• Interface: USB
• Material: Aluminum Housing
• Net Weight: 2.65 lbs
• Resolution: 0.0001
• Surface: Anodized
• Maximum Torque: 1 Nm
• Minimum Torque: 0.02 Nm
• Total Height: 70mm
• Total Length: 135mm
• Total Width: 120mm
