Gedore Electronic Tester Capture Lite, 80-1100 Nm - GD 3297934

The Electronic Tester Capture Lite is designed for professionals who demand accuracy and reliability in their work. With a torque range of 80-1100 Nm, this advanced electronic tester allows you to measure torque with exceptional precision, ensuring that your projects are completed to the highest standards. Its user-friendly interface and clear digital display make it simple to operate, even in challenging environments. Built with durability in mind, the Capture Lite is lightweight yet robust, making it ideal for both fieldwork and workshop use. Whether you're a mechanic, engineer, or DIY enthusiast, this tool will enhance your testing capabilities and streamline your workflow. Don't settle for less - experience the difference with the Electronic Tester Capture Lite.

Features:

• Electronic testing device for intermediate inspection and adjustment of right-handed torque wrenches/screwdrivers
• Ideally suited for checking preset torque wrenches
• Plug and Work - Simple and fast inspection of torque wrenches/screwdrivers within the production line
• 7 Models in the range from 0,02 to 3.000 N.m
• With utmost precision - measurement accuracy of +/- 1% at all readings (+/-1 digit) - even the highest industrial requirements are met
• Switching measurement modes and units via simple one-button operation
• Features three measurement modes - Track (sliding value display), First-Peak (breakpoint detection), and Peak (peak value measurement)
• Switchable between Nm, lbf.ft and lbf.in
• The display value is automatically reset (auto reset)
• Data transfer and power supply via USB interface
• Delivered with a factory certificate
• 2xM12 Tightening torque 47 N.m (size 8 mm hex key)
• Free evaluation PC software for plausibility checks included in the delivery scope

Set Contains:

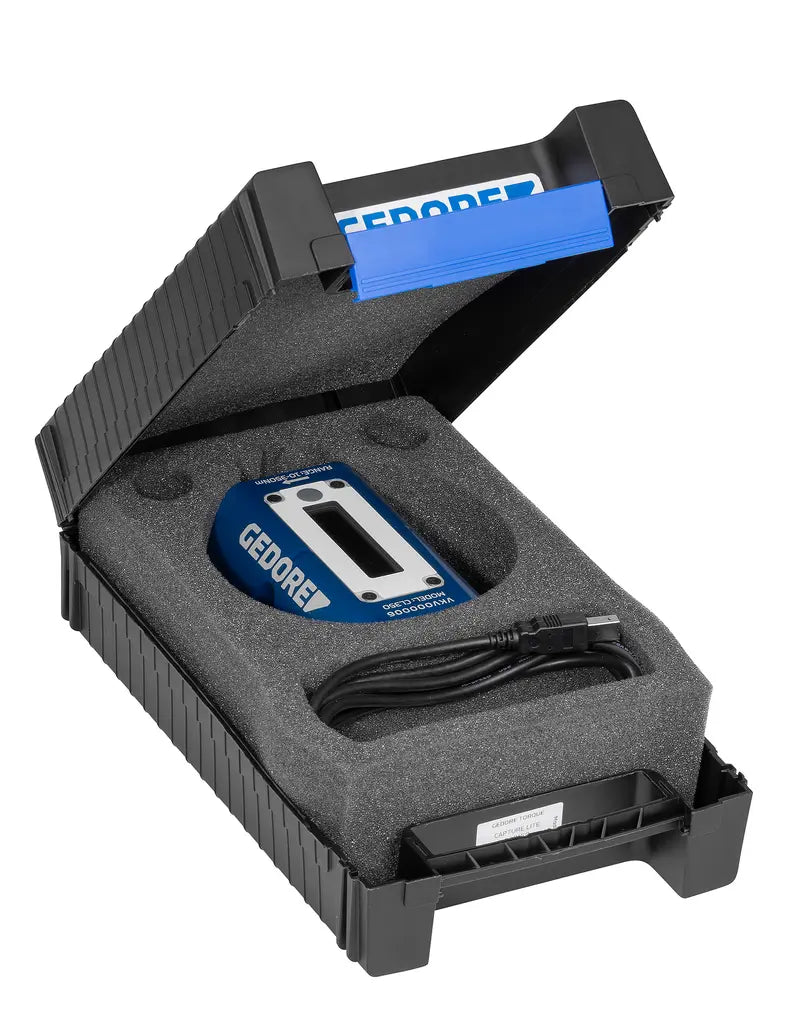

• Plastic case, USB connection cable, Evaluation software, Adapter (1" square, 3/4" square), Mounting screws, User manual, Test certificate

Specifications:

• Hexagon Drive Connector: 36mm
• Square Drive Mount: 25mm
• Interface: USB
• Material: Aluminum Housing
• Net Weight: 11.03 lbs
• Resolution: 0.1
• Surface: Anodized
• Maximum Torque: 1100 Nm
• Minimum Torque: 80 Nm
• Total Height: 100mm
• Total Length: 140mm
• Total Width: 120mm
