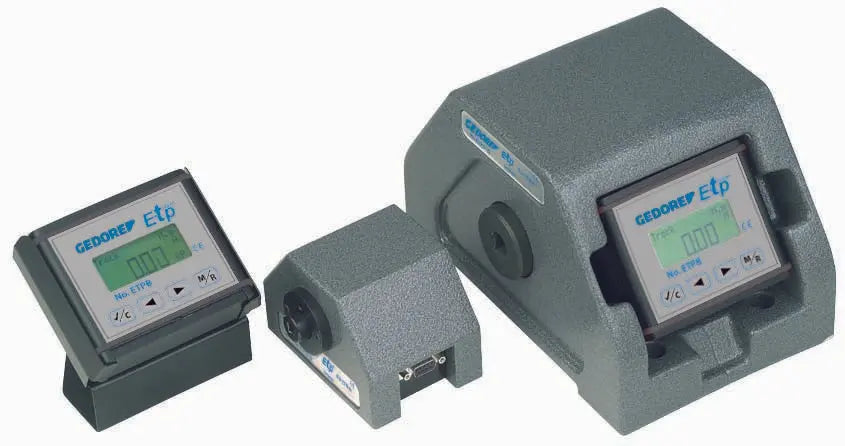

Gedore 2795884, Electronic torsion test device 300-3150 Nm, 1.1/2"
The Gedore 2795884, Electronic torsion test device 300-3150 Nm, 1.1/2" is available to order online. Contact us if you find the Gedore 2795884, Electronic torsion test device 300-3150 Nm, 1.1/2" at a better price.
FEATURES:
- For testing, and verifying clockwise and anti-clockwise torque wrenches
- Vertical and horizontal testing according to DIN EN ISO 6789
- Electronic torque tester integrated with measurement electronics
- Robust housing from aluminium cast (except ETP 3150) with separate or detachable operating display
- Serial interface RS232 for PC
- Traceable to national standards
- No. ETP 15 with integrated overload protection and tool for manual resetting after unintended overload
- Torque reading precision +/- 1 %, +/- 1 digit from reading figure
- Factory certificate based on VDI 2646
- Optional certificate as per DAkkS-DKD-R 3-8
- A large LC graphic display
- Wide measuring range in Nm, can be switched to cNm, lbf.ft or lbf.in (model dependant)
- Power supply unit with EURO plug (UK, US, AUS-adaptor on request)
- Scope of delivery: Operating display, display holder incl. cable, software incl. connection cable for PC
- Adapter cable RS232 to USB optionally available (Code 1957880)
Tech Specs:
- Adaptor: 3/4", 1"
- Drive mount, square [metric]: 40,0 mm
- Drive connector square [inch]: 1.1/2"
- Resolution: 1.0
- Torque (max.) [lbf.ft]: 2323 lbf.ft
- Torque (min.) [lbf.ft]: 221 lbf.ft
- Torque (max.) [Nm]: 3150 Nm
- Torque (min.) [Nm]: 300 Nm
- Measurement accuracy: +/- 1% Toleranz vom Ablesewert, +/- 1 Digit
- Interface: RS-232
