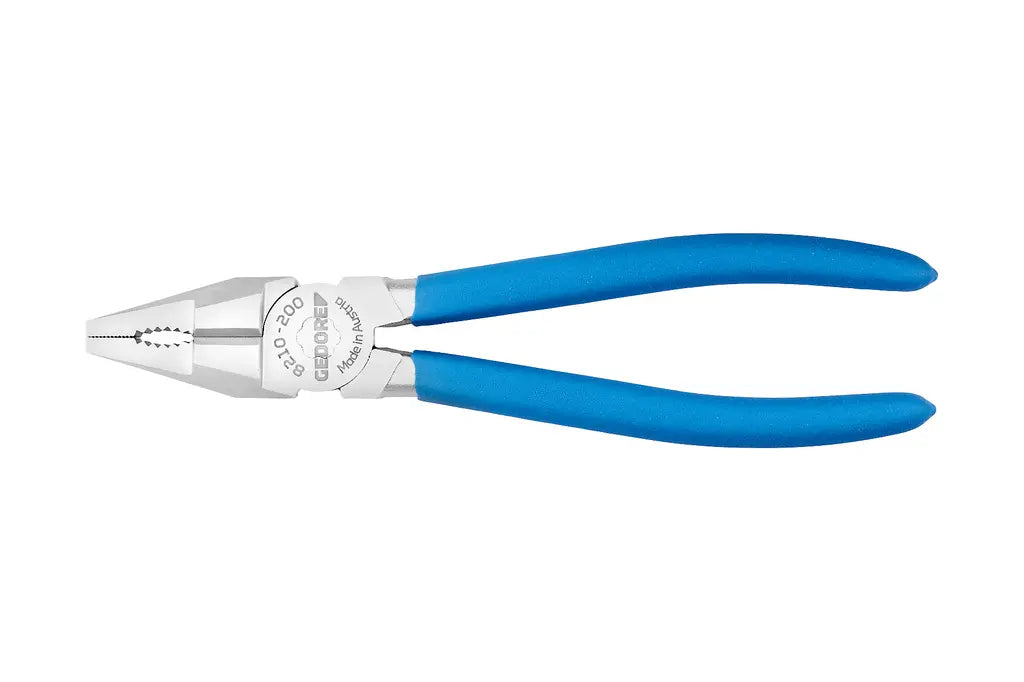

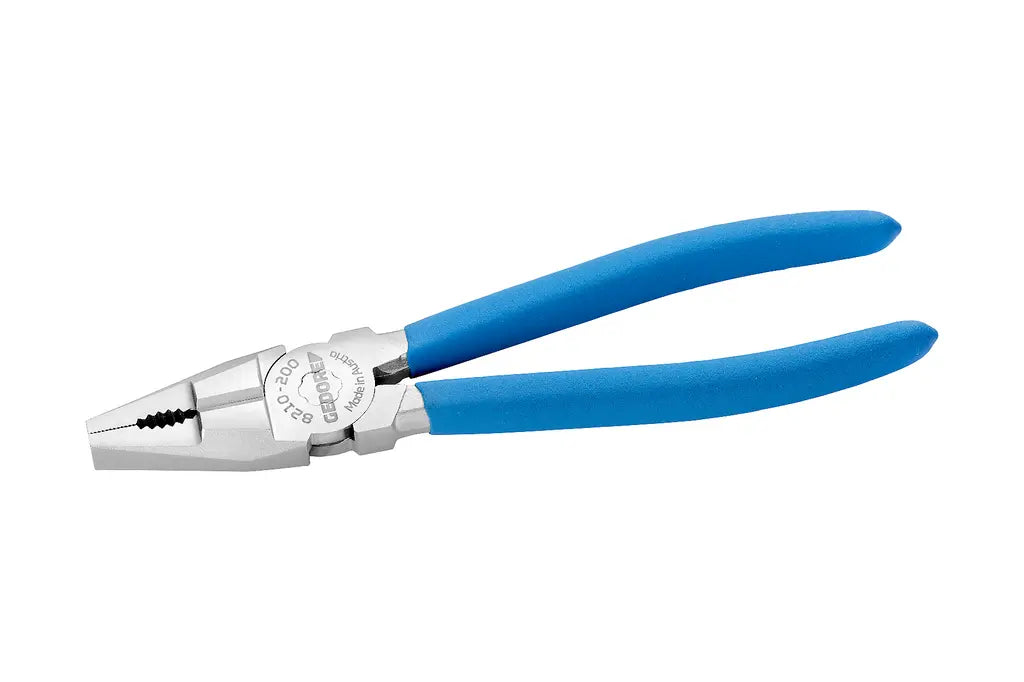

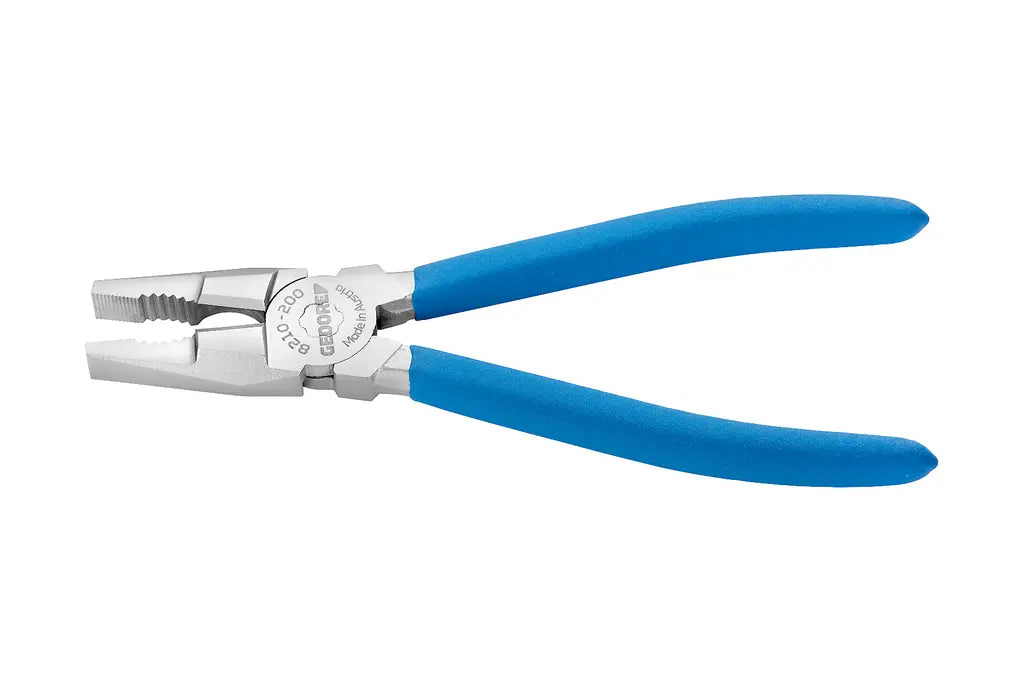

Gedore German Model Chrome-Plated Dip-Insulated Combination Plier, 200mm - GD 3463141
The dip-insulated combination plier is a multifunctional hand tool designed for gripping, cutting, and bending wires in electrical and industrial applications. Featuring ergonomically designed insulated handles, it provides protection against electric shock up to standard rated voltages, making it ideal for electricians, technicians, and maintenance professionals. Crafted from hardened alloy steel, the plier delivers durability, precision, and reliable performance for both heavy-duty and delicate tasks.
Features:
- Reinforced type, for tough continuous operations
- Attached cutting box
- For round and flat material
- For medium-hard wire 1.6 mm
- Induction-hardened precision cutting edges, hardness 62 - 64 HRC
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- JC = Chrome-Plated, with 2-component handle covers
- TL = Steel-Gray, with blue dipped non-slip handles
- TC = Chrome-Plated, with blue dipped handles
Specifications:
- Bevel: With
- Blade Shape: With Facet
- Cutting Values: Hard Wire - 2.5mm / 11 AWG, Medium Hard Wire - 3.8mm / 7 AWG, Soft Wire - 6mm / 3 AWG, Cu Cable. Multi Wire Cross Section - 16mm Sq, Multi-Wire Cable Diameter - 10mm
- Design Non-Sparking: No
- Handle Color: Blue
- Hardening Process: Induction Hardened
- Hardness of Cutting Edge: 62 - 64 HRC
- Head Thickness T1: 12.5mm
- Jaw Length L3: 42mm
- Material: Heat-Treated Steel
- Overall Weight: 0.65 lbs
- Standard: DIN ISO 5746
- Surface: Chrome-Plated
- Thickness of Point: 12.5mm
- Total Height: 15mm
- Total Length: 201mm
- Total Width: 49mm
- Width of Centers W4: 7.4mm
- Width of Head: 29.5mm
