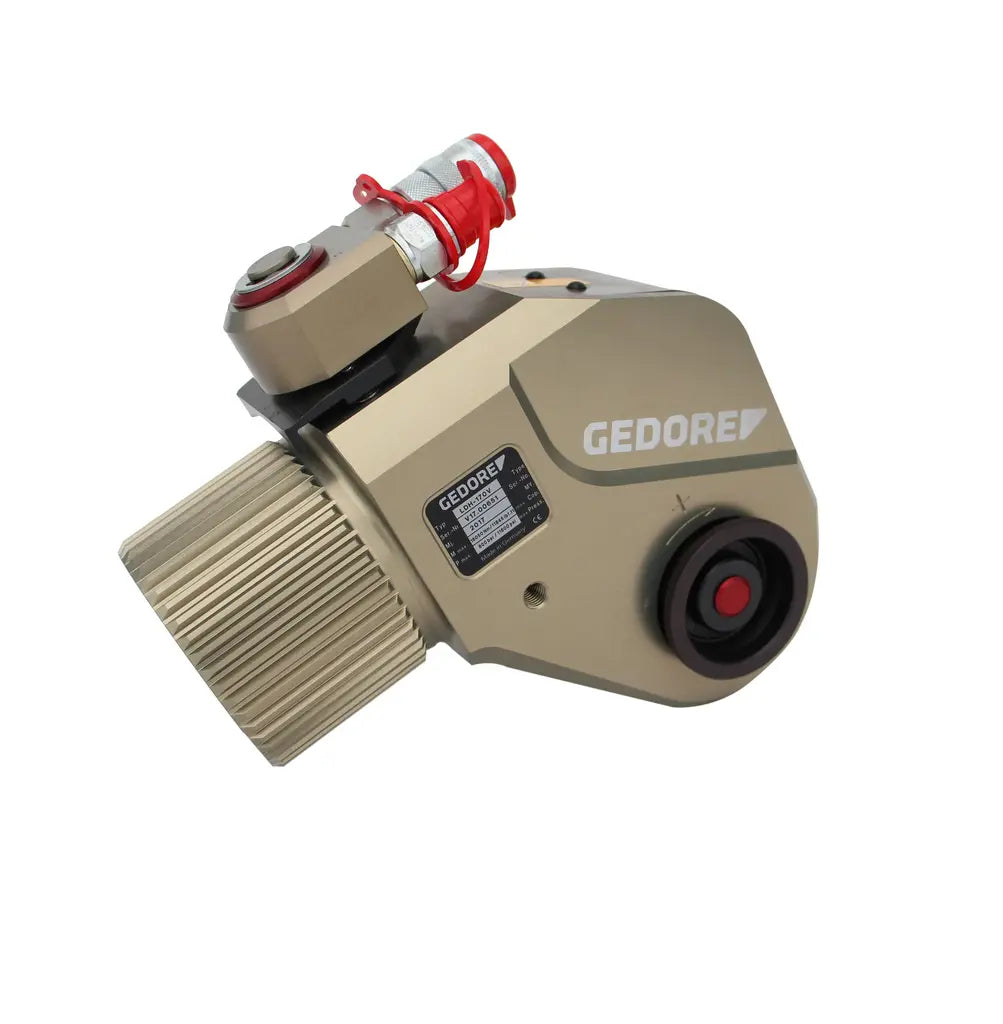

Gedore Hydraulic Wrench Type LDH-100V - GD 15600.002
The Hydraulic Wrench Type LDH-100V is designed for professionals who demand both strength and accuracy in their tools. This high-performance hydraulic wrench is engineered to handle the toughest jobs, providing exceptional torque and reliability. With its ergonomic design, the LDH-100V ensures comfort during prolonged use, making it ideal for various applications in construction, automotive, and industrial settings. Its robust construction guarantees durability, while the advanced hydraulic system offers smooth operation and precise control. Whether you're tightening bolts or loosening stubborn fasteners, the Hydraulic Wrench Type LDH-100V delivers consistent results every time. Upgrade your toolkit with this essential tool and experience the difference in efficiency and performance.
Features:
- Quick-change mechanism for a lightning-fast transfer of the reaction arms
- Pressure bolt technology for easy repositioning of the drive square when changing the direction of rotation
- High pressure couplings 360 deg rotatable in vertical plane
- Integrated pressure relief valve in the hydraulic connection
- Extra large hydraulic bores for minimum system heating
Set Contains:
- Drive square and counter bearing, tool case and operating instructions
Specifications:
- Casing Radius from Square Centre: 39 R
- Square Drive: 1-1/2 in
- Height of Counter Bearing: 13mm
- Height of Hydraulic Connection: 37mm
- Height of Reaction Arm to Center of Housing: 130mm
- Height Square Center to Hydraulic Connection: 115mm
- Length of Reaction Arm Type L(LM)/S(LM): 105/99mm
- Length Square Centre to Beginning of Reaction Arm Type L(LM)/S(LM): 85/150mm
- Net Weight: 17.2 lbs
- Overall Length (LDH with Reaction Arm Type L(LM)/S(LM)): 233/292mm
- Maximum Torque: 10000 Nm
- Minimum Torque: 500 Nm
- Total Length Square: 39mm
- Total Width: 84mm
