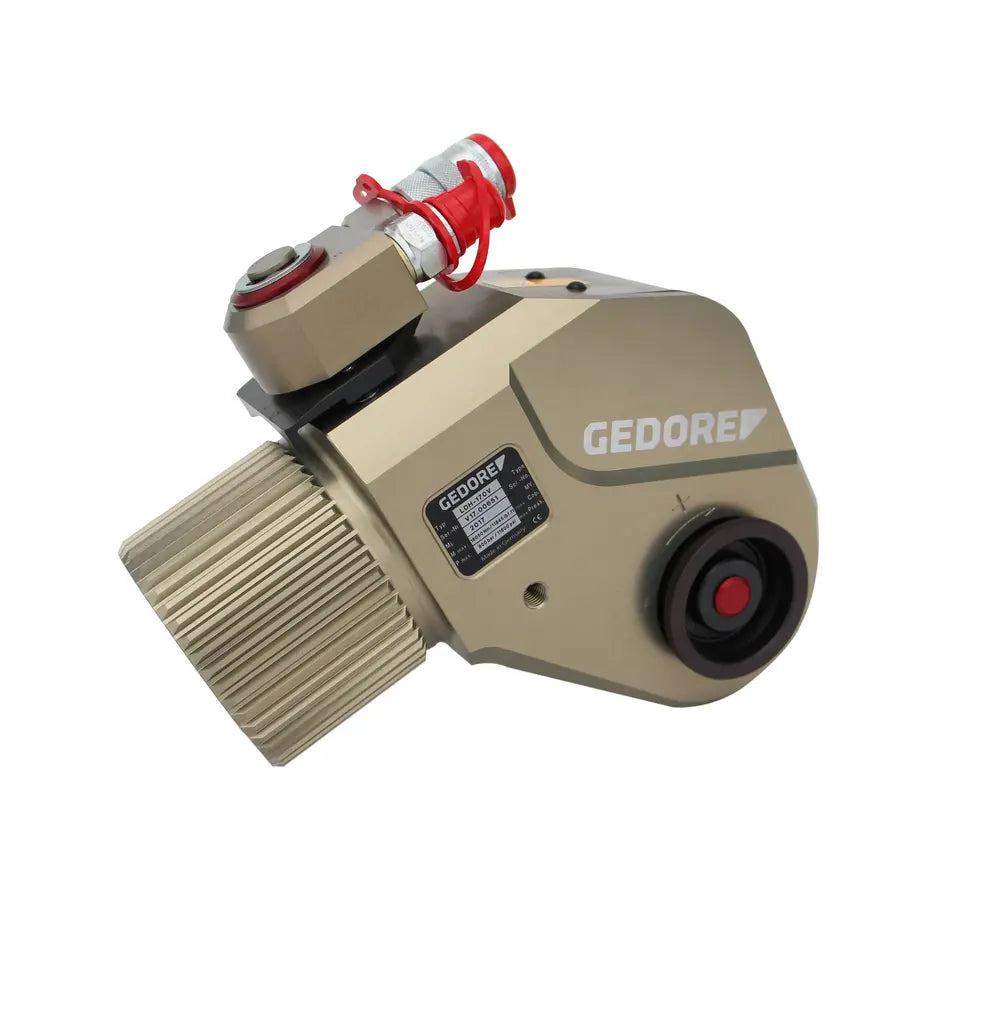

Gedore Hydraulic Wrench Type LDH-170V - GD 15700.002
The Hydraulic Wrench Type LDH-170V is engineered for professionals seeking superior performance and reliability in their tools. This high-efficiency hydraulic wrench offers an impressive torque output, making it ideal for heavy-duty applications such as construction, automotive repair, and industrial maintenance. With its ergonomic design, the LDH-170V ensures comfortable handling and reduces operator fatigue, allowing you to work longer and more effectively. The durable construction withstands rigorous use, while the advanced hydraulic system delivers consistent and precise torque, ensuring that every bolt is tightened to perfection. Whether you are a seasoned professional or a DIY enthusiast, the Hydraulic Wrench Type LDH-170V is your go-to tool for achieving exceptional results in less time. Upgrade your toolkit and experience the difference today.
Features:
- Quick-change mechanism for a lightning-fast transfer of the reaction arms
- Pressure bolt technology for easy repositioning of the drive square when changing the direction of rotation
- High pressure couplings 360 deg rotatable in vertical plane
- Integrated pressure relief valve in the hydraulic connection
- Extra large hydraulic bores for minimum system heating
Set Contains:
- Drive square and counter bearing, tool case and operating instructions
Specifications:
- Casing Radius from Square Centre: 48 R
- Square Drive: 1-1/2 in
- Height of Counter Bearing: 11mm
- Height of Hydraulic Connection: 50mm
- Height of Reaction Arm to Center of Housing: 150mm
- Height Square Center to Hydraulic Connection: 135mm
- Length of Reaction Arm Type L(LM)/S(LM): 118/108mm
- Length Square Centre to Beginning of Reaction Arm Type L(LM)/S(LM): 93/163mm
- Net Weight: 26.02 lbs
- Overall Length (LDH with Reaction Arm Type L(LM)/S(LM)): 265/325mm
- Maximum Torque: 16000 Nm
- Minimum Torque: 800 Nm
- Total Length Square: 45mm
- Total Width: 100mm
